Chapter 5. Extracting Features from an Image

In this chapter, we are going to learn how to detect salient points, also known as keypoints, in an image. We will discuss why these keypoints are important and how we can use them to understand the image content. We will talk about different techniques that can be used to detect these keypoints, and understand how we can extract features from a given image.

By the end of this chapter, you will know:

• What are keypoints and why do we care about them

• How to detect keypoints

• How to use keypoints for image content analysis

• The different techniques to detect keypoints

• How to build a feature extractor

Why do we care about keypoints?

Image content analysis refers to the process of understanding the content of an image so that we can take some action based on that. Let's take a step back and talk about how humans do it. Our brain is an extremely powerful machine that can do complicated things very quickly. When we look at something, our brain automatically creates a footprint based on the "interesting" aspects of that image. We will discuss what interesting means as we move along this chapter.

For now, an interesting aspect is something that's distinct in that region. If we call a point interesting, then there shouldn't be another point in its neighborhood that satisfies the constraints. Let's consider the following image:

Now close your eyes and try to visualize this image. Do you see something specific? Can you recollect what's in the left half of the image? Not really! The reason for this is that the image doesn't have any interesting information. When our brain looks at something like...

What are keypoints?

Now that we know that keypoints refer to the interesting regions in the image, let's dig a little deeper. What are keypoints made of? Where are these points? When we say "interesting", it means that something is happening in that region. If the region is just uniform, then it's not very interesting. For example, corners are interesting because there is sharp change in intensity in two different directions. Each corner is a unique point where two edges meet. If you look at the preceding images, you will see that the interesting regions are not completely made up of "interesting" content. If you look closely, we can still see plain regions within busy regions. For example, consider the following image:

If you look at the preceding object, the interior parts of the interesting regions are "uninteresting".

So, if we were to characterize this object, we would need to make sure that we picked the interesting points. Now, how do we define "interesting points"? Can we just say...

Detecting the corners

Since we know that the corners are "interesting", let's see how we can detect them. In computer vision, there is a popular corner detection technique called Harris Corner Detector. We basically construct a 2x2 matrix based on partial derivatives of the grayscale image, and then analyze the eigenvalues. This is actually an oversimplification of the actual algorithm, but it covers the gist. So, if you want to understand the underlying mathematical details, you can look into the original paper by Harris and Stephens at http://www.bmva.org/bmvc/1988/avc-88-023.pdf. A corner point is a point where both the eigenvalues would have large values.

Let's consider the following image:

If you run the Harris corner detector on this image, you will see something like this:

As you can see, all the black dots correspond to the corners in the image. If you notice, the corners at the bottom of the box are not detected. The reason for this is that the corners are not sharp enough. You can...

Good Features To Track

Harris corner detector performs well in many cases, but it misses out on a few things. Around six years after the original paper by Harris and Stephens, Shi-Tomasi came up with a better corner detector. You can read the original paper at http://www.ai.mit.edu/courses/6.891/handouts/shi94good.pdf. They used a different scoring function to improve the overall quality. Using this method, we can find the 'N' strongest corners in the given image. This is very useful when we don't want to use every single corner to extract information from the image.

If you apply the Shi-Tomasi corner detector to the image shown earlier, you will see something like this:

Following is the code:

import cv2
import numpy as np

img = cv2.imread('box.jpg')
gray = cv2.cvtColor(img,cv2.COLOR_BGR2GRAY)

corners = cv2.goodFeaturesToTrack(gray, 7, 0.05, 25)
corners = np.float32(corners)

for item in corners:
    x, y = item[0]
    cv2.circle(img, (x,y), 5, 255, -1)

cv2.imshow("Top 'k' features", img...

Scale Invariant Feature Transform (SIFT)

Even though corner features are "interesting", they are not good enough to characterize the truly interesting parts. When we talk about image content analysis, we want the image signature to be invariant to things such as scale, rotation, illumination, and so on. Humans are very good at these things. Even if I show you an image of an apple upside down that's dimmed, you will still recognize it. If I show you a really enlarged version of that image, you will still recognize it. We want our image recognition systems to be able to do the same.

Let's consider the corner features. If you enlarge an image, a corner might stop being a corner as shown below.

In the second case, the detector will not pick up this corner. And, since it was picked up in the original image, the second image will not be matched with the first one. It's basically the same image, but the corner features based method will totally miss it. This means that corner detector is not exactly...

Speeded Up Robust Features (SURF)

Even though SIFT is nice and useful, it's computationally intensive. This means that it's slow and we will have a hard time implementing a real-time system if it uses SIFT. We need a system that's fast and has all the advantages of SIFT. If you remember, SIFT uses the difference of Gaussian to build the pyramid and this process is slow. So, to overcome this, SURF uses a simple box filter to approximate the Gaussian. The good thing is that this is really easy to compute and it's reasonably fast. There's a lot of documentation available online on SURF at http://opencv-python-tutroals.readthedocs.org/en/latest/py_tutorials/py_feature2d/py_surf_intro/py_surf_intro.html?highlight=surf. So, you can go through it to see how they construct a descriptor. You can refer to the original paper at http://www.vision.ee.ethz.ch/~surf/eccv06.pdf. It is important to know that SURF is also patented and it is not freely available for commercial use.

If you run the SURF keypoint...

Features from Accelerated Segment Test (FAST)

Even though SURF is faster than SIFT, it's just not fast enough for a real-time system, especially when there are resource constraints. When you are building a real-time application on a mobile device, you won't have the luxury of using SURF to do computations in real time. We need something that's really fast and computationally inexpensive. Hence, Rosten and Drummond came up with FAST. As the name indicates, it's really fast!

Instead of going through all the expensive calculations, they came up with a high-speed test to quickly determine if the current point is a potential keypoint. We need to note that FAST is just for keypoint detection. Once keypoints are detected, we need to use SIFT or SURF to compute the descriptors. Consider the following image:

If we run the FAST keypoint detector on this image, you will see something like this:

If we clean it up and suppress the unimportant keypoints, it will look like this:

Following is the code for this...

Binary Robust Independent Elementary Features (BRIEF)

Even though we have FAST to quickly detect the keypoints, we still have to use SIFT or SURF to compute the descriptors. We need a way to quickly compute the descriptors as well. This is where BRIEF comes into the picture. BRIEF is a method for extracting feature descriptors. It cannot detect the keypoints by itself, so we need to use it in conjunction with a keypoint detector. The good thing about BRIEF is that it's compact and fast.

Consider the following image:

BRIEF takes the list of input keypoints and outputs an updated list. So if you run BRIEF on this image, you will see something like this:

Following is the code:

import cv2

import numpy as np

gray_image = cv2.imread('input.jpg', 0)

# Initiate FAST detector
fast = cv2.FastFeatureDetector()

# Initiate BRIEF extractor
brief = cv2.DescriptorExtractor_create("BRIEF")

# find the keypoints with STAR
keypoints = fast.detect(gray_image, None)

# compute the descriptors with BRIEF
keypoints...

Oriented FAST and Rotated BRIEF (ORB)

So, now we have arrived at the best combination out of all the combinations that we have discussed so far. This algorithm came out of the OpenCV Labs. It's fast, robust, and open-source! Both SIFT and SURF algorithms are patented and you can't use them for commercial purposes. This is why ORB is good in many ways.

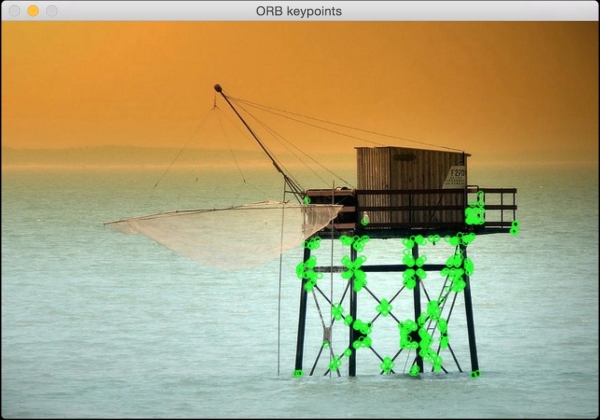

If you run the ORB keypoint extractor on one of the images shown earlier, you will see something like the following:

Here is the code:

import cv2
import numpy as np

input_image = cv2.imread('input.jpg')
gray_image = cv2.cvtColor(input_image, cv2.COLOR_BGR2GRAY)

# Initiate ORB object
orb = cv2.ORB()

# find the keypoints with ORB
keypoints = orb.detect(gray_image, None)

# compute the descriptors with ORB
keypoints, descriptors = orb.compute(gray_image, keypoints)

# draw only the location of the keypoints without size or orientation
final_keypoints = cv2.drawKeypoints(input_image, keypoints, color=(0,255,0), flags=0)

cv2.imshow('ORB keypoints...

Summary

In this chapter, we learned about the importance of keypoints and why we need them. We discussed various algorithms to detect keypoints and compute feature descriptors. We will be using these algorithms in all the subsequent chapters in various different contexts. The concept of keypoints is central to computer vision, and plays an important role in many modern systems.

In the next chapter, we are going to discuss how to stitch multiple images of the same scene together to create a panoramic image.
