We kick off our Python and machine learning journey with the basic, yet important, concepts of machine learning. We'll start with what machine learning is about, why we need it, and its evolution over a few decades. We'll then discuss typical machine learning tasks and explore several essential techniques of working with data and working with models. It's a great starting point for the subject and we'll learn it in a fun way. Trust me. At the end, we'll also set up the software and tools needed for this book.
We'll go into detail on the following topics:
- Overview of machine learning and the importance of machine learning
- The core of machine learningâgeneralizing with data
- Bias variance trade-off
- Techniques to avoid overfitting
- Techniques for data preprocessing
- Techniques for feature engineering
- Techniques for model aggregation
- Software installing
- Python package setup
Machine learning is a term coined around 1960, composed of two wordsâmachine corresponds to a computer, robot, or other device, and learning refers to an activity intended to acquire or discover event patterns, which we humans are good at.
So, why do we need machine learning and why do we want a machine to learn as a human? First and foremost, of course, computers and robots can work 24/7 and don't get tired, need breaks, call in sick, or go on strike. Their maintenance is much lower than a human's and costs a lot less in the long run. Also, for sophisticated problems that involve a variety of huge datasets or complex calculations, for instance, it's much more justifiable, not to mention intelligent, to let computers do all of the work. Machines driven by algorithms designed by humans are able to learn latent rules and inherent patterns and to fulfill tasks desired by humans. Learning machines are better suitedÂ than humans for tasks that are routine, repetitive, or tedious. Beyond that, automation by machine learning can mitigate risks caused by fatigue or inattention. Self-driving cars, as shown in the following photograph, are a great example: a vehicle capable of navigating by sensing its environment and making its decision without human input. Another example is the use of robotic arms in production lines, capable of causing a significant reduction in injuries and costs:
Assume humans don't fatigue or we have resources to hire enough shift workers, would machine learning still have a place? Of course it would; there are many cases, reported and unreported, where machines perform comparably or even better than domain experts. As algorithms are designed to learn from the ground truth, and the best-thought decisions made by human experts, machines can perform just as well as experts. In reality, even the best expert makes mistakes. Machines can minimize the chance of making wrong decisions by utilizing collective intelligence from individual experts. A major study that found machines are better than doctors at diagnosing some types of cancer proves this philosophy, for instance. AlphaGo is probably the best known example of machines beating human masters. Also, it's much more scalable to deploy learning machines than to train individuals to become experts, economically and socially. We can distribute thousands of diagnostic devices across the globe within a week but it's almost impossible to recruit and assign the same number of qualified doctors.
Now you may argue: what if we have sufficient resources and capacity to hire the best domain experts and later aggregate their opinionsâwould machine learning still have a place? Probably notâlearning machines might not perform better than the joint efforts of the most intelligent humans. However, individuals equipped with learning machines can outperform the best group of experts. This is actually an emerging concept called AI-based Assistance or AI Plus Human Intelligence, which advocates combining the efforts of machine learners and humans. We can summarize the previous statement in the following inequality:
human + machine learningÂ â most intelligent tireless humanÂ
A medical operation involving robots is one example of the best human and machine learning synergy. The following photograph presents robotic arms in an operation room alongside the surgery doctor:
So, does machine learning simply equate to automation that involves the programming and execution of human-crafted or human-curated rule sets? A popular myth says that the majority of code in the world has to do with simple rules possibly programmed in Common Business Oriented Language (COBOL), which covers the bulk of all of the possible scenarios of client interactions. So, if the answer to that question is yes, why can't we just hire many software programmers and continue programming new rules or extending old rules?
One reason is that defining, maintaining, and updating rules becomes more and more expensive over time. The number of possible patterns for an activity or event could be enormous and, therefore, exhausting all enumeration isn't practically feasible. It gets even more challenging when it comes to events that are dynamic, ever-changing, or evolving in real time. It's much easier and more efficient to develop learning algorithms that command computers to learn and extract patterns and to figure things out themselves from abundant data.
The difference between machine learning and traditional programming can be described using the following diagram:
Another reason is that the volume of data is exponentially growing. Nowadays, the floods of textual, audio, image, and video data are hard to fathom. The Internet of Things (IoT) is a recent development of a new kind of internet, which interconnects everyday devices. The IoT will bring data from household appliances and autonomous cars to the forefront. The average company these days has mostly human clients but, for instance, social media companies tend to have many bot accounts. This trend is likely to continue and we'll have more machines talking to each other. Besides the quantity, the quality of data available has kept increasing in the past years due to cheaper storage. This has empowered the evolution of machine learning algorithms and data-driven solutions.
Jack Ma, co-founder of the e-commerce companyÂ Alibaba, explained in a speech that IT was the focus of the past 20 years but, for the next 30 years, we'll be in the age of Data Technology (DT). During the age of IT, companies grew larger and stronger thanks to computer software and infrastructure. Now that businesses in most industries have already gathered enormous amounts of data, it's presently the right time to exploit DT to unlock insights, derive patterns, and boost new business growth. Broadly speaking, machine learning technologies enable businesses to better understand customer behavior, engage with customers, and optimize operations management. As for us individuals, machine learning technologies are already making our lives better every day.
An application of machine learning with which we're all familiar is spam email filtering. Another is online advertising, where ads are served automatically based on information advertisers have collected about us. Stay tuned for the next chapters, where we'll learn how to develop algorithms in solving these two problems and more. A search engine is an application of machine learning we can't imagine living without. It involves information retrieval, which parses what we look for, queries related to records, and applies contextual ranking and personalized ranking, which sorts pages by topical relevance and user preference. E-commerce and media companies have been at the forefront of employing recommendation systems, which help customers to find products, services, and articles faster. The application of machine learning is boundless and we just keep hearing new examples everyday: credit card fraud detection, disease diagnosis, presidential election prediction, instant speech translation, and robot advisorsâyou name it!
In the 1983 War Games movie, a computer made life-and-death decisions that could have resulted in Word War III. As far as we know, technology wasn't able to pull off such feats at the time. However, in 1997, the Deep Blue supercomputer did manage to beat a world chess champion. In 2005, a Stanford self-driving car drove by itself for more than 130 kilometers in a desert. In 2007, the car of another team drove through regular traffic for more than 50 kilometers. In 2011, the Watson computer won a quiz against human opponents. In 2016, the AlphaGo program beat one of the best Go players in the world. If we assume that computer hardware is the limiting factor, then we can try to extrapolate into the future. Ray Kurzweil did just that and, according to him, we can expect human level intelligence around 2029. What's next?
Machine learning mimicking human intelligence is a subfield of AIâa field of computer science concerned with creating systems. Software engineering is another field in computer science. Generally, we can label Python programming as a type of software engineering. Machine learning is also closely related to linear algebra, probability theory, statistics, and mathematical optimization.Â We usually build machine learning models based on statistics, probability theory, and linear algebra, then optimize the models using mathematical optimization. The majority of you reading this book should have a good, or at least sufficient, command of Python programming. Those who aren't feeling confident about mathematical knowledge might be wondering how much time should be spent learning or brushing up on the aforementioned subjects. Don't panic: we'll get machine learning to work for us without going into any mathematical details in this book. It just requires some basic 101 knowledge of probability theory and linear algebra, which helps us to understand the mechanics of machine learning techniques and algorithms. And it gets easier as we'll be building models both from scratch and with popular packages in Python, a language we like and are familiar with.
For those who want to learn or brush up on probability theory and linear algebra, feel free to search for basic probability theoryÂ and basic linear algebra. There are a lot of resources online, for example, https://people.ucsc.edu/~abrsvn/intro_prob_1.pdf on probability 101 and http://www.maths.gla.ac.uk/~ajb/dvi-ps/2w-notes.pdfÂ about basic linear algebra.
Those who want to study machine learning systematically can enroll into computer science, Artificial Intelligence (AI), and, more recently, data science masters programs. There are also various data science boot camps. However, the selection for boot camps is usually stricter as they're more job-oriented and the program duration is often short, ranging from 4 to 10 weeks. Another option is the free Massive Open Online Courses (MOOCs), Andrew Ng's popular course on machine learning. Last but not least, industry blogs and websites are great resources for us to keep up with the latest developments.
Machine learning isn't only a skill but also a bit of sport. We can compete in several machine learning competitions, such as Kaggle (www.kaggle.com)âsometimes for decent cash prizes, sometimes for joy, and most of the time to play our strengths. However, to win these competitions, we may need to utilize certain techniques, which are only useful in the context of competitions and not in the context of trying to solve a business problem. That's right, the no free lunchÂ theorem applies here.
A machine learning system is fed with input dataâthis can be numerical, textual, visual, or audiovisual. The system usually has an outputâthis can be a floating-point number, for instance, the acceleration of a self-driving car, or can be an integer representing a category (also called a class), for example, a cat or tiger from image recognition.
The main task of machine learning is to explore and construct algorithms that can learn from historical data and make predictions on new input data. For a data-driven solution, we need to define (or have it defined to us by an algorithm) an evaluation function called loss or cost function, which measures how well the models are learning. In this setup, we create an optimization problem with the goal of learning in the most efficient and effective way.
Depending on the nature of the learning data, machine learning tasks can be broadly classified into the following three categories:
- Unsupervised learning: When the learning data only contains indicative signals without any description attached, it's up to us to find the structure of the data underneath, to discover hidden information, or to determine how to describe the data. This kind of learning data is called unlabeled data. Unsupervised learning can be used to detect anomalies, such as fraud or defective equipment, or to group customers with similar online behaviors for a marketing campaign.
- Supervised learning: When learning data comesÂ withÂ a description, targets, or desired output besides indicative signals, the learning goal becomes to find a general rule that maps input to output. This kind of learning data is called labeled data. The learned rule is then used to label new data with unknown output. The labels are usually provided by event-logging systems and human experts. Besides, if it's feasible, they may also be produced by members of the public, through crowd-sourcing, for instance. Supervised learning is commonly used in daily applications, such as face and speech recognition, products or movie recommendations, and sales forecasting.
We can further subdivide supervised learning into regression and classification. RegressionÂ trains on and predicts continuous-valued response, for example, predicting house prices, whileclassificationattempts to find the appropriate class label, such as analyzing a positive/negative sentiment and prediction loan default.
If not all learning samples are labeled, but some are, we'll have semi-supervised learning. It makes use of unlabeled data (typically a large amount) for training, besides a small amount of labeled data. Semi-supervised learning is applied in cases where it's expensive to acquire a fully labeled dataset and more practical to label a small subset. For example, it often requires skilled experts to label hyperspectral remote sensing images and lots of field experiments to locate oil at a particular location, while acquiring unlabeled data is relatively easy.
- Reinforcement learning: Learning data provides feedback so that the system adapts to dynamic conditions in order to achieve a certain goal in the end. The system evaluates its performance based on the feedback responses and reacts accordingly. The best known instances include self-driving cars and the chess master, AlphaGo.
The following diagram depicts types of machine learning tasks:
Feeling a little bit confused by the abstract concepts? Don't worry. We'll encounter many concrete examples of these types of machine learning tasks later in this book. InÂ Chapter 2, Exploring the 20 Newsgroups Dataset with Text Analysis Techniques, and Chapter 3, Mining the 20 Newsgroups Dataset with Clustering and Topic Modeling Algorithms, we'll explore unsupervised techniques and algorithms; in Chapter 4, Detecting Spam Email with Naive Bayes, andÂ Chapter 8, Scaling Up Prediction to Terabyte Click Logs, we'll work on supervised learning tasks and several classification algorithms; in Chapter 9, Stock Price Prediction with Regression Algorithms, we'll continue with another supervised learning task, regression, and assorted regression algorithms.
In fact, we have a whole zoo of machine learning algorithms that have experienced varying popularity over time. We can roughly categorize them into four main approaches such as logic-based learning, statistical learning, artificial neural networks, and genetic algorithms.
The logic-based systems were the first to be dominant. They used basic rules specified by human experts and, with these rules, systems tried to reason using formal logic, background knowledge, and hypotheses. In the mid-1980s,Â artificial neural networks (ANNs) came to the foreground, to be then pushed aside by statistical learning systems in the 1990s. ANNs imitate animal brains and consist of interconnected neurons that are also an imitation of biological neurons. They try to model complex relationships between input and output values and to capture patterns in data. Genetic algorithms (GA) were popular in the 1990s. They mimic the biological process of evolution and try to find the optimal solutions using methods such as mutation and crossover.
We are currently seeing a revolution in deep learning, which we might consider a rebranding of neural networks. The term deep learning was coined around 2006 and refers to deep neural networks with many layers. The breakthrough in deep learning is caused by the integration and utilization of Graphical Processing Units (GPUs), which massively speed up computation. GPUs were originally developed to render video games and are very good in parallel matrix and vector algebra. It's believed that deep learning resembles the way humans learn, therefore, it may be able to deliver on the promise of sentient machines.
Some of us may have heard of Moore's lawâan empirical observation claiming that computer hardware improves exponentially with time. The law was first formulated by Gordon Moore, the co-founder of Intel, in 1965. According to the law, the number of transistors on a chip should double every two years. In the following diagram, you can see that the law holds upÂ nicely (the size of the bubbles corresponds to the average transistor count in GPUs):
The consensus seems to be that Moore's law should continue to be valid for a couple of decades. This gives some credibility to Ray Kurzweil's predictions of achieving true machine intelligence in 2029.
The good thing about data is that there's a lot of it in the world. The bad thing is that it's hard to process this data. The challenges stem from the diversity and noisiness of the data. We humans usually process data coming into our ears and eyes. These inputs are transformed into electrical or chemical signals. On a very basic level, computers and robots also work with electrical signals. These electrical signals are then translated into ones and zeroes. However, we program in Python in this book and, on that level, normally we represent the data either as numbers, images, or texts. Actually, images and text aren't very convenient, so we need to transform images and text into numerical values.
Especially in the context of supervised learning, we have a scenario similar to studying for an exam. We have a set of practice questions and the actual exams. We should be able to answer exam questions without knowing the answers to them. This is called generalizationâwe learn something from our practice questions and, hopefully, are able to apply the knowledge to other similar questions. In machine learning, these practice questions are called training sets or training samples. They're where the models derive patterns from. And the actual exams are testing sets or testing samples. They're where the models eventually apply and how compatible they are is what it's all about. Sometimes, between practice questions and actual exams, we have mock exams to assess how well we'll do in actual ones and to aid revision. These mock exams are called validation sets or validation samples in machine learning. They help us to verify how well the models will perform in a simulated setting, then we fine-tune the models accordingly in order to achieve greater hits.
An old-fashioned programmer would talk to a business analyst or other expert, then implement a rule that adds a certain value multiplied by another value corresponding, for instance, to tax rules. In a machine learning setting, we give the computer example input values and example output values. Or if we're more ambitious, we can feed the program the actual tax texts and let the machine process the data further, just like an autonomous car doesn't need a lot of human input.
This means implicitly that there's some function, for instance, a tax formula, we're trying to figure out. In physics, we have almost the same situation. We want to know how the universe works and formulate laws in a mathematical language. Since we don't know the actual function, all we can do is measure the error produced and try to minimize it. In supervised learning tasks, we compare our results against the expected values. In unsupervised learning, we measure our success with related metrics. For instance, we want clusters of data to be well defined; the metrics could be how similar the data points within one cluster are, and how different the data points from two clusters are. In reinforcement learning, a program evaluates its moves, for example, using some predefined function in a chess game.
Other than the normal generalizing with data, there can be two levels of generalization, over and under generalization, which we'll explore in the next section.
If we go through many practice questions for an exam, we may start to find ways to answer questions that have nothing to do with the subject material. For instance, given only five practice questions, we find that if there are twoÂ occurrences ofÂ potatoes, one tomato, and three occurrences ofÂ bananaÂ in a question, the answer is always A and if there is one potato, three occurrences ofÂ tomato, and twoÂ occurrences of banana in a question, the answer is always B, then we conclude this is always true and apply such a theory later on, even though the subject or answer may not be relevant to potatoes, tomatoes, or bananas. Or even worse, you may memorize the answers to each question verbatim. We can then score high on the practice questions; we do so with the hope that the questions in the actual exams will be the same as the practice questions. However, in reality, we'll score very low on the exam questions as it's rare that the exact same questions will occur in the exams.
The phenomenon of memorization can cause overfitting. This can occur when we're over extracting too much information from the training sets and making our model just work well with them, which is called low bias in machine learning. In case you need a quick recap of bias, here it is: Bias is the difference between the average prediction and the true value. It's computed as follows:
Â is the prediction. At the same time, however,Â overfitting won't help us to generalize with data and derive true patterns from it. The model, as a result, will perform poorly on datasets that weren't seen before. We call this situation high variance in machine learning.Â Again, a quick recap of variance: Variance measures the spread of the prediction, which is the variability of the prediction. It can be calculated as follows:

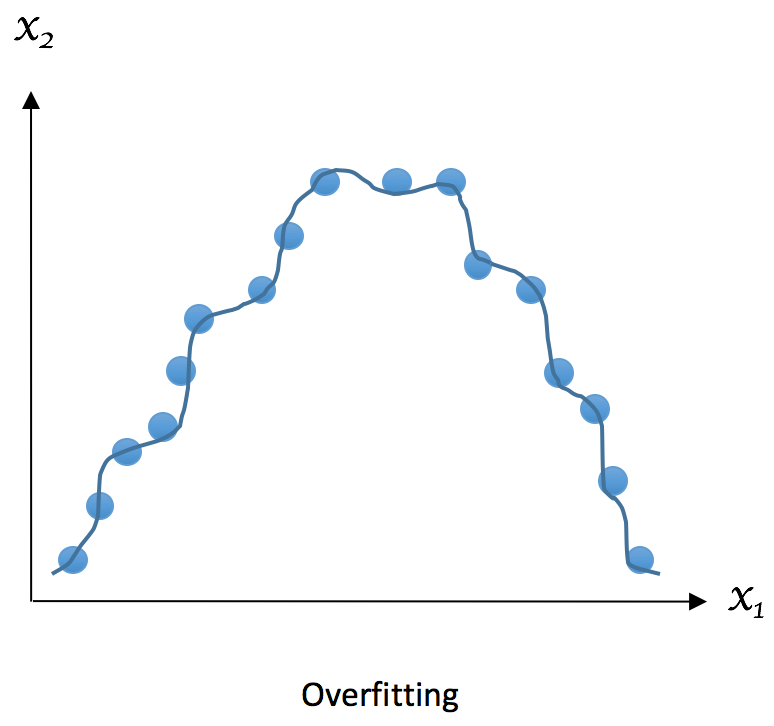

The following example demonstrates what a typical instance of overfitting looks like, where the regression curve tries to flawlessly accommodate all samples:
Overfitting occurs when we try to describe the learning rules based on too many parameters relative to the small number of observations, instead of the underlying relationship, such as the preceding example of potato and tomato where we deduced three parameters from only five learning samples. Overfitting also takes place when we make the model excessively complex so that it fits every training sample, such as memorizing the answers for all questions, as mentioned previously.
The opposite scenario is underfitting. When a model is underfit, it doesn't perform well on the training sets and won't do so on the testing sets, which means it fails to capture the underlying trend of the data. Underfitting may occur if we aren't using enough data to train the model, just like we'll fail the exam if we don't review enough material; it may also happen if we're trying to fit a wrong model to the data, just like we'll score low in any exercises or exams if we take the wrong approach and learn it the wrong way. We call any of these situations high bias in machine learning; although its variance is low as performance in training and test sets are pretty consistent, in a bad way.
The following example shows what a typical underfitting looks like, where the regression curve doesn't fit the data well enough or capture enough of the underlying pattern of the data:
After the overfitting and underfitting example, let's look at what a well-fitting example should look like:
We want to avoid both overfitting and underfitting. Recall bias is the error stemming from incorrect assumptions in the learning algorithm; high bias results in underfitting, and variance measures how sensitive the model prediction is to variations in the datasets. Hence, we need to avoid cases where either bias or variance is getting high. So, does it mean we should always make both bias and variance as low as possible? The answer is yes, if we can. But, in practice, there's an explicit trade-off between them,Â where decreasing one increases the other. This is the so-called bias-variance trade-off. Sounds abstract? Let's take a look at the next example.
Let's say we're asked to build a model to predict the probability of a candidate being the next president based on phone poll data. The poll was conducted using zip codes. We randomly choose samples from one zip code and we estimate there's a 61% chance the candidate will win. However, it turns out he loses the election. Where did our model go wrong? The first thing we think of is the small size of samples from only one zip code. It's a source of high bias also, because people in a geographic area tend to share similar demographics, although it results in a low variance of estimates. So, can we fix it simply by using samples from a large number of zip codes? Yes, but don't get happy so early. This might cause an increased variance of estimates at the same time. We need to find the optimal sample sizeâthe best number of zip codes to achieve the lowest overall bias and variance.
Minimizing the total error of a model requires a careful balancing of bias and variance. Given a set of training samples x1, x2, â¦, xn and their targets y1, y2, â¦, yn, we want to find a regression function
The E denotes the expectation. This error can be decomposed into bias and variance components following the analytical derivation as shown in the following formula (although it requires a bit of basic probability theory to understand):
The Bias term measures the error of estimations and the Variance term describes how much the estimation
We usually employ cross-validation technique as well as regularization and feature reduction to find the optimal model balancing bias and variance and to diminish overfitting.
You may ask why we only want to deal with overfitting: how about underfitting? This is because underfitting can be easily recognized: it occurs as long as the model doesn't work well on a training set. And we need to find a better model or tweak some parameters to better fit the data, which is a must under all circumstances. On the other hand, overfitting is hard to spot. Sometimes, when we achieve a model that performs well on a training set, we're overly happy and think it ready for production right away. This happens all of the time despite how dangerous it could be. We should instead take extra step to make sure the great performance isn't due to overfitting and the great performance applies to data excluding the training data.
Recall that between practice questions and actual exams, there are mock exams where we can assess how well we'll perform in actual exams and use that information to conduct necessary revision. In machine learning, the validation procedure helps evaluate how the models will generalize to independent or unseen datasets in a simulated setting. In a conventional validation setting, the original data is partitioned into three subsets, usually 60% for the training set, 20% for the validation set, and the rest (20%) for the testing set. This setting suffices if we have enough training samples after partitioning and we only need a rough estimate of simulated performance. Otherwise, cross-validation is preferable.
In one round of cross-validation, the original data is divided into two subsets, for training and testing (or validation) respectively. The testing performance is recorded. Similarly, multiple rounds of cross-validation are performed under different partitions. Testing results from all rounds are finally averaged to generate a more reliable estimate of model prediction performance. Cross-validation helps to reduce variability and, therefore, limit overfitting.
When the training size is very large, it's often sufficient to split it into training, validation, and testing (three subsets) and conduct a performance check on the latter two. Cross-validation is less preferable in this case since it's computationally costly to train a model for each single round. But if you can afford it, there's no reason not to use cross-validation. When the size isn't so large, cross-validationÂ is definitely a good choice.
There are mainly two cross-validation schemes in use, exhaustive and non-exhaustive. In the exhaustive scheme, we leave out a fixed number of observations in each round as testing (or validation) samples and the remaining observations as training samples. This process is repeated until all possible different subsets of samples are used for testing once. For instance, we can apply Leave-One-Out-Cross-Validation (LOOCV) and let each datum be in the testing set once. For a dataset of the size n, LOOCV requires n rounds of cross-validation. This can be slow when n gets large. This following diagram presents the workflow of LOOCV:
A non-exhaustive scheme, on the other hand, as the name implies, doesn't try out all possible partitions. The most widely used type of this scheme is k-fold cross-validation. The original data first randomly splits the data into k equal-sized folds. In each trial, one of these folds becomes the testing set, and the rest of the data becomes the training set. We repeat this process k times, with each fold being the designated testing set once. Finally, we average the k sets of test results for the purpose of evaluation. Common values for k are 3, 5, and 10. The following table illustrates the setup for five-fold:

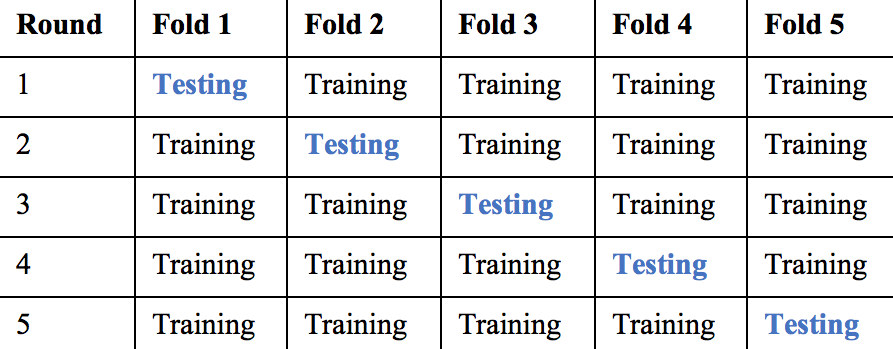

K-fold cross-validation often has a lower variance compared to LOOCV, since we're using a chunk of samples instead a single one for validation.
We can also randomly split the data into training and testing sets numerous times. This is formally called theÂ holdout method. The problem with this algorithm is that some samples may never end up in the testing set, while some may be selected multiple times in the testing set.
Last but not the least, nested cross-validation is a combination of cross-validations. It consists of the following two phases:
We'll apply cross-validation very intensively throughout this entire book. Before that, let's look at cross-validation with an analogy next, which will help us to better understand it.
A data scientist plans to take his car to work and his goal is to arrive before 9 a.m. every day. He needs to decide the departure time and the route to take. He tries out different combinations of these two parameters on some Mondays, Tuesdays, and Wednesdays and records the arrival time for each trial. He then figures out the best schedule and applies it every day. However, it doesn't work quite as well as expected. It turns out the scheduling model is overfit with data points gathered in the first three days and may not work well on Thursdays and Fridays. A better solution would be to test the best combination of parameters derived from Mondays to Wednesdays on Thursdays and Fridays and similarly repeat this process based on different sets of learning days and testing days of the week. This analogized cross-validation ensures the selected schedule works for the whole week.
In summary, cross-validation derives a more accurate assess of model performance by combining measures of prediction performance on different subsets of data. This technique not only reduces variances and avoids overfitting, but also gives an insight into how the model will generally perform in practice.
Another way of preventing overfitting is regularization. Recall that the unnecessary complexity of the model is a source of overfitting. Regularization adds extra parameters to the error function we're trying to minimize, in order to penalize complex models.
According to the principle of Occam's Razor, simpler methods are to be favored. William Occam was a monk and philosopher who, in around the year 1320, came up with the idea that the simplest hypothesis that fits data should be preferred. One justification is that we can invent fewer simple models than complex models. For instance, intuitively, we know that there are more high-polynomial models than linear ones. The reason is that a line (y=ax+b) is governed by only two parametersâthe intercept b and slope a. The possible coefficients for a line span two-dimensional space. A quadratic polynomial adds an extra coefficient for the quadratic term, and we can span a three-dimensional space with the coefficients. Therefore, it is much easier to find a model that perfectly captures all training data points with a High order polynomial function, as its search space is much larger than that of a linear function. However, these easily obtained models generalize worse than linear models, which are more prompt to overfitting. And, of course, simpler models require less computation time. The following diagram displays how we try to fit a Linear function and a High order polynomial function respectively to the data:
The linear model is preferable as it may generalize better to more data points drawn from the underlying distribution. We can use regularization to reduce the influence of the high orders of polynomial by imposing penalties on them. This will discourage complexity, even though a less accurate and less strict rule is learned from the training data.
We'll employ regularization quite often starting from Chapter 7, Predicting Online Ads Click-Through with Logistic Regression. For now, next let's see an analogy to help us to understand it better.

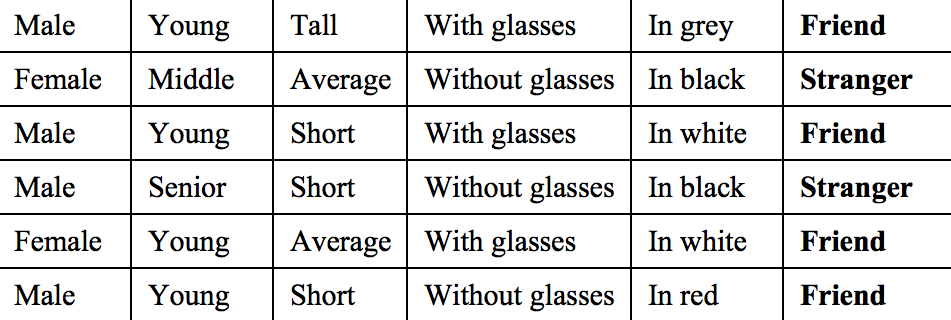

A data scientist wants to equip his robotic guard dog with the ability to identify strangers and his friends. He feeds it with the the following learning samples:
The robot may quickly learn the following rules:
- Any middle-aged female of average height without glasses and dressed in black is a stranger
- Any senior short male without glasses and dressed in black is a stranger
- Anyone else is his friend
Although these perfectly fit the training data, they seem too complicated and unlikely to generalize well to new visitors. In contrast, the data scientist limits the learning aspects. A loose rule that can work well for hundreds of other visitors could be: anyone without glasses dressed in black is a stranger.
Besides penalizing complexity, we can also stop a training procedure early as a form of regularization. If we limit the time a model spends learning or we set some internal stopping criteria, it's more likely to produce a simpler model. The model complexity will be controlled in this way and hence overfitting becomes less probable. This approach is called early stopping in machine learning.
Last but not least, it's worth noting that regularization should be kept at a moderate level or, to be more precise, fine-tuned to an optimal level. Too small a regularization doesn't make any impact; too large a regularization will result in underfitting, as it moves the model away from the ground truth. We'll explore how to achieve optimal regularization in Chapter 7, Predicting Online Ads Click-Through with Logistic Regression, and Chapter 9,Â Stock Price Prediction with Regression Algorithms.
We typically represent data as a grid of numbers (a matrix). Each column represents a variable, which we call a feature in machine learning. In supervised learning, one of the variables is actually not a feature, but the label that we're trying to predict. And in supervised learning, each row is an example that we can use for training or testing.
The number of features corresponds to the dimensionality of the data. Our machine learning approach depends on the number of dimensions versus the number of examples. For instance, text and image data are very high dimensional, while stock market data has relatively fewer dimensions.
Fitting high-dimensional data is computationally expensive and is prone to overfitting due to the high complexity. Higher dimensions are also impossible to visualize, and therefore we can't use simple diagnostic methods.
Not all of the features are useful and they may only add randomness to our results. It's therefore often important to do good feature selection. Feature selection is the process of picking a subset of significant features for use in better model construction. In practice, not every feature in a dataset carries information useful for discriminating samples; some features are either redundant or irrelevant, and hence can be discarded with little loss.Â
In principle, feature selection boils down to multiple binary decisions about whether to include a feature or not. For n features, we get
Â feature sets, which can be a very large number for a large number of features. For example, for 10 features, we have 1,024 possible feature sets (for instance, if we're deciding what clothes to wear, the features can be temperature, rain, the weather forecast, where we're going, and so on). At a certain point, brute force evaluation becomes infeasible. We'll discuss better methods in Chapter 6, Predicting Online Ads Click-Through with Tree-Based Algorithms. Basically, we have two options: we either start with all of the features and remove features iteratively or we start with a minimum set of features and add features iteratively. We then take the best feature sets for each iteration and compare them.
We'll explore how to perform feature selection mainly in Chapter 7, Predicting Online Ads Click-Through with Logistic Regression.
Another common approach of reducing dimensionality is to transform high-dimensional data in lower-dimensional space. It's called dimensionality reductionÂ or featureprojection. This transformation leads to information loss, but we can keep the loss to a minimum.
We'll talk about and implement dimensionality reduction in Chapter 2, Exploring the 20 Newsgroups Dataset with Text Analysis Techniques,Â Chapter 3, Mining the 20 Newsgroups Dataset with Clustering and Topic Modeling Algorithms,Â andchapter 10,Â Machine Learning Best Practices
Data mining, a buzzword in the 1990s, is the predecessor of data science (the science of data). One of the methodologies popular in the data mining community is called Cross-Industry Standard Process for Data Mining (CRISP-DM). CRISP-DM was created in 1996 and is still used today. I'm not endorsing CRISP-DM, however, I do like its general framework.
- Business understanding: This phase is often taken care of by specialized domain experts. Usually, we have a business person formulate a business problem, such as selling more units of a certain product.
- Data understanding: This is also a phase that may require input from domain experts, however, often a technical specialist needs to get involved more than in the business understanding phase. The domain expert may be proficient with spreadsheet programs, but have trouble with complicated data. In this book, it's usually termed as phase exploration.
- Data preparation: This is also a phase where a domain expert with only Microsoft Excel knowledge may not be able to help you. This is the phase where we create our training and test datasets. In this book, it's usually termed as phasepreprocessing.
- Modeling: This is the phase most people associate with machine learning. In this phase, we formulate a model and fit our data.
- Evaluation: In this phase, we evaluate how well the model fits the data to check whether we were able to solve our business problem.
- Deployment: This phase usually involves setting up the system in a production environment (it's considered good practice to have a separate production system). Typically, this is done by a specialized team.
When we learn, we require high-quality learning material. We can't learn from gibberish, so we automatically ignore anything that doesn't make sense. A machine learning system isn't able to recognize gibberish, so we need to help it by cleaning the input data. It's often claimed that cleaning the data forms a large part of machine learning. Sometimes cleaning is already done for us, but you shouldn't count on it.
To decide how to clean the data, we need to be familiar with the data. There are some projects that try to automatically explore the data and do something intelligent, such as produce a report. For now, unfortunately, we don't have a solid solution, so you need to do some manual work.
We can do two things, which aren't mutually exclusive: first, scan the data and second, visualize the data. This also depends on the type of data we're dealing withâwhether we have a grid of numbers, images, audio, text, or something else. In the end, a grid of numbers is the most convenient form, and we'll always work toward having numerical features. Let's pretend that we have a table of numbers in the rest of this section.
We want to know whether features haveÂ missing values, how the values are distributed, and what type of features we have. Values can approximately follow a normal distribution, a binomial distribution, a Poisson distribution, or another distribution altogether. Features can be binary: either yes or no, positive or negative, and so on. They can also be categorical: pertaining to a category, for instance, continents (Africa, Asia, Europe, Latin America, North America, and so on). Categorical variables can also be ordered, for instance, high, medium, and low. Features can also be quantitative, for example, temperature in degrees or price in dollars.
Feature engineering is the process of creating or improving features. It's more of a dark art than a science. Features are often created based on common sense, domain knowledge, or prior experience. There are certain common techniques for feature creation, however, there's no guarantee that creating new features will improve your results. We're sometimes able to use the clusters found by unsupervised learning as extra features. Deep neural networks are often able to derive features automatically. We'll briefly look at several techniques such as polynomial features, power transformations, and binning, as appetizers in this chapter.
Quite often we miss values for certain features. This could happen for various reasons. It can be inconvenient, expensive, or even impossible to always have a value. Maybe we weren't able to measure a certain quantity in the past because we didn't have the right equipment or just didn't know that the feature was relevant. However, we're stuck with missing values from the past.
Sometimes, it's easy to figure out we're missing values and we can discover this just by scanning the data or counting the number of values we have for a feature and comparing to the number of values we expect based on the number of rows. Certain systems encode missing values with, for example, values such as 999,999 or -1. This makes sense if the valid values are much smaller than 999,999. If you're lucky, you'll have information about the features provided by whoever created the data in the form of a data dictionary or metadata.
Once we know that we're missing values, the question arises of how to deal with them. The simplest answer is to just ignore them. However, some algorithms can't deal with missing values, and the program will just refuse to continue. In other circumstances, ignoring missing values will lead to inaccurate results. The second solution is to substitute missing values with a fixed valueâthis is called imputing. We can impute the arithmetic mean, median, or mode of the valid values of a certain feature. Ideally, we'll have a relation between features or within a variable that's somewhat reliable. For instance, we may know the seasonal averages of temperature for a certain location and be able to impute guesses for missing temperature values given a date. We'll talk about dealing with missing data in detail in Chapter 10, Machine Learning Best Practices. Similarly, techniques in the following sections will be discussed and employed in later chapters, in case you feel lost.
Humans are able to deal with various types of values. Machine learning algorithms (with some exceptions) need numerical values. If we offer a string such as
Ivan, unless we're using specialized software, the program won't know what to do. In this example, we're dealing with a categorical featureânames, probably. We can consider each unique value to be a label. (In this particular example, we also need to decide what to do with the caseâis
Ivan the same as
ivan?). We can then replace each label with an integerâlabelencoding.
The following example shows how label encoding works:
This approach can be problematic, because the learner may conclude that there's an order. For example,
North America in the preceding case differ by
4 after encoding, which is a bit counter-intuitive.

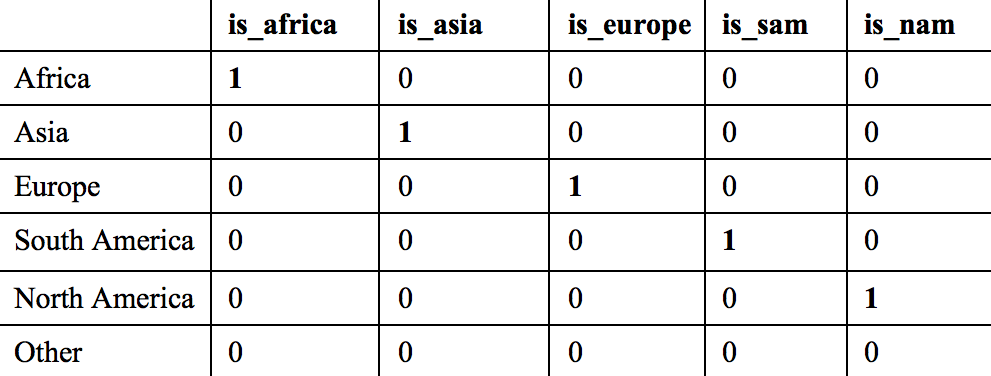

The one-of-K or one hot encoding scheme uses dummy variables to encode categorical features. Originally, it was applied to digital circuits. The dummy variables have binary values such as bits, so they take the values zero or one (equivalent to true or false). For instance, if we want to encode continents, we'll have dummy variables, such as
is_asia, which will be true if the continent is
Asia and false otherwise. In general, we need as many dummy variables as there are unique labels minus one. We can determine one of the labels automatically from the dummy variables, because the dummy variables are exclusive. If the dummy variables all have a false value, then the correct label is the label for which we don't have a dummy variable. The following table illustrates the encoding for continents:
The encoding produces a matrix (grid of numbers) with lots of zeroes (false values) and occasional ones (true values). This type of matrix is called a sparsematrix. The sparse matrix representation is handled well by the the
scipy package and shouldn't be an issue. We'll discuss the
scipy package later in this chapter.
Values of different features can differ by orders of magnitude. Sometimes, this may mean that the larger values dominate the smaller values. This depends on the algorithm we're using. For certain algorithms to work properly, we're required to scale the data.
There are following several common strategies that we can apply:
- Standardization removes the mean of a feature and divides by the standard deviation. If the feature values are normally distributed, we'll get a Gaussian, which is centered around zero with a variance of one.
- If the feature values aren't normally distributed, we can remove the median and divide by the interquartile range. The interquartilerange is a range between the first and third quartile (or 25th and 75th percentile).
- Scaling features to a range is a common choice of range between zero and one.
If we have two features,Â a and b, we can suspect that there's a polynomial relation, such as a2 + ab + b2. We can consider each term in the sum to be a featureâin this example, we have three features. The product ab in the middle is called an interaction. An interaction doesn't have to be a productâalthough this is the most common choiceâit can also be a sum, a difference, or a ratio. If we're using a ratio to avoid dividing by zero, we should add a small constant to the divisor and dividend.
The number of features and the order of the polynomial for a polynomial relation aren't limited. However, if we follow Occam's razor, we should avoid higher-order polynomials and interactions of many features. In practice, complex polynomial relations tend to be more difficult to compute and tend to overfit, but if you really need better results, they may be worth considering.
Power transforms are functions that we can use to transform numerical features into a more convenient form to conform better to a normal distribution. A very common transform for value, which vary by orders of magnitude, is to take the logarithm. Taking the logarithm of a zero and negative values isn't defined, so we may need to add a constant to all of the values of the related feature before taking the logarithm. We can also take the square root for positive values, square the values, or compute any other power we like.
Another useful transform is the Box-Cox transformation, named after its creators. The Box-Cox transformation attempts to find the best power needed to transform the original data into data that's closer to the normal distribution. The transform is defined as follows:
Sometimes, it's useful to separate feature values into several bins. For example, we may be only interested whether it rained on a particular day. Given the precipitation values, we can binarize the values, so that we get a true value if the precipitation value isn't zero and a false value otherwise. We can also use statistics to divide values into high, low, and medium bins. In marketing, we often care more about the age group, such as 18 to 24, than a specific age such as 23.
The binning process inevitably leads to loss of information. However, depending on your goals, this may not be an issue, and actually reduces the chance of overfitting. Certainly, there will be improvements in speed and reduction of memory or storage requirements and redundancy.
In high school, we sit together with other students and learn together, but we aren't supposed to work together during the exam. The reason is, of course, that teachers want to know what we've learned, and if we just copy exam answers from friends, we may not have learned anything. Later in life, we discover that teamwork is important. For example, this book is the product of a whole team or possibly a group of teams.
Clearly, a team can produce better results than a single person. However, this goes against Occam's razor, since a single person can come up with simpler theories compared to what a team will produce. In machine learning, we nevertheless prefer to have our models cooperate with the following schemes:
- Voting and averaging
This is probably the most easily understood type of model aggregation. It just means the final output will be the majority or average of prediction output values from multiple models. It's also possible to assign different weights to each model in the ensemble, for example, some models might consider two votes. However, combining the results of models that are highly correlated to each other doesn't guarantee spectacular improvements. It's better to somehow diversify the models by using different features or different algorithms. If we find that two models are strongly correlated, we may, for example, decide to remove one of them from the ensemble and increase proportionally the weight of the other model.
Bootstrapaggregating or bagging is an algorithm introduced by Leo Breiman in 1994, which applies bootstrapping to machine learning problems. Bootstrapping is a statistical procedure that creates datasets from existing data by sampling with replacement. Bootstrapping can be used to analyze the possible values that arithmetic mean, variance, or other quantity can assume.
- We generate new training sets from input train data by sampling with replacement
- For each generated training set, we fit a new model
- We combine the results of the models by averaging or majority voting
The following diagram illustrates the steps for bagging, using classification as anÂ example:
We'll explore how to employ bagging mainly in Chapter 6, Predicting Online Ads Click-Through with Tree-Based Algorithms.
In the context of supervised learning, we define weaklearners as learners that are just a little better than a baseline, such as randomly assigning classes or average values. Much like ants, weak learners are weak individually but together they have the power to do amazing things.
It makes sense to take into account the strength of each individual learner using weights. This general idea is called boosting. In boosting, all models are trained in sequence, instead of in parallel as in bagging. Each model is trained on the same dataset, but each data sample is under a different weight factoring, in the previous model's success. The weights are reassigned after a model is trained, which will be used for the next training round. In general, weights for mispredicted samples are increased to stress their prediction difficulty.
The following diagram illustrates the steps for boosting, again using classification as an example:
There are many boosting algorithms; boosting algorithms differ mostly in their weighting scheme. If you've studied for an exam, you may have applied a similar technique by identifying the type of practice questions you had trouble with and focusing on the hard problems.
Face detection in images is based on a specialized framework that also uses boosting. Detecting faces in images or videos is supervised learning. We give the learner examples of regions containing faces. There's an imbalance, since we usually have far more regions (about 10,000 times more) that don't have faces.
A cascade of classifiers progressively filters out negative image areas stage by stage. In each progressive stage, the classifiers use progressively more features on fewer image windows. The idea is to spend the most time on image patches, which contain faces. In this context, boosting is used to select features and combine results.
Stacking takes the output values of machine learning estimators and then uses those as input values for another algorithm. You can, of course, feed the output of the higher-level algorithm to another predictor. It's possible to use any arbitrary topology but, for practical reasons, you should try a simple setup first as also dictated by Occam's razor.
As the title says, Python is the language used to implement all machine learning algorithms and techniques throughout this entire book. We'll also use many popular Python packages and tools such as NumPy, SciPy, TensorFlow, and Scikit-learn. So at the end of this kick-off chapter, let's make sure we set up the tools and working environment properly, even though some of you are already experts in Python or might be familiar with some tools.
We'll be using Python 3 in this book. As you may know, Python 2 will no longer be supported after 2020, so starting with or switching to Python 3 is strongly recommended. Trust me, the transition is pretty smooth. But if you're stuck with Python 2, you still should be able to modify the codes to work for you. The Anaconda Python 3 distribution is one of the best options for data science and machine learning practitioners.
Anaconda is a free Python distribution for data analysis and scientific computing. It has its own package manager,Â
conda. The distribution (https://docs.anaconda.com/anaconda/packages/pkg-docs/, depending on your operating system, or version 3.6, 3.7, or 2.7) includes more than 500 Python packages (as of 2018), which makes it very convenient. For casual users, the Miniconda (https://conda.io/miniconda.html) distribution may be the better choice. Miniconda contains the
conda package manager and Python. Obviously, Miniconda takes more disk space than Anaconda.
The procedures to install Anaconda and Miniconda are similar. You can follow the instructions from http://conda.pydata.org/docs/install/quick.html. First, you have to download the appropriate installer for your operating system and Python version, as follows:
Sometimes, you can choose between a GUI and a CLI. I used the Python 3 installer although my system Python version was 2.7 at the time I installed it. This is possible since Anaconda comes with its own Python. On my machine, the Anaconda installer created an
anaconda directory in my home directory and required about 900 MB. Similarly, the Miniconda installer installs a
miniconda directory in your home directory.

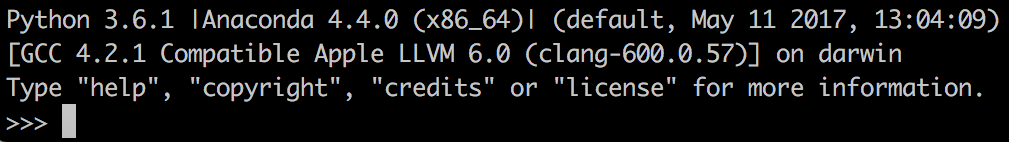

Feel free to play around with it after you set it up. One way to verify you set up Anaconda properly is by entering the following command line in your Terminal on Linux/Mac or Command Prompt on Windows (from now on, I'll just mention terminal):
The preceding command line will display your Python running environment, as shown in the following screenshot:
If this isn't what you're seeing, please check the system path or the path Python is running from.
The next step is setting up some of the common packages used throughout this book.
For most projects in this book, we'll be using NumPy (http://www.numpy.org/),
scikit-learn (http://scikit-learn.org/stable/), and TensorFlow (https://www.tensorflow.org/). In the sections that follow, we'll cover the installation of the Python packages that we'll be using in this book.
- The N-dimensional array
ndarrayclass and several subclasses representing matrices and arrays
- Various sophisticated array functions
- Useful linear algebra capabilities
Installation instructions for NumPy are at http://docs.scipy.org/doc/numpy/user/install.html. Alternatively, an easier method is installing it with
pip in the command line as follows:
pip install numpy
conda for Anaconda users, run the following command line:
conda install numpy
A quick way to verify your installation is to import it in the shell as follows:
>>> import numpy
It's installed nicely if there's no error message.
In machine learning, we mainly use NumPy arrays to store data vectors or matrices composed of feature vectors. SciPy (https://www.scipy.org/scipylib/index.html) uses NumPy arrays and offers a variety of scientific and mathematical functions. Installing SciPy in the terminal is similar, again as follows:
pip install scipy
We also use the
pandas library (https://pandas.pydata.org/) for data wrangling later in this book. The best way to get
pandas is via
conda install pandas
scikit-learn library is a Python machine learning package (probably the most well-designed machine learning package I've personally ever seen) optimized for performance as a lot of the code runs almost as fast as equivalent C code. The same statement is true for NumPy and SciPy. Scikit-learn requires both NumPy and SciPy to be installed. As the installation guide in http://scikit-learn.org/stable/install.html states, the easiest way to install
scikit-learn is using
conda as follows:
pip install -U scikit-learn
As for TensorFlow, it's a Python-friendly open source library invented by the Google Brain team for high-performance numerical computation. It makes machine learning faster and deep learning easier with the Python-based convenient frontend API and high-performance C++ based backend execution. Plus, it allows easy deployment of computation across CPUs and GPUs, which empowers expensive and large-scale machine learning. In this book, we focus on CPU as our computation platform. Hence, according to https://www.tensorflow.org/install/, installing TensorFlow is done via the following command line:
pip install tensorflow
There are many other packages we'll be using intensively, for example, Matplotlib for plotting and visualization, Seaborn for visualization, NLTK for natural language processing, and PySpark for large-scale machine learning. We'll provide installation details for any package when we first encounter it in this book.
We just finished our first mile on the Python and machine learning journey! Throughout this chapter, we became familiar with the basics of machine learning. We started with what machine learning is all about, the importance of machine learning (DT era) and its brief history, and looked at recent developments as well. We also learned typical machine learning tasks and explored several essential techniques of working with data and working with models. Now that we're equipped with basic machine learning knowledge and we've set up the software and tools, let's get ready for the real-world machine learning examples ahead.
In particular, we will be exploring newsgroups text data in our first ML project coming up next chapter.
