  1. The System Architecture and Design of Ansible

About this book

Automation is essential for success in the modern world of DevOps. Ansible provides a simple, yet powerful, automation engine for tackling complex automation challenges.

This book will take you on a journey that will help you exploit the latest version's advanced features to help you increase efficiency and accomplish complex orchestrations. This book will help you understand how Ansible 2.7 works at a fundamental level and will also teach you to leverage its advanced capabilities. Throughout this book, you will learn how to encrypt Ansible content at rest and decrypt data at runtime. Next, this book will act as an ideal resource to help you master the advanced features and capabilities required to tackle complex automation challenges. Later, it will walk you through workflows, use cases, orchestrations, troubleshooting, and Ansible extensions. Lastly, you will examine and debug Ansible operations, helping you to understand and resolve issues.

By the end of the book, you will be able to unlock the true power of the Ansible automation engine and tackle complex, real- world actions with ease.

Publication date:
March 2019


Chapter 1. The System Architecture and Design of Ansible

This chapter provides a detailed exploration of the architecture and design of Ansible, and how it goes about performing tasks on your behalf. We will cover the basic concepts of inventory parsing and how data is discovered, and then proceed onto playbook parsing. We will take a walk through module preparation, transportation, and execution. Lastly, we will detail variable types and find out where the variables are located, their scope of use, and how precedence is determined when variables are defined in more than one location. All these things will be covered in order to lay the foundation for mastering Ansible!

In this chapter, we will cover the following topics:

  • Ansible version and configuration
  • Inventory parsing and data sources
  • Playbook parsing
  • Execution strategies
  • Module transport and execution
  • Variable types and locations
  • Magic variables
  • Variable precedence (and interchanging this with variable priority ordering)

Technical requirements

Check out the following video to see the Code in Action:


Ansible version and configuration

It is assumed that you have Ansible installed on your system. There are many documents out there that cover installing Ansible in a way that is appropriate to the operating system and version that you might be using. This book will assume use of Ansible version 2.7.x.x. To discover the version in use on a system where Ansible is already installed, make use of the version argument, that is, either ansible or ansible-playbook, as follows:

ansible-playbook --version

This command should give you an output that's similar to the following screenshot:


Note that ansible is the executable for doing ad hoc one-task executions, and ansible-playbook is the executable that will process playbooks for orchestrating many tasks.

The configuration for Ansible can exist in a few different locations, where the first file found will be used. The search involves the following:

  • ANSIBLE_CFG: This environment variable is used, provided it is set
  • ansible.cfg: This is located in the current directory
  • ~/.ansible.cfg: This is located in the user's home directory
  • /etc/ansible/ansible.cfg

Some installation methods may include placing a config file in one of these locations. Look around to check whether such a file exists and see what settings are in the file to get an idea of how Ansible operation may be affected. This book will assume that there are no settings in the ansible.cfg file that would affect the default operation of Ansible.


Inventory parsing and data sources

In Ansible, nothing happens without an inventory. Even ad hoc actions performed on the localhost require an inventory, though that inventory may just consist of the localhost. The inventory is the most basic building block of Ansible architecture. When executing ansible or ansible-playbook, an inventory must be referenced. Inventories are either files or directories that exist on the same system that runs ansible or ansible-playbook. The location of the inventory can be referenced at runtime with the --inventory-file (-i) argument, or by defining the path in an Ansible config file.

Inventories can be static or dynamic, or even a combination of both, and Ansible is not limited to a single inventory. The standard practice is to split inventories across logical boundaries, such as staging and production, allowing an engineer to run a set of plays against their staging environment for validation, and then follow with the same exact plays run against the production inventory set.

Variable data, such as specific details on how to connect to a particular host in your inventory, can be included, along with an inventory in a variety of ways, and we'll explore the options available to you.

Static inventory

The static inventory is the most basic of all the inventory options. Typically, a static inventory will consist of a single file in the ini format. Here is an example of a static inventory file describing a single host,

That is all there is to it. Simply list the names of the systems in your inventory. Of course, this does not take full advantage of all that an inventory has to offer. If every name were listed like this, all plays would have to reference specific hostnames, or the special built-in all group (which, as it suggests, contains all hosts in the inventory). This can be quite tedious when developing a playbook that operates across different environments within your infrastructure. At the very least, hosts should be arranged into groups.

A design pattern that works well is to arrange your systems into groups based on expected functionality. At first, this may seem difficult if you have an environment where single systems can play many different roles, but that is perfectly fine. Systems in an inventory can exist in more than one group, and groups can even consist of other groups! Additionally, when listing groups and hosts, it's possible to list hosts without a group. These would have to be listed first before any other group is defined. Let's build on our previous example and expand our inventory with a few more hosts and groupings as follows:


What we have created here is a set of three groups with one system in each, and then two more groups, which logically group all three together. Yes, that's right; you can have groups of groups. The syntax used here is [groupname:children], which indicates to Ansible's inventory parser that this group, going by the name of groupname, is nothing more than a grouping of other groups.

The children, in this case, are the names of the other groups. This inventory now allows writing plays against specific hosts, low-level, role-specific groups, or high-level logical groupings, or any combination thereof.

By utilizing generic group names, such as dns and database, Ansible plays can reference these generic groups rather than the explicit hosts within. An engineer can create one inventory file that fills in these groups with hosts from a pre-production staging environment, and another inventory file with the production versions of these groupings. The playbook content does not need to change when executing on either a staging or production environment because it refers to the generic group names that exist in both inventories. Simply refer to the correct inventory to execute it in the desired environment.

Inventory ordering

A new play-level keyword, order, was added to Ansible in version 2.4. Prior to this, Ansible processed the hosts in the order specified in the inventory file, and continues to do so by default, even in newer versions. However, the following values can be set for the order keyword for a given play, resulting in the processing order of hosts described as follows:

  • inventory: This is the default option, and simply means Ansible proceeds as it always has, processing the hosts in the order specified in the inventory file
  • reverse_inventory: This results in the hosts being processed in the reverse of the order specified in the inventory
  • sorted: The hosts are processed in alphabetically sorted order by name
  • reverse_sorted: The hosts are processed in reverse alphabetically sorted order
  • shuffle: The hosts are processed in a random order, with the order being randomized on each run


In Ansible, the alphabetical sorting used is otherwise known as lexicographical. In short this means that values are sorted as strings, with the strings being processed from left to right. Thus, say we have three hosts—mastery1, mastery11, and mastery2. In this list, mastery1 comes first as the character as position 8 is a 1. Then comes mastery11, as the character at position 8 is still a 1, but now there is an additional character at position 9. Finally comes mastery2, as character 8 is a 2 and 2 comes after 1. This is important as numerically we know that 11 is greater than 2, but in this list mastery11 comes before mastery2.

Inventory variable data

Inventories provide more than just system names and groupings. Data pertaining to the systems can be passed along as well. This data may include the following:

  • Host-specific data to use in templates
  • Group-specific data to use in task arguments or conditionals
  • Behavioral parameters to tune how Ansible interacts with a system

Variables are a powerful construct within Ansible and can be used in a variety of ways, not just those described here. Nearly every single thing done in Ansible can include a variable reference. While Ansible can discover data about a system during the setup phase, not all data can be discovered. Defining data with the inventory expands this. Note that variable data can come from many different sources, and one source may override another. Variable precedence order is covered later in this chapter.

Let's improve upon our existing example inventory and add to it some variable data. We will add some host-specific data, as well as group-specific data:

[web] ansible_host=

In this example, we defined ansible_host for to be the IP address of The ansible_host variable is a behavioral inventory variable, which is intended to alter the way Ansible behaves when operating with this host. In this case, the variable instructs Ansible to connect to the system using the IP address provided, rather than performing a DNS lookup on the name using There are a number of other behavioral inventory variables that are listed at the end of this section, along with their intended use.

Our new inventory data also provides group-level variables for the web and backend groups. The web group defines http_port, which may be used in an NGINX configuration file, and proxy_timeout, which might be used to determine HAProxy behavior. The backend group makes use of another behavioral inventory parameter to instruct Ansible to connect to the hosts in this group using port 314 for SSH, rather than the default of 22.

Finally, a construct is introduced that provides variable data across all the hosts in the inventory by utilizing a built-in all group. Variables defined within this group will apply to every host in the inventory. In this particular example, we instruct Ansible to log in as the otto user when connecting to the systems. This is also a behavioral change, as the Ansible default behavior is to log in as a user with the same name as the user executing ansible or ansible-playbook on the control host.

Here is a table of behavior inventory variables and the behaviors they intend to modify:

Inventory parameters



This is the DNS name or or the Docker container name which Ansible will initiate a connection to.


Specifies the port number that Ansible will use to connect to the inventory host, if not the default value of 22.


Specifies the username that Ansible will connect to the inventory host with, regardless of the connection type.


Used to provide Ansible with the password for authentication to the inventory host in conjunction with ansible_user.


Used to specify which SSH private key file will be used to connect to the inventory host, if not using the default one or ssh-agent.


This defines SSH arguments to append to the default arguments for ssh, sftp, and scp.


Used to specify additional arguments that will be passed to the sftp binary when called by Ansible.


Used to specify additional arguments that will be passed to the scp binary when called by Ansible.


Used to specify additional arguments that will be passed to the ssh binary when called by Ansible.


This setting uses a Boolean to define whether SSH pipelining should be used for this host.


This setting overrides the path to the SSH executable for this host.


This defines whether privilege escalation (sudo or otherwise) should be used with this host.


This is the method to use for privilege escalation, and can be one of sudo, su, pbrun, pfexec, doas, dzdo, or ksu.


This is the user to become through privilege escalation.


This is the password to use for privilege escalation.


This is the sudo password to use (this is insecure; we strongly recommend using --ask-sudo-pass).


This is the connection type of the host. Candidates are local, smart, ssh, paramikodocker, or winrm (more on this later in the book). The default is smart in any modern Ansible distribution (this detects whether the SSH feature ControlPersist is supported and, if so, uses ssh as the connection type, falling back to paramiko otherwise).


Used to specify the extra argument that will be passed to a remote Docker daemon on a given inventory host.


Used to determine the shell type on the inventory host(s) in question. Defaults to sh-style syntax, but can be set to csh or fish to work with systems that use these shells.


Used to determine the shell type on the inventory host(s) in question. Defaults to sh-style syntax, but can be set to csh or fish to work with systems that use these shells.


This is used to manually set the path to Python on a given host in the inventory. For example some distributions of Linux have more than one Python version installed, and it is important that the correct one is set. For example, a host might have both /usr/bin/python27 and /usr/bin/python3, and this is used to define which one will be used.


Used for any other interpreted language that Ansible might depend upon (e.g. Perl or Ruby). Replaces the interpreter binary with the one specified.

Dynamic inventories

A static inventory is great, and enough for many situations. But there are times when a statically written set of hosts is just too unwieldy to manage. Consider situations where inventory data already exists in a different system, such as LDAP, a cloud computing provider, or an in-house configuration management database (CMDB) (inventory, asset tracking, and data warehousing) system. It would be a waste of time and energy to duplicate that data and, in the modern world of on-demand infrastructure, that data would quickly grow stale or disastrously incorrect.

Another example of when a dynamic inventory source might be desired is when your site grows beyond a single set of playbooks. Multiple playbook repositories can fall into the trap of holding multiple copies of the same inventory data, or complicated processes have to be created to reference a single copy of the data. An external inventory can easily be leveraged to access the common inventory data stored outside of the playbook repository to simplify the setup. Thankfully, Ansible is not limited to static inventory files.

A dynamic inventory source (or plugin) is an executable that Ansible will call at runtime to discover real-time inventory data. This executable may reach out into external data sources and return data, or it can just parse local data that already exists but may not be in the Ansible inventory ini format. While it is possible, and easy, to develop your own dynamic inventory source, which we will cover in a later chapter, Ansible provides a number of example inventory plugins, including, but not limited to, the following:

  • OpenStack Nova
  • Rackspace Public Cloud
  • DigitalOcean
  • Linode
  • Amazon EC2
  • Google Compute Engine
  • Microsoft Azure
  • Docker
  • Vagrant

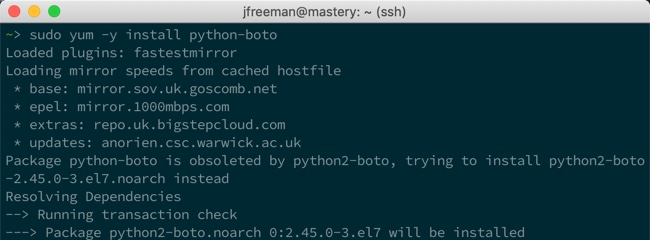

Many of these plugins require some level of configuration, such as user credentials for EC2 or authentication endpoint for OpenStack Nova. Since it is not possible to configure additional arguments for Ansible to pass along to the inventory script, the configuration for the script must either be managed via an ini config file read from a known location, or environment variables read from the shell environment used to execute ansible or ansible-playbook. Note also that sometimes, external libraries are required for these inventory scripts to function.

When ansible or ansible-playbook is directed at an executable file for an inventory source, Ansible will execute that script with a single argument, --list. This is so that Ansible can get a listing of the entire inventory in order to build up its internal objects to represent the data. Once that data is built up, Ansible will then execute the script with a different argument for every host in the data to discover variable data. The argument used in this execution is --host <hostname>, which will return any variable data specific to that host.

The inventory scripts are too numerous to go through each in detail in this book. However, to demonstrate the process, we will work through the use of the EC2 dynamic inventory. The dynamic inventory scripts officially included with Ansible can be found on Github:

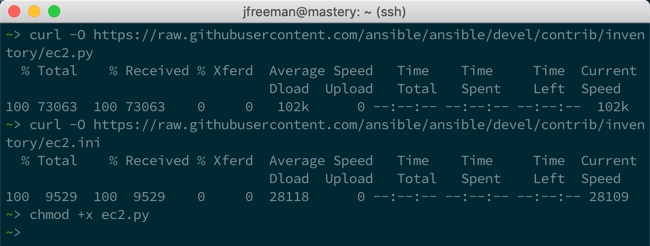

On browsing this directory system, we can see there is an and associated example configuration file, ec2.ini. Download these onto your system and make the Python file executable:

If we take a look at the comments at the top of, we can see it tells us that we need the Boto library installed. Installing this will depend on your operating system and Python environment, but on CentOS 7 (and other EL7 variants), it could be done with the following:

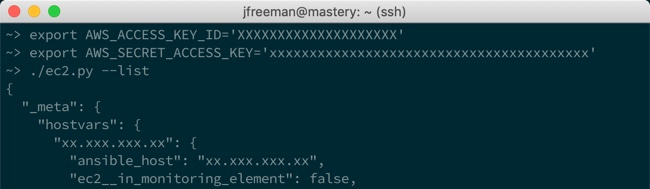

Now, take a look at the ec2.ini file, and edit it as appropriate. You can see that your AWS credentials could go into this file, but it is not recommended for security reasons. For this example, we will simply specify them using environment variables, and then run our dynamic inventory script with the --list parameter, as discussed in the previous screenshot. Doing so yields the following:

Voila! We have a listing of our current AWS inventory, along with a glimpse into the host variables for the discovered hosts. Note that, of course, the full output is far more complete than this.

With the AWS inventory in place, you could use this right away to run a single task or entire playbook against this dynamic inventory. For example, to use the ping module to check Ansible connectivity to all hosts in the inventory, you could run the following command:

ansible -i all -m ping

This, of course, is just one example. However, if you follow this process for other dynamic inventory providers, you should get them working with ease.

In Chapter 9, Extending Ansible, we will develop our own custom inventory plugin to demonstrate how they operate.

Runtime inventory additions

Just like static inventory files, it is important to remember that Ansible will parse this data once, and only once, per ansible or ansible-playbook execution. This is a fairly common stumbling point for users of cloud dynamic sources, where frequently, a playbook will create a new cloud resource and then attempt to use it as if it were part of the inventory. This will fail, as the resource was not part of the inventory when the playbook launched. All is not lost though! A special module is provided that allows a playbook to temporarily add an inventory to the in-memory inventory object, the add_host module.

The add_host module takes two options, name and groups. The name should be obvious; it defines the hostname that Ansible will use when connecting to this particular system. The groups option is a comma-separated list of groups to add this new system to. Any other option passed to this module will become the host variable data for this host. For example, if we want to add a new system, name it, add it to the web group, and instruct Ansible to connect to it by way of IP address This will create a task resembling the following:

- name: add new node into runtime inventory
    groups: web

This new host will be available to use, by way of the name provided, or by way of the web group, for the rest of the ansible-playbook execution. However, once the execution has completed, this host will not be available unless it has been added to the inventory source itself. Of course, if this were a new cloud resource created, the next ansible or ansible-playbook execution that sourced inventory from that cloud would pick up the new member.

Inventory limiting

As mentioned earlier, every execution of ansible or ansible-playbook will parse the entire inventory it has been directed at. This is even true when a limit has been applied. A limit is applied at runtime by making use of the --limit runtime argument to ansible or ansible-playbook. This argument accepts a pattern, which is basically a mask to apply to the inventory. The entire inventory is parsed, and at each play, the limit mask supplied further limits the host pattern listed for the play.

Let's take our previous inventory example and demonstrate the behavior of Ansible with and without a limit. If you recall, we have the special group, all, that we can use to reference all the hosts within an inventory. Let's assume that our inventory is written out in the current working directory in a file named mastery-hosts, and we will construct a playbook to demonstrate the host on which Ansible is operating. Let's write this playbook out as mastery.yaml:

- name: limit example play
  hosts: all
  gather_facts: false
    - name: tell us which host we are on
        var: inventory_hostname

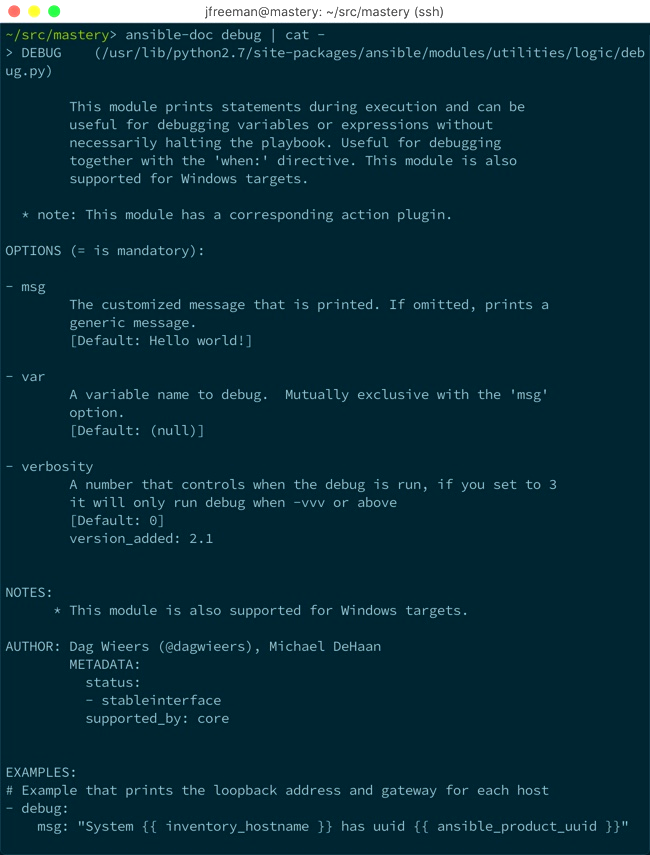

The debug module is used to print out text, or values of variables. We'll use this module a lot in this book to simulate actual work being done on a host.

Now, let's execute this simple playbook without supplying a limit. For simplicity's sake, we will instruct Ansible to utilize a local connection method, which will execute locally rather than attempting to SSH to these non-existent hosts.

Let's take a look at the following screenshot:

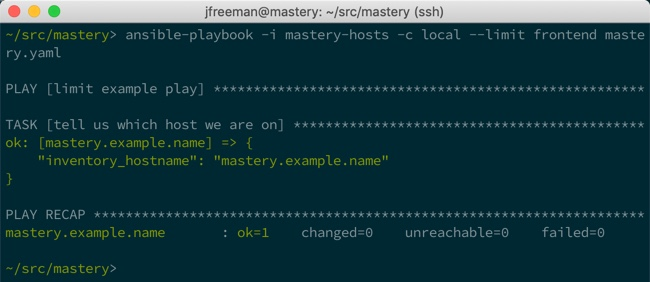

As we can see, both hosts, and, were operated on. Let's see what happens if we supply a limit, specifically to limit our run to frontend systems only:

We can see that only was operated on this time. While there are no visual clues that the entire inventory was parsed, if we dive into the Ansible code and examine the inventory object, we will indeed find all the hosts within, and see how the limit is applied every time the object is queried for items.

It is important to remember that regardless of the host's pattern used in a play, or the limit supplied at runtime, Ansible will still parse the entire inventory set during each run. In fact, we can prove this by attempting to access the host variable data for a system that would otherwise be masked by our limit. Let's expand our playbook slightly and attempt to access the ansible_port variable from

- name: limit example play
  hosts: all
  gather_facts: false
    - name: tell us which host we are on
        var: inventory_hostname
    - name: grab variable data from backend
        var: hostvars['']['ansible_port']

We will still apply our limit, which will restrict our operations to just

We have successfully accessed the host variable data (by way of group variables) for a system that was otherwise limited out. This is a key skill to understand, as it allows for more advanced scenarios, such as directing a task at a host that is otherwise limited out. Delegation can be used to manipulate a load balancer to put a system into maintenance mode while being upgraded without having to include the load balancer system in your limit mask.


Playbook parsing

The whole purpose of an inventory source is to have systems to manipulate. The manipulation comes from playbooks (or, in the case of Ansible ad hoc execution, that is, simple single-task plays). You should already have a basic understanding of playbook construction, so we won't spend a lot of time covering that; however, we will delve into some specifics of how a playbook is parsed. Specifically, we will cover the following:

  • Order of operations
  • Relative path assumptions
  • Play behavior keys
  • Host selection for plays and tasks
  • Play and task names

Order of operations

Ansible is designed to be as easy as possible for a human to understand. The developers strive to strike the best balance of human comprehension and machine efficiency. To that end, nearly everything in Ansible can be assumed to be executed in a top-to-bottom order; that is, the operation listed at the top of a file will be accomplished before the operation listed at the bottom of a file. Having said that, there are a few caveats, and even a few ways to influence the order of operations.

A playbook has only two main operations it can accomplish. It can either run a play, or it can include another playbook from somewhere on the filesystem. The order in which these are accomplished is simply the order in which they appear in the playbook file, from top to bottom. It is important to note that while the operations are executed in order, the entire playbook and any included playbooks are completely parsed before any executions. This means that any included playbook file has to exist at the time of the playbook parsing. They cannot be generated in an earlier operation. This is specific to playbook inclusions, and not necessarily to task inclusions that may appear within a play, which will be covered in a later chapter.

Within a play, there are a few more operations. While a playbook is strictly ordered from top to bottom, a play has a more nuanced order of operations. Here is a list of the possible operations and the order in which they will happen:

  • Variable loading
  • Fact gathering
  • The pre_tasks execution
  • Handlers notified from the pre_tasks execution
  • Roles execution
  • Tasks execution
  • Handlers notified from roles or tasks execution
  • The post_tasks execution
  • Handlers notified from the post_tasks execution

Here is an example play with most of these operations shown:

- hosts: localhost
  gather_facts: false
    - a_var: derp
    - name: pretask
        msg: "a pre task"
      changed_when: true
      notify: say hi
    - role: simple
      derp: newval
    - name: task
        msg: "a task"
      changed_when: true
      notify: say hi
    - name: posttask
        msg: "a post task"
      changed_when: true
      notify: say hi

Regardless of the order in which these blocks are listed in a play, the order detailed in the previous code block is the order in which they will be processed. Handlers (the tasks that can be triggered by other tasks that result in a change) are a special case. There is a utility module, meta, which can be used to trigger handler processing at a specific point:

- meta: flush_handlers

This will instruct Ansible to process any pending handlers at that point before continuing on with the next task or next block of actions within a play. Understanding the order and being able to influence the order with flush_handlers is another key skill to have when there is a need for orchestrating complicated actions, where things such as service restarts are very sensitive to order. Consider the initial rollout of a service.

The play will have tasks that modify config files and indicate that the service should be restarted when these files change. The play will also indicate that the service should be running. The first time this play happens, the config file will change and the service will change from not running to running. Then, the handlers will trigger, which will cause the service to restart immediately. This can be disruptive to any consumers of the service. It would be better to flush the handlers before a final task to ensure the service is running. This way, the restart will happen before the initial start, so the service will start up once and stay up.

Relative path assumptions

When Ansible parses a playbook, there are certain assumptions that can be made about the relative paths of items referenced by the statements in a playbook. In most cases, paths for things such as variable files to include, task files to include, playbook files to include, files to copy, templates to render, and scripts to execute, are all relative to the directory where the file referencing them resides. Let's explore this with an example playbook and directory listing to show where the files are:

  • The directory structure is as follows:
├── a_vars_file.yaml
├── mastery-hosts
├── relative.yaml
└── tasks
    ├── a.yaml
    └── b.yaml
  • The content of a_vars_file.yaml is as follows:
something: "better than nothing"
  • The content of relative.yaml is as follows:
- name: relative path play
  hosts: localhost
  gather_facts: false

    - a_vars_file.yaml

    - name: who am I
        msg: "I am mastery task"
    - name: var from file
        var: something
    - include: tasks/a.yaml
  • The content of tasks/a.yaml is as follows:
- name: where am I
    msg: "I am task a"
- include: b.yaml
  • The content of tasks/b.yaml is as follows:
- name: who am I
    msg: "I am task b"

Execution of the playbook is shown as follows:

We can clearly see the relative references to paths and how they are relative to the file referencing them. When using roles, there are some additional relative path assumptions; however, we'll cover that in detail in a later chapter.

Play behavior directives

When Ansible parses a play, there are a few directives it looks for in order to define various behaviors for a play. These directives are written at the same level as the hosts: directive. Here is a description of the subset of the keys that can be used:

  • any_errors_fatal: This Boolean directive is used to instruct Ansible to treat any failure as a fatal error to prevent any further tasks from being attempted. This changes the default, where Ansible will continue until all the tasks are complete or all the hosts have failed.
  • connection: This string directive defines which connection system to use for a given play. A common choice to make here is local, which instructs Ansible to do all the operations locally, but with the context of the system from the inventory.
  • gather_facts: This Boolean directive controls whether or not Ansible will perform the fact-gathering phase of the operation, where a special task will run on a host to uncover various facts about the system. Skipping fact gathering, when you are sure that you do not need any of the discovered data, can be a significant time-saver in a larger environment.
  • max_fail_percentage: This number directive is similar to any_errors_fatal, but is more fine-grained. This allows you to define just what percentage of your hosts can fail before the whole operation is halted.
  • no_log: This is a Boolean to control whether or not Ansible will log (to the screen and/or a configured log file) the command given or the results received from a task. This is important if your task or return deals with secrets. This key can also be applied to a task directly.
  • port: This is a number directive to define what port SSH (or an other remote connection plugin) should use to connect unless otherwise configured in inventory data.
  • remote_user: This is a string directive that defines which user to log in with on the remote system. The default is to connect as the same user that ansible-playbook was started with.
  • serial: This directive takes a number and controls how many systems Ansible will execute a task on before moving to the next task in a play. This is a drastic change from the normal order of operation, where a task is executed across every system in a play before moving to the next. This is very useful in rolling update scenarios, which will be detailed in later chapters.
  • become: This is a Boolean directive used to configure whether privilege escalation (sudo or otherwise) should be used on the remote host to execute tasks. This key can also be defined at a task level. Related directives include become_user, become_method, and become_flags. These can be used to configure how the escalation will occur.
  • strategy: This directive sets the execution strategy to be used for the play.

Many of these keys will be used in example playbooks through this book.


For a full list of available play directives, see the online documentation at

Execution strategies

With the release of Ansible 2.0, a new way to control play execution behavior was introduced: strategy. A strategy defines how Ansible coordinates each task across the set of hosts. Each strategy is a plugin, and two come with Ansible – linear and free. The linear strategy, which is the default strategy, is how Ansible has always behaved. As a play is executed, all the hosts for a given play execute the first task.

Once all are complete, Ansible moves to the next task. The serial directive can create batches of hosts to operate in this way, but the base strategy remains the same. All the targets for a given batch must complete a task before the next task is executed. The free strategy breaks from this traditional behavior. When using the free strategy, as soon as a host completes a task, Ansible will execute the next task for that host, without waiting for any other hosts to complete.

This will happen for every host in the set, for every task in the play. The hosts will complete the tasks as fast as each are able to, minimizing the execution time of each specific host. While most playbooks will use the default linear strategy, there are situations where the free strategy would be advantageous; for example, upgrading a service across a large set of hosts. If the play has numerous tasks to perform the upgrade, which starts with shutting down the service, then it would be more important for each host to suffer as little downtime as possible.

Allowing each host to independently move through the play as fast as it is able to will ensure that each host is down only for as long as necessary. Without using free, the entire set will be down for as long as the slowest host in the set takes to complete the tasks.


As the free strategy does not coordinate task completion across hosts, it is not possible to depend on the data that is generated during a task on one host to be available for use in a later task on a different host. There is no guarantee that the first host will have completed the task that generates the data.

Execution strategies are implemented as a plugin and, as such, custom strategies can be developed to extend Ansible behavior. Development of such plugins is beyond the scope of this book.

Host selection for plays and tasks

The first thing that most plays define (after a name, of course) is a host pattern for the play. This is the pattern used to select hosts out of the inventory object to run the tasks on. Generally, this is straightforward; a host pattern contains one or more blocks indicating a host, group, wildcard pattern, or regex to use for the selection. Blocks are separated by a colon, wildcards are just an asterisk, and regex patterns start with a tilde:


Advanced usage can include group index selection or even ranges within a group:


Each block is treated as an inclusion block; that is, all the hosts found in the first pattern are added to all the hosts found in the next pattern, and so on. However, this can be manipulated with control characters to change their behavior. The use of an ampersand allows an inclusion selection (all the hosts that exist in both patterns). The use of an exclamation point allows exclusion selection (all the hosts that exist in the previous patterns but are NOT in the exclusion pattern):

webservers:&dbservers # Hosts must exist in both webservers and dbservers groups
webservers:!dbservers # Hosts must exist in webservers but not dbservers groups

Once Ansible parses the patterns, it will then apply restrictions, if any. Restrictions come in the form of limits or failed hosts. This result is stored for the duration of the play, and it is accessible via the play_hosts variable. As each task is executed, this data is consulted and an additional restriction may be placed upon it to handle serial operations. As failures are encountered, be it a failure to connect or a failure in executing tasks, the failed host is placed in a restriction list so that the host will be bypassed in the next task.

If, at any time, a host selection routine gets restricted down to zero hosts, the play execution will stop with an error. A caveat here is that if the play is configured to have a max_fail_precentage or any_errors_fatal parameter, then the playbook execution stops immediately after the task where this condition is met.

Play and task names

While not strictly necessary, it is a good practice to label your plays and tasks with names. These names will show up in the command-line output of ansible-playbook and will show up in the log file if ansible-playbook is directed to log to a file. Task names also come in handy to direct ansible-playbook to start at a specific task and to reference handlers.

There are two main points to consider when naming plays and tasks:

  • Names of plays and tasks should be unique
  • Beware of what kind of variables can be used in play and task names

Naming plays and tasks uniquely is a best practice in general that will help to quickly identify where a problematic task may reside in your hierarchy of playbooks, roles, task files, handlers, and so on. Uniqueness is more important when notifying a handler or when starting at a specific task. When task names have duplicates, the behavior of Ansible may be non-deterministic, or at least non-obvious.

With uniqueness as a goal, many playbook authors will look to variables to satisfy this constraint. This strategy may work well, but authors need to take care as to the source of the variable data they are referencing. Variable data can come from a variety of locations (which we will cover later in this chapter), and the values assigned to variables can be defined at a variety of times. For the sake of play and task names, it is important to remember that only variables for which the values can be determined at playbook parse time will parse and render correctly. If the data of a referenced variable is discovered via a task or other operation, the variable string will be displayed as unparsed in the output. Let's look at an example playbook that utilizes variables for play and task names:

- name: play with a {{ var_name }}
  hosts: localhost
  gather_facts: false

  - var_name: not-mastery

  - name: set a variable
      task_var_name: "defined variable"

  - name: task with a {{ task_var_name }}
      msg: "I am mastery task"

- name: second play with a {{ task_var_name }}
  hosts: localhost
  gather_facts: false

  - name: task with a {{ runtime_var_name }}
      msg: "I am another mastery task"

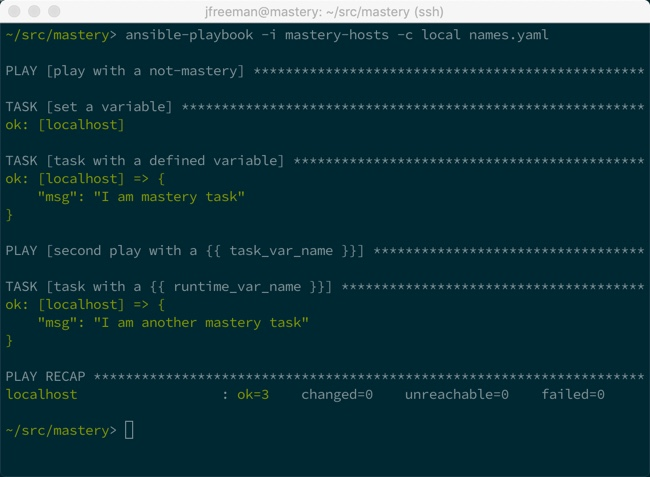

At first glance, you might expect at least var_name and task_var_name to render correctly. We can clearly see task_var_name being defined before its use. However, armed with our knowledge that playbooks are parsed in their entirety before execution, we know better:

As we can see in the previous screenshot, the only variable name that is properly rendered is var_name, as it was defined as a static play variable.


Module transport and execution

Once a playbook is parsed and the hosts are determined, Ansible is ready to execute a task. Tasks are made up of a name (optional, but nonetheless important, as described previously), a module reference, module arguments, and task control directives. A later chapter will cover task control directives in detail, so we will only concern ourselves with the module reference and arguments.

Module reference

Every task has a module reference. This tells Ansible which bit of work to carry out. Ansible is designed to easily allow for custom modules to live alongside a playbook. These custom modules can be wholly new functionality, or they can replace modules shipped with Ansible itself. When Ansible parses a task and discovers the name of the module to use for a task, it looks into a series of locations in order to find the module requested. Where it looks also depends on where the task lives, whether in a role or not.

If a task is in a role, Ansible will first look for the module within a directory tree named library within the role the task resides in. If the module is not found there, Ansible looks for a directory named library at the same level as the main playbook (the one referenced by the ansible-playbook execution). If the module is not found there, Ansible will finally look in the configured library path, which defaults to /usr/share/ansible/. This library path can be configured in an Ansible config file, or by way of the ANSIBLE_LIBRARY environment variable.

This design, allowing modules to be bundled with roles and playbooks, allows for the addition of functionality or the reparation of problems quickly and easily.

Module arguments

Arguments to a module are not always required; the help output of a module will indicate which models are required and which are not. Module documentation can be accessed with the ansible-doc command as follows:


This command was piped into cat to prevent shell paging from being used.

Arguments can be templated with Jinja2, which will be parsed at module execution time, allowing for data discovered in a previous task to be used in later tasks; this is a very powerful design element.

Arguments can be supplied in a key=value format, or in a complex format that is more native to YAML. Here are two examples of arguments being passed to a module showcasing the two formats:

- name: add a keypair to nova
  os_keypair: cloud={{ cloud_name }} name=admin-key wait=yes
- name: add a keypair to nova
    cloud: "{{ cloud_name }}"
    name: admin-key
    wait: yes

Both formats will lead to the same result in this example; however, the complex format is required if you wish to pass complex arguments into a module. Some modules expect a list object or a hash of data to be passed in; the complex format allows for this. While both formats are acceptable for many tasks, the complex format is the format used for the majority of examples in this book.

Module blacklisting

Starting with Ansible 2.5, it is now possible for system administrators to blacklist Ansible modules that they do not wish to be available to playbook developers. This might be for security reasons, to maintain conformity, or even to avoid the use of deprecated modules.

The location for the module blacklist is defined by the plugin_filters_cfg parameter found in the defaults section of the Ansible configuration file. By default, it is disabled, and the suggested default value is set to /etc/ansible/plugin_filters.yml.

The format for this file is, at present, very simple—it contains a version header to allow for the file format to be updated in future, and a list of modules to be filtered out. For example, one of the currently deprecated modules to be completely removed in Ansible 2.11 is sf_account_manager (see Thus, to prevent anyone from using this internally, the plugin_filters.yml file would look like this:

  # Deprecated – to be removed in 2.11
  - sf_account_manager

Although useful in helping to ensure high-quality Ansible code is maintained, this functionality is, at the time of writing, limited to modules, and cannot be extended to anything else, such as roles.

Module transport and execution

Once a module is found, Ansible has to execute it in some way. How the module is transported and executed depends on a few factors; however, the common process is to locate the module file on the local filesystem and read it into memory, and then add in the arguments passed to the module. Then, the boilerplate module code from core Ansible is added to the file object in memory. This collection is compressed, Base64-encoded, and then wrapped in a script. What happens next really depends on the connection method and runtime options (such as leaving the module code on the remote system for review).

The default connection method is smart, which most often resolves to the ssh connection method. With a default configuration, Ansible will open an SSH connection to the remote host, create a temporary directory, and close the connection. Ansible will then open another SSH connection in order to write out the wrapped ZIP file from memory (the result of local module files, task module arguments, and Ansible boilerplate code) into a file within the temporary directory that we just created and close the connection.

Finally, Ansible will open a third connection in order to execute the script and delete the temporary directory and all its contents. The module results are captured from stdout in the JSON format, which Ansible will parse and handle appropriately. If a task has an async control, Ansible will close the third connection before the module is complete, and SSH back into the host to check the status of the task after a prescribed period until the module is complete or a prescribed timeout has been reached.

Task performance

The previous description of how Ansible connects to hosts results in three connections to the host for every task. In a small environment with a small number of tasks, this may not be a concern; however, as the task set grows and the environment size grows, the time required to create and tear down SSH connections increases. Thankfully, there are a couple of ways to mitigate this.

The first is an SSH feature, ControlPersist, which provides a mechanism to create persistent sockets when first connecting to a remote host that can be reused in subsequent connections to bypass some of the handshaking required when creating a connection. This can drastically reduce the amount of time Ansible spends on opening new connections. Ansible automatically utilizes this feature if the host platform where Ansible is run from supports it. To check whether your platform supports this feature, check the SSH man page for ControlPersist.

The second performance enhancement that can be utilized is an Ansible feature called pipelining. Pipelining is available to SSH-based connection methods and is configured in the Ansible configuration file within the ssh_connection section:


This setting changes how modules are transported. Instead of opening an SSH connection to create a directory, another to write out the composed module, and a third to execute and clean up, Ansible will instead open an SSH connection on the remote host. Then, over that live connection, Ansible will pipe in the zipped composed module code and script for execution. This reduces the connections from three to one, which can really add up. By default, pipelining is disabled.

Utilizing the combination of these two performance tweaks can keep your playbooks nice and fast even as you scale your environment. However, keep in mind that Ansible will only address as many hosts at once as the number of forks Ansible is configured to run. Forks are the number of processes Ansible will split off as a worker to communicate with remote hosts. The default is five forks, which will address up to five hosts at once. Raise this number to address more hosts as your environment size grows by adjusting the forks= parameter in an Ansible configuration file, or by using the --forks (-f) argument with ansible or ansible-playbook.


Variable types and location

Variables are a key component of the Ansible design. Variables allow for dynamic play content and reusable plays across different sets of an inventory. Anything beyond the most basic of Ansible use will utilize variables. Understanding the different variable types and where they can be located, as well as learning how to access external data or prompt users to populate variable data, is one of the keys to mastering Ansible.

Variable types

Before diving into the precedence of variables, we must first understand the various types and subtypes of variables available to Ansible, their location, and where they are valid for use.

The first major variable type is inventory variables. These are the variables that Ansible gets by way of the inventory. These can be defined as variables that are specific to host_vars, to individual hosts, or applicable to entire groups as group_vars. These variables can be written directly into the inventory file, delivered by the dynamic inventory plugin, or loaded from the host_vars/<host> or group_vars/<group> directories.

These types of variables might be used to define Ansible behavior when dealing with these hosts or site-specific data related to the applications that these hosts run. Whether a variable comes from host_vars or group_vars, it will be assigned to a host's hostvars, and it can be accessed from the playbooks and template files. Accessing a host's own variables can be done just by referencing the name, such as {{ foobar }}, and accessing another host's variables can be accomplished by accessing hostvars; for example, to access the foobar variable for examplehost: {{ hostvars['examplehost']['foobar'] }}. These variables have global scope.

The second major variable type is role variables. These are variables specific to a role and are utilized by the role tasks – however, it should be noted that once a role has been added to a playbook, its variables are generally accessible throughout the rest of the playbook, including from within other roles. In most simple playbooks, this won't matter, as the roles are typically run one at a time, but it is worth remembering this as playbook structure gets more complex—otherwise, unexpected behavior may result from variables being set within a different role!

These variables are often supplied as a role default, which are meant to provide a default value for the variable but can easily be overridden when applying the role. When roles are referenced, it is possible to supply variable data at the same time, either by overriding role defaults or creating wholly new data. We'll cover roles in depth in a later chapter. These variables apply to all hosts on which the role is executed and can be accessed directly, much like a host's own hostvars.

The third major variable type is play variables. These variables are defined in the control keys of a play, either directly by the vars key or sourced from external files via the vars_files key. Additionally, the play can interactively prompt the user for variable data using vars_prompt. These variables are to be used within the scope of the play and in any tasks or included tasks of the play. The variables apply to all hosts within the play and can be referenced as if they are hostvars.

The fourth variable type is task variables. Task variables are made from data discovered while executing tasks or in the fact-gathering phase of a play. These variables are host-specific and are added to the host's hostvars and can be used as such, which also means they have global scope after the point in which they were discovered or defined. Variables of this type can be discovered via gather_facts and fact modules (modules that do not alter state but rather return data), populated from task return data via the register task key or defined directly by a task making use of the set_fact or add_host modules. Data can also be interactively obtained from the operator using the prompt argument to the pause module and registering the result:

- name: get the operators name
    prompt: "Please enter your name"
  register: opname

The extra variables, or extra-vars type, are variables supplied on the command line when executing ansible-playbook via --extra-vars. Variable data can be supplied as a list of key=value pairs, a quoted piece of JSON data, or a reference to a YAML-formatted file with variable data defined within:

--extra-vars "foo=bar owner=fred"
--extra-vars '{"services":["nova-api","nova-conductor"]}'
--extra-vars @/path/to/data.yaml

Extra variables are considered global variables. They apply to every host and have scope throughout the entire playbook.

Magic variables

In addition to the previously listed variable types, Ansible offers a set of variables that deserve their own special mention – magic variables. These are variables that are always set when a playbook is run without them having to be explicitly created. Their names are always reserved and should not be used for other variables.

Magic variables are used to provide information about the current playbook run to the playbooks themselves and are extremely useful as Ansible environments become larger and more complex. For example, if one of your plays needs information about which groups the current host is in, the group_names magic variable returns a list of these. Similarly, if you need to configure the hostname for a service using Ansible, the inventory_hostname magic variable will return the current hostname as it is defined in the inventory. A simple example of this would be as follows:

- name: demonstrate magic variables
  hosts: all
  gather_facts: false

    - name: tell us which host we are on
        var: inventory_hostname

    - name: tell us which groups we are in
        var: group_names

Whilst it is beyond the scope of this book to go into detail on each and every single magic variable, it is important to know of their existence. Imagine, for example, setting up the hostnames on a new set of Linux servers from a blank template. The inventory_hostname magic variable provides us with the hostname we need directly from the inventory, without the need for another source of data (or, for example, a connection to the CMDB). Similarly, accessing groups_names allows us to define which plays should be run on a given host within a single playbook – perhaps, for example, installing NGINX if the host is in the webservers group. In this way, Ansible code can be made more versatile and efficient, and hence, these variables deserve a special mention.


Accessing external data

Data for role variables, play variables, and task variables can also come from external sources. Ansible provides a mechanism to access and evaluate data from the control machine (the machine running ansible-playbook). The mechanism is called a lookup plugin, and a number of them come with Ansible. These plugins can be used to look up or access data by reading files, generate and locally store passwords on the Ansible host for later reuse, evaluate environment variables, pipe data in from executables, access data in the Redis or etcd systems, render data from template files, query dnstxt records, and more. The syntax is as follows:

lookup('<plugin_name>', 'plugin_argument')

For example, to use the mastery value from etcd in a debug task, execute the following command:

- name: show data from etcd
    msg: "{{ lookup('etcd', 'mastery') }}"

Lookups are evaluated when the task referencing them is executed, which allows for dynamic data discovery. To reuse a particular lookup in multiple tasks and reevaluate it each time, a playbook variable can be defined with a lookup value. Each time the playbook variable is referenced, the lookup will be executed, potentially providing different values over time.


Variable precedence

As you learned in the previous section, there are several major types of variables that can be defined in a myriad of locations. This leads to a very important question: what happens when the same variable name is used in multiple locations? Ansible has a precedence for loading variable data, and thus it has an order and a definition to decide which variable will win. Variable value overriding is an advanced usage of Ansible, so it is important to fully understand the semantics before attempting such a scenario.

Precedence order

Ansible defines the precedence order as follows, with those closest to the top of the list winning. Note that this can change from release to release, and has changed quite significantly since Ansible 2.4 was released, so it is worth reviewing, especially when upgrading your Ansible environment:

  1. Extra vars (from the command line) always wins
  2. include parameters
  3. Role (and include_role) parameters
  4. Variables defined with set_facts, and those created with the register task directive
  5. include_vars
  6. Task vars (only for the specific task)
  7. Block vars (only for the tasks within the block)
  8. Role vars (defined in main.yml in the vars subdirectory of the role).
  9. Play vars_files
  10. Play vars_prompt
  11. Play vars
  12. Host facts (and also cached set_facts)
  13. host_vars playbook
  14. host_vars inventory
  15. Inventory file (or script) defined host vars
  16. group_vars playbook
  17. group_vars inventory
  18. group_vars/all playbook
  19. group_vars/all inventory
  20. Inventory file (or script) defined group vars
  21. Role defaults
  22. Command-line values (for example, -u REMOTE_USER)


Ansible releases a porting guide with each release that details the changes you will need to make to your code in order for it to continue functioning as expected. It is important to review these as you upgrade your Ansible environment – the guides may be found here:

Variable group priority ordering

The previous list of priority ordering is obviously helpful when writing Ansible playbooks, and, in most cases, it is apparent that variables should not clash. For example, a task var clearly wins over a play var, and all tasks and indeed plays are unique. Similarly, all hosts in the inventory will be unique, so again, there should be no clash of variables with the inventory either.

There is, however, one exception to this – inventory groups. A one-to-many relationship exists between hosts and groups, and, as such, any given host can be a member of one or more groups. Let's suppose that the following code is our inventory file by way of example:






Here, we have two hypothetical frontend servers, and, in the frontend group. Both hosts are children of the web group, which means they are assigned the inventory group_varshttp_port=80. is also a member of the proxy group, which has an identically named variable but with a different assignment: http_port=8080.

Both of these variable assignments are at the inventory group_vars level, and so the order of precedence does not define a winner. So what happens in this case?

The answer is, in fact, predictable and deterministic. The group_vars assignments are done in alphabetical order of the group names (Refer to the tip box mentioned in the section Inventory ordering), with the last loaded group overriding all preceding variable values that coincide.

This means any competing variables from mastery2 will win over the other two groups. Those from the mastery11 then take precedence of those from the mastery1 group, so please be mindful of this when creating group names!

In our example, when the groups are processed in alphabetical order, web comes after proxy, and so the group_vars assignments from web that coincide with those from any previously processed groups will win. Let's run the previous inventory file through this example playbook to take a look at the behavior:

- name: group variable priority ordering example play
  hosts: all
  gather_facts: false

    - name: show assigned group variables
        msg: |
             http_port:{{ hostvars[inventory_hostname]['http_port'] }}
             thread_count:{{ hostvars[inventory_hostname]['thread_count'] | default("undefined") }}
             secure:{{ hostvars[inventory_hostname]['secure'] }}
         msg: "{{ msg.split('\n') }}"

When run, we get the following output:

As expected, the value assigned to the http_port variable for both hosts in the inventory is 80. However, what if this behavior is not desired? Suppose we want the value of http_port from the proxy group to take priority. It would be painful to have to rename the group and all associated references to it to change the alphanumerical sorting of the groups (though this would work!). The good news is that Ansible 2.4 introduced the ansible_group_priority group variable, which can be used for just this eventuality. If not explicitly set, this variable defaults to 1, leaving the rest of the inventory file unchanged.

Let's set this as follows:


Now, when we run the same playbook, note how the value assigned to http_proxy has changed, whilst all variable names that were not coincidental behave exactly as before:

As your inventory grows with your infrastructure, be sure to make use of this feature to gracefully handle any variable assignment collisions between your groups.

Merging hashes

In the previous section, we focused on the precedence in which variables will override each other. The default behavior of Ansible is that any overriding definition for a variable name will completely mask the previous definition of that variable. However, that behavior can be altered for one type of variable; the hash. A hash variable (a dictionary, in Python terms) is a dataset of keys and values. Values can be of different types for each key, and can even be hashes themselves for complex data structures.

In some advanced scenarios, it is preferable to replace just one bit of a hash or add to an existing hash rather than replacing the hash altogether. To unlock this ability, a configuration change is necessary in the Ansible config file. The configuration entry is hash_behavior, which either takes the value replace or merge. A setting of merge will instruct Ansible to merge or blend the values of two hashes when presented with an override scenario, rather than assume the default of replace, which will completely replace the old variable data with the new data.

Let's walk through an example of the two behaviors. We will start with a hash loaded with data and simulate a scenario where a different value for the hash is provided as a higher-priority variable.

This is the starting data:

    home: Seattle
    transport: Bicycle

This is the new data loaded via include_vars:

    transport: Bus

With the default behavior, the new value for hash_var will be as follows:

    transport: Bus

However, if we enable the merge behavior, we will get the following result:

    home: Seattle
    transport: Bus

There are even more nuances and undefined behaviors when using merge and, as such, it is strongly recommended to only use this setting if absolutely necessary.



While the design of Ansible focuses on simplicity and ease of use, the architecture itself is very powerful. In this chapter, we covered key design and architecture concepts of Ansible, such as version and configuration, playbook parsing, module transport and execution, variable types and locations, and variable precedence.

You learned that playbooks contain variables and tasks. Tasks link bits of code called modules with arguments, which can be populated by variable data. These combinations are transported to selected hosts from inventory sources provided. The fundamental understanding of these building blocks is the platform on which you can build a mastery of all things Ansible!

In the next chapter, you will learn how to secure secret data while working with Ansible.

About the Authors

  • James Freeman

    James Freeman is an accomplished IT consultant with over 20 years' experience in the technology industry. He has more than 5 years of first-hand experience of solving real-world enterprise problems in production environments using Ansible, frequently introducing Ansible as a new technology to businesses and CTOs for the first time. In addition, he has authored and facilitated bespoke Ansible workshops and training sessions, and has presented at both international conferences and meetups on Ansible.

    Browse publications by this author
  • Jesse Keating

    Jesse Keating is an accomplished Ansible user, contributor, and presenter. He has been an active member of the Linux and open source community for over 15 years. He has firsthand experience involving a variety of IT activities, software development, and large-scale system administration. He has presented at numerous conferences and meetups, and has written many articles on a variety of topics.

    Browse publications by this author

Latest Reviews

(7 reviews total)
Bezahlung einfach und sehr übersichtlich.
A well-written, current technical book for $7! Damn!
Good practical advice. I need to use Ansible quite extensively in my work and I glad to have this as my fallback reference.

Recommended For You

Book Title
Access this book and the full library for FREE
Access now
