Artificial Intelligence (AI) is a rich and complex topic. At first glance, it can seem intimidating. The uses for it are diverse, ranging from robotics to statistics and to (more relevantly for us) entertainment, more specifically, video games. Our goal in this book will be to demystify the subject by breaking down the usage of AI into relatable, applicable solutions, and to provide accessible examples that illustrate the concepts in ways that cut through the noise and go straight for the core ideas. This book will lead you head first into the world of AI, and will introduce you to the most important concepts to start you on your AI journey.
This chapter will give you a little background on AI in academics, traditional domains, and game-specific applications. Here are the topics we'll cover:
- Exploring how the application and implementation of AI in games is different from other domains
- Looking at the special requirements for AI in games
- Looking at the basic AI patterns used in games
This chapter will serve as a reference for later chapters, where we'll implement AI patterns in Unity.
Before diving in much deeper, we should stop for a moment and define intelligence. Intelligence is simply the ability to learn something then apply that knowledge. Artificial intelligence, at least for our purposes, is the illusion of intelligence. Our intelligent entities need not necessarily learn things, but must at the very least convince the player that they are learning things. I must stress that these definitions fit game AI specifically. As we'll discover later in this section, there are many applications for AI outside of games, where other definitions are more adequate.
Intelligent creatures, such as humans and other animals, learn from their environment. Whether it's through observing something visually, hearing it, feeling it, and so on, our brains convert those stimuli into information that we process and learn from. Similarly, our computer-created AI must observe and react to its environment to appear smart. While we use our eyes, ears, and other means to perceive, our game's AI entities have a different set of sensors at their disposal. Rather than using big, complex brains like ours, our code will simulate the processing of that data and the behaviors that model a logical and believable reaction to that data.
AI and its many related studies are dense and varied, but it is important to understand the basics of AI being used in different domains before digging deeper into the subject. AI is just a general term; its various implementations and applications are different for different needs and for solving different sets of problems.
Before we move onto game-specific techniques, let's take a look at the following research areas in AI applications that have advanced tremendously over the last several decades. Things that used to be considered science fiction are quickly becoming science fact, such as autonomous robots and self-driving cars. You need not look very far to find great examples of advances in AI—your smartphone most likely has a digital assistant feature that relies on some new AI-related technology. It probably knows your schedule better than you do! Here are some of the research fields driving AI:
- Computer vision: This is the ability to take visual input from sources, such as video and photo cameras, and analyze it to perform particular operations such as facial recognition, object recognition, and optical-character recognition. Computer vision is at the forefront of advances in autonomous vehicles. Cars with even relatively simple systems, such as collision mitigation and adaptive cruise control, use an array of sensors to determine depth contextually to help prevent collisions.
- Natural language processing (NLP): This is the ability that allows a machine to read and understand the languages as we normally write and speak. The problem is that the languages we use today are difficult for machines to understand. There are many different ways to say the same thing, and the same sentence can have different meanings according to the context. NLP is an important step for machines since they need to understand the languages and expressions we use before they can process them and respond accordingly. Fortunately, there's an enormous number of datasets available on the web that can help researchers by doing automatic analysis of a language.
- Common sense reasoning: This is a technique that our brains can easily use to draw answers even from domains we don't fully understand. Common sense knowledge is a usual and common way for us to attempt certain questions since our brains can mix and interplay context, background knowledge, and language proficiency. But making machines apply such knowledge is very complex and still a major challenge for researchers.
- Machine learning: This may sound like something straight out of a science fiction movie, and the reality is not too far off. Computer programs generally consist of a static set of instructions, which take input and provide output. Machine learning focuses on the science of writing algorithms and programs that can learn from the data processed by said program, and apply that for future learning.
After years and years of research and development, AI is a rapidly expanding field. As consumer-level computer hardware becomes more and more powerful, developers are finding new and exciting ways to implement ever complex forms of AI in all kinds of applications. One such AI concept is Neural Networks, a subset of machine learning that we mentioned in the previous section. Neural Networks enable computers to "learn", and through repeated training become more and more efficient and effective at solving any number of problems. A very popular exercise for testing Neural Network machine learning is teaching an AI how to discern the value of a set of handwritten numbers.
In what we call supervised learning, we provide our Neural Network a set of training data. In the handwritten number scenario, we pass in hundreds or thousands of images collected from any source containing handwritten numbers. Using a process called back propagation, the network can adjust itself with the values and data it just "learned" to create a more accurate prediction in the next iteration of the learning cycle.
Believe it or not, the concept of Neural Networks has been around since the 1940s, with the first implementation happening in the early 1950s. The concept is fairly straightforward at a high level—a series of nodes, called neurons, are connected to one another via their axons, or connectors. If these terms sound familiar, it's because they were borrowed from brain cell structures with the same names, and in some ways, similar functions.
Layers of these networks are connected to one another. Generally, there is an input layer, a hidden layer, and an output layer. This structure is represented by the following diagram:
The input, which represents the data the agent is taking in, such as images, audio, or anything else, is passed through a hidden layer, which converts the data into something the program can use and then sends that data through to the output layer for final processing.
In neural net machine learning, not all input is equal; at least, it shouldn't be. Input is weighed before being passed into the hidden layer. While it's generally okay to start with equal weights, the program can then self-adjust those weights through each iteration using back propagation. Put simply, weights are how likely the input data is to be useful in the prediction.
After many iterations of training, the AI will then be able to tackle brand new data sets, even if it has never encountered them before! While the use for machine learning in games is still limited, the field continues to expand and is a very popular topic these days. Make sure not to miss the train and check out Machine Learning for Developers by Rodolfo Bonnin to deep dive into all things related to machine learning.
AI in games dates back all the way to the earliest games, even as far back as Namco's arcade hit Pac-Man. The AI was rudimentary at best, but even in Pac-Man, each of the enemies—Blinky, Pinky, Inky, and Clyde—had unique behaviors that challenged the player in different ways. Learning those behaviors and reacting to them adds a huge amount of depth to the game and keeps players coming back, even after over 30 years since its release.
It's the job of a good game designer to make the game challenging enough to be engaging, but not so difficult that a player can never win. To this end, AI is a fantastic tool that can help abstract the patterns that entities in games follow to make them seem more organic, alive, and real. Much like an animator through each frame or an artist through his brush, a designer or programmer can breathe life into their creations via clever use of the AI techniques covered in this book.
The role of AI in games is to make games fun by providing challenging entities to compete with, and interesting non-player characters (NPCs) that behave realistically inside the game world. The objective here is not to replicate the whole thought process of humans or animals, but merely to sell the illusion of life and make NPCs seem intelligent by having them react to the changing situations inside the game world in a way that makes sense to the player.
Technology allows us to design and create intricate patterns and behaviors, but we're not yet at the point where AI in games even begins to resemble true human behavior. While smaller, more powerful chips, buckets of memory, and even distributed computing have given programmers a much higher computational ceiling to dedicate to AI, at the end of the day, resources are still shared between other operations such as graphics rendering, physics simulation, audio processing, animation, and others, all in real time. All these systems have to play nice with each other to achieve a steady frame rate throughout the game. Like all the other disciplines in game development, optimizing AI calculations remains a huge challenge for AI developers.
In this section, we'll walk you through some of the AI techniques being used in different types of games. We'll learn how to implement each of these features in Unity in the upcoming chapters. Unity is a flexible engine that provides a number of approaches to implement AI patterns. Some are ready to go out of the box, so to speak, while others we'll have to build from scratch. In this book, we'll focus on implementing the most essential AI patterns within Unity so that you can get your game's AI entities up and running quickly. Learning and implementing the techniques within this book will serve as a fundamental first step in the vast world of AI. Many of the concepts we will cover in this book, such as pathfinding and Navigation Meshes, are interconnected and build on top of one another. For this reason, it's important to get the fundamentals right first before digging into the high-level APIs that Unity provides.
Before jumping into our first technique, we should be clear on a key term you'll see used throughout the book—the agent. An agent, as it relates to AI, is our artificially intelligent entity. When we talk about our AI, we're not specifically referring to a character, but an entity that displays complex behavior patterns, which we can refer to as non-random, or in other words, intelligent. This entity can be a character, creature, vehicle, or anything else. The agent is the autonomous entity, executing the patterns and behaviors we'll be covering. With that out of the way, let's jump in.
Finite State Machines (FSM) can be considered one of the simplest AI models, and they are commonly used in games. A state machine basically consists of a set number of states that are connected in a graph by the transitions between them. A game entity starts with an initial state and then looks out for the events and rules that will trigger a transition to another state. A game entity can only be in exactly one state at any given time.

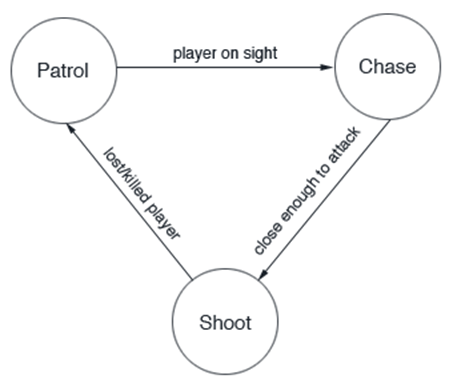

For example, let's take a look at an AI guard character in a typical shooting game. Its states could be as simple as patrolling, chasing, and shooting:
There are basically four components in a simple FSM:
- States: This component defines a set of distinct states that a game entity or an NPC can choose from (patrol, chase, and shoot)
- Transitions: This component defines relations between different states
- Rules: This component is used to trigger a state transition (player on sight, close enough to attack, and lost/killed player)
- Events: This is the component that will trigger to check the rules (guard's visible area, distance to the player, and so on)
FSMs are commonly used go-to AI patterns in game development because they are relatively easy to implement, visualize, and understand. Using simple if/else statements or switch statements, we can easily implement an FSM. It can get messy as we start to have more states and more transitions. We'll look at how to manage a simple FSM more in depth in Chapter 2, Finite State Machines and You.
In order to make our AI convincing, our agent needs to be able to respond to the events around him, the environment, the player, and even other agents. Much like real living organisms, our agent can rely on sight, sound, and other "physical" stimuli. However, we have the advantage of being able to access much more data within our game than a real organism can from their surroundings, such as the player's location, regardless of whether or not they are in the vicinity, their inventory, the location of items around the world, and any variable you chose to expose to that agent in your code:
In the preceding diagram, our agent's field of vision is represented by the cone in front of it, and its hearing range is represented by the grey circle surrounding it:
Vision, sound, and other senses can be thought of, at their most essential level, as data. Vision is just light particles, sound is just vibrations, and so on. While we don't need to replicate the complexity of a constant stream of light particles bouncing around and entering our agent's eyes, we can still model the data in a way that produces believable results.
As you might imagine, we can similarly model other sensory systems, and not just the ones used for biological beings such as sight, sound, or smell, but even digital and mechanical systems that can be used by enemy robots or towers, for example sonar and radar.
If you've ever played Metal Gear Solid, then you've definitely seen these concepts in action—an enemy's field of vision is denoted on the player's mini map as cone-shaped fields of view. Enter the cone and an exclamation mark appears over the enemy's head, followed by an unmistakable chime, letting the player know that they've been spotted.
Sometimes, we want our AI characters to roam around in the game world, following a roughly-guided or thoroughly-defined path. For example, in a racing game, the AI opponents need to navigate the road. In an RTS game, your units need to be able to get from wherever they are to the location you tell them navigating through the terrain and around each other.
To appear intelligent, our agents need to be able to determine where they are going, and if they can reach that point, they should be able to route the most efficient path and modify that path if an obstacle appears as they navigate. As you'll learn in later chapters, even path following and steering can be represented via a finite state machine. You will then see how these systems begin to tie in.
In this book, we will cover the primary methods of pathfinding and navigation, starting with our own implementation of an A* Pathfinding System, followed by an overview of Unity's built-in Navigation Mesh (NavMesh) feature.
While perhaps not quite as popular as A* Pathfinding (which we will cover next), it's crucial to understand Dijkstra's algorithm, as it lays the foundation for other similar approaches to finding the shortest path between two nodes in a graph. The algorithm was published by Edsger W. Dijkstra in 1959. Dijkstra was a computer scientist, and though he may be best known for his namesake algorithm, he also had a hand in developing other important computing concepts, such as the semaphore. It might be fair to say Dijkstra probably didn't have StarCraft in mind when developing his algorithm, but the concepts translate beautifully to game AI programming and remain relevant to this day.
So what does the algorithm actually do? In a nutshell, it computes the shortest path between two nodes along a graph by assigning a value to each connected node based on distance. The starting node is given a value of zero. As the algorithm traverses through a list of connected nodes that have not been visited, it calculates the distance to it and assigns the value to that node. If the node had already been assigned a value in a prior iteration of the loop, it keeps the smallest value. The algorithm then selects the connected node with the smallest distance value, and marks the previously selected node as visited, so it will no longer be considered. The process repeats until all nodes have been visited. With this information, you can then calculate the shortest path.
While Dijkstra's algorithm is perfectly capable, variants of it have been developed that can solve the problem more efficiently. A* is one such algorithm, and it's one of the most widely used pathfinding algorithms in games, due to its speed advantage over Dijkstra's original version.
There are many games in which you can find monsters or enemies that follow the player, or go to a particular point while avoiding obstacles. For example, let's take a typical RTS game. You can select a group of units and click on a location you want them to move to, or click on the enemy units to attack them. Your units then need to find a way to reach the goal without colliding with the obstacles or avoid them as intelligently as possible. The enemy units also need to be able to do the same. Obstacles could be different for different units, terrain, or other in-game entities. For example, an air force unit might be able to pass over a mountain, while the ground or artillery units need to find a way around it. A* (pronounced "A star") is a pathfinding algorithm that is widely used in games because of its performance and accuracy. Let's take a look at an example to see how it works. Let's say we want our unit to move from point A to point B, but there's a wall in the way and it can't go straight towards the target. So, it needs to find a way to get to point B while avoiding the wall. The following figure illustrates this scenario:
In order to find the path from point A to point B, we need to know more about the map, such as the position of the obstacles. To do this, we can split our whole map into small tiles, representing the whole map in a grid format. The tiles can also be other shapes such as hexagons and triangles. Representing the whole map in a grid makes the search area more simplified, and this is an important step in pathfinding. We can now reference our map in a small 2D array:
Once our map is represented by a set of tiles, we can start searching for the best path to reach the target by calculating the movement score of each tile adjacent to the starting tile, which is a tile on the map not occupied by an obstacle, and then choosing the tile with the lowest cost. We'll dive into the specifics of how we assign scores and traverse the grid in Chapter 3, Finding Your Way, but this is the concept of A* Pathfinding in a nutshell:
A* is an important pattern to know when it comes to pathfinding, but Unity also gives us a couple of features right out of the box, such as automatic Navigation Mesh generation and the NavMesh agent, which we'll explore in the next section and then in more detail in Chapter 3, Finding Your Way. These features make implementing pathfinding in your games a walk in the park (no pun intended). Whether you choose to implement your own A* solution or simply go with Unity's built-in NavMesh feature will depend on your project's needs. Each option has its own pros and cons, but ultimately, knowing about both will allow you to make the best possible choice. With that said, let's have a quick look at NavMesh.
IDA* star stands for iterative deepening A*. It is a depth-first permutation of A* with a lower overall memory cost, but is generally considered costlier in terms of time. Whereas A* keeps multiple nodes in memory at a time, IDA* does not since it is a depth-first search. For this reason, IDA* may visit the same node multiple times, leading to a higher time cost. Either solution will give you the shortest path between two nodes.
In instances where the graph is too big for A* in terms of memory, IDA* is preferable, but it is generally accepted that A* is good enough for most use cases in games. That said, we'll explore both solutions in Chapter 4, Finding Your Way, so you can arrive at your own conclusion and pick the right pathfinding algorithm for your game.
Now that we've taken a brief look at A*, let's look at some possible scenarios where we might find NavMesh a fitting approach to calculate the grid. One thing that you might notice is that using a simple grid in A* requires quite a number of computations to get a path that is the shortest to the target and, at the same time, avoids the obstacles. So, to make it cheaper and easier for AI characters to find a path, people came up with the idea of using waypoints as a guide to move AI characters from the start point to the target point. Let's say we want to move our AI character from point A to point B and we've set up three waypoints, as shown in the following figure:
All we have to do now is to pick up the nearest waypoint and then follow its connected node leading to the target waypoint. Most games use waypoints for pathfinding because they are simple and quite effective in terms of using less computation resources. However, they do have some issues. What if we want to update the obstacles in our map? We'll also have to place waypoints for the updated map again, as shown in the following figure:
Having to manually alter waypoints every time the layout of your level changes can be cumbersome and very time-consuming. In addition, following each node to the target can mean that the AI character moves in a series of straight lines from node to node. Look at the preceding figures; it's quite likely that the AI character will collide with the wall where the path is close to the wall. If that happens, our AI will keep trying to go through the wall to reach the next target, but it won't be able to and will get stuck there. Even though we can smooth out the path by transforming it to a spline and doing some adjustments to avoid such obstacles, the problem is that the waypoints don't give us any information about the environment, other than the spline being connected between the two nodes. What if our smoothed and adjusted path passes the edge of a cliff or bridge? The new path might not be a safe path anymore. So, for our AI entities to be able to effectively traverse the whole level, we're going to need a tremendous number of waypoints, which will be really hard to implement and manage.
This is a situation where a NavMesh makes the most sense. NavMesh is another graph structure that can be used to represent our world, similar to the way we did with our square tile-based grid or waypoints graph, as shown in the following diagram:
A Navigation Mesh uses convex polygons to represent the areas in the map that an AI entity can travel to. The most important benefit of using a Navigation Mesh is that it gives a lot more information about the environment than a waypoint system. Now we can adjust our path safely because we know the safe region in which our AI entities can travel. Another advantage of using a Navigation Mesh is that we can use the same mesh for different types of AI entities. Different AI entities can have different properties such as size, speed, and movement abilities. A set of waypoints is tailored for humans; AI may not work nicely for flying creatures or AI-controlled vehicles. These might need different sets of waypoints. Using a Navigation Mesh can save a lot of time in such cases.
Generating a Navigation Mesh programmatically based on a scene can be a somewhat complicated process. Fortunately, Unity 3.5 introduced a built-in Navigation Mesh generator as a pro-only feature, but is now included for free from the Unity 5 personal edition onwards. Unity's implementation provides a lot of additional functionality out of the box. Not just the generation of the NavMesh itself, but agent collision and pathfinding on the generated graph (via A*, of course) as well. Chapter 4, Finding Your Way, will look at some of the useful and interesting ways we can use Unity's NavMesh feature in our games, and will explore the additions and improvements that came with Unity 2017.1.
In nature, we can observe what we refer to as flocking behavior in several species. Flocking simply refers to a group moving in unison. Schools of fish, flocks of sheep, and cicada swarms are fantastic examples of this behavior. Modeling this behavior using manual means, such as animation, can be very time-consuming and is not very dynamic. In Chapter 5, Flocks and Crowds, we'll explore a dynamic and programmatic approach to modeling this behavior in a believable way, using a simple set of rules that will drive the behavior of the group and each individual in a group relative to its surroundings.
Similarly, crowds of humans, be it on foot or in vehicles, can be modeled by representing the entire crowd as an entity rather than trying to model each individual as its own agent. Each individual in the group only really needs to know where the group is heading and what their nearest neighbor is up to in order to function as part of the system.
The behavior tree is another pattern used to represent and control the logic behind AI agents. Behavior trees have become popular for applications in AAA games such as Halo and Spore. Previously, we briefly covered FSMs. They provide a very simple yet efficient way to define the possible behaviors of an agent, based on the different states and transitions between them. However, FSMs are considered difficult to scale as they can get unwieldy fairly quickly and require a fair amount of manual setup. We need to add many states and hardwire many transitions in order to support all the scenarios we want our agent to consider. So, we need a more scalable approach when dealing with large problems. This is where behavior trees come in.
Behavior trees are a collection of nodes organized in a hierarchical order, in which nodes are connected to parents rather than states connected to each other, resembling branches on a tree, hence the name.
The basic elements of behavior trees are task nodes, whereas states are the main elements for FSMs. There are a few different tasks such as Sequence, Selector, and Parallel Decorator. It can be a bit daunting to track what they all do. The best way to understand this is to look at an example. Let's break the following transitions and states down into tasks, as shown in the following figure:

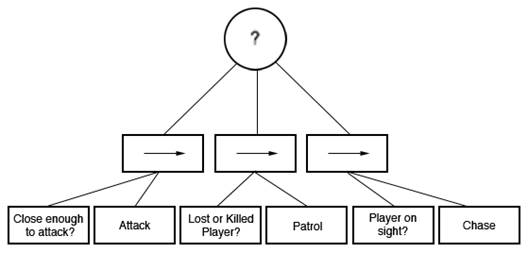

Let's look at a Selector task for this behavior tree. Selector tasks are represented by a circle with a question mark inside. The selector will evaluate each child in order, from left to right. First, it'll choose to attack the player; if the Attack task returns a success, the Selector task is done and will go back to the parent node, if there is one. If the Attack task fails, it'll try the Chase task. If the Chase task fails, it'll try the Patrol task. The following figure shows the basic structure of this tree concept:
Test is one of the tasks in the behavior tree. The following diagram shows the use of Sequence tasks, denoted by a rectangle with an arrow inside it. The root selector may choose the first Sequence action. This Sequence action's first task is to check whether the player character is close enough to attack. If this task succeeds, it'll proceed with the next task, which is to attack the player. If the Attack task also returns successfully, the whole sequence will return as a success, and the selector will be done with this behavior and will not continue with other Sequence tasks. If the proximity check task fails, the Sequence action will not proceed to the Attack task, and will return a failed status to the parent selector task. Then the selector will choose the next task in the sequence, Lost or Killed Player? The following figure demonstrates this sequence:
The other two common components are parallel tasks and decorators. A parallel task will execute all of its child tasks at the same time, while the Sequence and Selector tasks only execute their child tasks one by one. Decorator is another type of task that has only one child. It can change the behavior of its own child's tasks including whether to run its child's task or not, how many times it should run, and so on. We'll study how to implement a basic behavior tree system in Unity in Chapter 6, Behavior Trees.
Finally, we arrive at fuzzy logic. Put simply, fuzzy logic refers to approximating outcomes as opposed to arriving at binary conclusions. We can use fuzzy logic and reasoning to add yet another layer of authenticity to our AI.
Let's use a generic bad guy soldier in a first person shooter as our agent to illustrate this basic concept. Whether we are using a finite state machine or a behavior tree, our agent needs to make decisions. Should I move to state x, y, or z? Will this task return true or false? Without fuzzy logic, we'd look at a binary value (true or false, or 0 or 1) to determine the answers to those questions. For example, can our soldier see the player? That's a yes/no binary condition. However, if we abstract the decision-making process even further, we can make our soldier behave in much more interesting ways. Once we've determined that our soldier can see the player, the soldier can then "ask" itself whether it has enough ammo to kill the player, or enough health to survive being shot at, or whether there are other allies around it to assist in taking the player down. Suddenly, our AI becomes much more interesting, unpredictable, and more believable.
This added layer of decision making is achieved by using fuzzy logic, which in the simplest terms, boils down to seemingly arbitrary or vague terminology that our wonderfully complex brains can easily assign meaning to, such as "hot" versus "warm" or "cool" versus "cold," converting this to a set of values that a computer can easily understand. In Chapter 7, Using Fuzzy Logic to Make Your AI Seem Alive, we'll dive deeper into how you can use fuzzy logic in your game.
Game AI and academic AI have different objectives. Academic AI researchers try to solve real-world problems and prove a theory without much limitation in terms of resources. Game AI focuses on building NPCs within limited resources that seem to be intelligent to the player. The objective of AI in games is to provide a challenging opponent that makes the game more fun to play.
We learned briefly about the different AI techniques that are widely used in games such as FSMs, sensor and input systems, flocking and crowd behaviors, path following and steering behaviors, AI path finding, Navigation Meshes, behavior trees, and fuzzy logic.
In the following chapters, we'll look at fun and relevant ways you can apply these concepts to make your game more fun. We'll start off right away in Chapter 2, Finite State Machines and You, with our own implementation of an FSM, and we'll dive into the concepts of agents and states and how they are applied to games.
