In this first chapter, we will guide you through the steps to preparing your work environment on both your work computer and the server that you will use to host the websites. There are a number of things that you will have to understand in order to establish a fully functional Nginx set up, particularly if you are working with a computer running a Microsoft Windows operating system.
This chapter covers:
Setting up a terminal emulator for using the command-line interface of your remote server
Basic Linux command-line tools that you will be using at different stages
Introduction to the Linux filesystem structure
System administration tools
Managing files and permissions
For all of us working under a Microsoft Windows operating system on a daily basis for the past fifteen years, the idea of going back to a good old command-line interface may seem somewhat primitive, but it is nevertheless a realityâeven a necessity for most server administrators. The first step of your preparatory work will consist of downloading and installing an SSH client. Secure SHell (SSH) is a network protocol that allows two devices to communicate securely by encrypting exchanged data. It is notably used for connecting to a system shell remotely. In other words, you will be able to take control of your server without compromising its security.
PuTTY is by far the most widely used terminal emulator for SSH access under Windows. As such, you may find a large amount of articles and other documents on the web explaining the various features offered by this program. We will only be covering the aspects that directly concern our subjectâconfiguring PuTTY to connect to your server, entering text, and using the copy and paste commands. But you should know that there is much more that this free and open source tool can doâcreating SSH tunnels, connecting to a Telnet, rlogin, even raw TCP communication, and so on.
PuTTY can be downloaded directly from its author's website:
It comes as a standalone .EXE program and does not require any external files. All its data is saved in the Windows registry, so it will not be filling up your system with configuration files.
Before reading on, make sure you are in possession of the following elements:
The host name or the IP address of the server you will connect to.
The port on which the SSH daemon is running. Unless you were told otherwise, the service should be running on port 22.
A user account on the system.
A password for your account.

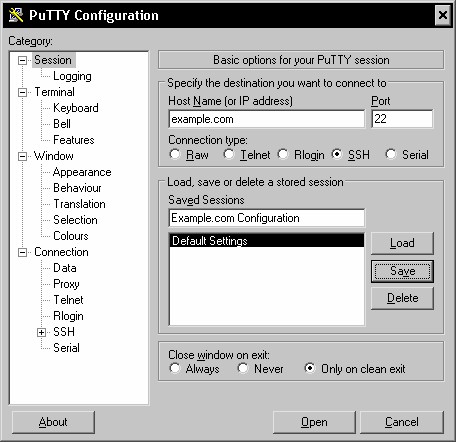

Let us take a quick peek at the main PuTTY window.
PuTTY saves your settings in sessions. So when you finish configuring the assortment of parameters, make sure to give a name to your session and click on the Save button, as highlighted in the preceding screenshot.
On the default PuTTY screen, you will need to enter a Host Name (or IP address) for the server you want to connect to. Then configure the port on which the SSH service is running on the remote server,
22 being the default port for SSHD. Here are a couple of additional settings that are optional but may be useful to you:
In the Window | Translation setting group, you are given the possibility to enable a different character set. This is particularly useful if you work with servers that make use of the
Once you have finished configuring your session, remember to save it, and then initiate the connection by clicking on the Open button on the main window. When you connect to a server for the first time, you are required to validate its authenticity by accepting the server fingerprint. If you connect to the same server in the future, you shouldn't be seeing the confirmation again, unless the server settings such as hostname or port have been changed or security has been compromised and you are connecting to an intermediate server (man-in-the-middle attack). Eventually, you should be prompted for a login (unless you enabled the auto-login option) and a password. Please note that when typing the password, it will not appear on the screen at allânot even as asterisks, so make sure to enter it carefully, then press the Return key.
If you have never worked with PuTTY or with a system shell before, there are a couple of details you may want to know regarding the behavior of the main terminal emulator window.
Text that you select with the mouse cursor in the terminal window will automatically be copied to the clipboard when you release the left button.
Pasting text to the terminal is done by a simple right-click anywhere on the window area.
Pressing Ctrl+C does not copy text to clipboard. It is instead a shortcut used for interrupting the execution of a program. If you accidentally run a command that takes longer to execute than you imagined, then this shortcut will allow you to take control of the shell again.
In case of a disconnection from the server, a right-click on the title bar of the terminal window will open a menu and allow you to restart the session.
When typing a filename in the command line, pressing the Tab key will attempt to auto-complete the filename. If you hear a beep noise when doing so, it may be due to two reasonsâeither the segment you entered does not correspond to any file on the system, or there are multiple files found. In the last case, quickly press Tab twice to see the list of files matching your input. Note that this feature may be unavailable on your shell, depending on the operating system that your server is running.
Connecting to your server and opening up a terminal window is one thing, being able to actually make use of it is another. If you have never worked with Linux before, you may find this section particularly helpful as it will help you get started by describing some of the most basic and useful commands. All the commands that we will be using in later sections are covered here, but you will soon realize that there is a lot more that you can do with the shell in general.
There are a lot of similarities between common shells such as BASH (Bourne-Again SHell, default shell for GNU/Linux distributions) and the Microsoft Windows command-line interface. The main resemblance is that we use the notion of working directory. The shell prompts you for a textual command; the said command will be executed in the current working directory.
When you first log in to your shell account, you should land in your home directory. This folder is generally used to contain your personal files; it is a private space that no other users on the system should be able to see (unless specific access rights are granted).
Here is a list of the most useful basic commands for file and directory management:
Print working directory
[[email protected] ~]$ pwd /home/alex
[[email protected] ~]$ cd images [[email protected] images]$ pwd /home/alex/images [[email protected] images]$ cd /tmp [[email protected] tmp]$ pwd/tmp
Here are some useful shortcuts that can be used with
List all files in the current working directory (or a specified directory)
[[email protected] ~]$ ls images photo2.jpg photo.jpg shopping.txt
Create a new directory
[[email protected] ~]$ mkdir documents [[email protected] ~]$ cd documents [[email protected] documents]$ mkdir /tmp/alex [[email protected] documents]$ cd /tmp/alex [[email protected] alex]$ pwd/tmp/alex
Command-line applications in general do not output any text in the case of a successful operation. They will only display a message if an error occurred.
[[email protected] ~]$ cp photo2.jpg photo3.jpg
Move or rename files.
Renaming a file:
[[email protected] ~]$ mv photo3.jpg photo4.jpg
Moving a file to another folder:
[[email protected] ~]$ mv photo4.jpg images/
Delete a file or a directory. The
[[email protected] ~]$ rm photo.jpg [[email protected] ~]$ ls images photo2.jpg shopping.txt [[email protected] ~]$ rm âr images/ [[email protected] ~]$ lsphoto2.jpg shopping.txt
Proceed with extreme caution with this command, especially if you are logged in as the Superuser (system administrator). Files cannot be recovered and a simple call to
Locate the specified file on the entire filesystem. This command is directly related to the
[[email protected] ~]$ locate photo2.jpg /home/alex/photo2.jpg /home/jesse/holiday_photo2.jpg
Note: The locate command completely relies on indexes. If you create a new file, you will not be able to find it until you perform a database update with the command below.
Updates the file database. Note that this command requires administrative permissions. For that reason, it is generally set to be executed on a daily basis via a "cron job" (the equivalent of tasks in Microsoft Windows operating systems) with administrative-level rights.
[[email protected] ~]$ mkdir "Holidays in France" [[email protected] ~]$ locate FranceNo file found: a database update is required.
Once logged in with an administrator account:
Displays documentation on a specified command
[[email protected] ~]$ man ls

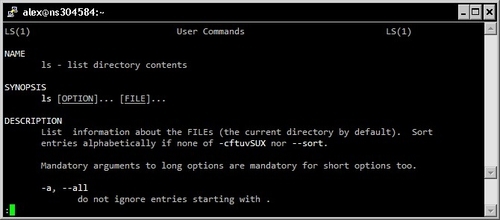

See the screenshot below.
[[email protected] ~]$ man ls
The first obsession an administrator should have is who has access to which resources on their system. In that extent, Unix-based operating systems provide an elaborate user and group management mechanism.
Each and every operating system comes with a Superuser account, often required for performing administrative-level tasks. This account is usually called root, although on some systems it can be named otherwise ('admin' or even 'toor'). The Superuser has access to all files and directories of the system and has the right to read, edit, and execute all files as well as change file attributes and permissions.
Although an administrator should always have the possibility to access the root account, it is not recommended to constantly connect as the machine Superuser. In fact, some operating systems such as Ubuntu do not even allow you to do so. One of the great principles of computer security is least privilegeâyou should never be allowed to do more than what you need to do. In other words, why give a user the possibility to access your system configuration folder if they are only going to use your computer for surfing the web and writing documents with Open Office? Granting more privileges than one requires can only lead to situations where the system security and integrity get compromised. For that reason, it is highly recommended that you create user accounts, not only for physical users of your machine but also for applications to run in a secure environment with clearly defined boundaries.

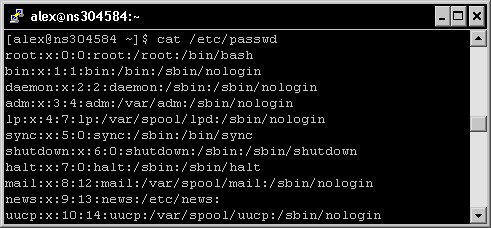

One particular file in the system configuration directory holds the list of system users:
/etc/passwd. Contrary to what the name suggests, it does not usually contain user passwords; they are, in most cases, stored using the shadow format in a separate file
/etc/shadow for security reasons. It, however, does come with certain bits of information for each user. One line of the
passwd file representing one user, the following syntax should be respected:
Name:password:ID:group ID:comment:home directory:login shell
In practice, the password bit is replaced by 'x' indicating that the actual password is stored in the
Adding a new user account can be as simple as adding a line to the
/etc/passwd file. However, you might find the manual process somewhat bothersome, and rest assuredâyou are not alone. In that extent, you will be pleased to learn that a program automating the operation is available on most distributionsâuseradd.
The most basic syntax for this command is
useradd username. This creates a new user account with the default settings (which can be customized)âa home directory for the user located in
/home, no expiration date, the default group for users, and Bash as a login shell. If you add an account destined to be running a service such as Nginx, it is recommended that you do not grant the user account shell access; consequently, you should make sure that the login shell is set to
nologin (usually found in
/sbin/nologin). The command would then be:
useradd --shell /sbin/nologin nginx
You can also define the location of the home directory to the folder where you have installed Nginx:
useradd --shell /sbin/nologin --home-dir /usr/local/nginx nginx
The trailing nginx indicates the name of the user account to be created.
If you wish to edit some of these parameters after the account creation process is complete, you may use the usermod command. It allows you to rename the account name, change the account password, move the home directory along with its contents to another location, and much more. Eventually, you might want to delete a user account. This is done via the simple userdel command as in
userdel username. The
âr switch allows you to delete the home directory along with the user account.
In addition to user accounts, Unix-based systems provide an even more advanced resource management mechanismâuser groups. The purpose of a group is to have its own access permissions on files and directories; all users belonging to the group will then inherit the group permissions. A user account has to belong to at least one groupâthe user's primary groupâalthough it may also belong to secondary groups.

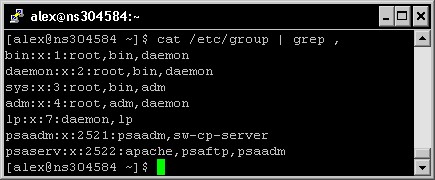

In practice, the list of groups on the system is stored in the
/etc/group file. Each line of the file represents one group, respecting the following syntax:
Group name:password:group ID:user list
The group password is rarely used; instead it is replaced by 'x' to indicate that the group has no password. At the end of each line, you will find the list of users belonging to the group. Here is an example of a group file on a production server:
Again, if you wish to create a new group on your system, you have two options: either add a new line to the
/etc/group file, or use the dedicated groupadd command. Its syntax is simpleâ
groupadd groupname. There are some optional parameters to the command, which you can discover by running
Similar to the user management system, you will also find groupmod and groupdel commands for respectively editing group settings and deleting a group. More importantly, how to add a user to a group? It is done by either editing the
/etc/group file to append the username at the end of the line corresponding to the group you wish to add the user to, or by using the following command:
usermod --append --groups groupname username
You may specify one or more groups. Skipping the
--append option would have the effect to replace the user's group list by the specified groups. Eventually, the groups command shows the list of groups the current user belongs to.
Running a program in the shell is not as simple as entering its filename. There are a couple of subtle details that you should understand about the way Bash handles the execution of binaries and scripts.
There are three different situations that you may face when you want to execute a program or a script from the shell:
The program you want to execute is located in the current working directory.
Solution: Prefix the filename with ./ (dot slash), which forces the shell to look for files in the current working directory only.
The program you want to execute is not located in the current working directory, but you already know the file path.
Solution: Enter the complete file path.
[[email protected] ~]$ /home/alex/programs/my-app
The program you want to execute is located in one of the folders of the PATH environment variable.
Solution: Enter the filename without its path.
For example: Starting a text editor called nano, which is usually found in the
/usr/binsystem directory (
/usr/binbeing in the PATH).
[ale[email protected] ~]$ nano
Note that when running a shell command, the prompt will be unavailable until the execution is complete. This can be problematic in the case of a lengthy operation, so you may want to start a program and have it running in the background instead of blocking the shell completely. This is done by appending a simple
& at the end of the line.
[[email protected] tmp]$ cp home.avi ~/movies/ &  2629 [[email protected] tmp]$  Done cp home.avi ~/movies/ &
As soon as you send the command, the pid (Process Identifierâa number identifying a running process on your system) will show up and the prompt will return. Once the execution terminates, a message appears to indicate its completion, along with the original command used to start the process.
Most of the applications running in the background (often referred to as services), are not started via a simple command followed by the
& character. There are actually complex scripts that manage their startup and shutdown. Those scripts can be placed in several directories, the most common one being

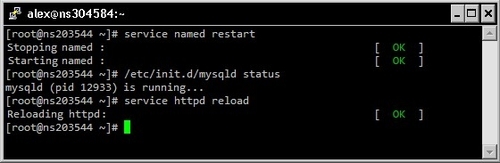

Some Linux distributions such as Red Hat, Fedora, CentOS, or Mandriva come with a script called service that (among other things) allows you to control a service by using the
service name command syntax, where
script is the name of the service you want to start and
command is one of the options from the table below. Distributions that do not have the
service script installed may also control services using a similar syntax:
/etc/init.d/name command. Note that
init.d scripts do not always provide implementations for all of these common commands.
Starts the specified service
Stops the specified service in a clean way
Stops the specified service and starts it again
Reloads the configuration of the specified service
Displays the status of the specified service
As mentioned before, the system allocates a number to each and every process running on the computer. This number is called the Process Identifier (pid). Knowing the pid is important in various situations, some of which you are about to discover.
Firstly, how does one find the pid of a process? Although there are a number of ways you could do that, most of them rely on a single toolâps. Its many options (combined with the piping mechanism) will allow you to retrieve various details about a process.

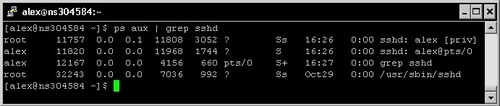

ps auxis a command that lists all processes currently running on the system.
pipe) redirects the output of the command placed before the pipe to the command placed after it. Running
ps auxgenerally returns a long list of processes, so you will only want to display the one process you are looking for.
grep sshdreceives data from the
psaux command and only outputs lines containing the specified words. In other words,
grepacts as the filter, retaining lines containing

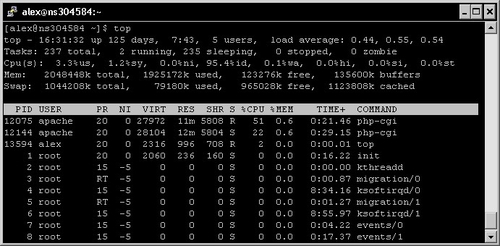

Another tool that you will find particularly useful if you run a high traffic website is top. This program lists all the processes currently running on the system with their pid, which is sorted by their CPU usage. On top of that, the list refreshes every second until you interrupt the execution flow (with Ctrl+C, for example) or stop the application by pressing the Q key. This allows you to keep track of the most resource-hungry processes.
If a command ever turns out wrong and the prompt does not return, one of your possible solutions is to press Ctrl+C to interrupt the execution flow of the application. The equivalent operation can be applied to background processes by using the kill command. There is a subtle detail hereâyou cannot kill a process by specifying its name; you need to provide its pid. The reason, obviously, is that one program may be executed more than once; consequently, a program name does not always correspond to a unique process.
[[email protected] ~]$ kill 12075
Again, if the command does not output any result, there is nothing to worry about. Actually, if there is one thing that
kill may tell you, it would be something along the lines of
process in case you entered an invalid pid. The kill command simply sends a signal to the specified process, which does not necessarily mean that the said process will have successfully stopped. If the program is locked, for example, it will not respond to the signal and thus will still be running. You will be reassured to know that there is a simple way to force a process to terminateâthe
-9 option specifies that the system should immediately stop the execution.
[[email protected] ~]$ kill -9 12075
Finally, as you can imagine, you may, at some point, need to terminate multiple processes at a time. For instance, you could kill all the processes that Apache spawned. In that case, we would use a slightly different commandâkillall. It differs from kill in the extent that it accepts a process name as argument instead of a pid.
[[email protected] ~]$ killall httpd
Linux-based operating systems have their files organized in a very specific way that follows more or less closely the long-established Filesystem Hierarchy Standard (FHS). According to the official FHS documentation, this standard enables:
Software to predict the location of installed files and directories
Users to predict the location of installed files and directories
Although the original standard specification was published in 1993, it is still used by modern distributions, but in a slightly revised version.
Unlike Microsoft Windows operating systems where all file paths begin with a drive letter (what happens if you have over twenty-six drives on your system?), FHS-based filesystems have a common parent. This parent is called the root directory, also known as
/ (the slash character). All files and directories (regardless of the device, drive, or partition, they are located on) are children of the root directory. Consequently, all absolute paths that you will find in this book start with a slash.
Let us now run
cd /, followed by
ls in order to discover the many subdirectories defined by the FHS. Please note that this directory structure is purely conventional; nothing actually prevents you from placing your own files in any of these folders or creating more directories at the root.
As you may have noticed in the directory structure, Linux operating systems have a reserved directory for "device files" (
/dev). As a matter of fact, this folder contains elements referred to as
nodes, each node representing a different device on the system. They can be actual hardware devices or pseudo devices; either way, the purpose of having them listed as part of the filesystem is to facilitate input and output interactions with programs and servicesâsoftware developers can access devices as simply as they would read or write to a file. You will learn that device files are used in a number of situations and you should sooner or later have a use for them.
There may be a large variety of devices available in the
/dev directory, unfortunately all of them usually bear an obscure name making it nearly impossible for you to understand their purpose. Device files are named according to conventions in use in Linux operating systems. Since there is a potentially infinite amount of devices, we will only identify the most common ones. A device filename is composed of a prefix, conventionally defined according to the driver type, and optionally a number (or letter) if there is more than one device of that type present on the system.
Device file conventional prefixes for the most common types:
Some of the devices listed in the
/dev directory do not correspond to actual hardware devices. Instead, they are here for the sake of providing administrators and developers with simple input and output access to specific resources. For that reason, we call them "pseudo devices". Here is a brief description of the most commonly-used pseudo devices:
This pseudo device is often nicknamed black hole as its purpose is to disregard all data that is being sent to it. When written to, it always reports the write operation as successful. When read from, the device returns no data.
This is particularly useful if you want to redirect the output of a program to nowhere; in other words, if you want to make sure a command executes but outputs no text on the screen.
[[email protected] ~]$ cat shopping.txt > /dev/null
Random number generators
Streams that generate flows of random numbers.
Since they generate binary data, numbers coming from
This pseudo device is a stream that returns an error when written to as it is always considered full. When read from, it returns an infinite stream of null characters.
The purpose of
[[email protected] ~]$ echo Hello! > /dev/full~bash: echo: write error: No space left on device
There is a variety of cases where reading from
As you may have noticed in the previous sections, some of the devices available in the
/dev directory are storage devices, such as hard disk drives, solid-state drives (SSD), floppies, or CD-ROMs. However, accessing the content that they serve is not as simple as browsing them with the
cd command. Storage devices need to be mounted to the filesystem. In other words, devices need to be attached to a fixed directory.
[[email protected] ~]$ cd /dev/md1 ~bash: cd: /dev/md1: is not a directory. [[email protected] ~]$ mount /dev/md1 /mnt/alexdrive [[email protected] ~]$ cd /mnt/alexdrive [[email protected] alexdrive]$ ls Documents Music Photos Videos boot.ini
mount command allows you to attach a device (first argument,
/dev/md1 in the previous example) to an existing directory on your system (second argument). Once the drive is mounted, you are able to access the drive like you would access any other directory of the filesystem.
In modern Linux distributions, CD-ROMs and other common devices are automatically mounted by the system.

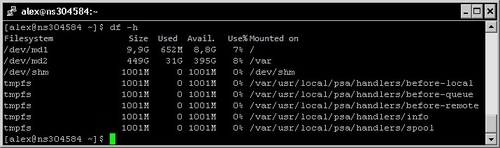

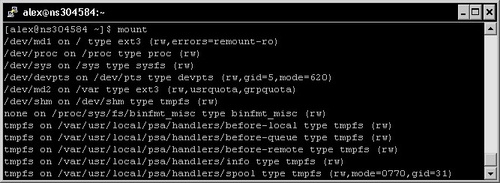

If you want to obtain information about currently mounted devices, a simple call to
mount does the jobâit tells you where each device is mounted, as well as the filesystem in use:
If you wish to have a drive automatically mounted on system startup, or to simply set a directory to be used as the default mount point for a device, you will need to edit the
/etc/fstab file logged with administrator privileges. It is a simple text file and thus can be opened with a text editor such as
nano. The file, however, respects a specific syntax, and making some changes unknowingly could cause a lot of damage to your system. More details on the fstab syntax can be found online on websites such as tuxfiles.org.
Eventually, if you need to remove a device while the computer is in use (for instance, remove a USB storage drive) you should always unmount it first. Unmounting a device is done using the
[[email protected] ~]$ umount /dev/usb1
Note that the first argument of the command may either be the device filename or the mount point, producing the same result.

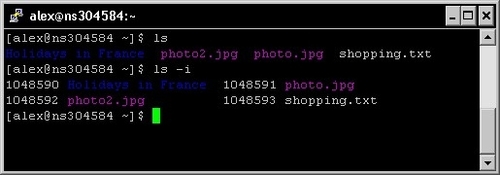

There is a common misconception of the notion of "filesystem" when it comes to Unix-based operating systems in general. Since those systems respect the FHS, they use a common directory hierarchy regrouping all files and devices. However, storage devices may have their independent disk filesystem. A disk filesystem is designed for the organization of files on a mass storage device (hard disk drives, CD-ROMs, and so on). Microsoft Windows operating systems favor the FAT, FAT32, and NTFS specifications; whereas the default and most recommended one for working under Linux is the EXT3 filesystem. EXT3 comes with a number of characteristics, and it is essential for administrators to master them in order to fully understand the operating system they work with.
Unlike Microsoft's antique FAT32 file system that only allows files up to 4 gigabytes, the size restriction with EXT32 is 16 terabytes (depending on the block size). Moreover, the maximum storage space that can be used by EXT3 on a device is 32 terabytes, so you should have no trouble using it for a number of years, unless storage drive capacities suddenly skyrocket. One of the interesting features of EXT3 is that it lays out the data on the storage device in a way that file fragmentation is kept to a minimum and does not affect system performance. As a result there is no need to defragment your drives.
The EXT3 filesystem accepts filenames up to 256 characters. Filename extensions are not required, although they are usually present and correspond to the content offered by the fileâa
.txt file should contain text, a
.mp3 file for music, and so on. An important fact, however, is that filenames are case-sensitiveâyou may find, in the same directory, files named "SHOPPPING.TXT", "Shopping.txt", or "shopping.txt"; all three are different files.
With Linux disk filesystems such as EXT3, a large variety of information is stored for each and every file. This information is separated both logically and physically from the actual file data and is stored in a specific structure called inode (index node). Some of the data contained in the inode indicates to the OS how to retrieve the contents of the file on the device. But that is not allâto the inode includes file permissions, user and group ownership, file size, access and modification times, and much more. Note that it does not contain the actual filename.
Among the metadata contained in an inode, you will find three different timestamps concerning the file. They are referred to as atime, ctime, and mtime.
The date and time the file was last accessed. Every time an application or service reads from the file using a system call, the file access time is updated.
The date and time the file was last modified. When a change in the file content occurs, the file modification time is updated.
The date and time the file was last changed. This timestamp concerns changes on both the file attributes (in other words, alteration of the file's inode) and the file data.
Make sure to understand the difference between modification time and change time. The first one concerns the file data only, whereas the latter tracks modifications of both file attributes and data. Here are some common examples illustrating all three mechanisms:
File access time (atime):
[[email protected] ~]$ nano shopping.txt
The file is opened in a text editor; its content is accessed. The file access time is updated.
File change time (ctime):
[[email protected] ~]$ chmod 0755 script.sh
The file permissions are updated (
chmod command detailed in a later section); consequently, the inode is altered and the file change time updated.
File modification time (mtime):
[[email protected] ~]$ echo "- a pair of socks" >> shopping.txt
The file data is modified; as a result, both file modification time and file change time are updated.
As you may have noticed, there is no creation time recorded in the inode, so it is impossible to find out when a file was first created. It remains unclear as to why such an important element was left out. Either way if you want to know all the timestamps associated with a file, you may use the
[[email protected] ~]$ stat shopping.txt
It is proven that enabling the access time feature of the filesystem can cause dramatic performance drops on your drive. Every time a file is read, its inode needs to be updated. As a result, frequent write operations are performed and that is obviously a major problem when using this kind of storage device. Be reassured that a simple solution exists for this problem as you have the possibility to completely disable file access time updates. This can be done via one of the options of the
noatime. The option can be specified in the
/etc/fstab file if you want to enable it permanently. More documentation can be found online with a simple
noatime ssd search. Credit goes to Kevin Burton for this important finding.
Symbolic links in Linux are the equivalent of shortcuts in Microsoft Windows operating systems. There are a number of differences that need to be explained though, the most important one being that read or write accesses to the file performed by applications actually affect the target of the link and not the link itself. However, commands such as
rm affect the link, not its target.
Creating a link is done via the
ln -s command. Here is an example that will help you understand the particularities of symbolic links:
[[email protected] ~]$ ln âs shoppinglist.txt link_to_list [[email protected] ~]$ ls link_to_list photo.jpg photo2.jpg shoppinglist.txt [[email protected] ~]$ cat link_to_list - toothpaste- a pair of socks [[email protected] ~]$ rm link_to_list [[email protected] ~]$ ls photo.jpg photo2.jpg shoppinglist.txt
As you can see, reading the file content can be done via the symbolic link. If you delete the link, the target file is not affected; the same can be said for a copy operation (the link itself would be copied, but not the target file).
Another difference that makes symbolic links stand apart from Microsoft Windows shortcuts is that they can be connected to files using relative paths. This becomes particularly useful for embedding links within archivesâdeploying a shortcut using an absolute path would make no sense, as users may extract files to any location on the system.
Finally, Microsoft Windows shortcuts have the ability to include additional metadata. This allows the user to select an icon, assign a keyboard shortcut, and more. However, symbolic links are simple connections to the target file path, and as such, they do not offer the same possibilities.
Another type of link that is not available under Windows is hard links. They function a little differently, in the extent that they represent actual connections to file data. Two or more links may connect to the same data on the storage device; when one of those links is deleted, the data itself is unaffected and the other links still point to the data. Only when the last link gets deleted will the data be removed from the storage device.
To illustrate this example, let's create a hard link to that shopping list of oursâsame command, but without the
[[email protected] ~]$ ln shoppinglist.txt hard_link_to_list
If you decide to delete
hard_link_to_list will remain here and the data it points to is still available. Additionally, the newly created link is considered as an actual file by some commands such as
ls. If you run
ls to calculate the total size occupied by files in this directory, you will notice that link file sizes add up. If the shopping list file itself takes up 5 kilobytes of storage space, the total size reported by
ls for the directory will be 10 kilobytesâfive for the shopping list file itself, and five for its link. However, some tools such as
du (for Disk Usage, evoked further below) are able to dig deeper and report the actual occupied storage.
The next step towards your discovery of the Linux shell is to learn how to manipulate files with a command-line interface. There are many operations that you can perform with simple toolsâediting text, compressing files and folders, modifying file attributes, and so on, but let's begin with a more elementary topicâdisplaying a file.
Before all, you should understand that we are working with a terminal here, in other words, there is no possibility to work with graphical data; only text can be displayed on the screen. In that extent, this section deals with text files only; no binary files such as graphics, videos, or any other form of binary data may be displayed on the screen.
cat command can be used to perform more complex operations (such as concatenation from multiple input sources), its simplest form consists of using the syntaxâ
cat filename. The content of
filename will be displayed to the standard outputâin other words, the terminal screen.
[[email protected] ~]$ cat /etc/fstab | grep sys /dev/sys /sys /sysfs defaults 0 0
You can pipe the output to other programs as well, in order to have your text displayed in a different manner. For example, if your file happens to be a large text document, it will probably not fit in the terminal window. The solution to this problem is to pipe the output to
More allows you to control the document flowâit displays as many lines of text as your terminal can contain and waits until you push the Return key to display more. Pressing Q or Ctrl+C will let you return to the prompt.
[[email protected] ~]$ less /etc/php.ini
If you are a long time Microsoft Windows or Mac OS user, you might be surprised to learn that there are actually advanced command-line text editors. Several of them come with most Linux distributionsâvim, emacs, nano, and so on. The question here isâwhich one should you use? Since you are reading this, the best choice for you should be
nano, which has already been mentioned in previous sections.
Nano is a user-friendly text editor that comes with a lot of interesting features such as syntax highlighting, text search and replace, and keyboard shortcuts. Unlike its competitors that usually require a lengthy learning process, nano's interface is intuitive.
Since there is no mouse cursor, the interface is controlled via keyboard shortcuts; available operations are displayed at the bottom in the command bar. Once you finished editing your document, save (Ctrl+O) and exit (Ctrl+X). Note that the list of available shortcuts is displayed in the bottom bar, the
^ character indicating a Control key combination (^G stands for Ctrl+G, ^O stands for Ctrl+O, and so on).
There are other ways to write in a file though, using commands that do not require any form of interface at all. One of the possible ways is to use the mechanism of redirection. This allows you to specify a location for the input and output streams interacting with a shell command. In other words, by default, the text shows up on the screen; but you do have the option to specify other locations. The most common usage for redirections is writing the output of a command to a file. Here is an example demonstrating the syntax:
[[email protected] ~]$ ls /etc > files_in_etc.txt
The command executes normally but does not output any text to the screen; instead, the text is saved to the file you specified. The
> character allows you to write the text to the file, and if the specified file already exists on the system, the original is deleted and replaced. In this example, we list the files located in the
/etc directory and save the results in a text file. Using
>>, you have the possibility to append the output to an eventual existing file (if the file does not exist, it is created):
[[email protected] ~]$ ls /etc/init.d >> files_in_etc.txt
The list of files found in
/etc/init.d is appended to the text file. There is much more you can do with redirections including replacing standard input, but covering it all would be unnecessary to your understanding of Nginx.
[[email protected] ~]$ touch shopping.txt
Although the ZIP and RAR formats are popular and wide-spread across the Internet, they are both proprietary software technologies. As a result, they are not mainstream choices in the Linux world; other formats such as Gzip and bzip2 are favored. Of course, solutions exist for both ZIP and RAR under Linux; the point being that most projects and downloadable archives that you will find will come as
You read correctly, there are two extensionsâtar, and gz or bz2. The first part indicates the method with which files have been gathered together and the second part shows the algorithm used to compress the result. Tar (for Tape archive) is a tool that concatenates multiple files into a single one called tarball. It also gives you the option to compress the tarball once it is created, offering various compression alternatives. The tool is available under most distributions, though in some of the most minimal ones, you may have to install it manually with your system package manager (read the section further below).
The syntax for creating a tarball using Gzip and bz2 compressions respectively is as follows:
tar czvf archive.tar.gz [file1 file2â¦] tar cjvf archive.tar.bz2 [file1 file2â¦]
Conventionally, Linux users do not archive multiple files together; instead they first gather files into a unique folder and then archive the folder. As a result, when users extract the archive, only a single item is appended to their directory listing. Imagine extracting a ZIP file onto your Windows desktop. Would you rather have all files appearing individually on your desktop, or collected neatly in a single directory? Either way, the syntax remains the same whether you want to archive files or directories.
tar xzvf archive.tar.gz tar xjvf archive.tar.bz2
Note that tar.gz files are also found as .tgz, and tar.bz2 files as .tbz. Other compression formats handled by tar are: LZMA (.tar.lzma) and compress (.tar.z), but they are now obsolete and there is a good chance you will never have to use them.
If you stumble upon RAR or ZIP files, you may still extract the files they contain by downloading and installing the unrar or unzip tools for Linux. The syntax that they offer is rather simple:
unrar x file.rar unzip file.zip
Since you are going to be installing and configuring Nginx, we assume that you are the administrator of your server. Setting up such an important component on your system requires good understanding of the administration concepts and tools available with your Linux operating system.
As we discussed in the Superuser Account section, it is important to respect the principle of least privilege. In that extent, you should log in to your system with the root account as rarely as possible. When you do so, you put your system at risk in many ways. Firstly, if your network communications were to be intercepted, the potential damage caused by a computer hacker would be greatly reduced if they intercepted a simple user account. Secondly, everyone makes typos. What if you accidentally type
rm ârf / root/file.x, thus erasing your entire / directory, instead of
rm ârf /root/file.x? What if you run an application that could cause damage to your filesystem? Being logged in as a regular user minimizes the risks in all situations.
This raises an obvious questionâif you are always logged in as a simple user, how do you perform administrative level tasks or tasks that specifically require root privileges? There are two possible answers to this issueâsu and sudo.
Su, short for substitute user, is a command that allows you to start a session with the specified user account. If no user account is specified, the root account is used. You need to specify the password of the account you want to use (unless you are already logged in as root and want to take over a user account).
From that point on, you are logged in as root. You can run commands and administrative tasks. When you are finished, type
exit to return to your previous session.
You may have noticed the use of a hyphen between
su and the usernameâit indicates that you are actually creating a shell session for the user, inheriting all of its personal settings and environment variables. If you omit the hyphen, you will remain in the current directory and will conserve all settings of the user account you were originally logged in with.
Although its name is closely similar to su, sudo works in a totally different manner. Instead of creating a complete session, it's only used to execute a command with the specified account, by default, the Superuser account. Example syntax:
sudo nano /etc/fstab
There is a major difference in the way
sudo function; when executing a command with sudo, you are prompted for your own account password. I can already hear you screamâhow come I can gain root privileges without the root password? The answer lies within the
/etc/sudoers configuration file. This file specifies the list of users that are allowed to use sudo, and more importantly, the commands that are allowed to be executed. Moreover, all actions are recorded into a log including failed sudo login attempts.
By default, a user does not belong to the sudoers. Consequently, you first have to log in as root (or use sudo) and add the specified user to the
/etc/sudoers file. Since this configuration file respects a strict syntax, a tool was specifically designed for itâvisudo. Deriving from the well-known vi text editor, visudo checks the syntax of the file upon saving it, and makes sure that there are no simultaneous edits.
Visudo - and by extension,
- works in two modesâcommand mode and insert mode. The insert mode lets you to edit the document directly. Press the Esc key to switch to command mode, which allows you to enter a command to control the program itself. When you first start visudo, press I to switch to insert mode and then make the necessary changes, for instance, adding a new sudo user at the end of the file:
alex ALL=(ALL) ALL
This grants the
alex user all permissions on the commands defined in the sudoers file. Once you finished editing, press Esc to enter command mode. Enter the following commands:
:w to save your changes and
:q to exit. If you wish to exit without saving, type the
:q! command. For more information about vi or visudo, use the
man command (or if you are familiar with the jargon RTFM!).
Now that you have all the pre-requisites for administering your server, it's time for you to perform actual administrative tasks. The first set of tasks that we will approach is related to system resources. Before proceeding to system changes such as software package installs (covered in the next section), you should always check that your system is in a coherent state and that you have enough disk and memory space available.
âh option allows you to display sizes in a human-readable format. You should often check your available storage space: when you happen to run out of space, random behavior may occur in your applications (that is, unintelligible error messages).

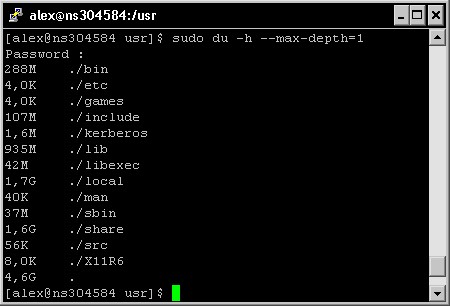

Again here, the
âh switch specifies that the tool should display human-readable size statistics. If the
max-depth option is not used,
du will browse your filesystem recursively from the current folder. You can now easily track the folders that take up too much storage space on your system.
Basic command-line usage? Check. Users and groups management? Check. Enough memory left on your system and space on your storage device? Check! It looks like you are ready to install new software packages and components. There are basically three ways to proceed, and we will study them from the easiest to the most complex one.
A package manager is a tool that facilitates the management of software packages on your system by letting you download and install them, update them, uninstall them, and more. There are many different packaging systems in the Linux world, which are often associated with particular distributionsâRPM for Red Hat-based distributions, APT for Debian-like distributions, simple TGZ packages for Slackware, and so on. We will only be covering the first two as they are the most commonly-used ones.
For systems using RPM, yum is by far the most popular package manager. As for APT, the
apt-get tool comes with most distributions. Although their syntax differs slightly, both programs basically have the same featuresâgiven a package name, they will download software online and install it automatically.
[[email protected] ~]# yum install php
[[email protected] ~]# apt-get install php
All required components such as libraries or other software are downloaded and installed first and then the requested software package is processed. There is nothing else that you have to do except to confirm the operation. You may also use the
remove operations with either tool.
Be aware that there are only a limited number of software packages that you will find with these manager tools, as they are based on lists called repositories. The repositories that come with Linux distributions are often strictly regulated, and software developers cannot always use them to distribute their work. As a result, there are many applications that you will not find on the default repositories (you can use custom repositories though), which implies that you cannot use package managers to install them for you.
When you face such a situation, there are two options remainingâfinding a package online or building from source, as covered next. This first solution generally consists of visiting the official website of the software you want to install, then finding the RPM release offered in the download section (or the DEB package for Debian systems).
[[email protected] ~]$ wget ftp://example2.com/mysqlclient.rpm (Download successful) [[email protected] ~]$ sudo rpm âivh mysqlclient.rpm
[[email protected] ~]$ wget ftp://example2.com/mysqlclient.deb (Download successful) [[email protected] ~]$ sudo dpkg âi mysqlclient.deb
Note that this method does not process dependencies. The application might not install correctly because a required library was not found on the system, in which case, you would have to install it yourself.
The last method, which is valid regardless of the distribution you are using, is to download the application source code and compile it yourself. This method has its own advantagesâyou usually have the possibility to configure a great variety of options, and you may even make some edits to the code if you are a developer yourself. On the other hand, it requires many development packages to be installed (compilers, libraries, and so on) and compiling might fail for obscure reasonsâmissing components, invalid version for one of the required libraries, and so on.
The general process is to download a
.tar.gz archive containing the source code, extract the files, enter the directory, and run three commandsâ
install. In the following example, we download the latest version of nano and install it:
[[email protected] ~]$ wget http://www.nano-editor.org/dist/v2.0/nano-2.0.9.tar.gz (Download successful) [[email protected] ~]$ tar zxvf nano-2.0.9.tar.gz (Extraction successful) [[email protected] ~]$ cd nano-2.0.9 [[email protected] nano-2.0.9]$ ./configure (Configuration complete) [[email protected] nano-2.0.9]$ make (Build successful) [[email protected] nano-2.0.9]$ sudo make install (Install successful)
Depending on the software install process, the output binaries may be copied to the
/usr/bin folder (or another folder found in the PATH environment variable), but you will sometimes have to do that by yourself.
Some applications require more specific compilation commands and procedures, which are described in the usually included
readme file. Under no circumstance should you omit to consult the readme file before building an application.
Unix-based operating systems use a complex permission mechanism to regulate access to files and directories. You should also know that directories are actually regarded as special files; they work in the same way when it comes to permissions.
There are three types of accessâreading from a file, writing to a file, and executing a file. Each of these accesses can be defined for the original file owner, the file group, and all other users. Permissions on files can be consulted with the
ls âl command:
[[email protected] photos]$ ls âl total 2 drwxrwxrwx 2 alex alex 4096 oct 31 11:35 Holidays in France -rw-rw-r-- 1 alex alex 8 oct 31 09:21 photo2.jpg
The first column provides a character representation of the file permissions. It is composed of ten characters:
First character: File type (
l: link; other types exist)
Second to fourth characters: Read, write, and execute permissions for the owner
Fifth to seventh characters: Read, write, and execute permissions for the group
Eighth to tenth characters: Read, write, and execute permissions for other users
On top of that, directories have specific attributesâsticky bit and set group ID. The first one ensures that files placed in that directory can only be deleted by their owner (and the root user, naturally). The second one makes it so that new files created in that directory conserve the group ID of the directory.
The x bit specifies whether or not the folder can be entered (such as using
The r bit allows the directory content to be listed (such as using
The w bit specifies whether or not new files can be written in the folder (and existing files moved to the folder)
Surely you have already read it somewhere: instructions telling you to change a folder's permission to
0755 or even
777. The given number is actually an octal representation of the file or directory permissions. This format is composed of three or four digits from
0 means no permissions and
7 all permissions.
The first digit is optional and indicates special attributes (such as sticky bit); often unspecified or set to
The second digit indicates permissions for the file owner
The third digit indicates permissions for the file group
The fourth digit indicates permissions for other users
Digit values from
7 are calculated using the following method: each attribute has a weight; all attribute weights added up together forming the total value. The weights are:
0 for no attribute,
1 for "r",
2 for "w", and
4 for "x". Consequently, each attribute variation has its own octal representation:
Permissions (r, x, w)
0 + 0 + 0
1 + 0 + 0
0 + 2 + 0
1 + 2 + 0
0 + 0 + 4
1 + 0 + 4
0 + 2 + 4
1 + 2 + 4
Full permissions for everyone (file owner, file group, and other users) thus translate to
777 with the octal representation.
Users may change permissions on their own files only, except for the almighty Superuser. The process is done using a well-known toolâ chmod. There are two main syntax variationsâyou may either specify an octal value for a complete reset of the permissions or request a change on a specific attribute.
Using an octal value:
[[email protected] ~]$ chmod 777 photo2.jpg
The first argument is the octal value, followed by the file or directory name.
The second syntax is more complex:
chmod who+/-what filename
The first argument (who, + / -, or what) is composed of three elements:
Who: A combination of "u" (user/owner), "g" (group), "o" (others), and "a" (all). If this part is omitted, the new attributes will be applied to all.
+ / -: Use "+" if you want to grant those permissions or "â " to take them away.
What: A combination of "r" (read), "w" (write), and "x" (execute).
Here are a couple of possible examples for this syntax:
chmod +x script.sh: Renders a script executable.
chmod go-rwx photo.jpg: Nobody is allowed to access the photo other than the owner.
chmod a-w shopping.txt: Nobody can edit the text file, not even the owner.
Note that the
âR switch applies permission changes recursively on a folder:
chmod âR g+rx photos: The "photos" folder can be accessed by all users in the group; all its photos can be viewed.
The chown and chgrp commands allow you to respectively change a file's owner and group. While the first one can only be executed by the Superuser for obvious security reasons, any user may change a file's group, provided they are the owner.
chown tool can be used with the following syntax:
chown user filename
In this case,
user is the new owner of the specified file. As for
chgrp group filename
group is the name of the new group for the specified file. Alternatively, chown supports the following syntax:
chown user:group filename
chmod, these commands accept the
âR switch allowing you to apply changes recursively. Here are some possible uses for either tool:
chown alex photo.jpg: Executed as root; the new owner of "photo.jpg" is the user "alex".
chown âR root photos: Executed as root; the "photos" directory and all the files it contains now belong to the root user.
chown alex: Students shopping.txt: changes both the file user and group.
chgrp guests shopping.txt: The group for the "shopping.txt" file is changed to "guests".
chgrp âR applications /etc/apps: The "applications" group now owns the
This last section on file permissions marks the end of this introductory chapter, summarizing commands and tasks that a web server administrator executes on a regular basis. Using the shell is mostly about remembering command names and arguments. It becomes a lot more efficient as you get used to it. After a while, as you get back to Windows, you will even sometimes find yourself opening up a command-line terminal to perform simple tasks!
Anyway, you have all the ingredients you need to start with the next stepâdownloading and installing the Nginx web server application. By the end of next chapter, you will have a working setup and should be able to load the default page of your server.
