Chapter 1. PowerShell Key Concepts

In this chapter, we will cover the following:

  • Using the help system

  • Understanding the command syntax and parameters

  • Understanding the pipeline

  • Working with variables and objects

  • Working with arrays and hash tables

  • Looping through items

  • Creating custom objects

  • Using the debugger functions

  • Understanding the new execution policy

  • Working with desired state configuration

  • Using the Save-Help function

  • Working with script repositories (a PowerShell v5 preview)



Introduction


So, your organization has decided to move to Exchange Server 2013 to take advantage of the many exciting new features, such as integrated e-mail archiving, discovery capabilities, and high availability functionality. Like it or not, you've realized that PowerShell is now an integral part of Exchange Server management, and you need to learn the basics to have a point of reference to build your own scripts. That's what this book is all about. In this chapter, we'll cover some core PowerShell concepts that will provide you with a foundation of knowledge to use the remaining examples in this book. If you are already familiar with PowerShell, you may want to use this chapter as a review or as a reference for later use after you've started writing scripts.

If you're completely new to PowerShell, its concept may be familiar if you've worked with UNIX command shells. Like UNIX-based shells, PowerShell allows you to string multiple commands together on one line using a technique called pipelining. This means that the output of one command becomes the input for another. However, unlike UNIX shells that pass the text output from one command to another, PowerShell uses an object model based on the .NET Framework, and objects are passed between commands in a pipeline, as opposed to plain text. From an Exchange perspective, working with objects gives us the ability to access very detailed information about servers, mailboxes, databases, and more. For example, every mailbox you manage within the shell is an object with multiple properties, such as an e-mail address, database location, or send and receive limits. The ability to access this type of information through simple commands means that we can build powerful scripts that generate reports, make configuration changes, and perform maintenance tasks with ease.

Tip

This book is based on the Windows Management Framework (WMF) 5.0 preview that was released in November 2014. Since this is a preview, the functionality may change in RTM and over time.

During the writing of this book, WMF 5.0 was not supported for Exchange 2013. This will probably change when the RTM gets released.

Performing some basic steps

To work with the code samples in this chapter, follow these steps to launch the Exchange Management Shell:

  1. Log on to a workstation or server with the Exchange Management Tools installed.

  2. You can connect using remote PowerShell, if you for some reason you don't have the Exchange Management Tools installed. Use the following command:

    $Session = New-PSSession -ConfigurationName Microsoft.Exchange
    -ConnectionUri http://tlex01/PowerShell/
    -Authentication Kerberos
    Import-PSSession $Session

  3. Open the Exchange Management Shell by navigating to Start | All Programs | Microsoft Exchange Server 2013. Or if you're using Windows Server 2012 R2, it can be found in the Apps list by clicking on the Start button and the arrow.

  4. Click on the Exchange Management Shell shortcut.

Tip

Remember to start the Exchange Management Shell using Run as administrator to avoid permission problems.

In the chapter, notice that in the examples of cmdlets, I used the back tick (`) character for breaking up long commands into multiple lines. The purpose is to make it easier to read. The back ticks are not required and should only be used if needed. Notice that the Exchange variables, such as $exscripts, are not available when using the preceding method.



Using the help system


The Exchange Management Shell includes over 780 cmdlets, each with a set of multiple parameters. For instance, the New-Mailbox cmdlet accepts more than 60 parameters, and the Set-Mailbox cmdlet has over 170 available parameters. It's safe to say that even the most experienced PowerShell expert would be at a disadvantage without a good help system. In this recipe, we'll take a look at how to get help in the Exchange Management Shell.

How to do it...

To get help information about a cmdlet, type Get-Help, followed by the cmdlet name. For example, to get help information about the Get-Mailbox cmdlet, run the following command:

Get-Help Get-Mailbox -full

How it works...

When running Get-Help for a cmdlet, a synopsis and description of the cmdlet will be displayed in the shell. The Get-Help cmdlet is one of the best discovery tools to use in PowerShell. You can use it when you're not quite sure how a cmdlet works or what parameters it provides.

You can use the following switch parameters to get specific information using the Get-Help cmdlet:

  • Detailed: This view provides parameter descriptions and examples and uses the following syntax:

    Get-Help <cmdletname> -Detailed

  • Examples: You can view multiple examples of how to use a cmdlet by running the following syntax:

    Get-Help <cmdletname> -Examples

  • Full: Use the following syntax to view the complete contents of the help file of a cmdlet:

    Get-Help <cmdletname> -Full

  • Online: Use the following syntax to view the online version of the contents of the help file of a cmdlet:

    Get-Help <cmdletname> -Online


Some parameters accept simple strings as the input, while others require an actual object. When creating a mailbox using the New-Mailbox cmdlet, you'll need to provide a secure string object for the -Password parameter. You can determine the data type required for a parameter using Get-Help:

From the output of the preceding command, you can see that we get several pieces of key information about the -Password parameter. In addition to the required data type of <SecureString>, we can see that this is a named parameter. It is required while running the New-Mailbox cmdlet and it does not accept wildcard characters. You can use Get-Help when examining the parameters for any cmdlet to determine whether or not they support these settings.

You could run Get-Help New-Mailbox -Examples to determine the syntax required to create a secure string password object and how to use it to create a mailbox. This is also covered in detail in the recipe entitled Adding, modifying, and removing mailboxes in Chapter 3, Managing Recipients.

There's more...

There will be times when you'll need to search for a cmdlet without knowing its full name. In this case, there are a couple of commands you can use to find the cmdlets you are looking for.

To find all cmdlets that contain the word Mailbox, you can use a wildcard, as shown in the following command:

Get-Command *Mailbox*

You can use the –Verb parameter to find all cmdlets starting with a particular verb:

Get-Command -Verb Set

To search for commands that use a particular noun, specify the name with the -Noun parameter:

Get-Command -Noun Mailbox

The Get-Command cmdlet is a built-in PowerShell core cmdlet, and it will return commands from both Windows PowerShell as well as the Exchange Management Shell. The Exchange Management Shell also adds a special function called the Get-Ex command that will return only Exchange-specific commands.

In addition to getting cmdlet help for cmdlets, you can use Get-Help to view supplementary help files that explain general PowerShell concepts that focus primarily on scripting. To display the help file for a particular concept, type Get-Help about_ followed by the concept name. For example, to view the help for the core PowerShell commands, type the following:

Get-Help about_Core_Commands

You can view the entire list of conceptual help files by using the following command:

Get-Help about_*

Don't worry about trying to memorize all the Exchange or PowerShell cmdlet names. As long as you can remember Get-Command and Get-Help, you can search for commands and figure out the syntax to do just about anything.

Getting help with cmdlets and functions

One of the things that can be confusing at first is the distinction between cmdlets and functions. When you launch the Exchange Management Shell, a remote PowerShell session is initiated to an Exchange server and specific commands, called proxy functions, are imported into your shell session. These proxy functions are essentially just blocks of code that have a name, such as Get-Mailbox, and that correspond to the compiled cmdlets installed on the server. This is true even if you have a single server and when you are running the shell locally on a server.

When you run the Get-Mailbox function from the shell, data is passed between your machine and the Exchange server through a remote PowerShell session.

The Get-Mailbox cmdlet is actually executing on the remote Exchange server, and the results are being passed back to your machine. One of the benefits of this is that it allows you to run the cmdlets remotely, regardless of whether your servers are on-premises or in the cloud. In addition, this core change in the toolset is what allows Exchange 2010 and 2013 to implement their new security model by allowing and restricting which cmdlets administrators and end users can actually use through the shell or the web-based control panel.

We'll get into the details of all this throughout the remaining chapters in the book. The bottom line is that, for now, you need to understand that, when you are working with the help system, the Exchange 2013 cmdlets will show up as functions and not as cmdlets.

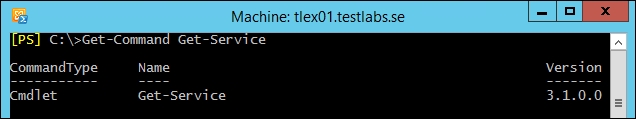

Consider the following command and output:

Here, we are running Get-Command against a PowerShell v5 core cmdlet. Notice that CommandType shows that this is a Cmdlet.

Now, try the same thing for the Get-Mailbox cmdlet:

Tip

As you can see, CommandType for the Get-Mailbox cmdlet shows that it is actually a Function. So, there are a couple of key points to take away from this. First, throughout the course of this book, we will refer to the Exchange 2013 cmdlets as cmdlets, even though they will show up as functions when running Get-Command. Second, keep in mind that you can run Get-Help against any function name, such as Get-Mailbox, and you'll still get the help file for that cmdlet. However, if you are unsure of the exact name of a cmdlet, use Get-Command to perform a wildcard search as an aid in the discovery process. Once you've determined the name of the cmdlet you are looking for, you can run Get-Help against that cmdlet for complete details on how to use it.

Try using the help system before going to the Internet to find answers. You'll find that the answers to most of your questions are already documented within the built-in cmdlet help.

See also

  • Understanding command syntax and parameters

  • Manually configuring remote PowerShell connections in Chapter 2, Exchange Management Shell Common Tasks

  • Working with role-based access control in Chapter 10, Exchange Security



Understanding command syntax and parameters


Windows PowerShell provides a large number of built-in cmdlets (pronounced command-lets) that perform specific operations. The Exchange Management Shell adds an additional set of PowerShell cmdlets used specifically for managing Exchange. We can also run these cmdlets interactively in the shell, or through automated scripts. When executing a cmdlet, parameters can be used to provide information, such as which mailbox or server to work with, or which attribute of those objects should be modified. In this recipe, we'll take a look at basic PowerShell command syntax and how parameters are used with cmdlets.

How to do it...

When running a PowerShell command, you type the cmdlet name, followed by any parameters required. Parameter names are preceded by a hyphen (-) followed by the value of the parameter. Let's start with a basic example. To get mailbox information for a user named testuser, use the following command syntax:

Get-Mailbox –Identity testuser

Alternatively, the following syntax also works and provides the same output, because the –Identity parameter is a positional parameter:

Get-Mailbox testuser

Most cmdlets support a number of parameters that can be used within a single command. We can use the following command to modify two separate settings on the testuser mailbox:

Set-Mailbox testuser –MaxSendSize 5mb –MaxReceiveSize 5mb

How it works...

All cmdlets follow a standard verb-noun naming convention. For example, to get a list of mailboxes, you use the Get-Mailbox cmdlet. You can change the configuration of a mailbox using the Set-Mailbox cmdlet. In both examples, the verb (Get or Set) is the action you want to take on the noun (Mailbox). The verb is always separated from the noun using the hyphen (-) character. With the exception of a few Exchange Management Shell cmdlets, the noun is always singular.

Cmdlet names and parameters are not case-sensitive. You can use a combination of upper and lowercase letters to improve the readability of your scripts, but it is not required.

Parameter input is either optional or required, depending on the parameter and cmdlet you are working with. You don't have to assign a value to the –Identity parameter since it is not required when running the Get-Mailbox cmdlet. If you simply run Get-Mailbox without any arguments, the first 1,000 mailboxes in the organization will be returned.

Tip

If you are working in a large environment with more than 1,000 mailboxes, you can run the Get-Mailbox cmdlet, setting the –ResultSize parameter to -Unlimited to retrieve all of the mailboxes in your organization.

Notice that in the first two examples, we ran Get-Mailbox for a single user. In the first example, we used the -Identity parameter, but in the second example we did not. The reason we don't need to explicitly use the -Identity parameter in the second example is because it is a positional parameter. In this case, -Identity is in position 1, so the first argument received by the cmdlet is automatically bound to this parameter. There can be a number of positional parameters supported by a cmdlet, and they are numbered starting from one. Other parameters that are not positional are known as named parameters, which means that we need to use the parameter name to provide input for the value.

The –Identity parameter is included with most of the Exchange Management Shell cmdlets, and it allows you to classify the object you want to take an action on.

Tip

The –Identity parameter used with the Exchange Management Shell cmdlets can accept different value types. In addition to the alias, the following values can be used: ADObjectID, Distinguished name, Domain\Username, GUID, LegacyExchangeDN, SmtpAddress, and UserPrincipalName (UPN).

When you run a cmdlet without providing an input for a required parameter, you will be prompted to enter the information before execution. This is because the cmdlet needs to know which mailbox it should modify when the command is executed.

Tip

In order to determine whether a parameter is required, named or positional, supports wildcards, or accepts input from the pipeline, you can use the Get-Help cmdlet, which is covered in the next recipe in this chapter.

Multiple data types are used for input, depending on the parameter you are working with. Some parameters accept string values, while others accept integers or Boolean values. Boolean parameters are used when you need to set a parameter value to either true or false. PowerShell provides built-in shell variables for each of these values using the $true and $false automatic variables. For a complete list of PowerShell v5 automatic variables, run Get-Help about_automatic_variables. Also see Appendix A, Common Shell Information for a list of automatic variables added by the Exchange Management Shell.

For example, you can enable or disable a send connector using the Set-SendConnector cmdlet with the –Enabled parameter:

Set-SendConnector Internet -Enabled $false

Switch parameters don't require a value. Instead, they are used to turn something on or off, or to either enable or disable a feature or setting. One common example of when you might use a switch parameter is when creating an archive mailbox for a user:

Enable-Mailbox testuser -Archive

PowerShell also provides a set of common parameters that can be used with every cmdlet. Some of the common parameters, such as the risk mitigation parameters (-Confirm and -Whatif), only work with cmdlets that make changes.

Tip

For a complete list of common parameters, run Get-Help about_CommonParameters.

Risk mitigation parameters allow you to preview a change or confirm a change that may be destructive. If you want to see what will happen when executing a command without actually executing it, use the –WhatIf parameter:

While making a change, such as removing a mailbox, you'll be prompted for confirmation, as shown in the following screenshot:

To suppress this confirmation, set the –Confirm parameter to false:

Remove-Mailbox testuser -Confirm:$false

Notice here that when assigning the $false variable to the -Confirm parameter, we had to use a colon immediately after the parameter name and then the Boolean value. This is different to how we assigned this value earlier with the -Enabled parameter, when using the Set-SendConnector cmdlet. Remember that the –Confirm parameter always requires this special syntax, and while most parameters that accept a Boolean value generally do not require this, it depends on the cmdlet with which you are working. Fortunately, PowerShell has a great built-in help system that we can use when we run into these inconsistencies. When in doubt, use the help system, which is covered in detail in the next recipe.

Cmdlets and parameters support tab completion. You can start typing the first few characters of a cmdlet or a parameter name and hit the Tab key to automatically complete the name or tab through a list of available names. This is very helpful in terms of discovery and can serve as a bit of a time saver.

In addition, you only need to type enough characters of a parameter name to differentiate it from another parameter name. The following command using a partial parameter name is completely valid:

Set-Mailbox -id testuser –Office Sales

Here, we used -id as a shortcut for the -Identity parameter. The cmdlet does not provide any other parameters that start with -id, so it automatically assumes that you want to use the –Identity parameter.

Another helpful feature that some parameters support is the use of wildcards. When running the Get-Mailbox cmdlet, the -Identity parameter can be used with wildcards to return multiple mailboxes that match a certain pattern:

Get-Mailbox -id t*

In this example, all mailboxes starting with the letter t will be returned. Although this is fairly straightforward, you can refer to the help system for details on using wildcard characters in PowerShell by running Get-Help about_Wildcards.

Tip

Shortcuts for cmdlets might be great when doing interactive administrational tasks, but for future proofing the scripts, it's recommended that you use the full syntax of the cmdlets.

There's more...

Parameter values containing a space need to be enclosed in either single or double quotation marks. The following command would retrieve all of the mailboxes in the Sales Users OU in Active Directory. Notice that since the OU name contains a space, it is enclosed in single quotes:

Get-Mailbox -OrganizationalUnit 'testlabs.se/Sales Users/Seattle'

Use double quotes when you need to expand a variable within a string:

$City = 'Seattle'
Get-Mailbox -OrganizationalUnit "testlabs.se/Sales Users/$City"

You can see here that we first create a variable containing the name of the city, which represents a sub OU under Sales Users. Next, we include the variable inside the string used for the organizational unit, when running the Get-Mailbox cmdlet. PowerShell automatically expands the variable name inside the double quoted string, where the value should appear, and all mailboxes inside the Seattle OU are returned by the command.

Quoting rules are documented in detail in the PowerShell help system. Run Get-Help about_Quoting_Rules for more information.

See also

  • Using the help system

  • Working with variables and objects



Understanding the pipeline


The single most important concept in PowerShell is the use of its flexible, object-based pipeline. You may have used pipelines in UNIX-based shells, or when working with the cmd.exe Command Prompt. The concept of pipelines is similar to that of sending the output from one command to another. Instead of passing plain text, PowerShell works with objects, and we can accomplish some very complex tasks in just a single line of code. In this recipe, you'll learn how to use pipelines to string together multiple commands and build powerful one-liners.

How to do it...

The following pipeline command would set the office location for every mailbox in the DB1 database:

Get-Mailbox -Database DB2 | Set-Mailbox -Office "Headquarters"

How it works...

In a pipeline, you separate a series of commands using the pipe (|) character. In the previous example, the Get-Mailbox cmdlet returns a collection of mailbox objects. Each mailbox object contains several properties that contain information, such as the name of the mailbox, the location of the associated user account in Active Directory, and more. The Set-Mailbox cmdlet is designed to accept input from the Get-Mailbox cmdlet in a pipeline, and with one simple command, we can pass along an entire collection of mailboxes that can be modified in one operation.

You can also pipe the output to filtering commands, such as the Where-Object cmdlet. In this example, the command retrieves only the mailboxes with a MaxSendSize equal to 10 megabytes:

Get-Mailbox | Where-Object{$_.MaxSendSize -eq 10mb}

The code that the Where-Object cmdlet uses to perform the filtering is enclosed in curly braces ({}). This is called a script block, and the code within this script block is evaluated for each object that comes across the pipeline. If the result of the expression is evaluated as true, the object is returned; otherwise, it is ignored. In this example, we access the MaxSendSize property of each mailbox using the $_ object, which is an automatic variable that refers to the current object in the pipeline. We use the equals (-eq) comparison operator to check whether the MaxSendSize property of each mailbox is equal to 10 megabytes. If so, only those mailboxes are returned by the command.

Tip

Comparison operators allow you to compare results and find values that match a pattern. For a complete list of comparison operators, run Get-Help about_Comparison_Operators.

When running this command, which can also be referred to as a one-liner, each mailbox object is processed one at a time using stream processing. This means that as soon as a match is found, the mailbox information is displayed on the screen. Without this behavior, you would have to wait for every mailbox to be found before seeing any results. This may not matter if you are working in a very small environment, but without this functionality in a large organization with tens of thousands of mailboxes, you would have to wait a long time for the entire result set to be collected and returned.

One other interesting thing to note about the comparison being done inside our Where-Object filter is the use of the mb multiplier suffix. PowerShell natively supports these multipliers and they make it a lot easier for us to work with large numbers. In this example, we used 10mb, which is the equivalent of entering the value in bytes because, behind the scenes, PowerShell is doing the math for us by replacing this value with 1024*1024*10. PowerShell provides support for the following multipliers: kb, mb, gb, tb, and pb.

There's more...

You can use advanced pipelining techniques to send objects across the pipeline to other cmdlets that do not support direct pipeline input. For example, the following one-liner adds a list of users to a group:

Get-User |
Where-Object{$_.title -eq "Exchange Admin"} | Foreach-Object{
  Add-RoleGroupMember -Identity "Organization Management" `
  -Member $_.name
}

This pipeline command starts off with a simple filter that returns only the users that have their title set to Exchange Admin. The output from that command is then piped to the ForEach-Object cmdlet that processes each object in the collection. Similar to the Where-Object cmdlet, the ForEach-Object cmdlet processes each item from the pipeline using a script block. Instead of filtering, this time we are running a command for each user object returned in the collection and adding them to the Organization Management role group.

Using aliases in pipelines can be helpful because it reduces the number of characters you need to type. Let's take a look at the following command, where the previous command is modified to use aliases:

Get-User |
?{$_.title -eq "Exchange Admin"} | %{
  Add-RoleGroupMember -Identity "Organization Management" `
  -Member $_.name
}

Notice the use of the question mark (?) and the percent sign (%) characters. The ? character is an alias for the Where-Object cmdlet, and the % character is an alias for the ForEach-Object cmdlet. These cmdlets are used heavily, and you'll often see them used with these aliases because it makes the commands easier to type.

Tip

You can use the Get-Alias cmdlet to find all of the aliases currently defined in your shell session and the New-Alias cmdlet to create custom aliases.

The Where-Object and ForEach-Object cmdlets have additional aliases. Here's another way you could run the previous command:

Get-User |
where{$_.title -eq "Exchange Admin"} | foreach{
  Add-RoleGroupMember -Identity "Organization Management" `
  -Member $_.name
}

Use aliases when you're working interactively in the shell to speed up your work and keep your commands concise. You may want to consider using the full cmdlet names in production scripts to avoid confusing others who may read your code.

See also

  • Looping through items

  • Creating custom objects

  • Dealing with concurrent pipelines in remote PowerShell in Chapter 2, Exchange Management Shell Common Tasks



Working with variables and objects


Every scripting language makes use of variables as placeholders for data, and PowerShell is no exception. You'll need to work with variables often to save temporary data to an object so that you can work with it later. PowerShell is very different from other command shells in which everything you touch is, in fact, a rich object with properties and methods. In PowerShell, a variable is simply an instance of an object just like everything else. The properties of an object contain various bits of information depending on the type of object you're working with. In this recipe, we'll learn how to create user-defined variables and work with objects in the Exchange Management Shell.

How to do it...

To create a variable that stores an instance of the testuser mailbox, use the following command:

$mailbox = Get-Mailbox testuser

How it works...

To create a variable, or an instance of an object, you prefix the variable name with the dollar sign ($). To the right of the variable name, use the equals (=) assignment operator, followed by the value or object that should be assigned to the variable. Keep in mind that the variables you create are only available during your current shell session and will be destroyed when you close the shell.

Let's take a look at another example. To create a string variable that contains an e-mail address, use the following command:

$email = "[email protected]"

Tip

In addition to user-defined variables, PowerShell also includes automatic and preference variables. To learn more, run Get-Help about_Automatic_Variables and Get-Help about_Preference_Variables.

Even a simple string variable is an object with properties and methods. For instance, every string has a length property that will return the number of characters that are in the string:

[PS] C:\>$email.length
20

When accessing the properties of an object, you can use dot notation to reference the property with which you want to work. This is done by typing the object name, then a period, followed by the property name, as shown in the previous example. You can access methods in the same way, except that the method names must always end with parenthesis ().

The string data type supports several methods, such as Substring, Replace, and Split. The following example shows how the Split method can be used to split a string:

[PS] C:\>$email.Split("@")
testuser
contoso.com

You can see here that the Split method uses the "@" portion of the string as a delimiter and returns two substrings as a result.

Tip

PowerShell also provides a –Split operator that can split a string into one or more substrings. Run Get-Help about_Split for details.

There's more...

At this point, you know how to access the properties and methods of an object, but you need to be able to discover and work with these members. To determine which properties and methods are accessible on a given object, you can use the Get-Member cmdlet, which is one of the key discovery tools in PowerShell, along with Get-Help and Get-Command.

To retrieve the members of an object, pipe the object to the Get-Member cmdlet. The following command will retrieve all of the instance members of the $mailbox object we created earlier:

$mailbox | Get-Member

Tip

To filter the results returned by Get-Member, use the -MemberType parameter to specify whether the type should be a Property or a Method.

Let's take a look at a practical example of how we can use Get-Member to discover the methods of an object. Imagine that each mailbox in our environment has a custom MaxSendSize restriction set, and we need to record the value for reporting purposes. When accessing the MaxSendSize property, the following information is returned:

[PS] C:\>$mailbox.MaxSendSize
IsUnlimited Value
----------- -----
False       10 MB (10,485,760 bytes)

We can see here that the MaxSendSize property actually contains an object with two properties: IsUnlimited and Value. Based on what we learned, we should be able to access the information for the Value property using the dot notation:

[PS] C:\>$mailbox.MaxSendSize.Value
10 MB (10,485,760 bytes)

That works, but the information returned contains not only the value in megabytes, but also the total number of bytes for the MaxSendSize value. For the purpose of what we are trying to accomplish, we only need the total number of megabytes. Let's see if this object provides any methods that can help us out with this, using Get-Member:

From the output shown in the preceding screenshot, we can see that this object supports several methods that can be used to convert the value. To obtain the MaxSendSize value in megabytes, we can call the ToMB method:

[PS] C:\>$mailbox.MaxSendSize.Value.ToMB()
10

In a traditional shell for Exchange on-premise, you would have to perform complex string parsing to extract this type of information, but PowerShell and the .NET Framework make this much easier. As you'll see over time, this is one of the reasons why PowerShell's object-based nature really outshines a typical text-based command shell.

An important thing to point about this last example is that it would not work if the mailbox had not had a custom MaxSendSize limitation configured. Nevertheless, this provides a good illustration of the process you'll want to use when you're trying to learn about an object's properties or methods.

Variable expansion in strings

As mentioned in the first recipe, Using the help system, in this chapter, PowerShell uses quoting rules to determine how variables should be handled inside a quoted string. When enclosing a simple variable inside a double-quoted string, PowerShell will expand that variable and replace the variable with the value of the string. Let's take a look at how this works by starting off with a simple example:

[PS] C:\>$name = "Bob"
[PS] C:\> "The user name is $name"
The user name is Bob

This is pretty straightforward. We stored the string value of Bob inside the $name variable. We then include the $name variable inside a double-quoted string that contains a message. When we hit return, the $name variable is expanded, and we get back the message we expect to see on the screen.

Now let's try this with a more complex object. Let's say that we want to store an instance of a mailbox object in a variable and access the PrimarySmtpAddress property inside the quoted string:

[PS] C:\>$mailbox = Get-Mailbox testuser
[PS] C:\>"The email address is $mailbox.PrimarySmtpAddress"
The email address is test user.PrimarySmtpAddress

Notice here that when we try to access the PrimarySmtpAddress property of our mailbox object inside the double-quoted string, we do not get back the information that we expect. This is a very common stumbling block when it comes to working with objects and properties inside strings. We can get around this using sub-expression notation. This requires that you enclose the entire object within the $() characters inside the string:

[PS] C:\>"The email address is $($mailbox.PrimarySmtpAddress)"
The email address is [email protected]

Using this syntax, the PrimarySmtpAddress property of the $mailbox object is properly expanded and the correct information is returned. This technique will be useful later when we extract data from objects and generate reports or log files.

Strongly typed variables

PowerShell will automatically try to select the correct data type for a variable based on the value being assigned to it. You don't have to worry about doing this yourself, but we do have the ability to explicitly assign a type to a variable if needed. This is done by specifying the data type in square brackets before the variable name:

[string]$var2 = 32

Here, we assigned the value of 32 to the $var2 variable. Had we not strongly typed the variable using the [string] type shortcut, $var2 would have been created using the Int32 data type, since the value we assigned was a number that was not enclosed in single or double quotes. Let's take a look at the following screenshot:

As you can see here, the $var1 variable is initially created without any explicit typing. We use the GetType() method, which can be used on any object in the shell, to determine the data type of $var1. Since the value assigned was a number not enclosed in quotes, it was created using the Int32 data type. When using the [string] type shortcut to create $var2 with the same value, you can see that it has now been created as a string.

It is good to have an understanding of data types because when building scripts that return objects, you may need to have some control over this. For example, you may want to report on the amount of free disk space on an Exchange server. If we store this value in the property of a custom object as a string, we lose the ability to sort on that value. There are several examples throughout the book that use this technique.

Tip

See Appendix A, Common Shell Information for a list of commonly-used type shortcuts.



Working with arrays and hash tables


Like many other scripting and programming languages, Windows PowerShell allows you to work with arrays and hash tables. An array is a collection of values that can be stored in a single object. A hash table is also known as an associative array and is a dictionary that stores a set of key-value pairs. You'll need to have a good grasp of arrays so that you can effectively manage objects in bulk and gain maximum efficiency in the shell. In this recipe, we'll take a look at how we can use both types of arrays to store and retrieve data.

How to do it...

You can initialize an array that stores a set of items by assigning multiple values to a variable. All you need to do is separate each value with a comma. The following command would create an array of server names:

$servers = "EX1","EX2","EX3"

To create an empty hash table, use the following syntax:

$hashtable = @{}

Now that we have an empty hash table, we can add key-value pairs:

$hashtable["server1"] = 1
$hashtable["server2"] = 2
$hashtable["server3"] = 3

Notice in this example that we can assign a value based on a key name, not by using an index number, as we saw with a regular array. Alternatively, we can create this same object using a single command, using the following syntax:

$hashtable = @{server1 = 1; server2 = 2; server3 = 3}

You can see here that we used a semicolon (;) to separate each key-value pair. This is only required if the entire hash table is created on one line.

You can break this up into multiple lines to make it easier to read:

$hashtable = @{
  server1 = 1
  server2 = 2
  server3 = 3
}

To create an empty array, use the following syntax:

$servers = @()

How it works...

Let's start off by looking at how arrays work in PowerShell. When working with arrays, you can access specific items and add or remove elements. In our first example, we assigned a list of server names to the $servers array. To view all of the items in the array, simply type the variable name and hit return:

[PS] C:\>$servers
EX1
EX2
EX3

Array indexing allows you to access a specific element of an array using its index number inside square brackets ([]). PowerShell arrays are zero-based, which means that the first item in the array starts at index zero. For example, use the second index to access the third element of the array, as shown next:

[PS] C:\>$servers[2]
EX3

To assign a value to a specific element of the array, use the equals (=) assignment operator. We can change the value from the last example using the following syntax:

[PS] C:\>$servers[2] = "EX4"
[PS] C:\>$servers[2]
EX4

Let's add another server to this array. To append a value, use the plus equals (+=) assignment operator, as shown here:

[PS] C:\>$servers += "EX5"
[PS] C:\>$servers
EX1
EX2
EX4
EX5

To determine how many items are in an array, we can access the Count property to retrieve the total number of array elements:

[PS] C:\>$servers.Count
4

We can loop through each element in the array with the ForEach-Object cmdlet and display the value in a string:

$servers | ForEach-Object {"Server Name: $_"}

We can also check for a value in an array using the -Contains or -NotContains conditional operator:

[PS] C:\>$servers -contains "EX1"
True

In this example, we are working with a one-dimensional array, which is what you'll be commonly dealing with in the Exchange Management Shell. PowerShell supports more complex array types, such as jagged and multidimensional arrays, but these are beyond the scope of what you'll need to know for the examples in this book.

Now that we have figured out how arrays work, let's take a closer look at hash tables. When we view the output for a hash table, the items are returned in no particular order. You'll notice this when we view the hash table we created earlier:

[PS] C:\>$hashtable
Name                         Value
----                         -----
server2                        2
server3                        3
server1                        1

If you want to sort the hash table, you can call the GetEnumerator method and sort by using the Value property:

[PS] C:\>$hashtable.GetEnumerator() | sort value
Name                         Value
----                         -----
server1                        1
server2                        2
server3                        3

Hash tables can be used when creating custom objects or to provide a set of parameter names and values using parameter splatting. Instead of specifying parameter names one by one with a cmdlet, you can use a hash table with keys that match the parameter's names and their associated values will automatically be used for input:

$parameters = @{
  Title = "Manager"
  Department = "Sales"
  Office = "Headquarters"
}
Set-User testuser @parameters

This command automatically populates the parameter values for Title, Department, and Office when running the Set-User cmdlet for the testuser mailbox.

For more details and examples for working with hash tables, run Get-Help about_Hash_Tables.

There's more…

You can think of a collection as an array created from the output of a command. For example, the Get-Mailbox cmdlet can be used to create an object that stores a collection of mailboxes, and we can work with this object just as we would with any other array. You'll notice that, when working with collections, such as a set of mailboxes, you can access each mailbox instance as an array element. Consider the following screenshot:

First, we retrieve a list of mailboxes that start with the letter t and assign that to the $mailboxes variable. From looking at the items in the $mailboxes object, we can see that the testuser mailbox is the second mailbox in the collection.

Since arrays are zero-based, we can access that item using the first index, as shown in the following screenshot:

In previous version(s) of the Exchange Server, we had an issue when the command only returned one item; the output could not be accessed using the array notation. If you face this, it can be solved using the following syntax:

$mailboxes = @(Get-Mailbox testuser)

You can see here that we wrapped the command inside the @() characters to ensure that PowerShell will always interpret the $mailboxes object as an array. This can be useful when you're building a script that always needs to work with an object as an array, regardless of the number of items returned from the command that created the object. Since the $mailboxes object has been initialized as an array, you can add and remove elements as needed.

We can also add and remove items to multivalued properties, just as we would with a normal array. To add an e-mail address to the testuser mailbox, we can use the following commands:

$mailbox = Get-Mailbox testuser
$mailbox.EmailAddresses += "[email protected]"
Set-Mailbox testuser -EmailAddresses $mailbox.EmailAddresses

In this example, we created an instance of the testuser mailbox by assigning the command to the $mailbox object. We can then work with the EmailAddresses property to view, add, and remove e-mail addresses from this mailbox. You can see here that the plus equals (+=) operator was used to append a value to the EmailAddresses property.

We can also remove that value using the minus equals (-=) operator:

$mailbox.EmailAddresses -= "[email protected]"
Set-Mailbox testuser -EmailAddresses $mailbox.EmailAddresses

Tip

There is actually an easier way to add and remove e-mail addresses on recipient objects. See Adding and removing recipient e-mail addresses in Chapter 3, Managing Recipients, for details.

In this section, we covered the core concepts that you'll need to know while working with arrays. For more details, run Get-Help about_arrays.

See also

  • Working with variables and objects

  • Creating custom objects



Looping through items


Loop processing is a concept that you will need to master in order to write scripts and one-liners with efficiency. You'll need to use loops to iterate over each item in an array or a collection of items, and then run one or more commands within a script block against each of those objects. In this recipe, we'll take a look at how you can use foreach loops and the ForEach-Object cmdlet to process items in a collection.

How to do it...

The foreach statement is a language construct used to iterate through values in a collection of items. The following example shows the syntax used to loop through a collection of mailboxes, returning only the name of each mailbox:

foreach($mailbox in Get-Mailbox) {$mailbox.Name}

In addition, you can take advantage of the PowerShell pipeline and perform loop processing using the ForEach-Object cmdlet. This example produces the same result as the one shown previously:

Get-Mailbox | ForEach-Object {$_.Name}

You will often see the given command written using an alias of the ForEach-Object cmdlet, such as the percent sign (%):

Get-Mailbox | %{$_.Name}

How it works...

The first part of a foreach statement is enclosed in parentheses and represents a variable and a collection. In the previous example, the collection is the list of mailboxes returned from the Get-Mailbox cmdlet. The script block contains the commands that will be run for every item in the collection of mailboxes. Inside the script block, the $mailbox object is assigned the value of the current item being processed in the loop. This allows you to access each mailbox one at a time using the $mailbox variable.

When you need to perform loop processing within a pipeline, you can use the ForEach-Object cmdlet. The concept is similar, but the syntax is different because objects in the collection come across the pipeline.

The ForEach-Object cmdlet allows you to process each item in a collection using the $_ automatic variable, which represents the current object in the pipeline. The ForEach-Object cmdlet is probably one of the most commonly used cmdlets in PowerShell, and we'll rely heavily on it in many examples throughout the book.

The code inside the script block used with both the looping methods can be more complex than just a simple expression. The script block can contain a series of commands or an entire script. Consider the following code:

Get-MailboxDatabase -Status | %{
  $DBName = $_.Name
  $whiteSpace = $_.AvailableNewMailboxSpace.ToMb()
  "The $DBName database has $whiteSpace MB of total white space"
}

In this example, we're looping through each mailbox database in the organization using the ForEach-Object cmdlet. Inside the script block, we created multiple variables, calculated the total megabytes of whitespace in each database, and returned a custom message that includes the database name and corresponding whitespace value. This is a simple example, but keep in mind that inside the script block, you can run other cmdlets, work with variables, create custom objects, and many more.

PowerShell also supports other language constructs for processing items, such as the for, while, and do loops. Although these can be useful in some cases, in the next recipe, we will use the while and do loops as examples. You can read more about them and view examples using the get-help about_for, get-help about_while, and get-help about_do commands in the shell.

There's more…

There are some key differences between the foreach statement and the ForEach-Object cmdlet that you'll want to be aware of when you need to work with loops. First, the ForEach-Object cmdlet can process one object at a time as it comes across the pipeline. When you process a collection using the foreach statement, this is the exact opposite. The foreach statement requires that all of the objects that need to be processed within a loop are collected and stored in memory before processing begins. We would want to take advantage of the PowerShell pipeline and its streaming behavior whenever possible, since it is much more efficient.

The other thing to take note of is that, in PowerShell, foreach is not only a keyword, but also an alias. This can be a little counterintuitive, especially when you are new to PowerShell and you run into a code sample that uses the following syntax:

Get-Mailbox | foreach {$_.Name}

At first glance, this might seem like we're using the foreach keyword, but we're actually using an alias for the ForEach-Object cmdlet. The easiest way to remember this distinction is that the foreach language construct is always used before a pipeline. If you use foreach after a pipeline, PowerShell will use the foreach alias, which corresponds to the ForEach-Object cmdlet.

Another common loop is the for loop, and it's ideal to use this loop when the same sequence of statements needs to be repeated a specific number of times. To explain the for loop, we illustrate this using the following example:

for (initialize; condition; increment) {
code block
}

The following are the various sections of PowerShell:

  • Initialize section: In this section, you can set a variable to a starting value. You can also set one or more variables by separating them with commas.

  • Condition section: This condition is tested each time by PowerShell before it executes the code. If the condition is found to be true, your body of code will be executed. If the condition is found to be false, PowerShell stops executing the code.

  • Increment section: In this section, you can specify how you want a variable to be updated after each run of the loop. This can be an increment, a decrement, or any other change that you need. After the code has been executed once, PowerShell will update your variable.

The for loop keeps on looping until your condition turns false, which is similar to the following example.

for ($i = 1; $i –lt 11; $i++) {
Write-Host $i
}

In the preceding example, initially, $i is set to a value of 1. The loop will run until $i is less than 11. Our example will write the value for $i on the screen.

Other common loops are the do while and while loops. These loops executes until the condition value is true. These kinds of loop can be helpful when moving mailboxes and can then be used to verify that the move is proceeding as expected and has finished successfully. In this case, the move status would be the condition that the loop is using:

do { code block }
while (condition)

The preceding two sections shown are almost self-explanatory. Under the do section, the code is written, as our following example shows that we are using Write-Host.

Under the while section, the condition is set; in our example, the condition is that $i is less than 10:

do {
  Write-Host $i
  $i++
}
while ($i –le 10)

See also

  • Working with arrays and hash tables

  • Understanding the pipeline

  • Creating custom objects



Creating custom objects


The fact that PowerShell is an object-based shell gives us a great deal of flexibility when it comes to writing one-liners, scripts, and functions. When generating detailed reports, we need to be able to customize the data output from our code so that it can be formatted or piped to other commands that can export the data in a clean, structured format. We also need to be able to control and customize the output from our code so that we can merge data from multiple sources into a single object. In this recipe, you'll learn a few techniques used to build custom objects.

How to do it...

The first thing we'll do is create a collection of mailbox objects that will be used as the data source for a new set of custom objects:

$mailboxes = Get-Mailbox

You can add custom properties to any object coming across the pipeline using calculated properties. This can be done using either the Select-Object or Format-Table cmdlets:

$mailboxes |
Select-Object Name,
Database,
@{name="Title";expression={(Get-User $_.Name).Title}},
@{name="Dept";expression={(Get-User $_.Name).Department}}

Another easy way to do this is by assigning a hash table to the –Property parameter of the New-Object cmdlet:

$mailboxes | %{
  New-Object PSObject -Property @{
    Name = $_.Name
    Database = $_.Database
    Title = (Get-User $_.Name).Title
    Dept = (Get-User $_.Name).Department
  }
}

You can also use the New-Object cmdlet to create an empty custom object, and then use the Add-Member cmdlet to tack on any custom properties that are required:

$mailboxes | %{
  $obj = New-Object PSObject
  $obj | Add-Member NoteProperty Name $_.Name
  $obj | Add-Member NoteProperty Database $_.Database
  $obj | Add-Member NoteProperty Title (Get-User $_.Name).Title
  $obj | Add-Member NoteProperty Dept (Get-User $_.Name).Department
  Write-Output $obj
}

Each of these three code samples will output the same custom objects that combine data retrieved from both the Get-Mailbox and Get-User cmdlets. Assuming that the Title and Department fields have been defined for each user, the output would look similar to the following screenshot:

How it works...

The reason we're building a custom object here is because we want to merge data from multiple sources into a single object. The Get-Mailbox cmdlet does not return the Title or Department properties that are tied to a user account; the Get-User cmdlet needs to be used to retrieve that information. Since we may want to generate a report that includes information from both the Get-Mailbox and Get-User cmdlets for each individual user, it makes sense to build a custom object that contains all of the required information. We can then pipe these objects to other cmdlets that can be used to export this information to a file.

We can modify one of our previous code samples and pipe the output to a CSV file used to document this information for the current user population:

$mailboxes |
Select-Object Name,
Database,
@{n="Title";e={(Get-User $_.Name).Title}},
@{n="Dept";e={(Get-User $_.Name).Department}} |
Export-CSV –Path C:\report.csv -NoType

Keep in mind that even though you can also create calculated properties using the Format-Table cmdlet, you'll want to use Select-Object, as shown previously, when converting these objects to CSV or HTML reports. These conversion cmdlets do not understand the formatting information returned by the Format-Table cmdlet, and you'll end up with a lot of useless data if you try to do this.

When building custom objects with the Select-Object cmdlet, we can select existing properties from objects coming across the pipeline and also add one or more calculated properties. This is done using a hash table that defines a custom property name in the hash table key and a script block within the hash table value. The script block is an expression where you can run one or more commands to define the custom property value. In our previous example, you can see that we called the Get-User cmdlet to retrieve both the Title and Department properties for a user that will be assigned to calculated properties on a new object.

The syntax to create a calculated property looks a little strange at first glance, since it uses the name and expression keywords to create a hash table that defines the calculated property. You can abbreviate these keywords, as shown next:

$mailboxes |
Select-Object Name,
Database,
@{n="Title";e={(Get-User $_.Name).Title}},
@{n="Dept";e={(Get-User $_.Name).Department}}

The property name uses the string value assigned to n, and the property value is assigned to e using a script block. Abbreviating these keywords with n and e just makes it easier to type. You can also use label or l to provide the calculated property name.

Using the New-Object cmdlet and assigning a hash table to the -Property parameter is a quick and easy way to create a custom object. The only issue with this technique is that the properties can be returned in a random order. This is due to how the .NET Framework assigns random numeric values to hash table keys behind the scenes, and the properties are sorted based on those values, not in the order that you defined them. The only way to get the properties back in the order you want is to continue to pipe the command to Select-Object and select the property names in order, or to use one of the other techniques shown in this recipe.

Creating an empty custom object and manually adding note properties with the Add-Member cmdlet can require a lot of extra typing, so generally this syntax is not widely used. This technique becomes useful when you want to add script methods or script properties to a custom object, but this is an advanced technique that we won't need to utilize for the recipes in the remainder of this book.

There's more...

There is another useful technique used to create custom objects, which utilizes the Select-Object cmdlet. Let's take a look at the following code:

$mailboxes | %{
  $obj = "" | Select-Object Name,Database,Title,Dept
  $obj.Name = $_.Name
  $obj.Database = $_.Database
  $obj.Title = (Get-User $_.Name).Title
  $obj.Dept = (Get-User $_.Name).Department
  Write-Output $obj
}

You can create a custom object by piping an empty string variable to the Select-Object cmdlet, specifying the property names that should be included. The next step is to simply assign values to the properties of the object using the property names that you defined. This code loops through the items in our $mailboxes object and returns a custom object for each one. The output from this code returns the exact same objects as all of the previous examples.

See also

  • Looping through items

  • Working with variables and objects

  • Exporting reports to text and CSV files in Chapter 2, Exchange Management Shell Common Tasks

  • Dealing with concurrent pipelines in remote PowerShell in Chapter 2, Exchange Management Shell Common Tasks



Using debugger functions


With PowerShell Version 5, we have great functions, such as debugging scripts, and code in PowerShell was added. This was introduced in the Windows Management Framework 5.0 preview. In this recipe, we will take a look at it in more depth. This recipe is more like a general PowerShell function but can, of course, be applied to Exchange scripts.

Let's take a look at two of these functions in detail and start with the basics and then advance from there. Both these examples can be used in the PowerShell console and in Windows PowerShell ISE.

The first method we are going to take a look at is called Break All and was introduced in PowerShell v5. This method gives us the option to debug the PowerShell workflow and supports command and tab completion. We can debug nested workflow functions both in local and remote sessions.

The second function in this recipe that we will use is the Debug-Job cmdlet inside more complex and advanced scripts. It uses the same basis as the Break All function.

How to do it...

First, we create a variable named $i with a value of 1, and then create a loop using the Do While operator. The loop will run until $i is less than or equal to 20. Within the loop, a text string is written to the console with a text Value and the value of $i:

$i = 1
Do {
Write-Host "Value: $i"
  $i++
  Start-Sleep –Milliseconds 200
}
While ($i –le 20)

As this is a basic example of how the debugger can be used, this method would be helpful for production, when executing scripts. The debugger mode can be used when the script is running by pressing CTRL + Break or CTRL + B. When breaking a script, it will look similar to the following screenshot:

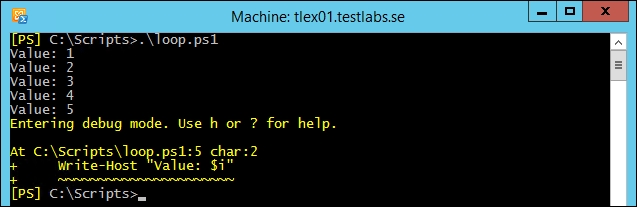

We can see that the script called loop.ps1 is stopped and has entered the debug mode. When pressing h or ?, the help information will show up.

In the debug mode, we can see the full source code (using l) in the current script, we can also step through every row in the script (using s), go to the next statement (using v), and of course, continue running the script (using c) or stop the operation and exit the debug mode (using q).

How it works...

By initializing the debugging mode, the script is stopped until using either the Continue or Quit commands. The debugging can be very helpful; and for example, you can step through the code, view the source code, verify variables, view the environment state, and execute commands.

In the preceding screenshot, let's take a look at what the value in the $i variable is by typing the following command:

[PS] C:\Scripts>$i
5

Here, we see that the value is 5 as the loop was stopped at that stage.

Tip

One thing to mention here is that the script debugging method will only debug the executed script itself and cannot collect any information from external native commands or scripts and sends back the result in the debugging mode. For more advanced debugging, use the managed code together with Visual Studio or WinDbg.

There's more…

Together with the code debugger function, we can use the Debug-Job cmdlet that was introduced in Version 5 of PowerShell.

The Debug-Job cmdlet lets you break into the script debugger while running a job in a similar way, as the Break All function lets us break into a running script from the console or ISE.

A typical scenario where we could use Debug-Job is when we are running a long, complex script as a job, and for one reason or another, we suspect that the script is not executing correctly. It may take longer than expected or some of the output data doesn't seem right. Now we can drop the job in the debugger using the Debug-Job cmdlet, which allows us to verify that the code is being executed the way it's expected to be; it's a great and helpful function.

As you probably are aware of or the problem that you might face in the future is that while debugging scripts interactively, they work as expected but when they are running as jobs in production, they fail. However, this can now be debugged with this new feature by setting breakpoints or using the Wait-Debugger cmdlet.

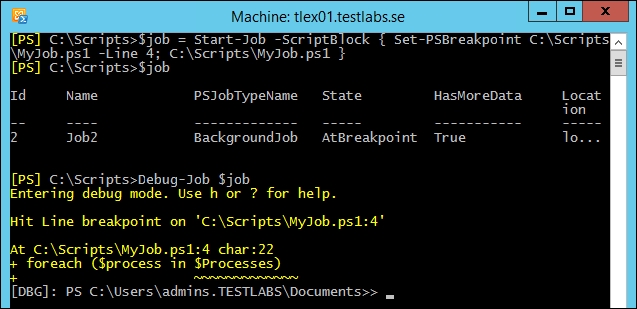

In the following example, we are setting a breakpoint at Line 4 to debug the script and run it as a job, and use the Debug-Job cmdlet:

$job = Start-Job -ScriptBlock { Set-PSBreakpoint ` C:\Scripts\MyJob.ps1-Line 4; C:\Scripts\MyJob.ps1 `
}
$job
Debug-Job $job

By doing this, we will be able to enter the debugging mode and can reach variables, execute commands, view the environment state, view the source code, and step through the code:

The preceding screenshot shows you that the job state is AtBreakpoint, which means that it is waiting to be debugged. This method works in a similar way as the Break All method; it will only debug the script itself and cannot debug any external commands.

To continue with the process and leave the debugging mode, use the detach command.

See also

  • Understanding the new execution policy

  • Creating custom objects

  • Using the Save-Help function



Understanding the new execution policy


Windows PowerShell implements script security to keep unwanted scripts from running in your environment. You have the option of signing your scripts with a digital signature to ensure that scripts that run are from a trusted source.

The policy has five (Undefined, Restricted, AllSigned, RemoteSigned, and Unrestricted) different states to be set in five different scopes (MachinePolicy, UserPolicy, Process, CurrentUser, and LocalMachine).

Here is a short description of the different policies and what they can or can't do:

  • Undefined: There is no execution policy set for the current scope

  • Restricted: No script either local, remote, or downloaded can be executed

  • AllSigned: All scripts that are run require to be digitally signed

  • RemoteSigned: All remote (UNC) or downloaded scripts require to be digitally signed

  • Unrestricted: All scripts are allowed to be executed

Here is a description of the different scopes:

  • MachinePolicy: This execution policy set by a group policy applies to all users

  • UserPolicy: This execution policy set by a group policy applies to the current user

  • Process: This execution policy applies to the current Windows PowerShell process

  • CurrentUser: This execution policy applies to the current user

  • LocalMachine: This execution policy applies to all users of the computer

It is possible to manage Exchange 2013 through PowerShell remoting on a workstation or server without the Exchange Tools installed. In this case, you'll need to make sure that your script execution policy is set to either RemoteSigned or Unrestricted. To set the execution policy, use the following command:

Set-ExecutionPolicy RemoteSigned

Make sure that you do not change the execution policy to AllSigned on machines where you'll be using the Exchange cmdlets. This will interfere with importing the commands through a remote PowerShell connection, which is required for the Exchange Management Shell cmdlets to run properly.

How to do it...

The following are some examples of cmdlets that can be used to configure the execution policy:

Get-ExecutionPolicy –List | Format-Table –AutoSize
Set-ExecutionPolicy AllSigned
Set-ExecutionPolicy –Scope CurrentUser –ExecutionPolicy ` RemoteSigned

How it works...

The default scope is set to LocalMachine if nothing is specified, which means that it will apply to everyone on this machine. If the execution policy is set to Undefined in all scopes, the effective execution policy is Restricted.

We started with listing the current policy settings and then continued with configuring the LocalMachine policy that requires scripts to be digitally signed. Otherwise, they will be prohibited from being executed.

The last cmdlet was used to configure CurrentUser to RemoteSigned instead of AllSigned, which was configured to the LocalMachine policy.

Once this change is done, the configuration would look like the following screenshot:

This makes it possible to configure the execution policy to provide digital signatures for scripts that are executed by everyone, except the currently logged-in user.

If you are uncertain on which user is logged on, use the whoami command.

There's more…

Since the default execution policy is configured to RemoteSigned, all remote (UNC) or downloaded scripts require to be digitally signed.

It is very common that when a script is downloaded, we need to unblock this file before it can be executed, when the policy is set to default settings.

Of course, it's recommended that before you unblock any downloaded file, you need to test it in a test environment so that it doesn't harm any production environment or add any malicious code in some way:

Unblock-File -Path C:\Scripts\HarmlessScript.ps1
Get-ChildItem C:\DownloadFolder | Unblock-File

The first line unblocks the specified downloaded file, while the second line retrieves all files from a folder called DownloadFolder and then unblocks them. This makes it possible to execute these files with the default configuration.

Unblock-File performs the same operation as the Unblock button in the Properties dialog box in File Explorer.

For more detailed information, use the Get-Help about_Execution_Policies cmdlet.

See also

  • Working with Desired State Configuration

  • Working with script repositories

  • Using the Save-Help function



Working with Desired State Configuration


Desired State Configuration (DSC) was first introduced in PowerShell Version 4. With PowerShell Version 5, it has, of course, been developed a lot. Some of the new functions that would be interesting from an Exchange on-premise perspective are as follows:

  • ThrottlingLimit (PSDesiredStateConfiguration) specifies the number of target computers or devices on which we want the command to run simultaneously

  • Centralized DSC error reporting

  • Improvements to DSC resourcing lists all DSC resources, automatic completion, the DependsOn property, and tab completion

  • DSC can now be run with a specified user by adding the PSDscRunAsCredential cmdlet to the node block

  • 32-bit support was added

  • Partial configuration can now deliver configuration documents to a node in fragments

  • New cmdlets such as Get-DscConfigurationStatus, Compare-DscConfiguration, Publish-DscConfiguration, Test-DscConfiguration, and Update-DscConfiguration were introduced

Now we have all the great functionality added into the last version of PowerShell for DSC.

Before we go deep into this recipe, we should be aware of what the purpose of DSC is and what DSC is all about.

DSC can in some way be compared to Active Directory Group Policies Objects (GPO). The main purpose of both of them is to make sure that settings are configured according to the configuration. In that sense, DSC can pretty much be compared to GPO, and DSC will make sure that the settings are equally the same over the specified nodes and that the settings will remain so.

The DSC system has two configuration modes: push or pull using HTTP(S) or SMB. A typical setup would be to have one server acting as the DSC server, where the configurations and modules are located.

In push mode, the MOF configuration is pushed to its intended targets, called nodes. The opposite is done in pull mode; the nodes then pull the configuration from the DSC server, which has to be configured, and get the required modules and resources. The pull nodes have a scheduled task that takes the actions.

In this recipe, we concentrate on pull mode, and the default setting for the pull interval is 15 minutes.

In this recipe, we will install and configure the DSC server. With the DSC server in place, we will take it to the next level and see how DSC can help us manage Exchange on-premises.

How to do it...

Our first example is an example of how to configure the DSC Pull Server. One thing to mention, as a prerequisite, is that winrm needs to be configured. This is done by running the following command winrm quickconfig.

So, let's install and configure the DSC Pull server using the following example. Save the following script as PullServerConfig.ps1 and run it:

configuration CreatePullServer
{
  param
    (
      [string[]]$ComputerName = 'localhost'
    )
  Import-DSCResource -ModuleName xPSDesiredStateConfiguration
  Node $ComputerName
    {
      WindowsFeature DSCServiceFeature
        {
          Ensure = "Present"
          Name   = "DSC-Service"
        }
      xDscWebService PSDSCPullServer
        {
            Ensure = "Present"
            EndpointName = "PSDSCPullServer"
            Port = 8080
            PhysicalPath = "$env:SystemDrive\inetpub\wwwroot\ `PSDSCPullServer"
            CertificateThumbPrint = "AllowUnencryptedTraffic"
            ModulePath = "$env:PROGRAMFILES\WindowsPowerShell\ `DscService\Modules"
            ConfigurationPath = "$env:PROGRAMFILES\ `WindowsPowerShell\DscService\Configuration"
            State = "Started"
            DependsOn = "[WindowsFeature]DSCServiceFeature"
          }
        xDscWebService PSDSCComplianceServer
          {
            Ensure = "Present"
            EndpointName = "PSDSCComplianceServer"
            Port = 9080
            PhysicalPath = "$env:SystemDrive\inetpub\wwwroot\ `PSDSCComplianceServer"
            CertificateThumbPrint = "AllowUnencryptedTraffic"
            State = "Started"
            IsComplianceServer = $true
            DependsOn = ("[WindowsFeature]DSCServiceFeature","[xDSCWebService]PSDSCPullServer")
          }
    }
}
CreatePullServer -ComputerName dscsrv.testlabs.se

This wasn't too hard. Was it? So, let's continue with the configuration for our Exchange server. In the following example, we are going to configure the execution policy to a value of RemoteSigned. We are also going to make sure that the MSExchangeFrontEndTransport service is running. So, let's create the script and finally one for pulling the configuration from the DSC server:

Configuration CompliantExchange
{
  param ($MachineName)
  Import-DSCResource -ModuleNamePSDesiredStateConfiguration, ` xPowerShellExecutionPolicy
  Node $MachineName
  {
    xPowerShellExecutionPolicy SetPSExecutionPolicyToRemoteSigned
    {
      ExecutionPolicy = "RemoteSigned"
    }
  Service MSExchangeFrontEndTransport
    {
      Name = "MSExchangeFrontEndTransport"
      StartupType = "Automatic"
      State = "Running"
    }
  }
}
CompliantExchange –MachineName tlex01.testlabs.se
$guid = [guid]::NewGuid()
$source = "CompliantExchange\tlex01.testlabs.se.mof"
$dest = "\\dscsrv.testlabs.se\c`$\program files\windowspowershell\dscservice\configuration\$guid.mof"
copy $source $dest
New-DSCChecksum $dest

So, let's create the script to pull the configuration from the DSC server to our Exchange server. This should be executed on the Exchange on-premises server:

Configuration SetPullMode
{
  param([string]$guid)
  Node tlex01.testlabs.se
    {
      LocalConfigurationManager
       {
         ConfigurationMode = 'ApplyAndAutoCorrect'
         ConfigurationID = $guid
         RefreshMode = 'Pull'
         DownloadManagerName = 'WebDownloadManager'
         DownloadManagerCustomData = @{
           ServerUrl = 'http://dscsrv.testlabs.se:8080/PSDSCPullServer.svc';
           AllowUnsecureConnection = 'true' }
       }
    }
}
SetPullMode –guid $guid
Set-DSCLocalConfigurationManager -Computer tlex01.testlabs.se ` -Path ./SetPullMode –Verbose

How it works...

The first part in this recipe was the script to create the DSC Pull server, don't forget about the prerequisite (winrm quickconfig). To create the pull server in this example, we did import the DSC module named xPSDesiredStateConfiguration and use the resource named xDscWebService. Make sure to place the xPSDesiredStateConfiguration module into the $env:ProgramFiles\WindowsPowerShell\Modules folder.

We saved the script as PullServerConfig.ps1 and started it by running .\PullServerConfig.ps1. A folder will be created with the configuration name; in this case, it was called CreatePullServer. Inside the folder, we now have a file called nodename.domain.mod; in our example, it was named dscsrv.testlabs.se.mof.

Finally, to configure the server, we started the DSC configuration by running Start-DscConfiguration .\CreatePullServer -Wait. The reason we are using the Wait parameter is that it's easier for us to follow if everything runs as expected. The following screenshot shows you an ongoing configuration:

When our DSC server was created successfully, the second script that we used was made with the purpose to make sure that the execution policy was always set to RemoteSigned and that the Microsoft Exchange service named MSExchangeFrontEndTransport was always running. However, these two were just used to illustrate an example of what DSC could be used for.

First, we imported the DSC modules that are going to be used. One thing to mention here is that these modules need to be deployed to our pull clients/nodes, in the same folder as the DSC server. The modules should be placed in the $env:ProgramFiles\WindowsPowerShell\Modules folder.

In the second script, we specified which node we are going to configure with the resource and what setting.

Before deploying these scripts to the DSC server, we need to make sure to follow the third script, where we created a new guide and published the configuration/mof file in the $env:ProgramFiles\WindowsPowerShell\DscService\Configuration folder. This is basically done because the DSC server uses GUIDs and now node names.

With the MOF files in place, the last step for the configuration is to create a checksum for the MOF file. This is done using the New-DSCChecksum cmdlet.

The final step to allow the DSC server and its client/nodes to take the necessary actions, we need to configure the nodes. In our example, the Exchange server needs to pull the configuration from the DSC server. Once the pull mode has been configured, give the node 30 minutes to retrieve the configuration. The following screenshot shows you when to configure the Exchange server in order to use the pull method instead of the push method:

After applying the pull configuration settings, give the node at least 30 minutes, then you can go ahead and check whether the configuration has taken place by running the Get-DscConfigurationStatus cmdlet. This cmdlet will show you if the configuration was successfully deployed or if there were any issues. Also, the Get-DscConfiguration cmdlet can be helpful to see which configuration was deployed and its status.

See also

  • Understanding the new execution policy

  • Working with script repositories



Using the Save-Help function


The useful help cmdlet Get-Help can provide useful information and examples. By default, PowerShell retrieves the help files from the Internet if they are not available locally.

In PowerShell Version 4 of Windows Management Framework, the function was introduced that made it possible to save the help files and import them to another server or client, which is great when a server or client is prohibited from having Internet access.

This can be done with the following few commands; these commands will be described in the How it works section.

How to do it...

Let's take a look at the following example to update the help files for the modules that has anything to do with Microsoft.PowerShell:

Get-Module –Name Microsoft.PowerShell*
Save-Help –Module Microsoft.PowerShell* –DestinationPath ` "C:\HelpFiles"
Update-Help-SourcePath "C:\Help" –Force
Update-Help -SourcePath "\\fileserver\HelpFilesShare" –Force

How it works...

Once the help files are downloaded, each module contains a XML and CAB file. These can be updated per module or all at once. This is a basic task to perform.

In the previous example, we are first retrieving the modules, which are available, that have a name Microsoft.PowerShell followed by something. Then, the help files are downloaded for these modules and saved in a local folder called Help.

If we do not specify any modules, all the help files for PowerShell will be downloaded to the specified folder.

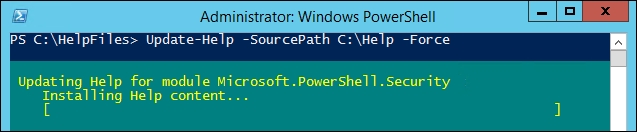

Finally, these help files are then imported to another server or client, simply where they are needed using the Update-Help cmdlet.

As shown in the preceding example, the Update-Help function can either be pointing at a local folder or a UNC path or share.

Be aware that when running the Update-Help cmdlet, you may require to use the Run as administrator option or else it might not have the access needed to import the files into the system:

Tip

Note that –DestinationPath and –SourcePath should be pointed to a folder and not to a file. The help files contain a pair of XML and CAB files per module.

A good idea would be to always keep these help files up to date and update them in the PowerShell profile to make sure that it's the current version.

See also

  • Using the help system

  • Using debugger functions

  • Creating custom objects



Working with script repositories


Windows Management Framework Version 5 includes a package manager called PowerShellGet, which enables functionalities, such as the find, get, install, and uninstall packages from internal and public sources. However, this recipe is not specific to Exchange; see this recipe as a tips and tricks recipe, since it's more PowerShell general than Exchange-specific.

PowerShellGet is a package manager for Windows PowerShell. Basically, it is a wrapper around the OneGet component that simplifies the package management for PowerShell modules. PowerShellGet is built on top of the well-known package management solution NuGet.

OneGet is a unified package management component that allows you to search for software installation, uninstallation, and inventory for any type of software that it supports through its provider interface.

OneGet works with the community-based software repository called Chocolatey. Currently, Chocolatey has over 2,600 unique packages.

There are a bunch of galleries (also referred to as providers) to use and select from, such as PowerShell Resource Gallery (Microsoft supported), MyGet, Inedo ProGet, JFrog Artifactory, and many more.

For a better understanding, let's take a look at the first example.

How to do it...

In this example, we will use OneGet to install two example modules from Chocolatey:

Import-Module –Name OneGet
Get-Command –Module OneGet
Find-Package | Out-GridView
Find-Package –Name "notepadplusplus"
Find-Package –Name "7zip"
Install-Package –Name "7zip"
Install-Package –Name "notepadplusplus"–Force
Get-Package

How it works...

For illustrating how OneGet works we have seen the preceding example.

First, we imported the module of OneGet to use the cmdlets for the package manager. We then used the Get-Command cmdlet to see what commands are available with this module.

With the Find-Package cmdlet, we searched for available packages. First, we piped the results to a GridView, since this can be user friendly to watch instead of text. Once we find the packages we are looking for; in this example, Notepad++ and 7zip, we will use the Install-Package cmdlet to install these packages. The following screenshot shows you when the installation had taken place, the packages that are now available for use and can be found at the start button:

Once the packages are in place, and we have verified that everything has worked as expected, we can finalize this by uninstalling them. The following are some examples of cmdlets used to uninstall packages:

Uninstall-Package –Name "notepadplusplus"
Uninstall-Package –Name "7zip"

There's more…

Chocolatey is great in many ways, but most companies or at least enterprise companies probably want to have their own internal, more trusted, and reliable repository but still hosted on the Internet.

So, let's take a look at how this can be established. First, let's sign up for an account at an optional provider.

In my case, I used http://www.myget.org as the provider and created a feed when the account was created.

Now, let's see how the feed can be used as a repository. The feed that was created got an URL as https://www.myget.org/F/tlpowershell/, Once it's created, we have to register it as a repository in PowerShell using the Register-PSRepository cmdlet:

Register-PSRepository -Name MyGet -SourceLocation `
https://www.myget.org/F/tlpowershell/api/v1 `
-PublishLocation https://www.myget.org/F/tlpowershell/ `
-InstallationPolicy Trusted
Find-Package -Source MyGet

Since the MyGet repository is brand new, there are currently no packages. So, the next action is to upload a package to MyGet. To upload a module, the module itself should have a file extension of .psm1 together with the module manifest using an extension of .psd1. In the manifest, you need to include the values of Author and Description, but I want to recommend that you also include the values of RootModule, ModuleVersion, and CompanyName. The following examples show how the manifest was created and also how the modules were published to MyGet:

New-ModuleManifest -Path ` C:\Windows\System32\WindowsPowerShell\v1.0\Modules\mailboxes.psd1` -Author "Jonas Andersson" -CompanyName "Testlabs, Inc." `-RootModule "mailboxes" -Description `"Module that lists mailboxes" -ModuleVersion "1.0"
Import-Module PowerShellGet$PSGalleryPublishUri = 'https://www.myget.org/F/tlpowershell/api/v2/package'
$PSGallerySourceUri = 'https://www.myget.org/F/tlpowershell/api/v2'
Publish-Module -Name mailboxes -NuGetApiKey `a2d5b281-c862-4125-9523-be42ef21f55a -Repository MyGet
Find-Package -Source MyGet
Install-Package –Name "mailboxes" –Source MyGet

Before we end this recipe, we might want to remove the repository for some reason. This is done simply by running the following cmdlet:

Unregister-PSRepository -Name MyGet

See also

  • Understanding the new execution policy

  • Creating custom objects

  • Working with Desired State Configuration

About the Authors

  • Jonas Andersson

    Jonas Andersson is devoted to constantly developing himself and his skills. He started out in the IT business in 2004 and initially worked in a support center, where he acquired a basic knowledge of the industry. In 2007, he started his career as a Microsoft Infrastructure consultant, and from 2008 onwards his focus has been on Unified Communication. At the start of 2010, he was employed at a large outsourcing company as a messaging specialist, specializing in Microsoft Exchange. His work included designing, implementing, and developing messaging solutions for enterprise customers. In 2014, he joined Microsoft Consulting Services, and from then onward his main focus has been Office 365. His role was of a deployment consultant with Microsoft's Office 365 Global Practice EMEA team. In 2016, he started to work for Sweden’s largest retail companies with a known brand as a Product Specialist for Office 365, mostly focusing on Skype for Business Online but also on the other workloads. As a reward for his work in the community, he was awarded the Microsoft Most Valuable Professional for the Microsoft Exchange Server product in 2014.

    Browse publications by this author
  • Mike Pfeiffer

    Mike Pfeiffer is a 20-year IT industry veteran, published author, and international conference speaker. He's a former architect for Amazon Web Services and engineer for Microsoft. Today, Pfeiffer serves as chief technologist for CloudSkills, a cloud computing training and consulting firm.

    Browse publications by this author
Book Title
Access this book and the full library for FREE
Access now
