Chapter 1. Preparing Docker Hosts

Docker allows us to deliver applications to our customers faster. It simplifies the workflows needed to get code from development to production by enabling us to easily create and launch Docker containers. This chapter will be a quick refresher on how to get our environment ready to run a Docker-based development and operations workflow by:

  • Preparing a Docker host

  • Working with Docker images

  • Running Docker containers

Most parts of this chapter are concepts that we are already familiar with and are readily available on the Docker documentation website. This chapter shows selected commands and interactions with the Docker host that will be used in the succeeding chapters.



Preparing a Docker host


It is assumed that we are already familiar with how to set up a Docker host. For most of the chapters of this book, we will run our examples against the following environment, unless explicitly mentioned otherwise:

  • Operating system—Debian 8.2 Jessie

  • Docker version—1.10.0

The following command displays the operating system and Docker version:

$ ssh dockerhost
dockerhost$ lsb_release –a
No LSB modules are available.
Distributor ID: Debian
Description:   Debian GNU/Linux 8.2 (jessie)
Release:        8.2
Codename:       jessie
dockerhost$ docker version
Client:
 Version:     1.10.0
 API version:  1.21
 Go version:   go1.4.2
 Git commit:   a34a1d5
 Built:        Fri Nov 20 12:59:02 UTC 2015
 OS/Arch:      linux/amd64

Server:
 Version:     1.10.0
 API version:  1.21
 Go version:   go1.4.2
 Git commit:   a34a1d5
 Built:        Fri Nov 20 12:59:02 UTC 2015
 OS/Arch:      linux/amd64

If we haven't set up our Docker environment yet, we can follow the instructions on the Docker website found at https://docs.docker.com/installation/debian to prepare our Docker host.

Tip

Downloading the example code

You can download the example code files for all Packt books you have purchased from your account at http://www.packtpub.com. If you purchased this book elsewhere, you can visit http://www.packtpub.com/support and register to have the files e-mailed directly to you.



Working with Docker images


Docker images are artifacts that contain our application and other supporting components to help run it, such as the base operating system, runtime and development libraries, and so on. They get deployed and downloaded into Docker hosts in order to run our applications as Docker containers. This section will cover the following Docker commands to work with Docker images:

  • docker build

  • docker images

  • docker push

  • docker pull

Note

Most of the material in this section is readily available on the Docker documentation website at https://docs.docker.com/userguide/dockerimages.

Building Docker images

We will use the Dockerfile of training/webapp from the Docker Education Team to build a Docker image. The next few steps will show us how to build this web application:

  1. To begin, we will clone the Git repository of webapp, which is available at https://github.com/docker-training/webapp via the following command:

    dockerhost$ git clone https://github.com/docker-training/webapp.git training-webapp
    Cloning into 'training-webapp'...
    remote: Counting objects: 45, done.
    remote: Total 45 (delta 0), reused 0 (de..., pack-reused 45
    Unpacking objects: 100% (45/45), done.
    Checking connectivity... done.

  2. Then, let's build the Docker image with the docker build command by executing the following:

    dockerhost$ cd training-webapp
    dockerhost$ docker build -t hubuser/webapp .
    Sending build context to Docker daemon 121.3 kB
    Sending build context to Docker daemon
    Step 0 : FROM ubuntu:14.04
    Repository ubuntu already being ... another client. Waiting.
     ---> 6d4946999d4f
    Step 1 : MAINTAINER Docker Education Team <[email protected]>
     ---> Running in 0fd24c915568
     ---> e835d0c77b04
    Removing intermediate container 0fd24c915568
    Step 2 : RUN apt-get update
     ---> Running in 45b654e66939
    Ign http://archive.ubuntu.com trusty InRelease
    ...
    Removing intermediate container c08be35b1529
    Step 9 : CMD python app.py
     ---> Running in 48632c5fa300
     ---> 55850135bada
    Removing intermediate container 48632c5fa300
    Successfully built 55850135bada


    Note

    The -t flag is used to tag the image as hubuser/webapp. Tagging containers as <username>/<imagename> is an important convention to be able to push our Docker images in the later section. More details on the docker build command can be found at https://docs.docker.com/reference/commandline/build or by running docker build --help.

  3. Finally, let's confirm that the image is already available in our Docker host with the docker images command:

    dockerhost$ docker images
    REPOSITORY      TAG      IMAGE ID  CREATED        VIRTUAL SIZE
    hubuser/webapp  latest   55850135  5 minutes ago  360 MB
    ubuntu          14.04    6d494699  3 weeks ago    188.3 MB


Pushing Docker images to a repository

Now that we have made a Docker image, let's push it to a repository to share and deploy across other Docker hosts. The default installation of Docker pushes images to Docker Hub. Docker Hub is a publicly hosted repository of Docker, Inc., where anyone with an account can push and share their Docker images. The following steps will show us how to do this:

  1. Before being able to push to Docker Hub, we will need to authenticate with the docker login command, as follows:

    dockerhost$ docker login
    Username: hubuser
    Password: ********
    Email: [email protected]
    WARNING: login credentials saved in /home/hubuser/.dockercfg.
    Login Succeeded


    Note

    If we don't have a Docker Hub account yet, we can follow the instructions to sign up for an account at https://hub.docker.com/account/signup.

  2. We can now push our images to Docker Hub. As mentioned in the previous section, the tag of the image identifies <username>/<imagename> in the repository. Issue the docker push command shown as follows in order to push our image to Docker Hub:

    dockerhost$ docker push hubuser/webapp
    The push refers to a repository [hubuser/webapp] (len: 1)
    Sending image list
    Pushing repository hubuser/webapp (1 tags)
    428b411c28f0: Image already pushed, skipping
    ...
    7d04572a66ec: Image successfully pushed
    55850135bada: Image successfully pushed
    latest: digest: sha256:b00a3d4e703b5f9571ad6a... size: 2745

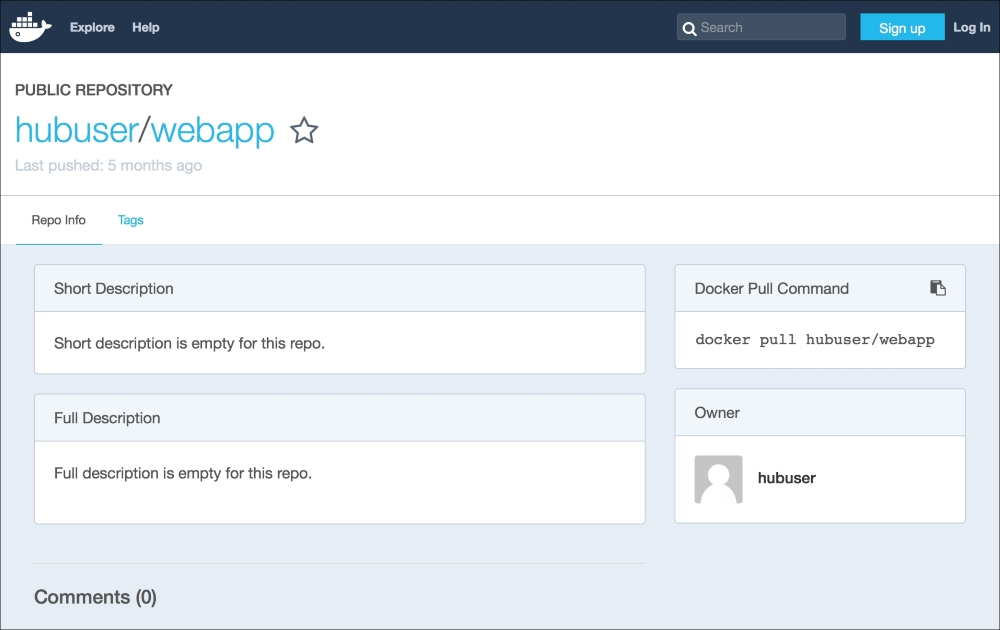

Now that we have successfully pushed our Docker image, it will be available in Docker Hub. We can also get more information about the image we pushed in its Docker Hub page, which is similar to that shown in the following image. In this example, our Docker Hub URL is https:// hub.docker.com/r/hubuser/webapp:

Note

More details on pushing Docker images to a repository are available at docker push --help and https://docs.docker.com/reference/commandline/push.

Docker Hub is a good place to start hosting our Docker images. However, there are some cases where we want to host our own image repository. For example, when we want to save bandwidth when pulling images to our Docker hosts. Another reason could be that our Docker hosts inside a datacenter may have firewalled off the Internet. In Chapter 2, Optimizing Docker Images, we will discuss in greater detail how to run our own Docker registry to have an in-house repository of Docker images.

Pulling Docker images from a repository

Once our Docker images are built and pushed to a repository, such as Docker Hub, we can pull them to our Docker hosts. This workflow is useful when we first build our Docker image in our development workstation Docker host and want to deploy it to our production environment's Docker host in the cloud. This removes the need to rebuild the same image in our other Docker hosts. Pulling images can also be used to grab the existing Docker images from Docker Hub to build over our own Docker images. So, instead of cloning the Git repository as we did earlier and redoing the build in another one of our Docker hosts, we can pull it instead. The next few steps will walk us through pulling the hubuser/webapp Docker image that we just pushed earlier:

  1. First, let's clean our existing Docker host to make sure that we will download the image from Docker Hub. Type the following command to make sure we have a clean start:

    dockerhost$ dockerhost rmi hubuser/webapp

  2. Next, we can now download the image using docker pull, as follows:

    dockerhost$ docker pull hubuser/webapp
    latest: Pulling from hubuser/webapp
    e9e06b06e14c: Pull complete
    ...
    b37deb56df95: Pull complete
    02a8815912ca: Already exists
    Digest: sha256:06e9c1983bd6d5db5fba376ccd63bfa529e8d02f23d5
    Status: Downloaded newer image for hubuser/webapp:latest

  3. Finally, let's confirm again that we have downloaded the image successfully by executing the following command:

    dockerhost$ docker images
    REPOSITORY      TAG     IMAGE ID  CREATED      VIRTUAL SIZE
    ubuntu          14.04   6d494699  3 weeks ago  188.3 MB
    hubuser/webapp  latest  2a8815ca  7 weeks ago  348.8 MB


Note

More details on how to pull Docker images is available at docker pull --help and https://docs.docker.com/reference/commandline/pull.



Running Docker containers


Now that we have pulled or built Docker images, we can run and test them with the docker run command. This section will review selected command-line flags that we will use throughout the succeeding chapters. This section will also use the following Docker commands to get more information about the Docker containers being run inside the Docker host:

  • docker ps

  • docker inspect

Note

More comprehensive details on all the command-line flags are found at docker run --help and https://docs.docker.com/reference/commandline/run.

Exposing container ports

In the training/webapp example, its Docker container is run as a web server. To have the application serve web traffic outside its container environment, Docker needs information on which port the application is bound to. Docker refers to this information as exposed ports. This section will walk us through how to expose port information when running our containers.

Going back to the training/webapp Docker image we worked on earlier, the application serves a Python Flask web application that listens to port 5000, as highlighted here in webapp/app.py:

import os
from flask import Flask
app = Flask(__name__)
@app.route('/')
def hello():
    provider = str(os.environ.get('PROVIDER', 'world'))
    return 'Hello '+provider+'!'
if __name__ == '__main__':
    # Bind to PORT if defined, otherwise default to 5000.
    port = int(os.environ.get('PORT', 5000))
    app.run(host='0.0.0.0', port=port)

Correspondingly, the Docker image makes the Docker host aware that the application is listening on port 5000 via the EXPOSE instruction in the Dockerfile, which can be described as follows:

FROM ubuntu:14.04
MAINTAINER Docker Education Team <[email protected]>
RUN apt-get update
RUN DEBIAN_FRONTEND=noninteractive apt-get \
        install -y -q python-all python-pip
ADD ./webapp/requirements.txt /tmp/requirements.txt
RUN pip install -qr /tmp/requirements.txt
ADD ./webapp /opt/webapp/
WORKDIR /opt/webapp
EXPOSE 5000
CMD ["python", "app.py"]

Now that we have a basic idea of how Docker exposes our container's ports, follow the next few steps to run the hubuser/webapp container:

  1. Use docker run with the -d flag to run the container as a daemon process, as follows:

    dockerhost$ docker run --name ourapp -d hubuser/webapp

  2. Finally, confirm that the Docker host has the container running with port 5000 exposed with docker ps. We can do this through the following command:

    dockerhost:~/training-webapp$ docker ps
    CONTAINER ID  IMAGE  ...   STATUS        PORTS    NAMES
    df3e6b788fd8  hubuser...   Up 4 seconds  5000/tcp ourapp


In addition to the EXPOSE instruction, exposed ports can be overridden during runtime with the --expose=[] flag. For example, use the following command to have the hubuser/webapp application expose ports 4000-4500:

dockerhost$ docker run -d --expose=4000-4500 \
                          --name app hubuser/webapp
dockerhost $ docker ps
CONTAINER ID   IMAGE      ...              PORTS                   NAMES
ca4dc1da26d    hubuser/webapp:latest  ...  4000-4500/tcp,5000/tcp  app
df3e6b788fd8   hubuser/webapp:l...         5000/tcp                ourapp

This ad hoc docker run flag is useful when debugging applications. For example, let's say our web application uses ports 4000-4500. However, we normally don't want these ranges to be available in production. We can then use --expose=[] to enable it temporarily to spin up a debuggable container. Further details on how to use techniques such as this to troubleshoot Docker containers will be discussed in Chapter 7, Troubleshooting Containers.

Publishing container ports

Exposing only makes the port available inside the container. For the application to be served outside its Docker host, the port needs to be published. The docker run command uses the -P and -p flags to publish a container's exposed ports. This section talks about how to use these two flags to publish ports on the Docker host.

--publish-all

The -P or --publish-all flag publishes all the exposed ports of a container to random high ports in the Docker host port within the ephemeral port range defined in /proc/sys/net/ipv4/ip_local_port_range. The next few steps will go back to the hubuser/webapp Docker image that we were working on to explore publishing exposed ports:

  1. First, type the following command to run a container publishing all the exposed ports:

    dockerhost$ docker run -P –d --name exposed hubuser/webapp

  2. Next, let's confirm that the Docker host publishes port 32771 to forward traffic to the Docker container's exposed port 5000. Type the docker ps command as follows to perform this verification:

    dockerhost$ docker ps
    CONTAINER ID IMAGE  ...                PORTS                     NAMES
    508cf1fb3e5  hubuser/webapp:latest ... 0.0.0.0:32771->5000/tcp   exposed

  3. We can also verify that the allocated port 32771 is within the configured ephemeral port range of our Docker host:

    dockerhost$ cat /proc/sys/net/ipv4/ip_local_port_range
    32768   61000

  4. In addition, we can confirm that our Docker host is listening on the allocated port 32771 as well via the following command:

    dockerhost$ ss -lt 'sport = *:32771'
    State   Recv-Q Send-Q  Local Address:Port Peer Address:Port
    LISTEN  0      128     :::32771           :::*

  5. Finally, we can validate that the Docker host's port 32771 is indeed mapped to the running Docker container by confirming that it is the training/webapp Python application responding by making an actual HTTP request. Run the following command to confirm:

    $ curl  http://dockerhost:32771
    Hello world!


--publish

The -p or --publish flag publishes container ports to the Docker host. If the container port is not yet exposed, the said container will also be exposed. According to the documentation, the -p flag can take the following formats to publish container ports:

  • containerPort

  • hostPort:containerPort

  • ip::containerPort

  • ip:hostPort:containerPort

By specifying the hostPort, we can specify which port in the Docker host the container port should be mapped to instead of being assigned a random ephemeral port. By specifying ip, we can restrict the interfaces that the Docker host will accept connections from to relay the packets to the mapped Docker container's exposed port. Going back to the hubuser/webapp example, the following is the command to map the Python application's exposed port 5000 to our Docker host's port 80 on the loopback interface:

$ ssh dockerhost
dockerhost$ docker run -d -p 127.0.0.1:80:5000 training/webapp
dockerhost$ curl http://localhost
Hello world!
dockerhost$ exit
logout
Connection to dockerhost closed.
$ curl http://dockerhost
curl: (7) Failed connect to dockerhost:80; Connection refused

With the preceding invocation of docker run, the Docker host can only serve HTTP requests in the application from http://localhost.

Linking containers

The published ports described in the previous section also allow containers to talk to each other by connecting to the published Docker host ports. Another way to directly connect containers with each other is establishing container links. Linked containers allow a source container to send information to the destination containers. It enables the communicating containers to discover each other in a secure manner.

Note

More details about linked containers can be found on the Docker documentation site at https://docs.docker.com/userguide/dockerlinks.

In this section, we will work with the --link flag to connect containers securely. The next few steps give us an example of how to work with linked containers:

  1. As preparation, make sure that our hubuser/webapp container runs with only the exposed ports. We will create a container called source that will serve as our source container. Type the following command to recreate this container:

    dockerhost$ docker run --name source –d hubuser/webapp

  2. Next, we will create a destination container. We will use --link <source>:<alias> to create a link from the source container named source to an alias called webapp. Type the following command to create this link to our destination container:

    dockerhost$ docker run -d --link source:webapp \
                       --name destination busybox /bin/ping webapp

  3. Let's now confirm that the link was made by inspecting the newly created destination container called destination. Execute the following command:

    dockerhost$ docker inspect -f "{{ .HostConfig.Links }}" \
                               destination
    [/source:/destination/webapp]


What happened during the linking process was that the Docker host created a secure tunnel between the two containers. We can confirm this tunnel in the Docker host's iptables, as follows:

dockerhost$ docker inspect -f "{{ .NetworkSettings.IPAddress }}" \
                           source
172.17.0.15
dockerhost$ docker inspect -f "{{ .NetworkSettings.IPAddress }}" \
                           destination
172.17.0.28
dockerhost$ iptables -L DOCKER
Chain DOCKER (1 references)
target     prot opt source         destination
ACCEPT     tcp  --  172.17.0.28    172.17.0.15       tcp dpt:5000
ACCEPT     tcp  --  172.17.0.15    172.17.0.28       tcp spt:5000

In the preceding iptables, the Docker host allowed the destination container called destination (172.17.0.28) to accept outbound connections to port 5000 of the source container called source (172.17.0.15). The second iptable's entry allows the container called source to receive connections to its port 5000 from the container called destination.

In addition to the secure connections established by the Docker host between containers, the Docker host also exposes information about the source container to the destination container through the following:

  • Environment variables

  • Entries in /etc/hosts

These two sources of information will be further explored in the next section as an example use case of working with interactive containers.

Interactive containers

By specifying the -i flag, we can specify that a container running in the foreground is attached to the standard input stream. By combining it with the -t flag, a pseudoterminal is also allocated to our container. With this, we can use our Docker container as an interactive process, similar to normal shells. This feature is useful when we want to debug and inspect what is happening inside our Docker containers. Continuing from the previous section, we can debug what happens when containers are linked through the following steps:

  1. To prepare, type the following command to establish an interactive container session linking to the container called source that we ran earlier:

    dockerhost$ docker run -i -t --link source:webapp \
                           --name interactive_container \
                           busybox /bin/sh
    / #

  2. Next, let's first explore the environment variables that are exposed to the interactive destination container via the following command:

    / # env | grep WEBAPP
    WEBAPP_NAME=/interactive_container/webapp
    WEBAPP_PORT_5000_TCP_ADDR=172.17.0.15
    WEBAPP_PORT_5000_TCP_PORT=5000
    WEBAPP_PORT_5000_TCP_PROTO=tcp
    WEBAPP_PORT_5000_TCP=tcp://172.17.0.15:5000
    WEBAPP_PORT=tcp://172.17.0.15:5000


    Note

    In general, the following environment variables are set in linked containers:

    • <alias>_NAME=/container_name/alias_name for each source container

    • <alias>_PORT_<port>_<protocol> shows the URL of each exposed port. It also serves as a unique prefix expanding to the following more environment variables:

      • <prefix>_ADDR contains the IP address of the source container

      • <prefix>_PORT shows the exposed port's number

      • <prefix>_PROTO describes the protocol of the exposed port which is either TCP or UDP

    • <alias>_PORT shows the source container's first exposed port

  3. The second container discovery feature in linked containers is an updated /etc/hosts file. The alias of the webapp linked container is mapped to the IP address of the source source container The name of the source container is also mapped to the same IP address. The following snippet is the content of the /etc/hosts file inside our interactive container session, and it contains this mapping:

    172.17.0.29     d4509e3da954
    127.0.0.1       localhost
    ::1     localhost ip6-localhost ip6-loopback
    fe00::0 ip6-localnet
    ff00::0 ip6-mcastprefix
    ff02::1 ip6-allnodes
    ff02::2 ip6-allrouters
    172.17.0.15     webapp 85173b8686fc source

  4. Finally, we can use the alias to connect to our source container. In the following example, we will connect to the web application running in our source container by making an HTTP request to its alias, webapp:

    / # nc webapp 5000
    GET /

    Hello world!
    / #


    Note

    Interactive containers can be used to build containers as well, together with docker commit. However, this is a tedious process, and this development process doesn't scale beyond a single developer. Use docker build instead and manage our Dockerfile in version control.



Summary


Hopefully by this time, we are refamiliarized with most of the commands that will be used throughout the book. We prepared a Docker host to be able to interact with Docker containers. We then built, downloaded, and uploaded various Docker images to develop and deploy containers to our development and production Docker hosts alike. Finally, we ran Docker containers from built or downloaded Docker images. In addition, we established some basic skills of how to communicate and interact with running containers by learning about how Docker containers are run.

In the next chapter, you'll learn how to optimize our Docker images. So, let's dive right in!

About the Author

  • Allan Espinosa

    Allan Espinosa is a DevOps practitioner and an active open source contributor to various distributed system tools, such as Docker and Chef. Allan maintains several Docker images for popular open source software that were popular even before their official release from the upstream open source groups.

    Throughout his career, Allan has worked on large distributed systems containing hundreds to thousands of servers in production. He has built scalable applications on various platforms, ranging from large supercomputing centers to production clusters in the enterprise. He is currently managing distributed systems at scale for Bloomberg, where he oversees the company's Hadoop infrastructure. Allan can be contacted through his Twitter handle, @AllanEspinosa.

    Browse publications by this author

Latest Reviews

(3 reviews total)
will never buy from packt again.
I have just begun to go through the book, but what I have read is easy to understand and it seems complete.
..............................
Book Title
Unlock this full book FREE 10 day trial
Start Free Trial
