Open the Excel workbook named SalesBook which is available from the Packt Publishing website to examine the worksheets within the book. Each sheet contains a dataset for Products, Subcategories, Categories, Customers, Dates, and Sales.

This recipe looks at importing data into the PowerPivot model through linked tables. These are very convenient to use when the data is stored in Excel. Additionally, once the data has been imported into PowerPivot, it retains a connection to the Excel table. This means that, when the data is changed in Excel, it can also be changed in the PowerPivot model.

When a linked table is created in PowerPivot, Excel creates a named range in the Excel workbook. This is then linked to the PowerPivot model (note that there is a small chain symbol before each of the tables). Also, note that the tables in Excel are formatted with alternate blue coloring. The named ranges can be viewed in Excel by clicking on the Name Manager button on the Formulas tab.

A table (table range) is actually an Excel feature that PowerPivot utilizes. A table can be defined in Excel, given a meaningful name and then imported into PowerPivot, so that the name of the table in PowerPivot is the same as the named range in Excel.

Ensure that the Customers sheet is selected in Excel and also any cell in the Customers data is selected. In the Home tab, click on the Format as Table button, and choose a table style; the style chosen in the following screenshot is a relevant one:

Note that the data is now formatted with alternating colors (based on the selected style). Return to the Name Manager window and double-click the table that relates to the Customers worksheet. A new window will open allowing you to edit the name, replace the name Table6 with Customers, and click on OK. The Table6 name is replaced by Customers in the Name Manager window.

Now, create a linked table in the same manner as we did before and note that the name of the table imported into PowerPivot is Customers.

This recipe uses the model that has already been created in the prior recipe Creating the model. If this model has not been created, follow the recipe to ensure that the model has been loaded with data.

Start from an existing model within PowerPivot.

The semantic model defines the metadata structure of the model and includes information such as table names, column names, and data presentation formats. The model designer interacts with the semantic model through its presentation layer in a real-time manner (note that the model did not have to be deployed to a server), so that the changes made in the model are immediately available to the user.

The modeling environment behaves in a What You See Is What You Get (WYSIWYG) manner which means that any changes made to the design environment are reflected in the model that is presented to the user.

There are two methods that the model designer can use to examine the structure of the model. So far, we have only examined the data view. The diagram view shows all tables and columns (including hierarchies) that are used within the model and presents them on a design surface. This is shown in the next recipe.

This recipe assumes that the model in the recipe Managing the appearance of tables and fields has been created.

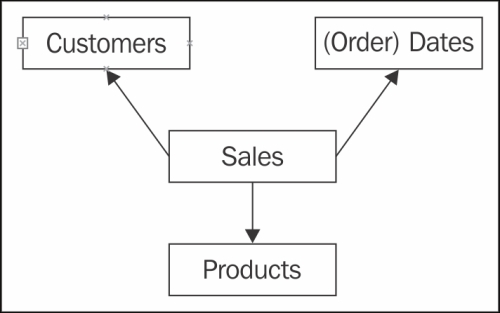

The reader should recognize that the model is designed to show sales information by product, date, and customer. This type of modeling scenario is commonly referred to as a star schema and is shown in the following diagram. The Sales table is referred to as a fact table (since it stores the data facts that we wish to analyze—sales amount, tax amount, and so on) and the other tables are referred to as dimension (subject) tables because they hold descriptive information.

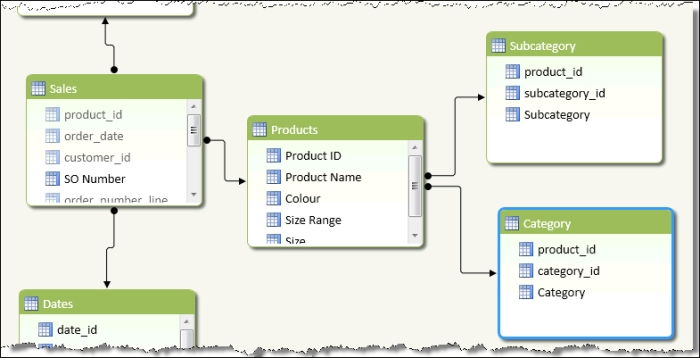

Extending the model further, the Products table is linked to the Subcategory table, and the Subcategory table is linked to the Category table. This is shown in the following diagram and is sometimes called a snowflake schema, since the dimension tables are not directly connected to the fact table:

An important point to note, is that each dimension table has a unique identifying field, for example, a product can be uniquely identified in the Products table through the product_id field. This is commonly referred to as the primary key for the table.

In contrast, the referring column (product_id in the Sales table) can have many occurrences of the product_id field and is commonly referred to as the foreign key.

Start with the workbook that was developed in the prior recipe.

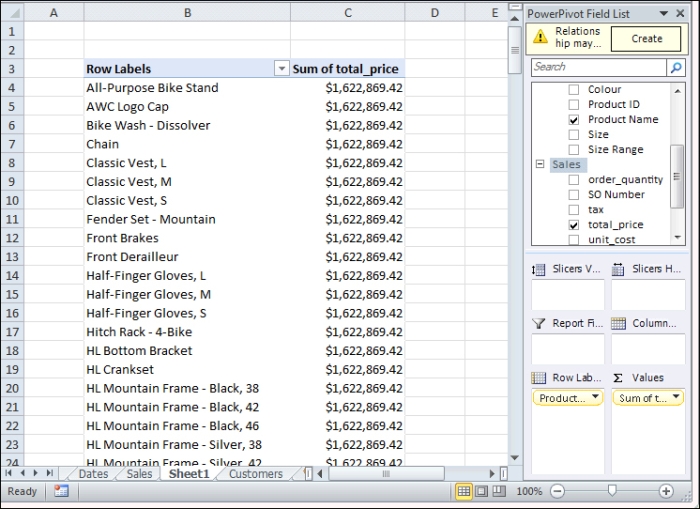

The model has been extended to show two things. Firstly, by defining relationships between tables within the model, we have defined the filtering path for the data. This path is used to restrict rows between tables that have a relationship. Secondly, by adding a calculation (Sum of total_price and Count of Product ID), we have created measures that apply an aggregation function to the model fields. These are special types of measures within PowerPivot and are referred to as implicit measures (because the model implicitly defines a calculation for the field).

Relationships define how one table relates to another. In order to define a relationship, the join must occur on a field that has unique values in one of the tables (this is commonly called a primary key). The table that has the field with unique values is commonly called the related table. This can be seen in the diagram view, as shown in the following screenshot with the direction of the arrows on the relationships. Consider the Products table (which has a unique field product_id) that is related to the Sales table (through the product_id field in that table), but only the Products table needs to have a unique product_id. It is also said that the product_id field relates to many records in the Sales table. This can be seen by the direction of the arrow between Sales and Products, the related table has the arrow pointing towards it.

Relationships are important because they define how data is filtered and calculated when it is presented to the user.

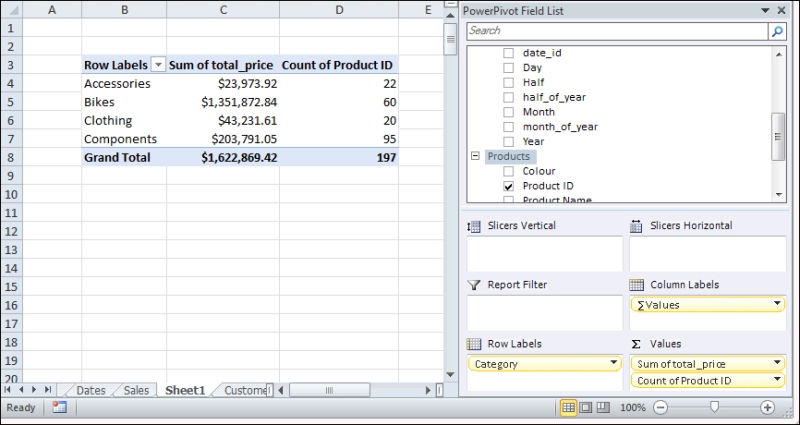

Relationships are the primary mechanisms with the model that are used to filter data and perform calculations. That is, the relationship defines how data is filtered when values are shown to the user. Although this is a new concept, the concept of relationships is important because they have important implications with the way that the model determines what data to show to the user. Consider the pivot table shown in the following screenshot—Subcategory on rows and Sum of total_price, Count of Product ID, and Count of category_id as measures:

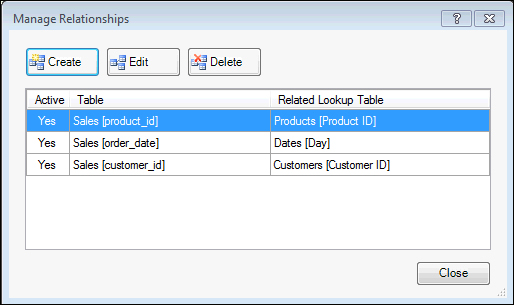

Now, consider the relationship defined in the model. This is summarized in the following screenshot:

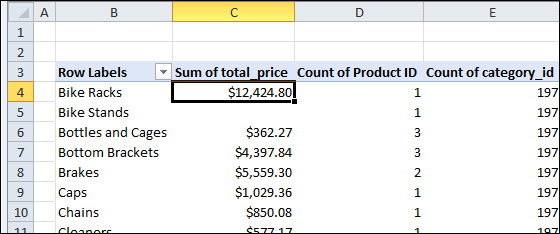

The rows in the pivot show the subcategory which defines a filter for each row (that is a filter for each subcategory). This filter can then be applied to the Products table, which in turn is applied to the Sales table. It might be better to say that the rows of the Sales table are filtered by the Products table and then those rows are filtered by the Subcategory table. This is why the calculations Sum of total_price and Count of Product ID show the correct values. The filter on rows of the Sales table and rows of the Products table can be applied in the direction of the arrows of the relationships.

However, this is not the case when Subcategory is shown with data from the Category table—a filter will only be applied in the direction that a relationship is created. This is why the calculation Count of category_id shows the same number for each subcategory. With the subcategory on rows, a filter is created which can filter the Products table but this filter cannot then applied in an upstream manner to the Category table.

The application of filters may seem unintuitive at first, especially with a relationship design such as the one among Products, Category, and Subcategory, but in reality the model should be designed so that the filters can be applied in a single direction. There is also, the question of unmatched values between fields used in the relationship and how they are treated by the model. For example, what would happen if we had a product_id field in the Sales table that did not have a match in the Products table? Would this even be allowed in the model? The tabular model handles this situation very elegantly. The model allows this situation (without error), and unmatched values are assigned to a blank placeholder. For example, if there was a product in the Sales table and no product in the Products table, it would be shown as blank when Products, Category, or Subcategory is used in the pivot.

We have also indicated that the model automatically created implicit measures. The term measure is common in business intelligence tools to specify that a calculated value is returned. Often, this can be a simple calculation, for example, the count of rows or the sum of a field. The important thing to remember is that measure is a single value that is returned from the model (when the model is filtered). Usually, measures are defined by a model designer, but they need not be. This is the case with an implicit measure. An implicit measure is defined automatically, depending on the data type of the column that is being used. Numeric columns are automatically summed, whereas text columns are automatically counted.

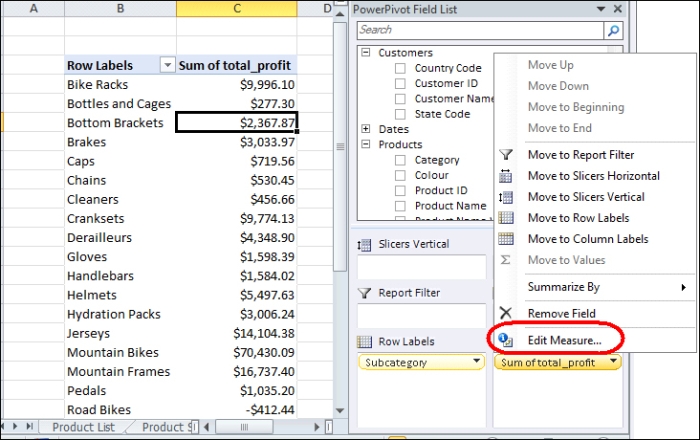

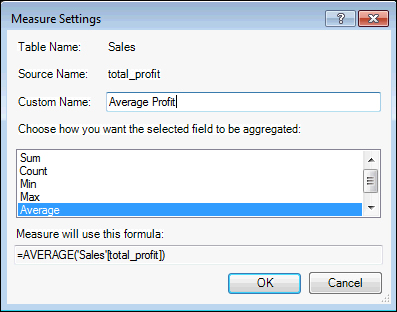

The aggregation function of an implicit measure is initially set by the underlying data type. However, the user can change this within the pivot table by editing the measure in the pivot table. This can be done in the following manner:

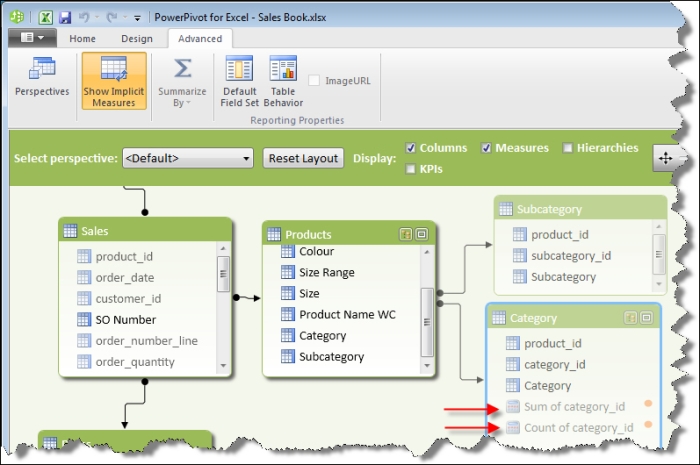

Implicit measures that have been created in the model can be seen by exposing the measures in the Advanced tab of the PowerPivot window (the Advanced tab must be activated). This is shown in the following screenshot:

The model used in this recipe starts with the model that was created in the previous recipe Using tabular relationships to filter data.

This recipe introduces Data Analysis Expressions (DAX) as the language that is used in tabular modeling. From this recipe, we can see that the DAX language is very similar to an Excel calculation (there are some noticeable differences which are addressed in chapters). Also, note that in DAX, columns are referred to instead of cells. Furthermore, many Excel functions work exactly the same in DAX as they do in Excel.

In calculating the value for each row, a special filter is applied in the calculation. In these examples where the fields being used in the formula reside on a single row, the filter automatically restricts the value to that of the row. The application of filtering in this manner is commonly referred to as a row filter or a row filter context.

This recipe assumes that the sales model created in the Adding fields to tables recipe is available and that the appropriate relationships exist among the Product, Subcategory, and Category tables.

Start by opening the PowerPivot window and then perform the following steps:

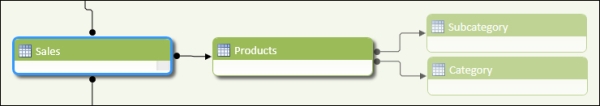

Hide the Subcategory and Category tables in the model by right-clicking on the tables tab and selecting Hide from Client Tools from the pop-up menu. Note that the hidden tables are still visible in the data view and diagram view, although they are now more transparent.

These two formulas achieve the same result but in different ways.

The related function returns the specified column, based on the relationship within the data model. This can span more than one table (for example, a related table to the Category table could be referenced from the Products table), however, a relationship must be defined between all the linking tables that are spanned by the formula. Furthermore, because the formula relies on these relationships (that is, those defined within the model), the formula will not result in an error since the model enforces the integrity defined by model relationships.

The LOOKUPVALUE function is quite different from the related function because it does not utilize or rely on a relationship within the model. That is, LOOKUPVALUE would still return the same results had the relationship not be defined between the Products and Subcategory tables. Furthermore, the LOOKUPVALUE function can use multiple columns as its reference (to lookup) which may be beneficial when a desired value in another table cannot be related to the source data through a single field. Note that relationships can only be defined on single columns. However, unlike the RELATED function, the LOOKUPVALUE function may return an error when more than one match can be found in the lookup table.

Both formulas return results by creating a row context filter for each row in the source table.

It is considered best to utilize the relationship wherever possible. Therefore, the use of the RELATED function is preferred over the LOOKUPVALUE function. Furthermore, the RELATED function makes the model simpler for others to understand. However, the LOOKUPVALUE function does have some benefits. It allows the value to be determined, based on multiple search conditions. The syntax for LOOKUPVALUE is defined as:

LOOKUPVALUE( <result_columnName>
  , <search_columnName>, <search_value>
  [, <search_columnName>, <search_value>]
…)

Here, a result_columnName column is returned from a target table where search conditions are satisfied. These conditions are defined by a search_columnName parameter and a search_value parameter. This means that we specify the column (in the lookup table) and the value that should be searched for—this is the field in the current table.

This recipe assumes that the sales model created in Linking fields between tables recipe is available and that the appropriate relationships exist among the Product, Subcategory, and Category tables.

By default, a table in Data View will have a horizontal line that does not show any data. This is referred to as the calculation area. If this is not visible, ensure that the Calculation Area button is selected in the Home menu.

There are many ways to create simple measures. Let's start with the automatic creation of measures.

Measures that are created in the calculation area operate in the same manner as implicit measures. That is, the aggregation function is applied to the filtered data specified by the row and filter context within the client tool.

Because the measures are explicitly defined in the model they are called explicit measures and interpreted by the client tool as measures (many client tools detect an explicit measure as a special type of field and treat it differently than a table's standard field or dimension field).

By default, the tabular model created in PowerPivot will display the model through a PowerPivot pivot table. This shows the model in its tabular form where measures and columns are shown with respect to the tables that they relate to. For example, the measures created in the Creating model calculations recipe appear under the Sales table node. In order to compare this (tabular) view with that of a traditional OLAP client, simply do the following:

The client tool (PivotTable Field List) shows the model in a different format and represents how a client tool interpretation of the model would be shown. Here, the measures are shown in measure groups and are not included as table objects.
