  1. Installing and Configuring Orchestrator

About this book

Through this practical guide, you will gain an understanding of VMware vRealize Orchestrator and its role in the vSphere architecture and automation. You will learn about Orchestrator clusters as well as vRealize Automation integration. A full introduction to using the visual programming tools without needing any additional infrastructure is aimed at beginners with limited resources. This is followed by an extensive look at how to integrate the base plugins into your workflows, such as e-mail, AMQP, SNMP, and so on. We will also look at how to use the Orchestrator API to trigger workflows from other programs.

Through this book you will be able to get the most out of your Orchestrator installation, and develop complex workflows and create your own highly integrated automations of vCenter, vCloud, and vRealize environments.





Read an Extract from the book

Creating a Vcenter workflow

In this recipe, we will work through the process of creating a workflow. We will see how to add and use variables as well as run a workflow.

Getting ready

We just need a working Orchestrator, and you will need the rights to create new workflows and run them. We will work with the Orchestrator Client.

How to do it...

We will break up the recipe into several sections.

Creating a new workflow

  1. Open the Orchestrator Client and switch to the workflows.
  2. If you haven't made a new folder yet, right-click on the root of the tree and select Add Folder.
  3. Give the folder a name and click on OK.
  4. Right-click on the new folder and select New workflow.
  5. Give the workflow a name. The workflow will open in the edit mode.

Adding an attribute

  1. Click on General and then scroll down to Attributes.
  2. Click on . A new variable will be put under Attributes and named att0.
  3. Click on att0 and give the variable a new name, such as text.
  4. Click on String under the Type column to change the variable type, but for this example, we leave it as String.
  5. In the Value column, fill in some text, such as Test. Give it a description. A description isn't needed, but it's a best practice to document what this variable is used for.

Adding an input parameter

  1. Click on Inputs and then on .
  2. Add an input parameter named input by following the same procedure as in Adding an attribute.

Note that you cannot define a value here, as it is defined during runtime.

Add an output parameter

  1. Click on Outputs and then on .
  2. Add an output parameter named output by following the same procedure as in Adding an attribute.

Note that you cannot define a value here, as it is defined during the workflow execution.

Adding a scripting element

A scripting element allows us to use JavaScript in it and manipulate the variables we have defined earlier.

  1. Click on Schema.
  2. Drag Scriptable task between the start and end symbols.
  3. Hover the mouse on the scriptable task and then select the edit icon (the pencil icon).
  4. Click on In and then the bind icon (see the following screenshot).
  5. All in-parameters and attributes are displayed. Select the input variable as well as the text attribute you have created earlier.
  6. Click on OK and then OUT.
  7. Follow the same method as the previous one to bind the output parameter output to the script element.
  8. Click on Scripting. You will now see all the variables you have assigned to the scriptable task.
  9. By clicking on a variable, you can insert it into the script. Make the following script:output=input+text;
  10. Click on Close to close the scriptable task.
  11. Click on Save and Close.
  12. You are asked whether you would like to increase the version history. Click on Increase version. See the Version control recipe in this chapter for more information.
  13. Run the workflow by clicking on the RUN icon (the play button).
  14. Enter a text for the input variable and click on Submit.
  15. Check the result of the workflow by clicking on the workflow execution and then on Variables, as seen in the following screenshot:

How it works...

In this recipe, we have introduced some very basic working methods. Let's just discuss some more details we have glossed over.

Exiting a workflow

There are four buttons on the bottom of the edit workflow screen:

Button

Description

Cancel

Before exiting the edit mode, Orchestrator will display the Save and Close or Close anyway options. Close anyway will exit the workflow without saving any changes.

Revert

This reverts the workflow to the state when it was opened for edit.

Be careful that it doesn't ask you whether you are sure.

Save

This saves changes to the workflow without exiting.

Save and Close

This will save all changes to the workflow and exit the edit mode.

Validation

When you are exiting the edit mode, Orchestrator will validate the workflow. This means that Orchestrator checks whether all the variables are assigned, they are not used, and a script contains errors. It also checks whether elements, such as other workflows, actions, configuration items, and so on exist. You can run the validation at any stage by just clicking on Validate in the schema.

In the validation window, you will see each error or warning message (Title) and next to it, the element (Owner) that is the source of the problem; the Quick fix action link can be used to access the element and remedy the problem. You should always check the warning/error before using a quick fix action. For example, the quick fix action for an attribute that is not used in a workflow is Delete parameter, but maybe you have just forgotten to bind it as an input or output of one of the workflow elements, so first check before using the quick fix action. A typical example here is an attribute that is used for presentation purposes only.

Warnings can be ignored, whereas errors will result in workflows not being able to start. However, it's always best to resolve all issues.

Assigning a workflow variable

When you add an existing workflow, action, or workflow element to your schema, you will need to bind its input and output variables to your variables.

  1. In a workflow, hover the mouse over an element and then click on Edit (the pencil icon).
  2. Select IN and click on not set for any one of the variables.
  3. You now can either select an already-existing variable, or create a new one by clicking on Create parameter/attribute in workflow.
  4. You can choose whether you want to create an input (or output) parameter or an attribute. If you define an attribute, you can also assign it a value directly.

Re-run a workflow

You can rerun a workflow by either:

  • Right-clicking on the workflow and selecting Start last workflow run
  • Right-clicking on a workflow execution and selecting Run again

Also, you can run a workflow with other credentials by choosing Start workflow as.


Publication date:
February 2015
Publisher
Packt
Pages
382
ISBN
9781784392246



Chapter 1. Installing and Configuring Orchestrator

In this chapter, we explore how to install and configure Orchestrator. We will be looking at the following recipes:

  • Getting Orchestrator running in 5 minutes (or less)

  • Deploying the Orchestrator appliance

  • Installing Orchestrator on Windows

  • Two ways to configure Orchestrator

  • Important Orchestrator base configurations

  • Configuring Orchestrator with external LDAP or Active Directory

  • Integrating Orchestrator into SSO and vSphere Web Client

  • Configuring an external database



Introduction


vRealize Orchestrator (vRO) is the new name (since October 2014) of vCenter Orchestrator (vCO). In this book, we will refer to vRO/vCO simply as Orchestrator.

This chapter is dedicated to the configuration of Orchestrator and discusses how to set the tone for your Orchestrator deployment. Configuring Orchestrator wasn't easy in the past; therefore, not many people really used it. But now, the initial configuration is already done out-of-the-box and people can start using Orchestrator without too much fuss. However, if one plans to use Orchestrator in a production environment, it is important to know how to configure it properly.

There are four different Orchestrator versions. One version is shipped with vCenter Server and the other with vRealize Automation appliance. Then, there is the Windows-based installation and a preinstalled Linux appliance.

Orchestrator and vRealize Automation (vRA)

The vRealize Automation (formerly vCloud Automation Center or vCAC) appliance is shipped with a preinstalled and preconfigured vRO (Orchestrator). Orchestrator installed on vRA is already configured and works the way the normal Orchestrator appliance does.

If you are using the vRA-integrated version, just read all the recipes in this chapter and the next chapter as if you are using the appliance.

You can read more about vRA Orchestrator integration in the introduction to Chapter 7, Working with VMware Infrastructure.

Appliance or Windows install?

The question most people are asking these days is what type of Orchestrator should one use for a production environment or which one is recommended.

There isn't really a right answer. The appliance runs on Linux and therefore consumes less CPU and memory and, saves money on a Windows license. However, more people are familiar with Windows than with Linux.

There is another fact that one should be aware of. VMware has already announced that the Windows version update from 5.1.x to 5.5.x will not update the database. This, in my personal opinion, indicates that the Windows version doesn't receive as much attention from VMware as the appliance version. However, the version that is installed along with vCenter is pretty integrated; see the first recipe of this chapter.

A consideration you should be aware of is that, depending on your Windows security settings or other installed applications, such as antivirus, backup agents, or infrastructure discovery agents, your Windows Orchestrator installation might be impaired.

So, what is right for you? My personal preference and that of most of the VMware consultants I know is the appliance; it is easy to use, install, and update. However, keep in mind that Windows works just as well.

Orchestrator and vCenter/vRA on the same server?

Another question that is constantly asked is: Should one install Orchestrator on the same server as vCenter or vRA? As with the issue of appliance or Windows installation, it really depends on the objective of your Orchestrator installation. Installing Orchestrator on a vCenter Server where the Single Sign-On (SSO), the Web Client, Inventory, and vCenter services are already competing for resources makes quite an impact. If the Orchestrator installation is aimed at automating a sizable production environment, sharing Orchestrator resources with vCenter isn't such a great idea. For a small environment, a shared vCenter/Orchestrator VM can be quite a good solution.

The vRA-integrated Orchestrator installation is also fine for smaller environments; however, if you plan to automate a production environment with vRA, it is recommended that you use a separate Orchestrator installation and maybe even an Orchestrator cluster (see Chapter 2, Optimizing Orchestrator Configuration).

What it basically comes down to is managing the Java heap sizes of the different services (see the Tuning Java recipe in Chapter 2, Optimizing Orchestrator Configuration). A correct sizing of all the Java heap sizes (vCenter services as well as Orchestrator) will allow a good coexistence of all services. However, you should consider issues such as manageability as well as the ability to monitor and update all the services.



Getting Orchestrator running in 5 minutes (or less)


In this recipe, we will get Orchestrator up and running using the Orchestrator version that is installed along with vCenter or vRealize Orchestrator.

Getting ready

You either need administrative access to the Windows OS of your existing vCenter Server (5.1 or higher) installation, or you need a functional vRealize Automation installation (see the introduction to Chapter 7, Working with VMware Infrastructure, for more information).

How to do it...

This recipe is not the same for vCenter-integrated and vRA-integrated Orchestrator implementations. There is a slight difference.

On your marks, get set, GO!

vCenter-integrated Orchestrator

Follow these steps if you are using the vCenter-integrated Orchestrator.

  1. Log in to the Windows OS of your existing vCenter installation.

  2. Open the Services—for example, for Win 2008 R2, navigate to Start | Administrative Tools | Services.

  3. Find the VMware vCenter Orchestrator Server service.

  4. Right-click and select Start. If the service fails to start, have a look at the There's more... section of this recipe. The first start might take a while and Windows might complain about it, but just have patience.

  5. When the service has started, use vCenter Orchestrator Client to connect to Orchestrator. You'll find the client by navigating to Start | VMware | vCenter Orchestrator Client.

  6. Enter localhost:8281 as Host name, [email protected] as User name with the corresponding password, and click on Login.

Finished! Orchestrator is up and running.

vRealize Automation-integrated Orchestrator

Follow these steps if you are using the vRA-integrated Orchestrator:

  1. Open a web browser and enter the IP or FQDN of the vRA appliance.

  2. Click on the vRealize Orchestrator Client link.

  3. Enter [IP or FQDN of the vRA appliance]:8281 as Host name, [email protected] as User name with the corresponding password, and click on Login.

Finished! Orchestrator is up and running.

How it works...

When you install vCenter, you also automatically install Orchestrator; however, what you probably don't know is that the installer also configures Orchestrator to use the vCenter database, registers itself with SSO, and configures the vCenter plugin. Orchestrator is now easily accessible and fully configured to work with vCenter/vRA.

That said, one needs to understand that we have just started another hungry service on vCenter/vRA VM. As already discussed in the introduction, you might want to rethink this.

Looking at how the vCenter-integrated Orchestrator is configured, we find that the whole configuration process is triggered by the vco.properties file in the C:\Program Files\VMware\Infrastructure\Orchestrator directory. It contains all relevant information, but no passwords.

If you look into Orchestrator's configuration using the Orchestrator Configuration tool (see the Two ways to configure Orchestrator recipe in this chapter), you will find the following configurations:

  • In the Network section, the vCenter and the SSO SSL certificates have been added.

  • In the Authentication section, SSO is configured. If we log in to the SSO server, we find an existing group called vCOAdministrators and that the administrator (@vsphere.local) is a member of this group. We also find that Orchestrator is registered as an application user.

  • In the Database section, there is a new and unique database type: vDB. This is a connection to the ODBC drivers you set up for vCenter.

  • In the Licensing section, Orchestrator has been licensed with the vCenter license key.

  • Last but not least, the vCenter plugin is configured with vCenter details.

This all makes the vCenter Orchestrator installation the most easy to use for beginners. Basically, you only have to start the Orchestrator service on vCenter Server and you are ready to go.

There's more...

If you get an error while starting the Orchestrator service, have a quick look at C:\Program Files\VMware\Infrastructure\Orchestrator\app-server\logs. There is a file called server.log. This is the logfile for the Orchestrator service. The most common problem at this point is that the database cannot be accessed. If this is the case, I would recommend switching the database type to embedded.

See also

To fully integrate Orchestrator into your vCenter, continue with the Integrating Orchestrator into SSO and vSphere Web Client recipe in this chapter as well as the recipe Orchestrator and vSphere Web Client in Chapter 5, Basic Orchestrator Operations.



Deploying the Orchestrator appliance


We will now deploy the Orchestrator appliance based on Linux.

Getting ready

We can deploy the Orchestrator appliance on either a vSphere environment or on VMware Workstation (or Fusion if you are a MAC user).

The Orchestrator appliance needs the following (defaults):

  • Two vCPUs at 2 GHz (less is OK, but it will be slower)

  • 3 GB memory

  • 12 GB disk space

  • One IP that is either a fixed IP or via DHCP

How to do it...

In this recipe, we will learn how to download and deploy Orchestrator.

Download

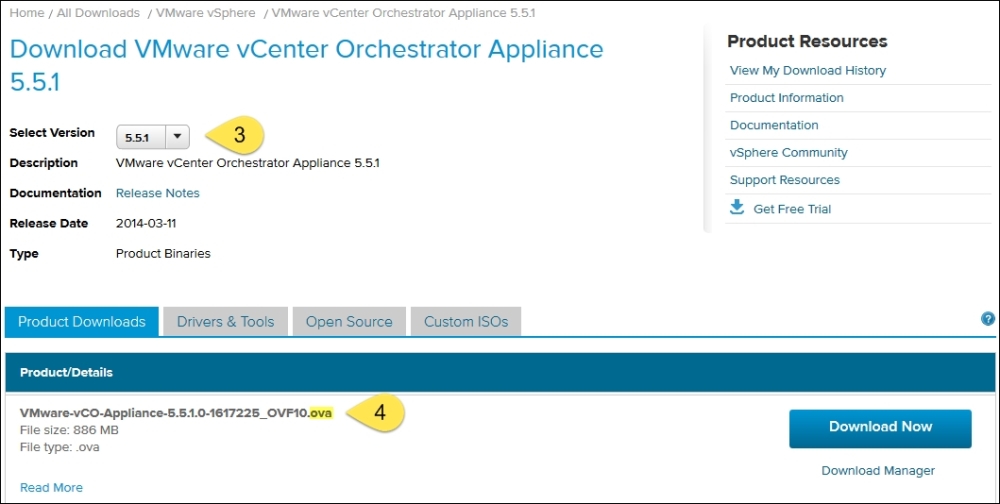

  1. Navigate to http://vmware.com and select Downloads.

  2. Enter Orchestrator appliance in the search text box and press Enter.

  3. Select the latest version from the menu.

  4. Download the file that ends in .ova.

Tip

Please note that vCenter Orchestrator (vCO) was renamed vRealize Orchestrator (vRO) in version 6.0.

Deploy

  1. Log in to vCenter using WebClient.

  2. Right-click on the cluster or ESXi Server and select Deploy OVF Template....

  3. The Deploy OVF Template wizard starts. Select the OVA file you have downloaded and click on Next.

  4. Accept the EULA and click on Next.

  5. Select a name (or accept the default) as well as the vCenter folder for the Orchestrator appliance and click on Next.

  6. Select the cluster or ESXi Server or a resource pool for the Orchestrator appliance and click on Next.

  7. Select the datastore you would like to deploy the Orchestrator appliance on and click on Next.

  8. Select a network for the Orchestrator appliance and click on Next.

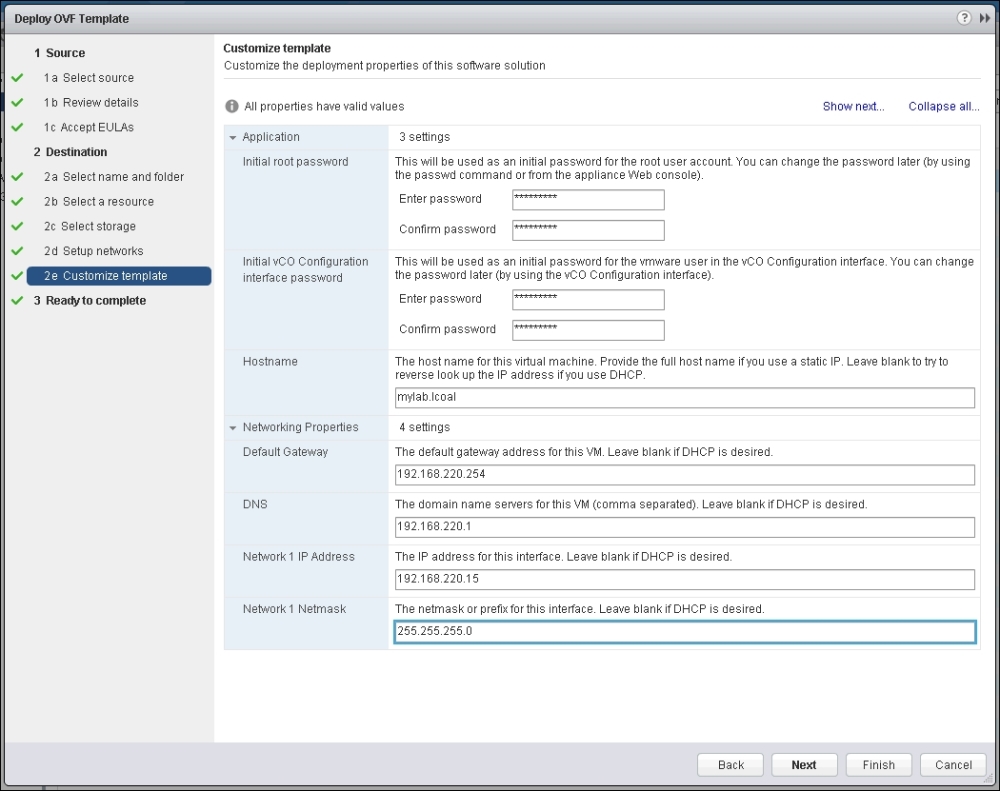

  9. In the Customize template section, set a password for the root and the Orchestrator configuration account.

  10. Set a hostname for the Orchestrator appliance.

  11. If you want to use a fixed IP, expand the Network Properties section, enter all IP-related entries, and then click on Next. If you want to use DHCP, just click on Next.

  12. Opt to power on the VM after deployment and click on Finish.

  13. Wait until the VM has finished deploying and is powered on.

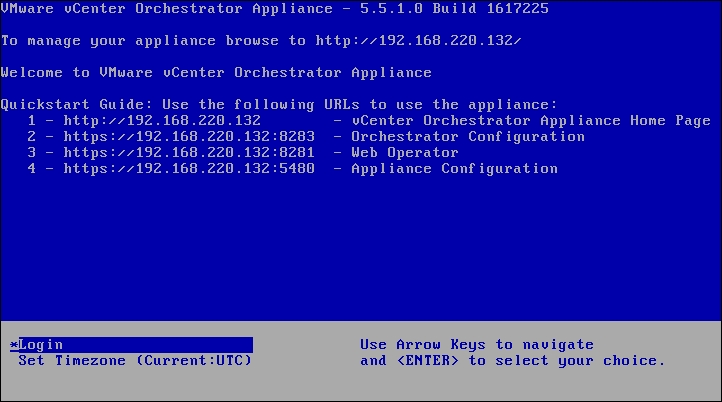

  14. Open the console of the Orchestrator appliance and wait until the install process has completed and the VM console shows the following screen:

Let's go…

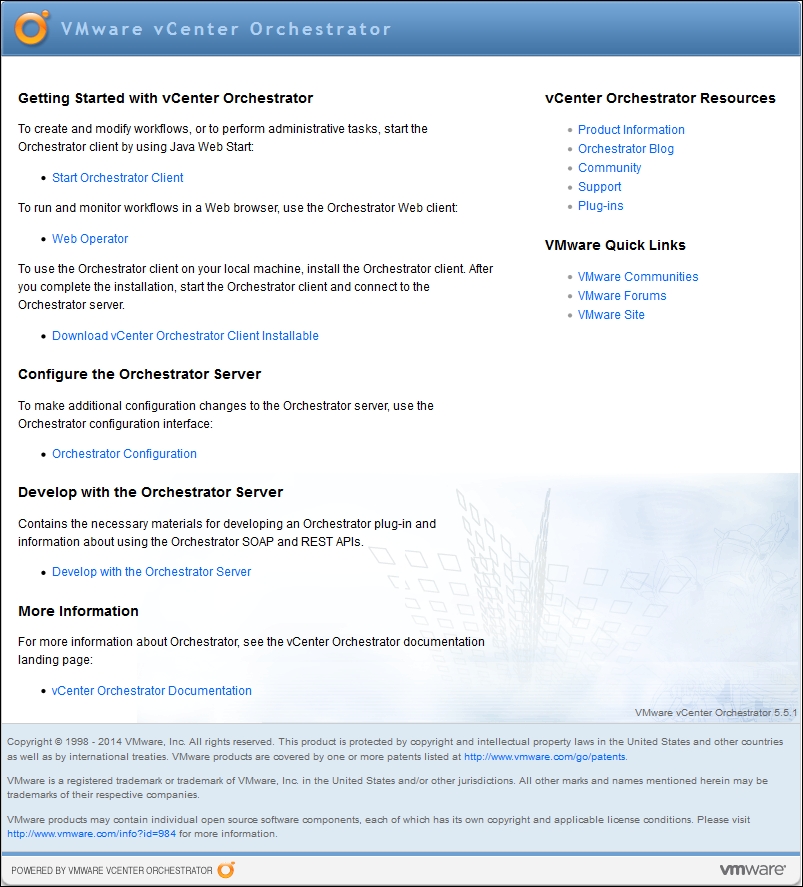

  1. Open a browser and browse to the IP of the Orchestrator appliance (for example, http://192.168.220.132).

  2. Depending on your environment, you might need to accept the SSL certificate. You are now on the Orchestrator home page with several useful links to all important Orchestrator topics.

  3. To open up the Orchestrator Client, click on Start Orchestrator Client.

  4. Enter vcoadmin as user with the password vcoadmin.

How it works...

vCO 5.5.2.1 appliance is a preconfigured Orchestrator installation that uses the following:

  • Suse Linux Enterprise Server (SLES) 11 Patch level 2

  • PostgreSQL 9.1.9

  • OpenLDAP 2.4.26

Everything is ready to run; however, no integration with vCenter or any external service is configured. The Orchestrator appliance comes with a 90-day evaluation license installed.

The LDAP has the following preconfigured entries:

Username

Password

Group membership

vcoadmin

vcoadmin

vcoadmins

vcouser

vcouser

vcousers

Both LDAP and DB are protected to allow only local access to them.

There's more...

If you want to deploy the Orchestrator appliance on VMware Workstation, the process of deploying the Orchestrator appliance differs from the one described in this recipe. Follow these steps instead:

  1. Use Windows Explorer to navigate to the downloaded .ova file.

  2. Double-click on the OVA file. VMware Workstation opens up.

  3. Select a name and a path for the new VM and click on Import.

  4. Accept the EULA and wait until the VM is deployed.

  5. You might need to select a different network (for example, Host-Only) depending on your lab environment.

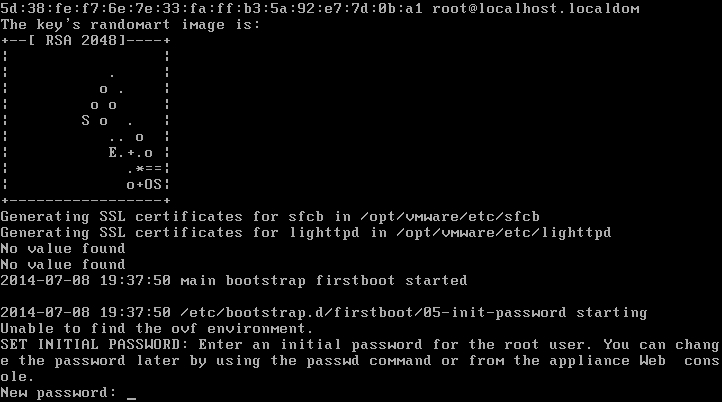

  6. Power on the VM and wait until the install pauses at the line indicated in this screenshot:

  7. Enter and confirm a new password for the root account.

  8. Then, enter and confirm a new password for the Orchestrator Configuration tool. The installation will now continue. Wait until it has finished.

    The appliance will start with a DHCP address from Workstation. To set a static IP, you will have to access the admin interface of the appliance.

See also

See the Tuning the appliance recipe in Chapter 2, Optimizing Orchestrator Configuration.



Installing Orchestrator on Windows


The Windows version of Orchestrator requires slightly more work to set it up.

Getting ready

To get the Windows install working, we need the following:

  • The VMware vCenter Server ISO file

  • A Windows VM with the following system requirements:

    • 64-bit Windows (for example, Windows 2008 R2)

    • Two vCPUs at 2 GHz (less is OK, but it will be slower)

    • 4 GB memory

    • 2 GB disk space

    • One static IP (DHCP is not recommended)

How to do it...

We assume that you are installing Orchestrator on a freshly installed Windows VM.

Install

  1. Insert the ISO image into the VM (for example, mount it via vCenter).

  2. Use Explorer to browse to the [CDROM]:\vCenter-Server\vCO directory.

  3. Execute the install file. The install wizard starts.

  4. Skip the introduction by clicking on Next.

  5. Accept the EULA and click on Next.

  6. Select the path where you want to install Orchestrator and click on Next.

  7. Click on Client - Server and then on Next.

  8. Leave the icon selection alone and just click on Next.

  9. On the Pre-Installation Summary page, click on Install.

  10. Wait till the installation has finished then click on Done.

Starting and configuring the Orchestrator service

We now need to make sure that Orchestrator's Windows services are starting and are configured correctly:

  1. In Windows, open Services, for example, Win 2008 R2, and navigate to Start | Administrative Tools | Services.

  2. Look for the service named VMware vCenter Orchestrator Server. Make sure it has started and is set to Automatic.

Setting the Orchestrator Configuration service to Automatic or starting it now is not really needed; we will start and stop it when required.

Accessing the vCenter Orchestrator home page

To access the vCenter Orchestrator home page, follow these steps:

  1. Open a web browser and enter the https://[ip of the vCO VM]:8281/vco/ URL.

  2. To open up the Orchestrator Client, click on Start Orchestrator Client.

  3. Enter vcoadmin as the user with the password vcoadmin.

Alternatively, you can access the web page from the VM itself by clicking on Start | VMware | vCenter Orchestrator Home Page.

How it works...

The Windows Orchestrator version now also comes with embedded LDAP and database, making the first steps much easier.

The embedded database and LDAP can't be as easily accessed as with the appliance because there isn't really a need to do so. If you want to be serious about Orchestrator, you should use an external database and you will want to use at least your Active Directory (AD), if not SSO, as an authentication source.

The Windows installation also comes with a 90-day evaluation license.



Two ways to configure Orchestrator


In this recipe, we will learn how to access the Orchestrator configuration. There are two ways, both of which work; however, the future is in workflows.

Getting ready

We need an Orchestrator instance up and running, as described in the recipes about installing.

To use the Configuration tool, we just need a web browser; and for the workflow method, we need either a local Java install to start the Java Web Client or an installed Orchestrator Client.

How to do it...

There are two ways to configure Orchestrator; I would encourage you to explore both.

Using the Orchestrator Configuration tool

If you are using the Orchestrator appliance, read the Accessing the Orchestrator Configuration tool section of this recipe. If you are using the Windows or vRA-integrated Orchestrator, follow these steps.

Windows or vCenter-integrated Orchestrator
  1. In Windows, open Services. For example, in Win 2008 R2, navigate to Start | Administrative Tools | Services.

  2. Right-click and start the VMware vCenter Orchestrator Configuration service.

  3. Wait until the service has started successfully.

vRA-integrated Orchestrator
  1. Log in to the vRA appliance OS using the root account.

  2. Run the following command:

    service vco-configurator start

  3. Now access the Orchestrator Configuration tool.

  4. Wait until the service has started successfully.

Accessing the Orchestrator Configuration tool
  1. Open a web browser and enter https://[ip OR FQDN of Orchestrator]:8283.

  2. In the Orchestrator configuration login screen, enter vmware as the username and the password you assigned during the deployment. If you are using the Windows or vRA-integrated installation, the initial password is vmware. As soon as you are logged in, you will be requested to change the password.

The Orchestrator configuration page opens as shown in the following screenshot:

Here are all the sections that can be used to configure Orchestrator.

Using the workflow method

  1. Access the Orchestrator Client, open a web browser, and navigate to the Orchestrator home page http://[ip of the vCO VM]:8281/vco/ and click on Start Orchestrator Client.

  2. Enter your credentials, which are vcoadmin with the password vcoadmin (except for the vCenter-installed Orchestrator version where you have to use the user account [email protected]).

  3. You might need to accept the SSL certificate. Click on Install this Certificate… to not have this come up again and then click on Ignore.

  4. Once the Orchestrator Client opens, click on workflows (the blue icon with white in it) and then expand the tree, as seen in the next screenshot.

  5. Here, you'll find all the Orchestrator-specific configuration workflow. Start one by right-clicking on it and choosing Start workflow.

  6. After entering the required information and clicking on Submit, the workflow will start.

  7. A green tick next to the workflow execution will show you that the workflow was executed without an error. A red cross shows that the workflow encountered an error and has stopped. See the How it works... section of this recipe.

Base-configuring Orchestrator

Independent of the way you choose to configure Orchestrator, please continue with the recipe Important Orchestrator base configurations as the recipes in the rest of this chapter require the use of either method.

How it works...

The Orchestrator Configuration tool is an independent service in Windows as in Linux. The service doesn't require to be switched on all the time; it is more or less a one-off tool to get the initial deployment working.

The Orchestrator Configuration tool was commonly used to configure Orchestrator, and you will find countless websites still quoting it. It is a generally straightforward tool that helps you configure Orchestrator. The trick is to work your way down, starting with the General section. Every time you configure an item correctly, the little light next to the section title will switch to green. The light turns red if the item is not configured or is misconfigured. When you log in to Orchestrator for the first time, you will notice that all the lights are green; this is because it uses the preconfigured settings. You can still reconfigure all items to your own specifications.

The future of the Configuration tool

VMware announced that the Configuration tool will be removed in future releases. From then on, the workflow method will be the way to do it. However, currently there is no workflow to import and configure plugins, so this still has to be done using the Orchestrator Configuration tool. The Configuration tool also gives a lot more options for most configuration items than the workflows. In addition, there is also no workflow for exporting or importing the Orchestrator configuration for backup (see the Backup and recovery recipe in Chapter 2, Optimizing Orchestrator Configuration).

It will be interesting to see how the final version of VMware's vision for configuration pans out.

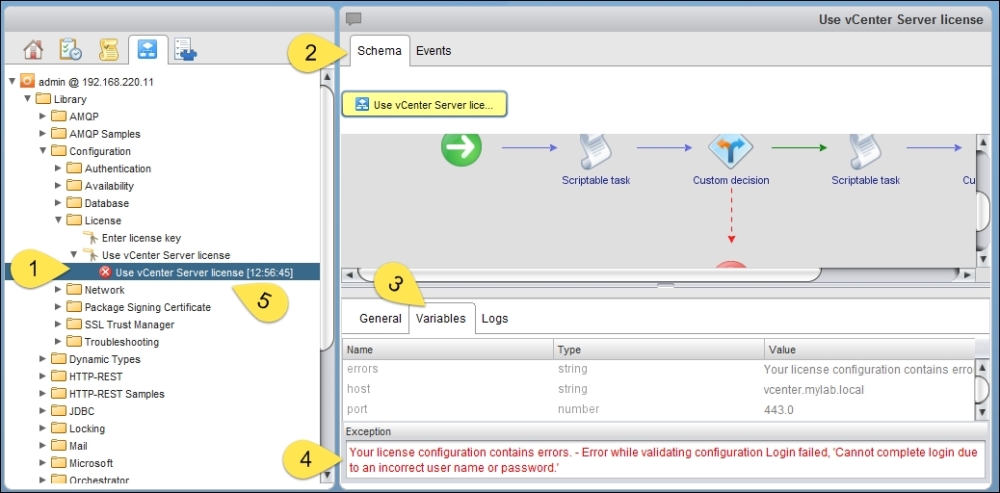

Working with errors in the workflow method

If the workflow doesn't run successfully, you probably will want to know why and resolve the error. To do so, follow these steps:

  1. Click on the failed workflow execution. It has a red icon with a white X in it.

  2. Click on Schema.

  3. Click on Variables.

  4. The error message is displayed in red.

  5. To start the workflow again, just right-click on the failed execution and select Run Again.

This will start the workflow again; however, it preserves all the information you have entered already into the workflow. No retyping is needed as everything from the last run is still displayed in the forms. The only exceptions are passwords, which is a good thing.

There's more...

There is actually a third way of configuring Orchestrator. Using the REST API of Orchestrator, you can connect to Orchestrator Server and run the configuration workflows. Showcasing this is beyond the scope of this book; however, you can find some instruction in the Orchestrator documentation and also in the Accessing the Orchestrator API via REST recipe in Chapter 6, Advanced Operations.



Important Orchestrator base configurations


In this recipe, we will configure basic aspects of Orchestrator, such as licensing, network, and SSL certificates. It is highly recommended you work through this recipe before continuing on to add an external LDAP or database.

Getting ready

You need an installed and running Orchestrator. You should also be comfortable with using one of the methods described in the Two ways to configure Orchestrator recipe.

How to do it...

These are some basic configurations that have to be done to Orchestrator to make it production-ready. I will describe the use of the Orchestrator Configuration tool as well as the workflow method.

Configuring the network

The network setting configures the interface by which Orchestrator communicates and the default is set to 0.0.0.0. You can change it to an IPv4 or IPv6 address. The Windows install has already configured the correct setting and only requires a change if you would like to switch to IPv6.

Using the Orchestrator Configuration tool
  1. Open the Orchestrator Configuration tool.

  2. Click on the Network section and then select Network.

  3. Select the correct IP address and click on Apply changes.

Using the workflow
  1. Open the Orchestrator Client.

  2. Navigate to Library | Configuration | Network.

  3. Right-click on the workflow Configure the network settings and select Start Workflow.

  4. Select the correct IP address and click on Submit.

  5. Wait until the workflow has successfully finished.

Importing SSL certificates

In order for Orchestrator to connect to any other SSL-based service, the SSL signature of this service has to be added to Orchestrator first. The SSL certificate for the Orchestrator Server itself is discussed in the Configuring the Orchestrator Service SSL certificate recipe in Chapter 2, Optimizing Orchestrator Configuration.

Using the Orchestrator Configuration tool
  1. Open the Orchestrator Configuration tool.

  2. Click on the Network section and then on SSL Trust Manager.

  3. Enter the URL of the server that you wish to add and click on Import.

  4. The SSL certificate will be shown. Click on Import.

  5. The SSL certificate has been added. You can delete it by clicking on Delete.

Using the workflow
  1. Open the Orchestrator Client.

  2. Navigate to Library | Configuration | SSL Trust Manager.

  3. Right-click on the Import a certificate from URL workflow and select Start Workflow.

  4. Enter the URL of the server that you wish to add.

  5. Select Yes to accept the SSL certificate even if there are warnings and click on Submit.

Licensing

Both the Orchestrator Windows version and the appliance come with a 90-day evaluation license. Orchestrator is licensed with vCenter. The vCenter license key is the Orchestrator license key, and no extra purchase is required. However, if you are using the vCenter Essential license, you can only run workflows; you cannot create or edit them.

You can either enter a license key manually or connect to the vCenter Server to acquire the license.

Before you begin, add the vCenter SSL Certificate to Orchestrator.

Using the Orchestrator Configuration tool
  1. Open the Orchestrator Configuration tool.

  2. Click on the Licenses section.

  3. Select Use vCenter Server license.

  4. Enter the FQDN to vCenter.

  5. Enter an administrative vCenter username and the corresponding password.

  6. Click on Apply changes.

Using the workflow
  1. Open Orchestrator Client.

  2. Navigate to Library | Configuration | Licensing.

  3. Right-click on the workflow Use vCenter Server license and select Start Workflow.

  4. Enter the FQDN to the vCenter host.

  5. Enter an administrative vCenter username and the corresponding password.

  6. Click on Submit.

Wait till the workflow has finished successfully.

Creating a Server Package Signing certificate

The Server Package Signing certificate is an SSL certificate that is used to encrypt exports from Orchestrator, such as workflows and packages. It makes a lot of sense to at least personalize this with a self-signed certificate but be aware that, once created, it is not so easy to change.

It is not the SSL certificate of Orchestrator Server that is used for communication. The SSL certificate for Orchestrator Server is discussed in the Configuring the Orchestrator Server SSL certificate recipe in Chapter 2, Optimizing Orchestrator Configuration.

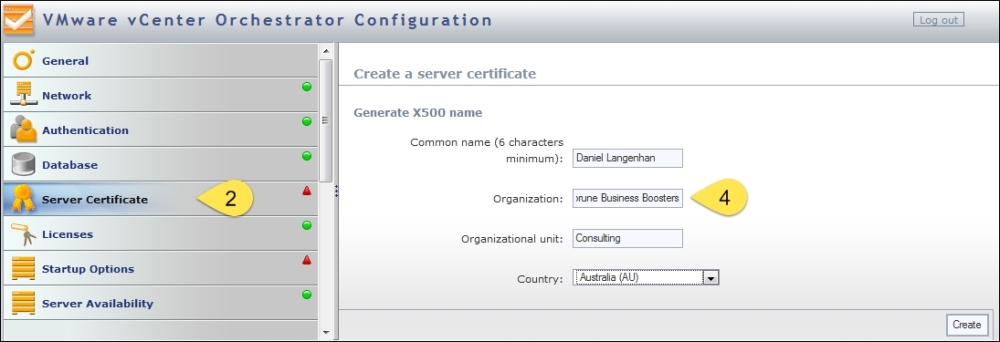

Using the Orchestrator Configuration tool
  1. Open the Orchestrator Configuration tool.

  2. Click on the Server Certificate section.

  3. Click on Create a certificate database and self-signed server certificate.

  4. Enter the required information, and select a country from the drop-down menu, and click on Create. Your new certificate will now be shown.

Using the workflow
  1. Open Orchestrator Client.

  2. Navigate to Library | Configuration | Package Signing Certificate.

  3. Right-click on the workflow Create a self-signed server certificate and select Start Workflow.

  4. Enter the relevant information.

  5. Choose the two-letter code for your country (search the Web for the SSL certificate's country code) and click on Submit.

Wait till the workflow is successfully finished.

How it works...

You can see that, for the most part, the workflow method requires the same inputs as the Orchestrator Configuration tool; however, you have probably also noticed that there are not as many options in workflows as with the Configuration tool.

The settings we just applied are important and need to be done in order to make Orchestrator production-ready. The network configuration, the package signing, as well as the licensing need to be done only once. Importing an SSL certificate is an action that we will encounter more often. Every time we want to establish a secure connection (SSL) between Orchestrator and another server, we first have to import this server's SSL certificate.

Please note that, in earlier versions of Orchestrator, you had to restart the Orchestrator Configuration tool or the Orchestrator service after importing the SSL certificate; this is no longer the case.

The SSL certificate we configured here is used to sign exports or packages to be used with other Orchestrator installations. We will work with exports and imports in the Importing and exporting Orchestrator elements recipe in Chapter 5, Basic Orchestrator Operations. In the Working with packages recipe of that chapter, you will find some more detailed information about how to manage and use this SSL certificate.

At the time of writing of this book, there is a small bug that appears from time to time with the network configuration. When using the appliance and changing the network setting to anything else but 0.0.0.0, some things, such as the Orchestrator home page, won't work anymore. To fix the problem, check out this VMware community article available at https://communities.vmware.com/thread/477955.

See also

Have a look at the Backup and recovery recipe in Chapter 2, Optimizing Orchestrator Configuration, to learn how to export and import the configuration.



Configuring Orchestrator with an external LDAP or Active Directory


In this recipe, we will configure Orchestrator with an external LDAP or Active Directory service. VMware best practice is to use Orchestrator together with SSO, which is described in the Integrating Orchestrator into SSO and vSphere Web Client recipe. This recipe doesn't work with the vRA-integrated Orchestrator.

Getting ready

You need a supported LDAP service configured and running. The following LDAP services are supported in vCO 5.5:

  • Windows Server 2008 Active Directory

  • Windows Server 2012 Active Directory

  • OpenLDAP

  • Novell eDirectory Server 8.8.3

  • Sun Java System Directory Server 6.3

We also need to create a group and a user in these services, so you should have access to these services.

You should be comfortable with using one of the methods described in the Two ways to configure Orchestrator recipe.

If your LDAP (AD) requires SSL (Kerberos), you will need to import the SSL certificate first (see the Important Orchestrator base configurations recipe in this chapter.

Tip

Changing the authentication might require changing the plugin credentials. For more details, see the Plugin basics recipe in Chapter 2, Optimizing Orchestrator Configuration.

How to do it...

We will focus on linking Orchestrator to AD. Connecting Orchestrator to LDAP is pretty much the same procedure; for anyone who understands LDAP, this will be a breeze.

AD is basically the same as LDAP but most Windows administrators have problems with the LDAP representation of AD, which is why we focus on AD in this recipe.

We will configure SSO in the Integrating Orchestrator into SSO and vSphere Web Client recipe.

Creating an Orchestrator Admin group and user

Before we can add an external LDAP, we need to configure at least one group and one user. To do this, perform the following steps:

  1. Log in to your LDAP or AD.

  2. Create an Orchestrator Administrator group and an Orchestrator Administrator user.

  3. Make the Orchestrator Administrator user a member of the Orchestrator Administrator group.

For this example, I have created a user called vcoadmin as well as a group called vcoadmins in AD. The AD domain is called mylab.local.

Tip

LDAP entries are always case-sensitive.

Again, we will show both methods.

Using the Orchestrator Configuration tool
  1. Open the Orchestrator Configuration tool.

  2. Click on the Authentication section.

  3. Select LDAP as the authentication method.

  4. In LDAP client, select Active Directory.

  5. In the Primary LDAP host field, enter mylab.local as the Active Domain DNS name.

  6. The standard port for Microsoft Active Directory LDAP is 389.

  7. Enter dc=mylab,dc=local as the root for your domain.

  8. If you have secured your AD with Kerberos, you need to activate SSL (don't forget to import the SSL certificate first).

  9. The username can be entered in both formats: [email protected] or domain\user. The user can be any active user within the AD; however, its best to use Orchestrator Admin.

  10. The user and group lookup base is easiest set to the root of your domain, for example, dc=mylab,dc=local. However, if your AD or LDAP is large, performance-wise it might be better to choose a different root.

  11. The Orchestrator Admin group path can be easily found. Enter the name of the group (case-sensitive) and click on Search to the right.

  12. If the name has been entered correctly, the path should be shown. Click on the LDAP path. The path is now populated with the correct setting.

  13. The rest of the settings can be left alone for most AD settings.

  14. Click on Apply changes.

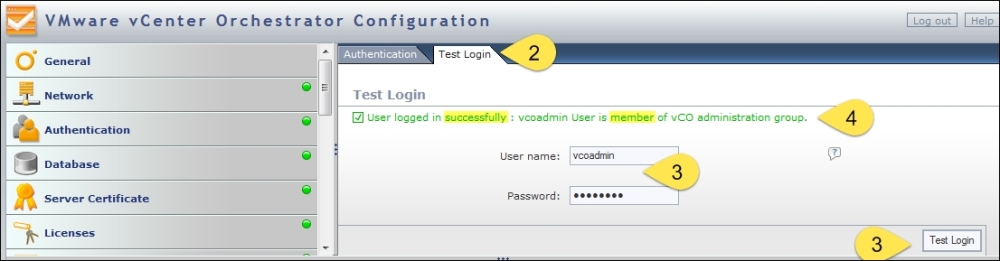

  15. At this stage, you should try the test login described in the There's more... section of this recipe.

  16. Click on Startup Options and then restart the Orchestrator Server.

  17. Now, try to log in to the Orchestrator Client using the AD user.

Using the workflow
  1. Open the Orchestrator Client.

  2. Navigate to Library | Configuration | Authentication | LDAP.

  3. Right-click on the workflow Configure Active Directory and select Start Workflow.

  4. In the primary host, enter mylab.local as the Active Domain DNS name.

  5. The standard port for AD LDAP is 389.

  6. If you secured your AD with Kerberos, you need to activate SSL.

  7. Click on Next.

  8. Enter dc=mylab,dc=local as the root for your domain.

  9. The username can be entered as [email protected] or domain\user. The user can be any active user in the AD; however, its best to use Orchestrator Admin.

  10. The user and group lookup base is easiest set to the root of your domain, for example, dc=mylab,dc=local. However, if your AD or LDAP is large, it might be performance-wise better to choose a different root.

  11. The Orchestrator Admin group needs to be constructed, but there is no automated tool for it. We use the CN=vcoadmins,CN=Users,DC=MyLab,DC=local values.

  12. Click on Submit and wait until the workflow is successfully completed.

Sadly, there isn't a test to check whether your settings are correct as there is with the Configuration tool. Have a look at the test login described in the There's more... section of this recipe.

There is no workflow to restart Orchestrator Server, so you have to restart the Orchestrator Server another way:

  • In Windows, use services (vCenter Orchestrator Server)

  • In Linux, use the services command from the OS or use the Orchestrator Configurator (see the Tuning the appliance recipe in Chapter 2, Optimizing Orchestrator Configuration)

  • Reboot the Orchestrator Server

Now, try to log in to the Orchestrator Client using the AD user.

How it works...

Configuring Orchestrator to work with an external authentication enables AD users to log in to the Orchestrator Client. The alternative would be either having only one user using it or adding users to the embedded LDAP. However, for a production Orchestrator, the embedded LDAP solution is not viable. As SSO is now a highly integrated part of vSphere, using Orchestrator with AD (or LDAP) isn't really such a good solution any longer. SSO can proxy multiple AD and/or LDAP domains and lets you integrate Orchestrator directly into vCenter as well as other corner pieces of VMware software offerings, making SSO integration the better choice for the future.

In the recipe above, we used the domain DNS address as the primary LDAP host rather than an individual AD server. The DNS entry for AD will forward the LDAP query to the next available AD server, which makes it a more reliable choice.

There's more...

There are some things you should be aware of when working with LDAP.

Test login

In order to find out whether everything is working as it should, we need to test it. However, there is no workflow for this, so you have to trust your entries or use the Configuration tool.

  1. Using the Orchestrator Configuration tool, click on Authentication.

  2. Click on the Test Login tab.

  3. Enter the Orchestrator Admin username and its password and click on Test Login.

  4. Read the message carefully. It should be green and confirm that you can log in and that the user is part of the Orchestrator Admin group.

A red message mostly indicates that the user provided isn't in the LDAP or that the password is wrong.

If the message doesn't confirm an Orchestrator Admin group membership, review the membership of the user account.

Common LDAP errors

When you encounter a problem while setting up LDAP, you will get an error code. This table shows the most commonly encountered error codes:

Code

Meaning

What to do

525

User not found

The user for login isn't found; check whether you have written the domain correctly.

52e

Password is incorrect

Change the password in the password field.

530

531

The User is not allowed to log in

Access LDAP or AD and make sure that the user is allowed to log in remotely and from Orchestrator Server.

532

Password expired

Access LDAP or AD and set a new password.

533

Account disabled

Access LDAP or AD and enable the account.

701

Account expired

Access LDAP or AD and create a new account or use a different user.

773

Must reset password

The User has to reset the password on login. Access LDAP or AD to set a new password or use other methods to set a new password.

775

User locked

Access LDAP or AD and unlock the user account.

See also

See the Integrating Orchestrator into SSO and vSphere Web Client recipe in this chapter to learn how to configure Orchestrator with VMware SSO.



Integrating Orchestrator into SSO and vSphere Web Client


Integrating Orchestrator into the vCenter Web Client enables vCenter Server users to directly run Orchestrator workflows just by right-clicking vCenter objects. The vRA-integrated Orchestrator is already configured with the SSO that vRA uses.

Getting ready

vCO 5.5 (and higher) requires an SSO server 5.5, as it won't work with an SSO 5.1 server.

We need an up-and-running Orchestrator as well as access to vCenter Web Client.

Make sure that you set the Orchestrator Network configuration (see the Configuring the network section in the Important Orchestrator base configurations recipe)

You should be comfortable with using one of the methods described in the Two ways to configure Orchestrator recipe.

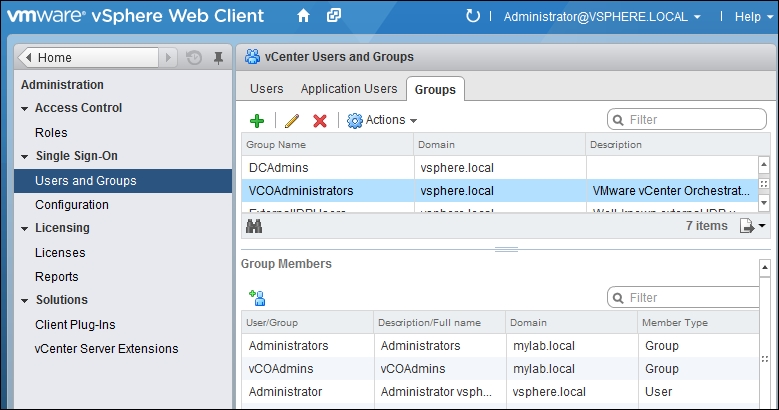

You should have an AD group for your vCOAdministrators with at least one user in it. You can use the precreated SSO group [email protected] The account [email protected] is a member of this group.

How to do it...

Again both configuration methods are shown. Choose the one you're most comfortable with.

Registering Orchestrator with SSO

If you are using the Orchestrator installation that came with vCenter, you can skip this step.

Using the Orchestrator Configuration tool
  1. Open the Orchestrator Configuration tool.

  2. Click on the Network section and then on SSL Trust Manager.

  3. Enter [IP or FQDN of SSO server]:7444 as the URL and click on Import.

  4. Acknowledge the import by clicking on Import.

  5. Repeat steps 2 to 4 and register the SSL certificate for vCenter with port 443.

  6. Click on the Authentication section.

  7. Select the authentication mode as SSO Authentication.

  8. Enter the SSO server FQDN.

  9. Enter an SSO administrative user (for example, [email protected]).

  10. Click on Register Orchestrator.

  11. This registration registers a new application user in SSO.

  12. Select from the drop-down menu the group you would like to use for Orchestrator administrators.

  13. Click on Accept Orchestrator Configuration.

Using the workflow
  1. Open the Orchestrator Client.

  2. Navigate to Library | Configuration | SSL Trust Manager.

  3. Right-click on the Import a certificate from URL workflow and select Start Workflow.

  4. Enter [IP or FQDN of SSO server]:7444 as the URL.

  5. Select Yes to accept the SSL Certificate even if there are warnings and click on Submit.

  6. Wait till the workflow has successfully finished.

  7. Navigate to Library | Configuration | Authentication | SSO.

  8. Right-click on the workflow Configure SSO and select Start Workflow.

  9. Enter [IP or FQDN of SSO server]:7444 as the URL.

  10. Enter an SSO administrative user (for example, [email protected]).

  11. Enter the SSO Admin Group (ignore if it says domain/group). The existing SSO default group is called VCOAdministrators (case-sensitive).

  12. Click on Submit and wait until the workflow is completed successfully.

Configuring the vCenter Server plugin

The integration of Orchestrator with vCenter Web Client requires us to also configure the vCenter Server plugin.

Using the Orchestrator Configuration tool
  1. Open the Orchestrator Configuration tool.

  2. Click on the vCenter Server plugin.

  3. Click on New vCenter Server Host.

  4. Enter your vCenter FQDN.

  5. If you are using Windows, you can define a domain; the Linux appliance doesn't have this selection. You can leave it empty.

  6. Enter a vCenter Server administrative user and click on Apply changes.

Using the workflow
  1. Open Orchestrator Client.

  2. Navigate to Library | vCenter | Configuration.

  3. Right-click on the Add a vCenter Server instance workflow and select Start Workflow.

  4. Enter your vCenter FQDN.

  5. Select that you would like to orchestrate this instance as well and that you would like to accept SSL certificates even if they are self-signed.

  6. Click on Next.

  7. Enter a vCenter Server administrative user and the password.

  8. You can define a domain name, or leave it empty. Click on Submit.

Wait until the workflow is successfully finished.

Configuring the connection between vCenter Server and Orchestrator

In the Web Client only one Orchestrator Server can be paired to each vCenter Server. To configure the pairing, follow these steps:

  1. Open vSphere Web Client.

  2. Click on vCenter Orchestrator and then on Manage.

  3. Mark vCenter Server and click on Edit Configuration.

  4. The server that you have integrated should show up in the Registered as VC extension selection. If this is not the case, you can try to enter its FQDN or IP.

  5. Click on Test Connection and make sure it works. If it doesn't, this indicates that the integration hasn't worked correctly.

  6. Click on OK.

How it works...

Since vCenter Server 5.1, vSphere Web Client is (or better, should be) the main method for accessing vCenter. Orchestrator completely integrates with vSphere Web Client, making it possible for Orchestrator workflows to be executed directly from vSphere Web Client.

You can configure which workflows can be run from the vSphere Web Client. We will discuss this configuration in detail in the Orchestrator and vSphere Web Client recipe in Chapter 5, Basic Orchestrator Operations.

Using SSO for Orchestrator login requires that you log in into Orchestrator Client or vSphere Web Client using a user that is a member of the group you defined as vCOAdmins. If you used the [email protected] group, you can add other SSO and AD groups or users to this group via the SSO group membership configuration.

See also

To learn more about Orchestrator user management, see the User management recipe in Chapter 5, Basic Orchestrator Operations.

To configure Orchestrator workflows in vSphere Web Client, see the Orchestrator and vSphere Web Client recipe in Chapter 5, Basic Orchestrator Operations.



Configuring an external database


In this recipe, we will attach Orchestrator to an external database. This is a more secure and reliable method than using the embedded database.

Getting ready

We will need a database; the following databases are supported with vCO 5.5.2.1:

  • Oracle 11g

  • SQL Server 2005

  • SQL Server 2008

  • SQL Server 2012

  • SQL Server Express

  • PostgreSQL

You will need to create an empty database for Orchestrator, and you should also create a dedicated user account for Orchestrator to access the database.

You should be comfortable with using one of the methods described in the Two ways to configure Orchestrator recipe.

If your Database requires SSL, you will need to import the SSL certificate first; for this, see the Important Orchestrator base configurations recipe in this chapter.

Tip

When you replace the database, you will have to reconfigure the following items: Licensing and Server Certificate.

How to do it...

Both configuration methods will be shown; choose the one you prefer. In this example, we have added a SQL database to Orchestrator. The other databases are not that much different.

Database information

The following information is needed for each type of database:

Database type

Oracle

SQL Server

PostgreSQL

Login

required

required

required

SSL

optional

optional

optional

Hostname

required

required

required

Port

1521 or custom

1433 or custom

5432 or custom

Database name

-

required

required

Instance

required

optional

-

Domain

-

optional

-

Use NTLMv2

-

optional

-

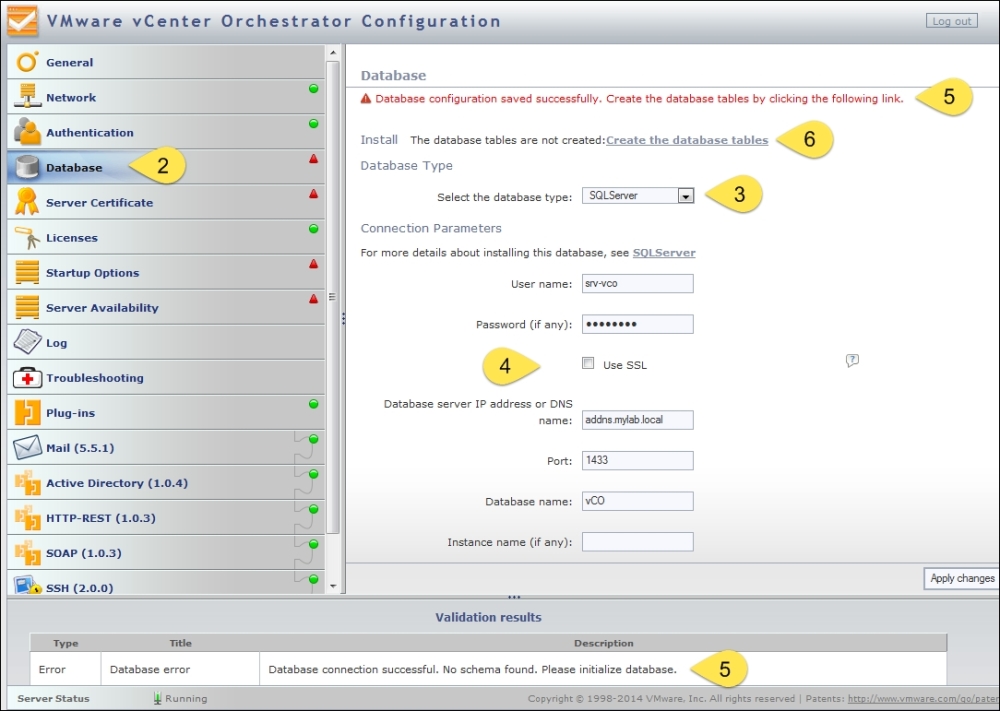

Using the Orchestrator Configuration tool

  1. Open the Orchestrator Configuration tool.

  2. Click on the Database section.

  3. Select the Database type. The information on the screen will adapt to your choice.

  4. Enter all the relevant information and click on Apply changes.

  5. An error occurs, which is totally OK. It just means that the database is empty and needs tables.

  6. Click on the Create the database tables link.

  7. Then click on Apply changes again.

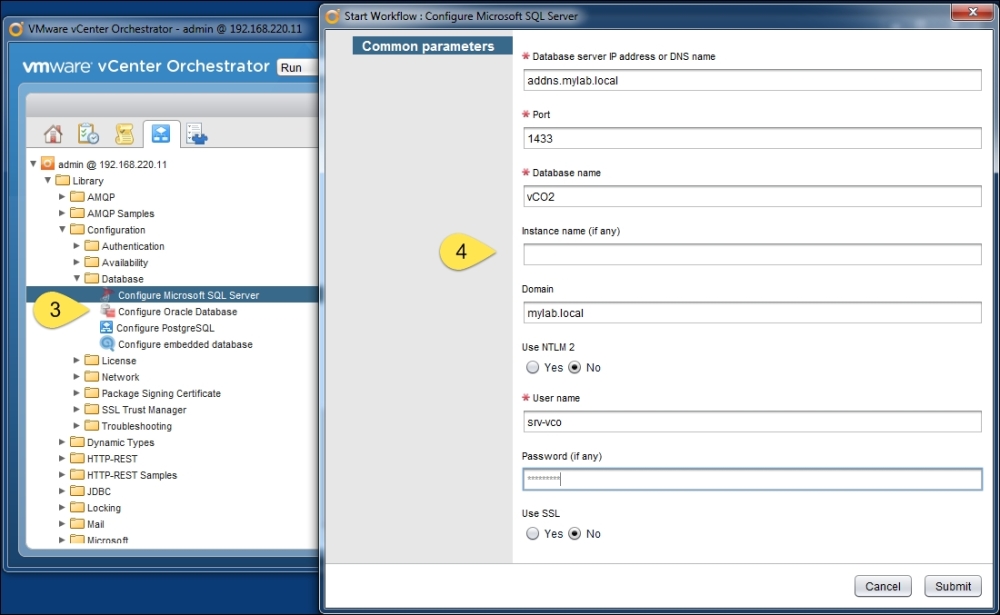

Using the workflow

  1. Open the Orchestrator Client.

  2. Navigate to Library | Configuration | Database.

  3. Right-click on the appropriate workflow for your database and select Start Workflow.

  4. Enter all the relevant information and click on Submit.

  5. Wait until the workflow has successfully finished.

How it works...

The Orchestrator database contains the entire configuration, workflows, workflow runs, events, runtime information, actions, and a lot more. Therefore, it is quite important to consider using an external database. Without an external database, certain Orchestrator features, such as resuming a workflow after an Orchestrator Server crash, will not work or will be impaired.

All Orchestrator versions come with the embedded PostgreSQL database or use the vCenter Server database. A production environment dictates the use of an external database that integrates with the business continuity processes of your company.

In addition to this, the embedded database isn't really sized or optimized for large deployments and doesn't allow the use of Orchestrator Clustering.

Using the vCenter Server database for Orchestrator is not really a very pretty solution either. IT best practices dictate using dedicated resources for production environments. Putting the database on the same VM as Orchestrator is something to think about as it results in a competition for resources between the database and the Java process.

Sizing

Sizing is hard to predict. Each workflow run consumes around 4 KB, and most objects (for example, vCenter Server Object) require around 50 KB each. VMware recommends 1 GB for a production database. The good thing is that Orchestrator regularly runs clean-up jobs to reduce the database content. Also have a look at the User preferences recipe in Chapter 5, Basic Orchestrator Operations, where we discuss certain properties that influence how much information is kept in the database.

Database roles

For the initial setup (and for updates), you should give the dedicated Orchestrator user the db_owner rights on the Orchestrator database.

For a normal usage scenario the Orchestrator user only requires the db_dataread and db_datawrite rights.

There's more...

Here are some things you might find useful.

Microsoft SQL

Giving the database the settings ALLOW_SNAPSHOT_ISOLATION and READ_COMMITTED_SNAPSHOT will reduce the chance of a deadlock occurring and is also a prerequisite for Orchestrator clusters.

Oracle

The database should have NLS_CHARACTER_SET = AL32UTF8 set before you start allowing Orchestrator to build its tables.

To avoid an ORA-01450 error, it is important that you have the database block size configured in accordance with your database index.

About the Author

  • Daniel Langenhan

    Daniel Langenhan is a Virtualisation expert with formidable skills in Architecture, Design and Implementation for large multi-tier systems. His experience and knowledge of process management, enterprise-level storage, Linux and Windows operation systems has made him and his business a highly sought after international consultancy in the Asia-Pacific and European regions for multinational clientele in the areas of Finance, Communication, Education and Government. Daniel has been working with VMware products since 2002 and is directly associated with VMWare since 2008. His proven track record of successful integrations of Virtualisation into different business areas while minimizing cost and maximizing reliability and effectiveness of the solution for his clients.

    Currently, Daniel is operating in the Europe and Asia-Pacific region with his company vLeet GmbH and Melbourne Business Boosters Pty Ltd.

    Daniel's expertise and practical approach to VMWare has resulted in the publication of the following books:

    • Instant VMware vCloud Starter, Packt Publishing
    • VMware View Security Essentials, Packt Publishing
    • VMware vCloud Director Cookbook, Packt Publishing
    • VMware vRealize Orchestrator Cookbook, Packt Publishing
    • VMware vRealize Orchestrator Essentials, Packt Publishing

    He has also lent his expertise to many other publishing projects as a Technical Editor.

    Browse publications by this author

Latest Reviews

(1 reviews total)
Excellent
