Chapter 1. Managing Databases and the PostgreSQL Server

In this chapter, we will cover the following recipes:

  • Creating databases

  • Creating schemas

  • Creating users

  • Creating groups

  • Destroying databases

  • Creating and dropping tablespaces

  • Moving objects between tablespaces

  • Initializing a database cluster

  • Starting the server

  • Stopping the server

  • Displaying the server status

  • Reloading the server configuration files

  • Terminating connections



Introduction


PostgreSQL is an open source, object-oriented relational database management system that was originally developed at the Berkeley Computer Science Department of the University of California.

PostgreSQL is an advanced database server available on a wide range of platforms, ranging from Unix-based operating systems such as Oracle Solaris, IBM AIX, and HP-UX; Windows; and Mac OS X to Red Hat Linux and other Linux-based platforms.

We start with showing how to create databases in PostgreSQL. During the course of this chapter, we will cover schemas, users, groups, and tablespaces, and show how to create these entities. We will also show how to start and stop the PostgreSQL server services.



Creating databases


A database is a systematic and organized collection of data which can be easily accessed, managed, and updated. It provides an efficient way of retrieving stored information. PostgreSQL is a powerful open source database. It is portable because it written in ANSI C. As a result, it is available for different platforms and is reliable. It is also ACID (short for Atomicity, Consistency, Isolation, Durability) compliant, supports transactions, is scalable as it supports multi version concurrency control (MVCC) and table partitioning, is secure as it employs host based access control and supports SSL, and provides high availability and replication by implementing features such as streaming replication and its support for point in time recovery.

Getting ready

Before you start creating databases, you would need to install PostgreSQL on your computer. For Red Hat or CentOS Linux environments, you can download the correct rpm for the PostgreSQL 9.3 version from yum.postgresql.org.

Here is the link you can use to install PostgreSQL on CentOS:

http://www.postgresonline.com/journal/archives/329-An-almost-idiots-guide-to-install-PostgreSQL-9.3,-PostGIS-2.1-and-pgRouting-with-Yum.html

The following are the links you can use to install PostgreSQL on an Ubuntu platform:

Alternatively, you may download the graphical PostgreSQL installer available from the EnterpriseDB website, at http://www.enterprisedb.com/products-services-training/pgdownload.

For details on how to install PostgreSQL using the graphical PostgreSQL installer from the EnterpriseDB website, you can refer to the following link for further instructions:

http://www.enterprisedb.com/docs/en/9.3/pginstguide/Table%20of%20Contents.htm

Once you have downloaded and installed PostgreSQL, you will need to define the data directory, which is the storage location for all of the data files for the database. You will then need to initialize the data directory. Initialization of the data directory is covered under the recipe titled Initializing a database cluster. After this, you are ready to create the database.

To connect to a database using the psql utility, you can use the following command:

psql  -h localhost  -d postgres –p 5432

Here, we are basically connecting to the postgres database, which is resident on the localhost, that is the same server on which PostgreSQL was installed, and the connection is taking place on port 5432.

In the following code, we are creating a user, hr. Basically, this user is being created because in the next section, it is being used as the owner of the hrdb database:

CREATE USER hr with PASSWORD 'hr';

More details regarding creating users will be covered in the Creating users recipe.

How to do it...

PostgreSQL provides two methods to create a new database:

  • The first method relies on using the CREATE DATABASE SQL statement:

    CREATE DATABASE hrdb WITH ENCODING='UTF8' OWNER=hr CONNECTION LIMIT=25;
  • The second method requires using the createdb command-line executable:

    createdb –h localhost –p 5432 –U postgres testdb1


How it works...

A database is a named collection of objects such as tables, functions, and so on. In order to create a database, the user must be either a superuser or must have the special CREATEDB privilege.

The createdb command-line executable connects to the postgres database when triggered, and then issues the CREATE DATABASE command.

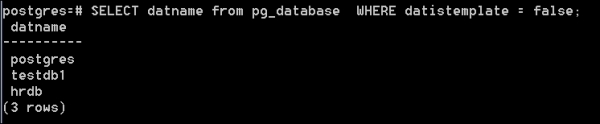

You can view the list of existing databases by querying the pg_database catalog table, as shown in the following screenshot:

Alternatively, you may use \l switch of psql to view the list of existing databases.



Creating schemas


Schemas are among the most important objects within a database. A schema is a named collection of tables. A schema may also contain views, indexes, sequences, data types, operators, and functions. Schemas help organize database objects into logical groups, which helps make these objects more manageable.

How to do it...

You can use the CREATE SCHEMA statement to create a new schema in PostgreSQL:

CREATE SCHEMA employee;

Alternatively, it is also possible to create a schema for a particular user:

CREATE SCHEMA university AUTHORIZATION bob;

Here, a schema called university is created and is owned by bob.

How it works...

A schema is a logical entity that helps organize objects and data in the database.

By default, if you don't create any schemas, any new objects will be created in the public schema.

In order to create a schema, the user must either be a superuser or must have the CREATE privilege for the current database.

Once a schema is created, it can be used to create new objects such as tables and views within that schema.

There's more...

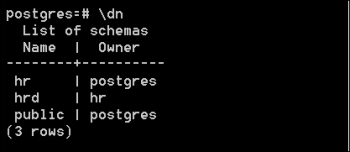

You may use the \dn switch of psql to list all of the schemas in a database as shown in the following screenshot:

To identify the schema in which you are currently working, you can use the following command:

SELECT current_schema();

While searching for objects in the database, you can define the search schemas preferences for where those searches should start. You can use the search_path parameter for this, as follows:

ALTER DATABASE hrd SET search_path TO hr,hrms, public, pg_catalog;


Creating users


A user is a login role that is allowed to log in to the PostgreSQL server. The login roles section is where you define accounts for individual users for the PostgreSQL system. Each database user should have an individual account to log in to the PostgreSQL system. Each user has an internal system identifier in PostgreSQL, which is known as a sysid. The user's system ID is used to associate objects in a database with their owner. Users may also have global rights assigned to them when they are created. These rights determine whether a user is allowed to create or drop databases and whether the existing user is a superuser or not.

How to do it...

PostgreSQL provides two methods by which database users are created:

  • The first method requires using the CREATE USER SQL statement to create a new user in the database. You can create a new user with the CREATE USER SQL statement, like this:

    CREATE user agovil WITH PASSWORD '[email protected]';

    Here, we created the agovil user and provided a password for the user to log in with.

  • The second method requires executing the createuser script from the command line.

    We may also use the createdb script to create a user called nchabbra on the same host (port 5432), and the –S option specifies that the created user will not have the superuser privileges:

    $ createuser -h localhost -p 5432 -S nchabbra


How it works...

The CREATE USER SQL statement requires one mandatory parameter which is the name of the new user. Other parameters, which are optional, however, are passwords for the user or group, the system ID, and a set of privileges that may be explicitly allocated.

The createuser script can be invoked without arguments. In that case, it will prompt us to provide the username and the set of rights and will attempt to make a local connection to PostgreSQL. It can also be invoked with options and the username to be created on the command line, and you will need to give the user access to a database explicitly if he/she is not the owner of the database.

There's more...

We can use the \du switch of psql to display the list of existing users, inclusive of roles in the PostgreSQL server, as shown in this screenshot:

Alternatively you may obtain the list of users by querying the pg_user catalog table using the SQL statement, as shown in the following screenshot:



Creating groups


A group in the PostgreSQL server is similar to the groups that exist in Unix and Linux. A group in PostgreSQL serves to simplify the assignment of rights. It simply requires a name and may be created empty. Once it is created, users who are intended to share common access rights are added into the group together, and are thus associated by their membership within that group. Grants on the database objects are then given to the group instead of each individual group member.

How to do it...

Groups in the PostgreSQL server can be created by using the CREATE GROUP SQL statement. The following command will create a group. However, no users are currently a part of this group:

hrdb=# CREATE GROUP dept;

In order to assign members/users to the group, we can use the ALTER GROUP statement as follows:

hrdb=# ALTER GROUP dept ADD USER agovil,nchabbra;

It is also possible to create a group and assign users upon its creation, as shown in the following CREATE GROUP statement:

hrdb=# CREATE GROUP admins WITH user agovil,nchabbra;

How it works...

A group is a system-wide database object that can be assigned privileges and have users added to it as members. A group is a role that cannot be used to log in to any database.

It is also possible to grant membership in a group to another group, thereby allowing the member role use of privileges assigned to the group it is a member of.

Database groups are global across a database cluster installation.

There's more...

To list all of the available groups in the PostgreSQL server instance, you need to query the pg_group catalog table, as shown in the following screenshot:



Destroying databases


Every major RDBMS vendor offers the ability to drop databases just as it allows you to create databases. However, one should exercise caution when dealing with situations like dropping databases. Once a database is dropped, all of the information residing in it is lost forever. It is only for a valid business purpose that we should drop databases. In normal circumstances, a database is only dropped when it gets decommissioned and is no longer required for business operations.

How to do it...

There are two methods to drop a database in the PostgreSQL server instance:

  • You can use the DROP DATABASE statement to drop a database from PostgreSQL, as follows:

    hrdb=# DROP DATABASE hrdb;
  • You can use the dropdb command line-utility, which is a wrapper around the DROP DATABASE command:

    $ dropdb hrdb;


How it works...

The DROP DATABASE statement permanently deletes catalog entries and the data directory. Only the owner of the database can issue the DROP DATABASE statement.

Also, it is not possible to drop a database to which you are connected. In order to delete the database, the database owner will have to make a connection to another database of which he is an owner.

There's more...

One situation that demands attention is when a user tries to drop a database that has active connections. The user will get an error when trying to drop such a database.

In order to drop a database that has active connections to it, you will have to follow these steps:

  1. Identify all of the active sessions on the database. To identify all of the active sessions on the database, you need to query the pg_stat_activity catalog table as follows:

    SELECT * from  pg_stat_activity where datname='testdb1';
  2. Terminate all of the active connections to the database. To terminate all of the active connections, you will need to use the pg_terminate_backend function as follows:

    SELECT pg_terminate_backend(pid) FROM pg_stat_activity WHERE datname = 'testdb1';
  3. Once all of the connections are terminated, you may proceed with dropping the database using the DROP DATABASE statement.



Creating and dropping tablespaces


PostgreSQL stores data files consisting of database objects such as tables and indices on the disk. The tablespace is defined as the location of these objects on the disk. A tablespace is used to map a logical name to a physical location on the disk.

Getting ready

A tablespace is a location on the disk where PostgreSQL stores data files containing database objects, for example indexes, tables, and so on.

Before you create the tablespace, the directory location must be physically created and the directory must be empty:

mkdir –p /var/lib/pgsql/data/dbs

How to do it...

To create a tablespace in PostgreSQL, you need to use the CREATE TABLESPACE statement.

The following command creates a data_tbs tablespace, which is owned by the agovil user:

CREATE TABLESPACE data_tbs OWNER agovil LOCATION '/var/lib/pgsql/data/dbs';

Similarly, a tablespace in PostgreSQL can be dropped using the DROP TABLESPACE statement, as follows:

DROP TABLESPACE data_tbs;

How it works...

A tablespace allows you to control the disk layout of PostgreSQL. The owner of the tablespace, by default, would be the user who executed the CREATE TABLESPACE statement. This statement also gives you the option of assigning the ownership of the tablespace to a new user. This option is the part of the OWNER clause in the CREATE TABLESPACE statement.

The name of the tablespace should not begin with a pg_ prefix because this is reserved for the system tablespaces.

Before deleting a tablespace, ensure that it is empty, which means there should be no database objects inside it. If the user tries to delete the tablespace when it is not empty, the command will fail.

There are two options that will aid in deleting the tablespace when it is not empty:

  • You may drop the database

  • You may alter the database to move it to a different tablespace

After any of the preceding actions have been completed, then the corresponding tablespace may be dropped.

There's more...

By default, two tablespaces exist in PostgreSQL:

  • pg_default: This is used to store user data

  • pg_global: This is used to store global data

You may query the pg_tablespace catalog table to get the list of existing tablespaces in PostgreSQL, as shown in the following screenshot:



Moving objects between tablespaces


A tablespace can contain both permanent and temporary objects. You will need to define and create a secondary tablespace to serve as the target destination of objects that might get moved from the primary tablespace. Moving objects between tablespaces is a mechanism of copying bulk data in which copying happens sequentially, block by block. Moving a table to another tablespace locks it for the duration of the move.

Getting ready

Here, we will first create a new tablespace, hrms, using the following command:

mkdir –p  /var/lib/pgsql/data/hrms

Then we set the default tablespace for the testdb1 database to hrms using the following statement:

CREATE TABLESPACE HRMS OWNER agovil LOCATION '/var/lib/pgsql/data/hrms';

We will also create a table, insert some records into it, and create a corresponding index for it. This is being done because the table and its index will be used in the How to do it… section of this recipe:

CREATE TABLE EMPLOYEES(id integer PRIMARY KEY , name varchar(40));
INSERT INTO EMPLOYEES VALUES (1, 'Mike Johansson');
INSERT INTO EMPLOYEES VALUES(2, 'Rajat Arora');
CREATE INDEX emp_idx on  employees(name);

How to do it...

Moving a complete database to a different tablespace involves three steps:

  1. You will change the tablespace for the given database so that new objects for the associated database are created in the new tablespace:

    ALTER DATABASE testdb1 SET default_tablespace='hrms';
  2. You will have to then move all of the existing tables in the corresponding database to the new tablespace:

    ALTER TABLE employee SET TABLESPACE hrms;
  3. You will also have to move any existing indexes to the new tablespace:

    ALTER INDEX emp_idx SET TABLESPACE hrms;

How it works...

You will have to query the pg_tables catalog table to find out which tables from the current database need to be moved to a different tablespace.

Similarly for the indexes, you will have to query the pg_indexes catalog table to find out which indexes need to be moved to a different tablespace.



Initializing a database cluster


In terms of a filesystem, a database cluster is a collection of databases that are managed by a single server instance, and it is the framework upon which PostgreSQL databases are created.

How to do it...

The initdb command is used to initialize or create the database cluster. The –D switch of the initdb command is used to specify the filesystem location for the database cluster.

To create the database cluster, use the initdb command:

$ initdb -D /var/lib/pgsql/data

Another way of initializing the database cluster is by calling the initdb command via the pg_ctl utility:

$ pg_ctl -D /var/lib/pgsql/data initdb

How it works...

A database cluster is a collection of databases that are managed by a single server instance.

When the initdb command is triggered, the directories in which the database data will reside are created, shared catalog tables are generated, and the template1 and postgres databases are created, out of which the default database is postgres. The initdb command initializes the database cluster default locale and the character set encoding.

You can refer to http://www.postgresql.org/docs/9.3/static/creating-cluster.html for more information on initializing a database cluster.



Starting the server


Before anyone can access the database, the database server must be started. Then you will be able to start all of the instances of the postgres database in the cluster using the different commands with options as mentioned in this recipe.

Getting ready

The term "server" refers to the database and the associated backend processes. The term "service" refers to the operating system wrapper through which the server gets invoked. In normal circumstances, the PostgreSQL server will usually start automatically when the system boots up. However, there will be situations where you may have to start the server manually for different reasons.

How to do it...

There are a couple of methods through which the PostgreSQL server can be started on Unix or Linux platforms:

  • The first method relies on passing the start argument to the pg_ctl utility to get the postmaster backend process started, which effectively means starting the PostgreSQL server.

  • The next method relies on using the service commands, which, if supported by the operating system, can be used as a wrapper to the installed PostgreSQL script.

  • The last method involves invoking the installed PostgreSQL script directly using its complete path.

On most Unix distributions and Red Hat-based Linux distributions, the pg_ctl utility can be used as follows:

pg_ctl -D /var/lib/pgsql/data start

If you are using the service command, the service can be started like this:

service postgresql<version> start

For PostgreSQL version 9.3, the service command to start the PostgreSQL server is as follows:

service postgresql-9.3 start

You may also start the server by manually invoking the installed PostgreSQL script using its complete path:

/etc/rc.d/init.d/postgresql-9.3 start

On Windows-based systems, the PostgreSQL service can be started using the following command:

NET START postgresql-9.3

How it works...

The start argument of the pg_ctl utility will first start PostgreSQL's postmaster backend process using the path of the data directory.

The database system will then start up successfully, report the last time the database system was shut down, and provide various debugging statements before returning the postgres user to the shell prompt.

There's more...

In Ubuntu and Debian Linux distributions, the pg_ctlcluster wrapper can be used with the start argument to start the postmaster server for a particular cluster. A cluster is a group of one or more PostgreSQL database servers that may coexist on a single host.



Stopping the server


Sometimes in emergency situations, you might have to bring down the PostgreSQL server's services. There are certain situations in which you may need to stop the database services. For instance, during an operating system migration, you might need to stop the running services, take a filesystem backup, and then proceed with OS migration.

How to do it...

There are a couple of ways by which the PostgreSQL server can be stopped.

On Unix distributions and Red Hat-based Linux distributions, we can use the stop argument of the pg_ctl utility to stop the postmaster:

pg_ctl -D /var/lib/pgsql/data stop -m fast

Using the service command, the PostgreSQL server can be stopped like this:

service postgresql stop

You may also stop the server by manually invoking the installed PostgreSQL script using its complete path:

/etc/rc.d/init.d/postgresql stop

On Windows-based systems, you may stop the postmaster service in this manner:

NET STOP postgresql-9.3

How it works...

The pg_ctl utility checks for the running postmaster process, and if the stop argument of the pg_ctl utility is invoked, then the server is shut down.

By default, the PostgreSQL server will wait for clients to first cancel their connections before shutting down.

However, with the use of a fast shutdown, there is no wait time involved as all of the user transactions will be aborted and all connections will be disconnected.

There's more...

There may be situations where one needs to stop the PostgreSQL server in an emergency situation, and for this, PostgreSQL provides the immediate shutdown mode.

In case of immediate shutdown, a process will receive a harsher signal and will not be able to respond to the server anymore.

The consequence of this type of shutdown is that PostgreSQL is not able to finish its disk I/O, and therefore has to do a crash recovery the next time it is started.

The immediate shutdown mode can be invoked like this:

pg_ctl -D /var/lib/pgsql/data stop -m immediate

Another way to shut down the server would be to send the signal directly using the kill command. The PID of the postgres process can be found using the ps command or from the postmaster.pid file in the data directory. In order to initiate a fast shutdown, you can issue the following command:

$ kill -INT head -1 /usr/local/pgsql/data/postmaster.pid


Displaying the server status


Many a times, there will be situations where end users complain that the database performance is sluggish and they are not able to log in to the database. In such situations, it is often helpful to take a quick glance through the status of the PostgreSQL backend postmaster process and confirm whether the PostgreSQL server services are up and running.

How to do it...

There are a couple of ways by which the status of the PostgreSQL server can be checked.

On Unix and on Red Hat-based Linux distributions, the status argument of the pg_ctl utility can be used to check the status of a running postmaster backend:

pg_ctl -D /var/lib/pgsql/data status

On Unix-based and Linux-based platforms supporting the service command, the status of a postgresql process can be checked as follows:

service postgresql status

You may also check the server status by manually invoking the installed PostgreSQL script using its complete path:

/etc/rc.d/init.d/postgresql status

How it works...

The status mode of the pg_ctl utility checks whether the postmaster process is running in the specified data directory.

If the server is running, then the process ID and the command-line options that were used to invoke it are displayed.



Reloading the server configuration files


Changes made to certain PostgreSQL configuration parameters come into effect when the server configuration files, such as postgresql.conf, are reloaded. Reloading the server configuration files becomes necessary in such cases.

How to do it...

Some of the configuration parameters in PostgreSQL can be changed on the fly. However, changes to other configurations can only be reflected once the server configuration files are reloaded.

On most Unix-based and Linux-based platforms, the command to reload the server configuration file is as follows:

pg_ctl -D /var/lib/pgsql/data reload

It is also possible to reload the configuration file while being connected to a PostgreSQL session. However, this can be done by the superuser only:

postgres=# select pg_reload_conf();

On Red Hat and other Linux-based systems that support the service command, the postgresql command to reload the configuration file is as follows:

service postgresql reload

How it works...

To ensure that changes made to the parameters in the configuration file take effect, a reload of the configuration file is needed. Reloading the configuration files requires sending the sighup signal to the postmaster process, which in turn will forward it to the other connected backend sessions.

There are some configuration parameters whose changed values can only be reflected by a server reload. These configuration parameters have a value known as sighup for the attribute context in the pg_settings catalog table:

SELECT name, setting, unit ,(source = 'default') as is_default FROM    pg_settings WHERE context = 'sighup'
AND (name like '%delay' or name like '%timeout')
AND setting != '0';

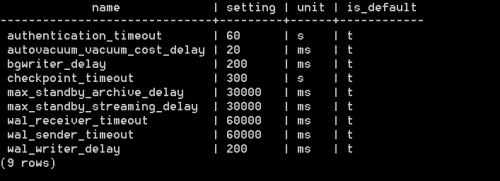

Output for the preceding query is as shown below:



Terminating connections


Every major RDBMS, including PostgreSQL, allows simultaneous and concurrent database connections in order for users to run transactions. Due to such concurrent processing of databases, it may be during peak transaction hours that database performance becomes slow or that there are some blocking sessions. In order to deal with such situations, we might have to terminate some specific sessions or sessions coming from a particular user so that we can get database performance back to normal.

How to do it...

PostgreSQL provides the pg_terminate_backend function to kill a specific session. Even though the pg_terminate_backend function acts on a single connection at a time, we can embed pg_terminate_backend by wrapping it around the SELECT query to kill multiple connections, based on the filter criteria specified in the WHERE clause.

To terminate all of the connections from a particular database, we can use the pg_terminate_backend function as follows:

SELECT pg_terminate_backend(pid) FROM pg_stat_activity WHERE datname = 'testdb1';

To terminate all of the connections for a particular user, we can use pg_terminate_backend like this:

SELECT pg_terminate_backend(pid) FROM pg_stat_activity WHERE usename = 'agovil';

How it works...

The pg_terminate_backend function requires the pid column or process ID as input. The value of pid can be obtained from the pg_stat_activity catalog table. Once pid is passed as input to the pg_terminate_backend function, all running queries will automatically be canceled and it will terminate a specific connection corresponding to the process ID as found in the pg_stat_activity table.

Terminating backends is also useful to free memory from idle postgres processes that was not released for whatever reason and was hogging system resources.

There's more...

If the requirement is to cancel running queries and not to terminate existing sessions, then we can use the pg_cancel_backend function to cancel all active queries on a connection. However, with the pg_cancel_backend function, we can only kill runaway queries issued in a database or by a specific user. It does not have the ability to terminate connections.

To cancel all of the running queries issued against a database, we can use the pg_cancel_backend function as follows:

SELECT pg_cancel_backend(pid) FROM pg_stat_activity WHERE datname = 'testdb1';

To cancel all of the running queries issued by a specific user, we can use the pg_cancel_backend function like this:

SELECT pg_cancel_backend(pid) FROM pg_stat_activity WHERE usename = 'agovil';

In versions before PostgreSQL 9.2, the procpid column has to be passed as input to the pg_terminate_backend and pg_cancel_backend functions to terminate running sessions and cancel queries. The pid column replaced the procpid column from PostgreSQL version 9.2 onwards.

You may refer to https://blog.sleeplessbeastie.eu/2014/07/23/how-to-terminate-postgresql-sessions/ and http://www.devopsderek.com/blog/2012/11/13/list-and-disconnect-postgresql-db-sessions/ for more information regarding terminating backend connections.

About the Author

  • Chitij Chauhan

    Chitij Chauhan currently works as a senior database administrator at an IT-based MNC in Chandigarh. He has over 10 years of work experience in the field of database and system administration, with specialization in MySQL clustering, PostgreSQL, Greenplum, Informix DB2, SQL Server 2008, Sybase, and Oracle. He is a leading expert in the area of database security, with expertise in database security products such as IBM InfoSphere Guardium, Oracle Database Vault, and Imperva.

    Browse publications by this author
Book Title
Unlock this full book with a FREE 10-day trial
Start Free Trial
