Is this chapter for you?
LiveCode has an English-like programming language, a graphical development environment, and an easy-to-understand structural metaphor. When you create an application, you spend more time thinking about how to implement the different features and less about the complexities of the tool you are using. However, if you've never used LiveCode before, it's still going to be unfamiliar at first. This chapter is to bring you up to speed and make you ready for the later chapters that will require you to be more familiar with the terminology and features of this tool.
All of LiveCode is easy, but there are thousands of easy things to learn! Throughout the book, we will look at these things, that you can use for mobile applications in particular, but first, we should go over some of the basics.
In this chapter, we will:
Become familiar with the LiveCode environment
Investigate the hierarchy of a LiveCode "stack"
Create a simple calculator application
Learn about the many different interface controls
So, let's get on with it.
Many development tools only present a programming language along with programming interfaces to system routines. Higher-level tools often present the same things, but structured in such a way that it is possible to come up with real-world metaphors for the different aspects of the tool. LiveCode is very much like that, and its metaphor is a stack of cards. This metaphor originated with Apple Computer's HyperCard authoring tool, which was created by Bill Atkinson in the mid-1980s. The first version of HyperCard was released in August 1987 and it became a huge hit in both education and multimedia sectors. Companies such as The Voyager Company, published its entire product line which was created using HyperCard.
Other companies produced tools that were very much like HyperCard, but they also tried to give the user more features than were in HyperCard. The most prominent of these tools were SuperCard, Plus, and MetaCard. Plus went on to have an interesting life; the product itself became Windows-only (it was cross-platform at first), but later, the same code ended up in the Oracle Media Objects cross-platform tool. All of these tools perpetuated the metaphor of a stack of cards.
MetaCard was most notable for the fact that it was multiplatform and not just cross platform. Stacks is the general term used for documents created by these tools, made with MetaCard that ran on Unix and Linux systems, as well as Mac and Windows. Alas, it was somewhat ugly! The Scottish company RunRev made a product that attempted to present MetaCard in a more appealing way. Eventually, RunRev acquired MetaCard, and since 2003, RunRev has continued to build upon MetaCard using the product name Runtime Revolution, which was later renamed as LiveCode.
In March 2015, RunRev also changed the company name to LiveCode Ltd. This book has many references to http://runrev.com/, and it should still be maintained as such. However, If you have a problem with a URL, substitute it with http://livecode.com/ or do a search on the LiveCode website.
In 2013, RunRev had a successful Kickstarter campaign and raised £494k ($775k) to make LiveCode open source. Version 6.0 of LiveCode was released in April 2013 as the first open source version. This led to an active development cycle with close to 20 stable releases culminating in version 7.0 of LiveCode in October 2014. This edition of this book is based on the version 7.0 of LiveCode.
The highlights of version 7 include Unicode support, display resolution independence, stretchable graphics, hybrid apps using a new browser, Mac Cocoa support, Raspberry Pi support, 64-bit Linux support, and much more. You can read more about version 7 of LiveCode in the October 23, 2014 newsletter issue at http://newsletters.livecode.com/october/issue180/. All LiveCode newsletters are available under the LiveCode Help menu.
In 2014, RunRev had another financing campaign to raise support for HTML5 and raised an additional $395k. This capability and the version 8 of LiveCode with open language support are described further in Appendix, Extending LiveCode.
Under the HyperCard variation of the stack of cards metaphor, documents consist of the cards that hold buttons, fields, and bitmap graphics; backgrounds that hold a set of cards; and stacks that hold a set of backgrounds. LiveCode takes a slightly different approach and rather than having backgrounds that hold cards, it allows you to group any set of interface controls and set those to act as if they are background entities. These end up being more flexible, though slightly alien to people who have used HyperCard a lot.
Both HyperCard and LiveCode provide ways to extend the hierarchy further. You are able to link other stacks. To save time rewriting the same set of functions in every stack, you might choose to have a stack dedicated to these functions and you can add that stack to the
stackInUse property using the following command:
start using stack "utility stack"
Additionally, you can write "externals", which are commands and functions written in the C language, which can extend LiveCode's abilities even further.
If you haven't yet installed LiveCode, go to http://livecode.com/download and download the Community Edition for your development platform. This version is open source and free to use. You will need to provide your name and e-mail which establishes a user account for LiveCode. At the time of writing this book, you also get a free App Design Kit that includes an introductory video and a mobile
If you plan to buy Commercial LiveCode, read through http://www.runrev.com/store/ to understand the many variations of licenses that are there. As a rough guide, based on the price at the time of writing this book, to create mobile applications that are free, the cost would be $99, and if you want to make apps that you could charge for, the cost would be $299. Additional levels of use and support are available at extra cost.
The two editions of LiveCode have a distinctive color scheme too, with the Commercial Edition using blue elements and the Community Edition using green elements.
Once you have downloaded the Community Edition or bought one of the commercial licenses, go ahead and launch it!
When you first open LiveCode, you are shown a Start Center window, which functions as a way to open recent documents, a list of links to forums and information to get started, or to view promotional information. There is no harm in keeping that window open, but if you do close it, you can reopen it from the Help menu. You can also use Backdrop by selecting it from the View menu to hide other application windows on your screen.
If you look at LiveCode for the first time, you will notice a toolbar at the top of the screen, just below the menu bar. Take note of the rightmost items, such as Sample Stacks, Tutorials, Resources, and Dictionary. These areas are filled with information that will help you to get started with LiveCode. Dictionary is something that you will use a lot, and just browsing through the entries will either answer your immediate question, or give you advanced information about issues you'll run into later.
The Help menu also provides access to User Guide and useful links to other information. Check the User Guide section to read in depth about the features mentioned here.
In addition to the resources you see inside LiveCode itself, there is a tremendous amount of information and a number of tutorials on the RunRev website. A good starting point would be http://lessons.runrev.com/.
This screenshot shows the windows and palettes that we're going to use for now as well as the document window, which is a simple calculator that we will build soon:
The upper area of the Tools Palette shows all the interface controls that you need to create an interactive application. Below these are a set of tools to edit vector graphics and a set of tools to edit bitmap graphics.
The Inspector Palette shows all the options for the control that you currently have selected. In the preceding screenshot, nothing is selected in the calculator app, so the Inspector Palette shows information about the stack itself.
Message Box is a window that lets you try out either single or multiple lines of code. You are able to invoke functions in your stacks too, making it a very handy way to test individual functions while you are tracking down issues. We'll use the Message Box in later chapters.
You build things in LiveCode by dragging icons from the Tools palette to the stack window. If the palettes are not already open, the Inspector palette can be opened by clicking on the icon at the left end of the toolbar or by selecting one of the inspector menu items in the Object menu. The Tools palette can be opened by selecting the Tools Palette from the Tools menu and by using the following steps
From the File menu, select New Mainstack.
In the Tools palette, click on the Edit tool (the top-right icon).
In LiveCode, you can drag controls from the Tools palette to the card window without selecting the Edit tool. However, you are not able to select the control to adjust its position or size, and so, in the following instructions, we are intentionally selecting the Edit tool before adding controls to the card window:
Drag icons from the upper section of the Tools palette to the stack window.
Try the layering options at the bottom of the Object menu.

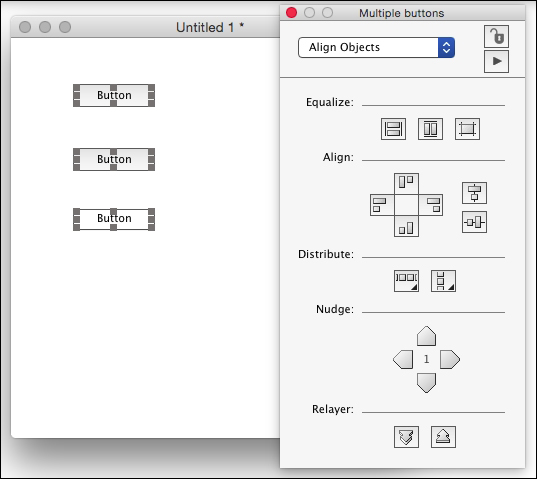

Select more than one item and experiment with the Align Objects options in the Inspector palette. The align options are shown automatically when you select multiple objects, but you can also select Align Objects from the drop-down menu in the Inspector palette. You won't see this option if only one object is selected. Here, we are able to see the options because three buttons are selected:
Select a single button and in the Inspector palette, enter a name and a label. If you don't see the Name and Label fields, make sure you have selected Basic Properties from the Inspector pallete's drop-down menu.
Add several more controls to the card window and practice aligning and naming the controls. You can also resize them by dragging the handles that you see on the corners and sides while the control is selected. Here is how the window would look if you add some buttons, a field, tab panel, slider, and video player control:
Hopefully, you will have made a random bunch of interface controls, perhaps some that are nicely lined up too! Now, select the Close and Remove From Memory option from the File menu and create a new Main Stack to make the Simple Calculator interface.
First though, we should go over some of the structure and hierarchy of a LiveCode stack and create some basic navigation.
As described in the Background history and metaphors section, LiveCode uses a stack of cards metaphor. When you make a new stack, you in effect have a single stack of cards. However, even the simplest application is likely to have more than one card. For example, there could be a splash screen, title card, cards for the actual task at hand, and a credits page. In the calculator stack, we will use two cards. The Tools menu includes an option to view the structure of the stack by showing Project Browser or Application Browser. The Project Browser was introduced in the version 6.0 of LiveCode with additional capabilities
The Project Browser panel is a powerful tool that lets you see all the stacks, cards, and controls that are open at the moment, in one window. In addition to getting an overview of everything, you can use it as a remote control to jump between all the parts of your stack and to select and modify buttons, fields, and so on.
Taking the calculator stack that we are about to make as an example, in the following screenshot, we see a side-by-side view of the stack window and the Project Browser panel, where in the Project Browser panel, we have selected one of the buttons in the stack:
The upper area of Project Browser includes a field where you can type and search text to reduce the list of items in the browser to match the ones you have typed. In the upper-left part of the panel, is a gear icon that is used to take you to the preferences of the browser:
Most of the rest of the browser window lets you expand stacks and cards, and choose individual controls on those cards. Clicking on a control in Project Browser highlights it in the stack window and vice versa. Controls can also be reordered to change layers by dragging them up and down. Controls can also be hidden or locked by clicking on the eye and lock icons. The lower area buttons let you do various alignments of the selected controls to add or duplicate the selected control. Hovering over a button shows a popup of what it does.
In programming languages, such as the one in LiveCode, code is referred to as scripts and methods or functions are known as handlers (though in LiveCode, a handler that returns a value is also called a function). Projects made with hard-to-use programming tools often comprise dozens of external text files, one for each model, view, or controller. In LiveCode, this is simpler, as the scripts are attached to the object that needs that code.
To deal with user interaction in other tools, you will have to write code that receives the event (perhaps just a mouse click on a button) to perform the relevant action. In LiveCode, there is a message path that takes care of these events, and passes the event up the hierarchy. If you click on a LiveCode interface control that doesn't have a mouse event handler, the click goes up the hierarchy to the card level. If the card doesn't have a handler for that event, it continues up to the stack level.
You can have additional levels of hierarchy by putting other stacks in use, but for our purpose, we just need these three: the button, card, and stack.
This message hierarchy allows us to place the code needed via several interface controls at a higher level available to all of these controls. One case with the calculator number buttons is that each one needs to do exactly the same thing, and by putting that code in the card level, all of them can make use of that one handler.
There isn't a performance advantage if you have the shared handler in the card level or much of a file size improvement, but as you develop the code for the simple calculator example, you can make changes in the single-card script instead of the 11 calculator button scripts.
A calculator doesn't really need a title screen, but we'll make one anyway in order to practice adding scripts and to do some basic navigation. Start a new Mainstack from the File menu and open the Inspector palette.
Select New Card from the Object menu.
Use the View menu to either go to the previous card (Go Prev) or first card (Go First).
Make sure you have the Edit tool selected in the Tools palette and drag a Label field to the middle of the card window. In this case, you can easily see which one is the Label field (it says Label: in the icon), but as a general tip, you can point to controls in the Tools Palette and see the help tip that shows what kind of control it is.
In the Basic Properties section of the Inspector palette, uncheck the Don't wrap checkbox.
titleinto the Name entry field.
Choose Contents from the Inspector drop-down menu and replace the initial text that says Label: by entering
Simple Calculatorinto the Contents entry field.
Choose Text Formatting from the drop-down menu and click on the Align text center button, the middle of the three Align buttons.
Change the font, size, and style options to make a nice looking title, resizing the field itself until you like how it looks:
Drag a Push button (the second icon from the top-left corner of the Tools palette) from the Tools palette and place it below the title field.
In the Inspector palette, choose Basic Properties from the drop-down menu (it's the menu that says Text Formatting in the preceding screenshot) and enter
Beginin the Name entry field. LiveCode will automatically show the same text as the button's label even though you didn't type it in the Label entry field.
With the button selected, choose Object Script from the Object menu. You can also right-click on the button itself and select Edit Script.
The script window will appear and show a starter script of
on mouseUp, blank line, and
end mouseUp, as shown in the following screenshot:
Complete the script by typing
go next into the blank line to give you this final script:
on mouseup go next end mouseup
Choose the Browse tool from the Tools palette (the upper leftmost tool that looks like a regular cursor arrow) and click on the Begin button that you just made. All being well, you're now looking at a blank card. Don't worry, you didn't just delete the title field and button! You're now on the second of the two cards that you made earlier. Use the View menu again to go back to the first card to try the button again.
Save! from the File menu, choose Save and save the stack with the
Simple Calculatorname somewhere you can easily find it later. Perhaps, you could make a folder to hold the several stacks you will make while reading this book.
These may have seemed like a lot of steps, but we did create the two cards we needed, laid out a nice looking title field, and a begin button with its own script. In reality, these steps take well under two minutes and will be even quicker to carry out as you gain experience in LiveCode.
If you want to make it big in the multimedia authoring tool world, which of these names would be a bad choice?
In the early days of multimedia, it seemed like everyone had one of just a few popular names. There was Bill Atkinson, who created HyperCard, and Bill Appleton, who created SuperCard. Kevin Calhoun was the lead HyperCard programmer for a while and Kevin Miller is the head of LiveCode. Bob Stein was one of the founders of The Voyager Company and along with Bob Abel who was one of the pioneers in visual effects. Dan was another good choice as there was Dan Winkler, the author of the HyperTalk language, and Danny Goodman, the author of many famous programming books. Henry would be a good name if you wanted to make motorcars or marry lots of queens.
You will find yourself using the Inspector palette a lot; so, take a moment to study how it behaves. When you select an object on the card, you will see that the Inspector palette changes its appearance, sometimes even its height, to show the options for the item you have selected. It is smart enough to notice when you have selected multiple items and shows the align tools.
Sometimes, you will want to keep an Inspector palette set to view the options of a particular object on the card, and not switch so as to show a different object as you make other selections. In the upper-right corner of the Inspector palette is a padlock icon, which will let you lock the Inspector to the current object.
So far, most of the Inspector palette options haven't affected us, but one that is about to be relevant is the fact that you can set a name for an item that is different from its label. You may know from other programming languages, and this does apply to LiveCode too, that some names are less legal than others. Perhaps you can't have spaces in the name or use a colon or backslash. If you name a button with a number, button "1" may not be button 1 and this could lead to confusion.
Using the screenshot shown at the start of this chapter as a guide, let's build the calculator buttons (the scripts you will type are also listed if you later want to make sure you typed them correctly):
If you're not already there, go to the second card, the currently empty one.
Make sure the Edit button is selected in the Tools palette and drag a Push button to the card, to the position of the
In the Basic Properties panel of the Inspector palette, set the Style drop-down menu to Rounded Rectangle (in real life, you would take the time to have nice graphical buttons; here, you are just matching my ugly "programmer art"!).
Set the name of the button to
number7and the label to
Select Object Script from the Object menu to see the starter script as you did with the Begin button.
In the empty line between
end mouseUp, type
numberPressed the label of me. Note that
numberPressedis a new handler that needs to be defined later. When used,
merefers to the current object; in this case, the button pressed.
Close and save the script.
Select the button and make a copy of it by choosing Duplicate Objects from the Edit menu and position it where the 8 button will be. Copy/Paste and Alt-drag are two other ways to duplicate an object.
Set the name to
number8, and label to
Repeat steps 8 and 9 for the buttons 9, 4, 5, 6, 1, 2, 3, 0, and the decimal point using the corresponding number instead of
8. For the decimal point, let the name be
Duplicate one of the buttons again, name the new button
divide, and type
/for its label.
Object Scriptfor the divide button and change
numberPressedin the middle line to say
operatorPressed, making the whole line
operatorPressed the short name of me.
Duplicate the divide button three more times and set the names to
minus. Set the labels to
Duplicate the = button and set the new button's name to
clearand label to
C; then, change the middle line of script to be
Drag a Label field from the Tools palette and in the Inspector palette, choose
Text Formattingfrom the drop-down menu. In the
Text Formattingsettings, choose a nice looking font, right-justified text, and a large font size. Name the field
Edit the script of the
displayfield. With fields, you don't get the starter script that you get with buttons, so you will need to type the
mouseUplines yourself. Type these three lines in the script:
set the clipboarddata["TEXT"] to me, and
end mouseUp. DO enter the quote marks on either side of the word
Move all the buttons in their right spots and select the sets of buttons to then use the Align tools and make your calculator layout match the screenshot.
Save it now!
Quite a lot just happened! We have now made all the card level objects and typed in their scripts. Most of the scripts are "calling" up to a card level handler that we will be setting up next. Before doing that, it's worth trying to understand some of the lines we just entered.
The English-like nature of the programming language in LiveCode is amazingly powerful, but rigidly so. In some other tools, you have a choice of whether you want to use verbose English-like syntax, less verbose, or what is called dot syntax. The Lingo language, in Adobe Director, is a good comparison.
put "hello world" into the text of member 1
We can perform a slightly less verbose syntax:
the text of member 1 = "hello world"
Or, we can perform a dot-syntax:
member(1).text = "hello world"
In LiveCode, there isn't a choice. What you type has to be in the form of:
put value into container
However, you do have a choice about whether to use a long version of a word, short version, or an abbreviated form. There are also synonyms, which allow you to use a word that makes more sense to you.
Here are the two ways of saying the same thing, with the second variation using an abbreviated form of the keywords:
put character 3 of word 2 of card field "name of field 1" into aVariable put char 3 of word 2 of fld 1 into aVariable
When you are dealing with the contents of the object that has the script running, you can use the keyword
me to save on some typing, and LiveCode will also try to work out what you have in mind, if possible.
Take the lines we have entered as examples:
numberPressed the label of me
numberPressed will propagate up to a card handler that we will add (soon) and
the label of me will look at the Label that you have set for the object that the script is inside of:
set the clipboarddata["TEXT"] to me
In this case,
me would normally refer to the object (as is the case with
the label of me), but because we gave the extra clue of
["TEXT"], LiveCode knows that it's the text contents of the field that have the script and not the field itself. Still, because there is potential for confusion, when reading your own code later, you could add a couple of words to make the meaning more clear:
set the clipboarddata["TEXT"] to the text of me
By the way, the display field script is not needed for the calculator to work. It's just there so that at any point of time, you can click on the field and have the current value copied to the clipboard in order to paste it in other applications.
You might choose to be more verbose than is needed, just for readability reasons, and in these chapters, this is going to be the case. It is easier to tell what is going to happen by using:
put the text of me into textvariable
The following will be less verbose compared to the preceding entry, even though they are equally valid:
put me into textVariable
In either case, as it's a field, LiveCode knows what you meant.
You see in the script that we typed
short name of me, what's that all about? Objects in LiveCode have a lengthy description of where they are located, for example, the
buttonname button of the
1234 card ID of the
path/to/stack.livecode stack. In the calculator application, we need only the single word that you set as the name of the button. If we asked for
name of me, it would still say "the
buttonname button". To just grab the name itself, we use
short name of me.
There are times when you will want to use the other variations of
name, including the long name and the abbreviated name, which you can read about in the LiveCode Dictionary entry for
name. In addition to a description of the different ways to use
name, there are a number of cautions you need to be aware of.
If any of you use advanced LiveCode, you may notice that in some cases, I have the casing wrong. LiveCode doesn't mind what casing you have used and so, when I incorrectly said
clipboarddata instead of
clipboardData, it didn't matter. This feature isn't unique to LiveCode, but it is common among near-English programming languages to not demand that the user gets the casing exactly right before the command works.
If you dared to go ahead and tried using the calculator buttons, you will see a lot of script errors. We need to add in the card level handlers to be at the receiving end of the calls that the buttons make. Instead of walking you through, typing a line of code at a time, it probably would be quicker to present the lines in one go and explain what each line does. As a practice run, here are the lines that we have entered so far:
On all the number buttons and the decimal point button, you should have this script:
on mouseup numberPressed the label of me end mouseup
The on mouseUp event is triggered when you press and release the left mouse button while on the
numberPressed call. This event will call a card handler named
numberPressed, passing with it, the label that you had set for the button that holds this script.
on mouseUp clearPressed end mouseUp
clearPressed event will call a card script named
The other buttons all work the same way; they call a handler of the name used, which we're about to add to the card script. This is script for the +, -, *, and / buttons, passing to the card level, the name of the button in question:
on mouseUp operatorPressed the short name of me end mouseUp
The following script is for the +- button:
on mouseUp toggleSign end mouseUp
The display field has this script:
on mouseUp set the clipboardData["TEXT"] to me end mouseUp
In the field's case, only one line of code is being executed, so no need to put that up on the card level, unless we had a lot of fields doing the same thing.
So, why don't we add all those card level scripts! We will take them one at a time, with an explanation of how each one works. But first, let's see how LiveCode handles variables.
Generally speaking, variables are memory locations where you store values that you need to access later, but in most programming languages, you can dictate which routines have access to which variables. Less English-like languages may include the terms
protected. Things are not that different in LiveCode, but words are used that more accurately describe the region that the variable can be used in. If a variable is to be readable everywhere, it would be
global. If it's just to be used in the current script, it's
LiveCode also has custom property variables, and as an aside, many people would use these for performing the calculator button values instead of relying on the label of the button. Perhaps, we'll use them later!
Now, where was I… oh yes, card level scripts. This is the first line of the card script:
As discussed, these are the variables that will allow the many handlers to pass values to each other. In this case, the variables could be local, but often, you may make them global instead, thinking that a case may come up later where you need to get at the variables from outside the script you're in.
It's good to reset things when you start the app and LiveCode has an
openCard event that we can pick up on. The following code resets things:
on openCard clearPressed end openCard on clearPressed put true into newNumber put 0 into field "display" put 0 into currentTotal put 0 into currentValue put empty into currentCommand end clearPressed
Having the reset lines in their own
clearPressed handler will allow us to call it at other times, not just when the card opens, and we do call it directly when we click on the C clear button. This will zero out the display field, the running total for your calculation and the last number that you entered into the calculator. It also clears the variable that is used to remember which operator button you last pressed, and a Boolean (true or false) variable is used to recognize whether a number button that you press should clear the display or append to the display.
All the numbered buttons and the decimal point button call this handler:
on numberPressed n if newnumber is true then put n into field "display" put false into newnumber else put n after field "display" end if end numberPressed
n comment after the handler name, is a parameter variable that stores the content that was sent to the handler. In this case, it's the label of the button that was pressed. All this routine needs to add is a character to the end of the display field, except when you are typing in a new number. That's where the
newNumber Boolean variable comes in; if it is set to
true, the incoming character replaces all the contents of the display field. If it's
false, the character is added to the end of the field.
This is the handler to be used when you press the +, -, *, or /, buttons:
on operatorPressed operator if currentCommand is empty then put field "display" into currentTotal put operator into currentCommand put true into newNumber else put operator into currentCommand equalsPressed end if end operatorPressed
When you use a calculator, you type in one number, an operator, and then another number, followed by either another operator or the
equals button. Now you press the operator button as there is no way to know what you're doing (since you haven't entered the next number in the calculation yet), so we have to remember the operator when we press the equals button. If the
currentCommand variable doesn't already have a value, we store the display field text into a
currentTotal variable, store the operator character that you pressed into the
currentCommand variable, and make sure that
newNumber is set to
true. Doing this makes sure that the next number button you press will clear the display field. If
currentCommand already has a value, we replace it with the new value and then call the same handler that is used when you press the
There are most likely shorter ways to cope with the
equals button being pressed, but here, we'll use several
if statements and run the appropriate calculation code:
on equalsPressed put field "display" into currentValue if currentCommand is empty then exit equalsPressed if currentCommand is "divide" then put currentTotal / currentValue into field "display" if currentCommand is "multiply" then put currentTotal * currentValue into field "display" if currentCommand is "minus" then put currentTotal - currentValue into field "display" if currentCommand is "plus" then put currentTotal + currentValue into field "display" put field "display" into currentTotal put true into newNumber put empty into currentCommand end equalsPressed
The contents of the display field are stored in the
currentValue variable and the last operator button you pressed (that is stored in
currentCommand) is looked at, to see what happens next. If there wasn't a previous operator, as would be the case if you pressed "equals" twice in a row, we'd ignore the button press and exit the routine. For the four operators, we do the appropriate calculation. Afterwards, we store the new running total in the
currentTotal variable, make sure that the
newNumber Boolean is
true (so that the next number button pressed will clear the display field), and we forget the last operator button that was pressed by putting
empty in the
One thing to note is that LiveCode is smart enough to know that the text string inside the display field is to be treated as a floating-point number.
togglesign last handler is as follows:
on togglesign if character 1 of field "display" is "-" then delete character 1 of field "display" else put "-" before field "display" end if end togglesign
This is a very simple routine that doesn't have to understand that it's floating point numbers are being represented. It simply checks whether the first character is a minus or not and if it is, it deletes the character; if not, it inserts a hyphen that LiveCode will later interpret as a negative value.
As you get to learn a new tool, you can end up taking a lot of time remembering where everything you may need, is located. You know what you want to do, you know how to do it, but you can't remember where that thing is located! For example:
Q1. Where did you go to set the text styling for the calculator's title field?
The Edit menu.
The Object menu.
The Text Formatting section of the Inspector palette.
The Text menu.
Getting to this section involved selecting the Edit tool from the Tools palette, clicking on the title field on card 1, and choosing Text Formatting from the Inspector palette drop-down menu. However, there is indeed a Text menu. Really, that's what we should have used!
It is possible to add more features to the simple calculator. If we consider the functions in the card script and how the buttons are named, we can start to see the processes that are involved in adding a new ability, some of these processes are as follows:
The calculator operator buttons are named so that the card script knows which one you clicked on.
When the "equals" button is pressed there is a set of
ifstatements in the
equalsPressedhandler that determine what happens next.
On Windows, you can add a square root symbol with
Alt 251 and on Mac, with the shortcut option + v. Unfortunately, LiveCode doesn't like these as button labels! At least on Mac, when you type the character in the Inspector palette, the character immediately vanishes. One workaround would be to use the message box and type this:
set the label of btn "squareroot" to "√"
This should give you the right symbol as the button label.
LiveCode has a square root function; typing this in the Message Box would produce the square root of 10:
Now that you are armed with the given information, try to add a square root feature to the calculator.
A file can be added from your hard drive by selecting Import as Control/Video File… from the File menu
An empty player can be created by selecting New Control/Player from the Object menu
A player control can be dragged from the Tools palette to the card. In this case, a sample movie is included
A player along with its name can be created with the code:
new player "player name"
Having added the player to the card, you can then set the video file to be played by entering the file path or URL of the file under the Basic Settings option of the Inspector palette. You can also set the path to the video with script:
set the filename of player "player name" to "file path or URL"
In much the same way as you just saw for the playing of video, still images can be added to a stack. All of the options shown to add a video player can be done in the same way for images. Here, for example, is the script needed to add the RunRev company logo to the card:
new image "revlogo" set the filename of image "revlogo" to "http://runrev.com/wp-content/themes/runrev2013/ims/runrev_logo.png"
Images that you import can be used as icons in a button. To set up a button, so that it has a nice idle state image and an associated highlight image, you would have to go through the following steps:
Select File | Import As Control | Image File….
Choose the images that represent the idle and highlight states and click on Open.
Select the button that you wish to look like these images, and under Icons & Border in the Inspector palette, click on the magic wand button to the right of the top entry ("Icon").
In the dialog that appears, select This Stack from the drop-down menu.
Select the image that is in the idle state for the button.
Click on the magic wand button next to the Hilite entry and choose the highlight state image.
Resize the button to be big enough to show the image.
Select each of the original images, and under Basic Properties, uncheck the Visible box.
In the following screenshot, we can see two images that have been imported in order to give the Begin button a more iOS-like appearance. The button is selected and the Inspector palette shows the icon selection choices:
When you choose an image for use, the button itself is updated. In this case, the Hilite icon has been set to the darker version of the graphic, but as shown here, the button still needs to be resized.
If you went ahead and tried out the calculator before we entered all the scripts it needed, you most likely will have seen the script debugging in action. Hopefully, you've managed to cope with what you saw, it can be overwhelming at first. This is what it would have looked like:
Most of what you see here is the same that you'll see when you edit scripts, but if you do see the debug variation, you are actually in a paused state, which is a freeze frame of the program as it runs. In this example, the program stopped because line 46 is looking for a field named
dis play. There isn't such a field, as it should be
The error message at the bottom of the panel makes it clear that the error has something to do with the field name and you can quickly spot the typo. Sometimes though, you may need to inspect the variables to make sure they contain the values you think they should, for example, the Variables tab will show a list of those values.
An unexpected problem is one time that you may see the debugger, but when developing a script, you are able to set breakpoints by clicking in the column just to the left of the line number you want to halt the program at.
Once the script is halted by a breakpoint, you can use the row of buttons at the top to step through the code. The content displayed as you hover the cursor above a button, is it's meaning. These buttons are:
Continue: This will set the script that runs again
Stop: This stops the script from running and switches to the editor, so that you can make changes
Show next statement: This will show an indicator to the left of the current line
Step into next statement: This is used for stepping into a different handler
Step over next statement: This is used to go onto the next statement in the current handler without stepping in a handler mentioned on the current line
Step out of current handler: This is used to skip the remaining lines in a handler that you had previously stepped into and to exit to the handler that called the current one
You will become familiar with the script editor and debugger as you go along, but that should get you started!
In this chapter, we covered just enough to make you familiar with the environment so that you can practice using some controls and to do a little script writing. There is quite a lot to LiveCode as a tool, so you may be interested to look into other topics or go into more depth than is covered here.
A good starting point would be LiveCode's own set of online tutorials, which are located at http://lessons.runrev.com/.
Type in the search box, words that describe your area of interest and you will see a list of articles on that topic.
Having created a simple calculator from scratch, you should by now be more familiar with the LiveCode environment.
In this chapter, we covered buttons, fields, scripts, and the stack structure to get an understanding of how they work together. We also showed several short scripts to illustrate the English-like syntax used by LiveCode while using the script window to debug a script.
We then examined other interface controls in preparation to use those in later chapters of this book.
We also discussed the kinds of variables used by LiveCode and how it can use abbreviated commands and synonyms.
Now that you've learned enough to make regular LiveCode stacks, we need to download and install additional software from Google and Apple that is required to publish a stack to a mobile device and then we need to begin trying out mobile-specific features—both of which are covered in the next chapter.
