Chapter 1. Getting Hadoop Up and Running in a Cluster

In this chapter, we will cover:

  • Setting up Hadoop on your machine

  • Writing the WordCount MapReduce sample, bundling it, and running it using standalone Hadoop

  • Adding the combiner step to the WordCount MapReduce program

  • Setting up HDFS

  • Using the HDFS monitoring UI

  • HDFS basic command-line file operations

  • Setting Hadoop in a distributed cluster environment

  • Running the WordCount program in a distributed cluster environment

  • Using the MapReduce monitoring UI



Introduction


For many years, users who want to store and analyze data would store the data in a database and process it via SQL queries. The Web has changed most of the assumptions of this era. On the Web, the data is unstructured and large, and the databases can neither capture the data into a schema nor scale it to store and process it.

Google was one of the first organizations to face the problem, where they wanted to download the whole of the Internet and index it to support search queries. They built a framework for large-scale data processing borrowing from the "map" and "reduce" functions of the functional programming paradigm. They called the paradigm MapReduce.

Hadoop is the most widely known and widely used implementation of the MapReduce paradigm. This chapter introduces Hadoop, describes how to install Hadoop, and shows you how to run your first MapReduce job with Hadoop.

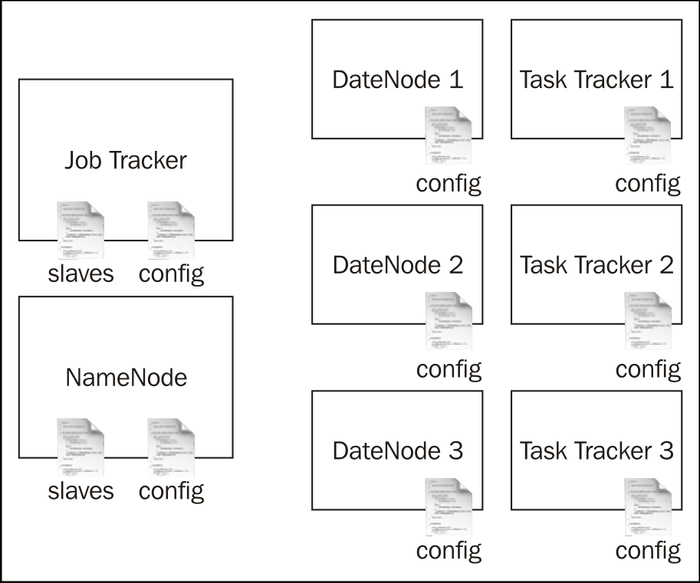

Hadoop installation consists of four types of nodes—a NameNode , DataNodes , a JobTracker , and TaskTracker HDFS nodes (NameNode and DataNodes) provide a distributed filesystem where the JobTracker manages the jobs and TaskTrackers run tasks that perform parts of the job. Users submit MapReduce jobs to the JobTracker, which runs each of the Map and Reduce parts of the initial job in TaskTrackers, collects results, and finally emits the results.

Hadoop provides three installation choices:

  • Local mode: This is an unzip and run mode to get you started right away where all parts of Hadoop run within the same JVM

  • Pseudo distributed mode: This mode will be run on different parts of Hadoop as different Java processors, but within a single machine

  • Distributed mode: This is the real setup that spans multiple machines

We will discuss the local mode in the first three recipes, and Pseudo distributed and distributed modes in the last three recipes.



Setting up Hadoop on your machine


This recipe describes how to run Hadoop in the local mode.

Getting ready

Download and install Java 1.6 or higher version from http://www.oracle.com/technetwork/java/javase/downloads/index.html.

How to do it...

Now let us do the Hadoop installation:

  1. Download the most recent Hadoop 1.0 branch distribution from http://hadoop.apache.org/.

  2. Unzip the Hadoop distribution using the following command. You will have to change the x.x in the filename with the actual release you have downloaded. If you are using Windows, you should use your favorite archive program such as WinZip or WinRAR for extracting the distribution. From this point onward, we shall call the unpacked Hadoop directory HADOOP_HOME.

    >tar -zxvf hadoop-1.x.x.tar.gz

  3. You can use Hadoop local mode after unzipping the distribution. Your installation is done. Now, you can run Hadoop jobs through bin/hadoop command, and we will elaborate that further in the next recipe.

How it works...

Hadoop local mode does not start any servers but does all the work within the same JVM. When you submit a job to Hadoop in the local mode, that job starts a JVM to run the job, and that JVM carries out the job. The output and the behavior of the job is the same as a distributed Hadoop job, except for the fact that the job can only use the current node for running tasks. In the next recipe, we will discover how to run a MapReduce program using the unzipped Hadoop distribution.

Tip

Downloading the example code

You can download the example code files for all Packt books you have purchased from your account at http://www.packtpub.com. If you purchased this book elsewhere, you can visit http://www.packtpub.com/support and register to have the files e-mailed directly to you.



Writing a WordCount MapReduce sample, bundling it, and running it using standalone Hadoop


This recipe explains how to write a simple MapReduce program and how to execute it.

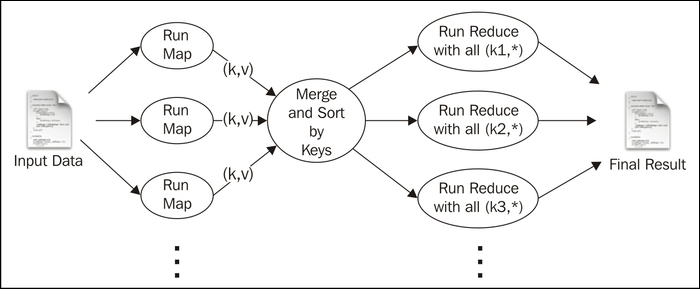

To run a MapReduce job, users should furnish a map function, a reduce function, input data, and an output data location. When executed, Hadoop carries out the following steps:

  1. Hadoop breaks the input data into multiple data items by new lines and runs the map function once for each data item, giving the item as the input for the function. When executed, the map function outputs one or more key-value pairs.

  2. Hadoop collects all the key-value pairs generated from the map function, sorts them by the key, and groups together the values with the same key.

  3. For each distinct key, Hadoop runs the reduce function once while passing the key and list of values for that key as input.

  4. The reduce function may output one or more key-value pairs, and Hadoop writes them to a file as the final result.

Getting ready

From the source code available with this book, select the source code for the first chapter, chapter1_src.zip. Then, set it up with your favorite Java Integrated Development Environment (IDE); for example, Eclipse. You need to add the hadoop-core JAR file in HADOOP_HOME and all other JAR files in the HADOOP_HOME/lib directory to the classpath of the IDE.

Download and install Apache Ant from http://ant.apache.org/.

How to do it...

Now let us write our first Hadoop MapReduce program.

  1. The WordCount sample uses MapReduce to count the number of word occurrences within a set of input documents. Locate the sample code from src/chapter1/Wordcount.java. The code has three parts—mapper, reducer, and the main program.

  2. The mapper extends from the org.apache.hadoop.mapreduce.Mapper interface. When Hadoop runs, it receives each new line in the input files as an input to the mapper. The map function breaks each line into substrings using whitespace characters such as the separator, and for each token (word) emits (word,1) as the output.

    public void map(Object key, Text value, Context context
                        ) throws IOException, InterruptedException
    {
          StringTokenizer itr = new StringTokenizer(value.toString());
           while (itr.hasMoreTokens())
           {
              word.set(itr.nextToken());
              context.write(word, new IntWritable(1));
            }
    }
  3. The reduce function receives all the values that have the same key as the input, and it outputs the key and the number of occurrences of the key as the output.

    public void reduce(Text key, Iterable<IntWritable> values,
                           Context context
                           ) throws IOException, InterruptedException {
          int sum = 0;
          for (IntWritable val : values)
          {
             sum += val.get();
          }
          result.set(sum);
          context.write(key, result);
    }
  4. The main program puts the configuration together and submits the job to Hadoop.

    Configuration conf = new Configuration();
    String[] otherArgs = new GenericOptionsParser(conf, args).getRemainingArgs();
    if (otherArgs.length != 2) {
    System.err.println("Usage: wordcount <in><out>");
    System.exit(2);
    }
    Job job = new Job(conf, "word count");
    job.setJarByClass(WordCount.class);
    job.setMapperClass(TokenizerMapper.class);
    //Uncomment this to
    //job.setCombinerClass(IntSumReducer.class);
    job.setReducerClass(IntSumReducer.class);
    job.setOutputKeyClass(Text.class);
    job.setOutputValueClass(IntWritable.class);
    FileInputFormat.addInputPath(job, new Path(otherArgs[0]));
    FileOutputFormat.setOutputPath(job, new Path(otherArgs[1]));
    System.exit(job.waitForCompletion(true) ? 0 : 1);
  5. You can compile the sample by running the following command, which uses Apache Ant, from the root directory of the sample code:

    >ant build


    If you have not done this already, you should install Apache Ant by following the instructions given at http://ant.apache.org/manual/install.html. Alternatively, you can use the compiled JAR file included with the source code.

  6. Change the directory to HADOOP_HOME, and copy the hadoop-cookbook-chapter1.jar file to the HADOOP_HOME directory. To be used as the input, create a directory called input under HADOOP_HOME and copy the README.txt file to the directory. Alternatively, you can copy any text file to the input directory.

  7. Run the sample using the following command. Here, chapter1.WordCount is the name of the main class we need to run. When you have run the command, you will see the following terminal output:

    >bin/hadoop jar hadoop-cookbook-chapter1.jar chapter1.WordCount input output
    12/04/11 08:12:44 INFO input.FileInputFormat: Total input paths to process : 16
    12/04/11 08:12:45 INFO mapred.JobClient: Running job: job_local_0001
    12/04/11 08:12:45 INFO mapred.Task: Task:attempt_local_0001_m_000000_0 is done. And is in the process of commiting
    ...........
    .....
    12/04/11 08:13:37 INFO mapred.JobClient: Job complete: job_local_0001
    .....

  8. The output directory will have a file named like part-r-XXXXX, which will have the count of each word in the document. Congratulations! You have successfully run your first MapReduce program.

How it works...

In the preceding sample, MapReduce worked in the local mode without starting any servers and using the local filesystem as the storage system for inputs, outputs, and working data. The following diagram shows what happened in the WordCount program under the covers:

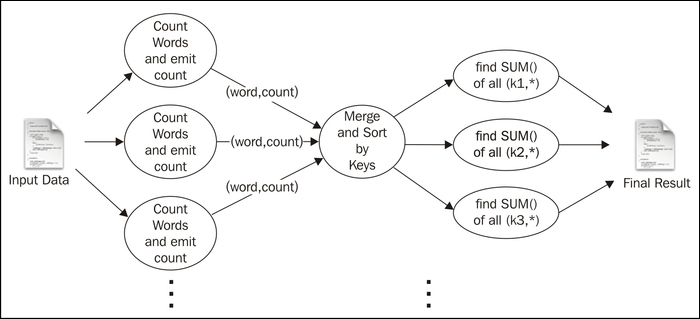

The workflow is as follows:

  1. Hadoop reads the input, breaks it by new line characters as the separator and then runs the map function passing each line as an argument.

  2. The map function tokenizes the line, and for each token (word), emits a key value pair (word, 1).

  3. Hadoop collects all the (word,1) pairs, sorts them by the word, groups all the values emitted against each unique key, and invokes the reduce once for each unique key passing the key and values for that key as an argument.

  4. The reduce function counts the number of occurrences of each word using the values and emits it as a key-value pair.

  5. Hadoop writes the final output to the output directory.

There's more...

As an optional step, copy the input directory to the top level of the IDE-based project (Eclipse project) that you created for samples. Now you can run the WordCount class directly from your IDE passing input output as arguments. This will run the sample the same as before. Running MapReduce jobs from IDE in this manner is very useful for debugging your MapReduce jobs.

Although you ran the sample with Hadoop installed in your local machine, you can run it using distributed Hadoop cluster setup with a HDFS-distributed filesystem. The recipes of this chapter, Setting up HDFS and Setting Hadoop in a distributed cluster environment will discuss how to run this sample in a distributed setup.



Adding the combiner step to the WordCount MapReduce program


After running the map function, if there are many key-value pairs with the same key, Hadoop has to move all those values to the reduce function. This can incur a significant overhead. To optimize such scenarios, Hadoop supports a special function called combiner . If provided, Hadoop will call the combiner from the same node as the map node before invoking the reducer and after running the mapper. This can significantly reduce the amount of data transferred to the reduce step.

This recipe explains how to use the combiner with the WordCount sample introduced in the previous recipe.

How to do it...

Now let us run the MapReduce job adding the combiner:

  1. Combiner must have the same interface as the reduce function. For the WordCount sample, we will reuse the reduce function as the combiner.

  2. To ask the MapReduce job to use the combiner, let us uncomment the line //job.setCombinerClass(IntSumReducer.class); in the sample and recompile the code.

  3. Copy the hadoop-cookbook-chapter1.jar file to the HADOOP_HOME directory and run the WordCount as done in the earlier recipe. Make sure to delete the old output directory before running the job.

  4. Final results will be available from the output directory.

How it works...

To activate a combiner, users should provide a mapper, a reducer, and a combiner as input to the MapReduce job. In that setting, Hadoop executes the combiner in the same node as the mapper function just after running the mapper. With this method, the combiner can pre-process the data generated by the mapper before sending it to the reducer, thus reducing the amount of data that is getting transferred.

For example, with the WordCount, combiner receives (word,1) pairs from the map step as input and outputs a single (word, N) pair. For example, if an input document has 10,000 occurrences of word "the", the mapper will generate 10,000 (the,1) pairs, while the combiner will generate one (the,10,000) thus reducing the amount of data transferred to the reduce task.

However, the combiner only works with commutative and associative functions. For example, the same idea does not work when calculating mean. As mean is not communicative and associative, a combiner in that case will yield a wrong result.

There's more...

Although in the sample we reused the reduce function implementation as the combiner function, you may write your own combiner function just like we did for the map and reduce functions in the previous recipe. However, the signature of the combiner function must be identical to that of the reduce function.

In a local setup, using a combiner will not yield significant gains. However, in the distributed setups as described in Setting Hadoop in a distributed cluster environment recipe, combiner can give significant gains.



Setting up HDFS


HDFS is the distributed filesystem that is available with Hadoop. MapReduce tasks use HDFS to read and write data. HDFS deployment includes a single NameNode and multiple DataNodes.

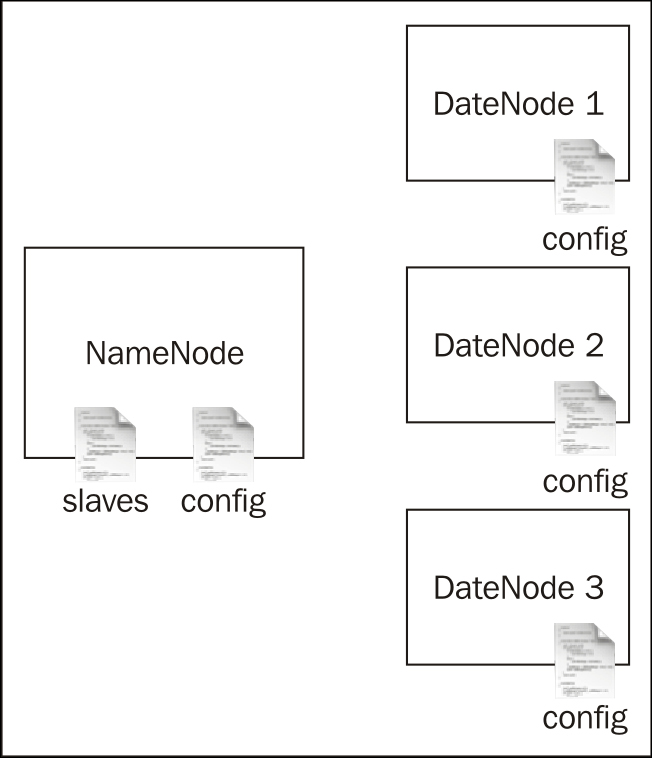

For the HDFS setup, we need to configure NameNodes and DataNodes, and then specify the DataNodes in the slaves file. When we start the NameNode, startup script will start the DataNodes.

Getting ready

You may follow this recipe either using a single machine or multiple machines. If you are using multiple machines, you should choose one machine as the master node where you will run the HDFS NameNode. If you are using a single machine, use it as both the NameNode as well as the DataNode.

  1. Install Java in all machines that will be used to set up the HDFS cluster.

  2. If you are using Windows machines, install Cygwin and SSH server in each machine. The link http://pigtail.net/LRP/printsrv/cygwin-sshd.html provides step-by-step instructions.

How to do it...

Now let us set up HDFS in the distributed mode.

  1. Enable SSH from master nodes to slave nodes. Check that you can login to the localhost and all other nodes using SSH without a passphrase by running one of the following commands:

    • >ssh localhost

    • >ssh IPaddress

  2. If the above command returns an error or asks for a password, create SSH keys by executing the following command:

    >ssh-keygen -t dsa -P '' -f ~/.ssh/id_dsa


    Move the ~/.ssh/id_dsa.pub file to the all the nodes in the cluster. Then add the SSH keys to the ~/.ssh/authorized_keys file in each node by running the following command (if the authorized_keys file does not exist, run the following command. Else, skip to the cat command):

    >touch ~/.ssh/authorized_keys && chmod 600 ~/.ssh/authorized_keys


    Now with permissions set, add your key to the ~/.ssh/authorized_keys file.

    >cat ~/.ssh/id_dsa.pub >> ~/.ssh/authorized_keys


    Then you can log in with the following command:

    >ssh localhost


    This command creates an SSH key pair in the .ssh/ directory of the home directory, and registers the generated public key with SSH as a trusted key.

  3. In each machine, create a directory for storing HDFS data. Let's call that directory HADOOP_DATA_DIR. Now let us create two sub directories, HADOOP_DATA_DIR/data and HADOOP_DATA_DIR/name. Change the directory permissions to 755 by running the following command for each directory:

    >chmod 755 <name of dir>

  4. In the NameNode, change directory to the unzipped HADOOP_HOME directory. Then place the IP address of all slave nodes in the HADOOP_HOME/conf/slaves file, each on a separate line. When we start the NameNode, it will use the slaves file to start the DataNodes.

  5. In all machines, edit the HADOOP_HOME/conf/hadoop-env.sh file by uncommenting the JAVA_HOME line and pointing it to your local Java installation. For example, if Java is in /opt/jdk1.6, change the JAVA_HOME line to export JAVA_HOME=/opt/jdk1.6.

  6. Inside each node's HADOOP_HOME/conf directory, add the following code to the core-site.xml and hdfs-site.xml files. Before adding the configurations, replace the MASTER_NODE strings with the IP address of the master node and HADOOP_DATA_DIR with the directory you created in the first step.

    HADOOP_HOME/conf/core-site.xml

    <configuration>
    <property>
    <name>fs.default.name</name>
    <!-- URL of MasterNode/NameNode -->
    <value>hdfs://MASTER_NODE:9000/</value>
    </property>
    </configuration>

    HADOOP_HOME/conf/hdfs-site.xml

    <configuration>
    <property>
    <name>dfs.name.dir</name>
    <!-- Path to store namespace and transaction logs -->
    <value>HADOOP_DATA_DIR/name</value>
    </property>
    <property>
    <name>dfs.data.dir</name>
    <!-- Path to store data blocks in datanode -->
    <value>HADOOP_DATA_DIR/data</value>
    </property>
    </configuration>
  7. From the NameNode, run the following command to format a new filesystem:

    >bin/hadoop namenode –format

    12/04/09 08:44:50 INFO namenode.NameNode: STARTUP_MSG:
    /************************************************************
    …
    12/04/09 08:44:51 INFO common.Storage: Storage directory /Users/srinath/playground/hadoop-book/hadoop-temp/dfs/name has been successfully formatted.
    12/04/09 08:44:51 INFO namenode.NameNode: SHUTDOWN_MSG:
    /************************************************************
    SHUTDOWN_MSG: Shutting down NameNode at Srinath-s-MacBook-Pro.local/172.16.91.1
    ************************************************************/

  8. Start the HDFS setup with the following command:

    >bin/start-dfs.sh


    This command will first start a NameNode. It will then look at the HADOOP_HOME/conf/slaves file and start the DataNodes. It will print a message like the following to the console.

    starting namenode, logging to /root/hadoop-setup-srinath/hadoop-1.0.0/libexec/../logs/hadoop-root-namenode-node7.beta.out
    209.126.198.72: starting datanode, logging to /root/hadoop-setup-srinath/hadoop-1.0.0/libexec/../logs/hadoop-root-datanode-node7.beta.out
    209.126.198.71: starting datanode, logging to /root/hadoop-setup-srinath/hadoop-1.0.0/libexec/../logs/hadoop-root-datanode-node6.beta.out
    209.126.198.72: starting secondarynamenode, logging to /root/hadoop-setup-srinath/hadoop-1.0.0/libexec/../logs/hadoop-root-secondarynamenode-node7.beta.out


    Hadoop uses a centralized architecture for metadata. In this design, the NameNode holds the information of all the files and where the data blocks for each file are located. The NameNode is a single point of failure, and on failure it will stop all the operations of the HDFS cluster. To avoid this, Hadoop supports a secondary NameNode that will hold a copy of all data in NameNode. If the NameNode fails, the secondary NameNode takes its place.

  9. Access the link http://MASTER_NODE:50070/ and verify that you can see the HDFS startup page. Here, replace MASTER_NODE with the IP address of the master node running the HDFS NameNode.

  10. Finally, shut down the HDFS cluster using the following command:

    >bin/stop-dfs.sh


How it works...

When started, the NameNode will read the HADOOP_HOME/conf/slaves files, find the DataNodes that need to be started, start them, and set up the HDFS cluster. In the HDFS basic command line file operations recipe, we will explore how to use HDFS to store and manage files.

HDFS setup is only a part of the Hadoop installation. The Setting Hadoop in a distributed cluster environment recipe describes how to set up the rest of the Hadoop.



Using HDFS monitoring UI


HDFS comes with a monitoring web console to verify the installation and monitor the HDFS cluster. It also lets users explore the content of the HDFS filesystem. In this recipe, we will look at how we can access the HDFS monitoring UI and verify the installation.

Getting ready

Start the HDFS cluster as described in the previous recipe.

How to do it...

Let us access the HDFS web console.

  1. Access the link http://MASTER_NODE:50070/ using your browser, and verify that you can see the HDFS startup page. Here, replace MASTER_NODE with the IP address of the master node running the HDFS NameNode.

  2. The following screenshot shows the current status of the HDFS installation including the number of nodes, total storage, storage taken by each node. It also allows users to browse the HDFS filesystem.



HDFS basic command-line file operations


HDFS is a distributed filesystem, and just like a Unix filesystem, it allows users to manipulate the filesystem using shell commands. This recipe explains how to use the HDFS basic command line to execute those commands.

It is worth noting that HDFS commands have a one-to-one correspondence with Unix commands. For example, consider the following command:

>hadoop dfs –cat /data/foo.txt

The command reads the /data/foo.txt file and prints it to the screen, just like the cat command in Unix system.

Getting ready

Start the HDFS server by following the Setting up HDFS recipe.

How to do it...

  1. Change the directory to HADOOP_HOME.

  2. Run the following command to create a new directory called /test:

    >bin/hadoop dfs -mkdir /test

  3. HDFS filesystem has / as the root directory just like the Unix filesystem. Run the following command to list the content of the HDFS root directory:

    >bin/hadoop dfs -ls /

  4. Run the following command to copy the local readme file to /test

    >bin/hadoop dfs -put README.txt /test

  5. Run the following command to list the /test directory:

    >bin/hadoop dfs -ls /test

    Found 1 items
    -rw-r--r--   1 srinath supergroup       1366 2012-04-10 07:06 /test/README.txt

  6. Run the following command to copy the /test/README.txt to local directory:

    >bin/hadoop dfs -get /test/README.txt README-NEW.txt


How it works...

When a command is issued, the client will talk to the HDFS NameNode on the user's behalf and carry out the operation. Generally, we refer to a file or a folder using the path starting with /; for example, /data, and the client will pick up the NameNode from configurations in the HADOOP_HOME/conf directory.

However, if needed, we can use a fully qualified path to force the client to talk to a specific NameNode. For example, hdfs://bar.foo.com:9000/data will ask the client to talk to NameNode running on bar.foo.com at the port 9000.

There's more...

HDFS supports most of the Unix commands such as cp, mv, and chown, and they follow the same pattern as the commands discussed above. The document http://hadoop.apache.org/docs/r1.0.3/file_system_shell.html provides a list of all commands. We will use these commands throughout, in the recipes of the book.



Setting Hadoop in a distributed cluster environment


Hadoop deployment includes a HDFS deployment, a single job tracker, and multiple TaskTrackers. In the preceding recipe, Setting up HDFS, we discussed the HDFS deployment. For the Hadoop setup, we need to configure JobTrackers and TaskTrackers and then specify the TaskTrackers in the HADOOP_HOME/conf/slaves file. When we start the JobTracker, it will start the TaskTracker nodes. The following diagram illustrates a Hadoop deployment:

Getting ready

You may follow this recipe either using a single machine or multiple machines. If you are using multiple machines, you should choose one machine as the master node where you will run the HDFS NameNode and the JobTracker. If you are using a single machine, use it as both the master node as well as a slave node.

  1. Install Java in all machines that will be used to set up Hadoop.

  2. If you are using Windows machines, first install Cygwin and SSH server in each machine. The link http://pigtail.net/LRP/printsrv/cygwin-sshd.html provides step-by-step instructions.

How to do it...

Let us set up Hadoop by setting up the JobTracker and TaskTrackers.

  1. In each machine, create a directory for Hadoop data. Let's call this directory HADOOP_DATA_DIR. Then create three directories, HADOOP_DATA_DIR/data, HADOOP_DATA_DIR/local, and HADOOP_DATA_DIR/name.

  2. Set up SSH keys to all machines so that we can log in to all from the master node. The Setting up HDFS recipe describes the SSH setup in detail.

  3. Unzip the Hadoop distribution at the same location in all machines using the >tar -zxvf hadoop-1.x.x.tar.gz command. You can use any of the Hadoop 1.0 branch distributions.

  4. In all machines, edit the HADOOP_HOME/conf/hadoop-env.sh file by uncommenting the JAVA_HOME line and point it to your local Java installation. For example, if Java is in /opt/jdk1.6, change the JAVA_HOME line to export JAVA_HOME=/opt/jdk1.6.

  5. Place the IP address of the node used as the master (for running JobTracker and NameNode) in HADOOP_HOME/conf/masters in a single line. If you are doing a single-node deployment, leave the current value, localhost, as it is.

    209.126.198.72
  6. Place the IP addresses of all slave nodes in the HADOOP_HOME/conf/slaves file, each in a separate line.

    209.126.198.72
    209.126.198.71
  7. Inside each node's HADOOP_HOME/conf directory, add the following to the core-site.xml, hdfs-site.xml and mapred-site.xml. Before adding the configurations, replace the MASTER_NODE with the IP of the master node and HADOOP_DATA_DIR with the directory you created in the first step.

    Add URL of the NameNode to HADOOP_HOME/conf/core-site.xml.

    <configuration>
    <property>
    <name>fs.default.name</name>
    <value>hdfs://MASTER_NODE:9000/</value>
    </property>
    </configuration>

    Add locations to store metadata (names) and data within HADOOP_HOME/conf/hdfs-site.xml to submit jobs:

    <configuration>
    <property>
    <name>dfs.name.dir</name>
    <value>HADOOP_DATA_DIR/name</value>
    </property>
    <property>
    <name>dfs.data.dir</name>
    <value>HADOOP_DATA_DIR/data</value>
    </property>
    </configuration>

    Map reduce local directory is the location used by Hadoop to store temporary files used. Add JobTracker location to HADOOP_HOME/conf/mapred-site.xml. Hadoop will use this for the jobs. The final property sets the maximum map tasks per node, set it the same as the amount of cores (CPU).

    <configuration>
    <property>
    <name>mapred.job.tracker</name>
    <value>MASTER_NODE:9001</value>
    </property>
    <property>
    <name>mapred.local.dir</name>
    <value>HADOOP_DATA_DIR/local</value>
    </property>
    <property>
    <name>mapred.tasktracker.map.tasks.maximum</name>
    <value>8</value>
    </property>
    </configuration>
  8. To format a new HDFS filesystem, run the following command from the Hadoop NameNode (master node). If you have done this as part of the HDFS installation in earlier recipe, you can skip this step.

    >bin/hadoop namenode –format
    ...
    /Users/srinath/playground/hadoop-book/hadoop-temp/dfs/name has been successfully formatted.
    12/04/09 08:44:51 INFO namenode.NameNode: SHUTDOWN_MSG:
    /************************************************************
    SHUTDOWN_MSG: Shutting down NameNode at Srinath-s-MacBook-Pro.local/172.16.91.1
    ************************************************************/

  9. In the master node, change the directory to HADOOP_HOME and run the following commands:

    >bin/start-dfs.sh
    starting namenode, logging to /root/hadoop-setup-srinath/hadoop-1.0.0/libexec/../logs/hadoop-root-namenode-node7.beta.out
    209.126.198.72: starting datanode, logging to /root/hadoop-setup-srinath/hadoop-1.0.0/libexec/../logs/hadoop-root-datanode-node7.beta.out
    209.126.198.71: starting datanode, logging to /root/hadoop-setup-srinath/hadoop-1.0.0/libexec/../logs/hadoop-root-datanode-node6.beta.out
    209.126.198.72: starting secondarynamenode, logging to /root/hadoop-setup-srinath/hadoop-1.0.0/libexec/../logs/hadoop-root-secondarynamenode-node7.beta.out
    >bin/start-mapred.sh
    starting jobtracker, logging to /root/hadoop-setup-srinath/hadoop-1.0.0/libexec/../logs/hadoop-root-jobtracker-node7.beta.out
    209.126.198.72: starting tasktracker, logging to /root/hadoop-setup-srinath/hadoop-1.0.0/libexec/../logs/hadoop-root-tasktracker-node7.beta.out
    209.126.198.71: starting tasktracker, logging to /root/hadoop-setup-srinath/hadoop-1.0.0/libexec/../logs/hadoop-root-tasktracker-node6.beta.out

  10. Verify the installation by listing the processes through the ps | grep java command (if you are using Linux) or via Task Manager (if you are in Windows), in the master node and slave nodes. Master node will list four processes—NameNode, DataNode, JobTracker, and TaskTracker and slaves will have a DataNode and TaskTracker.

  11. Browse the web-based monitoring pages for namenode and JobTracker:

    • NameNode: http://MASTER_NODE:50070/.

    • JobTracker: http://MASTER_NODE:50030/.

  12. You can find the logfiles under ${HADOOP_HOME}/logs.

  13. Make sure HDFS setup is OK by listing the files using HDFS command line.

    bin/hadoop dfs -ls /

    Found 2 items
    drwxr-xr-x   - srinath supergroup    0 2012-04-09 08:47 /Users
    drwxr-xr-x   - srinath supergroup    0 2012-04-09 08:47 /tmp


How it works...

As described in the introduction to the chapter, Hadoop installation consists of HDFS nodes, a JobTracker and worker nodes. When we start the NameNode, it finds the slaves through the HADOOP_HOME/slaves file and uses SSH to start the DataNodes in the remote server at the startup. Also when we start the JobTracker, it finds the slaves through the HADOOP_HOME/slaves file and starts the TaskTrackers.

There's more...

In the next recipe, we will discuss how to run the aforementioned WordCount program using the distributed setup. The following recipes will discuss how to use MapReduce monitoring UI to monitor the distributed Hadoop setup.



Running the WordCount program in a distributed cluster environment


This recipe describes how to run a job in a distributed cluster.

Getting ready

Start the Hadoop cluster.

How to do it...

Now let us run the WordCount sample in the distributed Hadoop setup.

  1. To use as inputs to the WordCount MapReduce sample that we wrote in the earlier recipe, copy the README.txt file in your Hadoop distribution to the HDFS filesystem at the location /data/input1.

    >bin/hadoop dfs -mkdir /data/
    >bin/hadoop dfs -mkdir /data/input1
    >bin/hadoop dfs -put README.txt /data/input1/README.txt
    >bin/hadoop dfs -ls /data/input1

    Found 1 items
    -rw-r--r--   1 srinath supergroup       1366 2012-04-09 08:59 /data/input1/README.txt

  2. Now, let's run the WordCount example from the HADOOP_HOME directory.

    >bin/hadoop jar hadoop-examples-1.0.0.jar wordcount /data/input1 /data/output1

    12/04/09 09:04:25 INFO input.FileInputFormat: Total input paths to process : 1
    12/04/09 09:04:26 INFO mapred.JobClient: Running job: job_201204090847_0001
    12/04/09 09:04:27 INFO mapred.JobClient:  map 0% reduce 0%
    12/04/09 09:04:42 INFO mapred.JobClient:  map 100% reduce 0%
    12/04/09 09:04:54 INFO mapred.JobClient:  map 100% reduce 100%
    12/04/09 09:04:59 INFO mapred.JobClient: Job complete: job_201204090847_0001
    .....

  3. Run the following commands to list the output directory and then look at the results.

    >bin/hadoop dfs -ls /data/output1

    Found 3 items
    -rw-r--r--   1 srinath supergroup          0 2012-04-09 09:04 /data/output1/_SUCCESS
    drwxr-xr-x   - srinath supergroup          0 2012-04-09 09:04 /data/output1/_logs
    -rw-r--r--   1 srinath supergroup       1306 2012-04-09 09:04 /data/output1/part-r-00000

    >bin/hadoop dfs -cat /data/output1/*

    (BIS),  1
    (ECCN)	  1
    (TSU)  1
    (see  1
    5D002.C.1,  1
    740.13)  1


How it works...

Job submission to the distributed Hadoop works in a similar way to the job submissions to local Hadoop installation, as described in the Writing a WordCount MapReduce sample, bundling it and running it using standalone Hadoop recipe. However, there are two main differences.

First, Hadoop stores both the inputs for the jobs and output generated by the job in HDFS filesystem. Therefore, we use step 1 to store the inputs in the HDFS filesystem and we use step 3 read outputs from the HDFS filesystem.

Secondly, when job is submitted, local Hadoop installation runs the job as a local JVM execution. However, the distributed cluster submits it to the JobTracker, and it executes the job using nodes in the distributed Hadoop cluster.

There's more...

You can see the results of the WordCount application also through the HDFS monitoring UI, as described in the Using HDFS monitoring UI recipe, and also you can see the statistics about the WordCount job as explained in the next recipe, Using MapReduce Monitoring UI.



Using MapReduce monitoring UI


This recipe describes how to use the Hadoop monitoring web console to verify Hadoop installation, and to monitor the allocations and uses of each part of the Hadoop cluster.

How to do it...

Now let us visit the Hadoop monitoring web console.

  1. Access http://MASTER_NODE:50030/ using the browser where MASTER_NODE is the IP address of the master node.

  2. The web page shows the current status of the MapReduce installation, including running and completed jobs.

How it works...

Hadoop monitoring UI lets users access the JobTracker of the Hadoop installation and find different nodes in the installation, their configurations, and usage. For example, users can use the UI to see current running jobs and logs associated with the jobs.

About the Authors

  • Srinath Perera

    Srinath Perera is a senior software architect at WSO2 Inc., where he overlooks the overall WSO2 platform architecture with the CTO. He also serves as a research scientist at Lanka Software Foundation and teaches as a visiting faculty at Department of Computer Science and Engineering, University of Moratuwa. He is a co-founder of Apache Axis2 open source project, and he has been involved with the Apache Web Service project since 2002 and is a member of Apache Software foundation and Apache Web Service project PMC. He is also a committer of Apache open source projects Axis, Axis2, and Geronimo. He received his Ph.D. and M.Sc. in Computer Sciences from Indiana University, Bloomington, USA and received his Bachelor of Science in Computer Science and Engineering degree from the University of Moratuwa, Sri Lanka. He has authored many technical and peer reviewed research articles, and more details can be found on his website. He is also a frequent speaker at technical venues. He has worked with large-scale distributed systems for a long time. He closely works with Big Data technologies like Hadoop and Cassandra daily. He also teaches a parallel programming graduate class at University of Moratuwa, which is primarily based on Hadoop.

    Browse publications by this author
  • Thilina Gunarathne

    Thilina Gunarathne is a senior data scientist at KPMG LLP. He led the Hadoop-related efforts at Link Analytics before its acquisition by KPMG LLP. He has extensive experience in using Apache Hadoop and its related technologies for large-scale data-intensive computations. He coauthored the first edition of this book, Hadoop MapReduce Cookbook, with Dr. Srinath Perera.

    Thilina has contributed to several open source projects at Apache Software Foundation as a member, committer, and a PMC member. He has also published many peer-reviewed research articles on how to extend the MapReduce model to perform efficient data mining and data analytics computations in the cloud. Thilina received his PhD and MSc degrees in computer science from Indiana University, Bloomington, USA, and received his bachelor of science degree in computer science and engineering from University of Moratuwa, Sri Lanka.

    Browse publications by this author

Latest Reviews

(1 reviews total)
Good book, yet since the software versions change so fast sometimes is difficult to follow in the code examples
Book Title
Unlock this full book FREE 10 day trial
Start Free Trial
