In this chapter, you will learn the following recipes:
Creating a basic AngularJS application
Running a simple test using Jasmine
Installing Protractor
Running a simple test using Protractor
Installing Karma
Running tests using Karma
Installing Testem
Running tests using Testem
Automating test runners using Grunt
Automating test runners using Gulp
In this chapter, you will learn various approaches available to configure and test an AngularJS application. These include simple unit tests using Jasmine, integration tests using Protractor, running tests using Karma/Testem, and finally using the Grunt /Gulp build tools to automate tasks.
It's important not to get too overwhelmed by automation of the various libraries available for testing. Each recipe within this book can simply be written and tested using Jasmine and Protractor. This cookbook's overall intention is to make each recipe as accessible as possible using the minimum number of toolsets.
The first half of this chapter is crucial to understand testing throughout this cookbook and we recommend that anyone looking to get started testing AngularJS applications reads it carefully.
There are, however, some great advantages to be gained from using some of the tools and libraries available out there to configure and automate running tests. The second half of this chapter will provide instructions on how to get started with these tools and the information learned from these recipes can be used throughout the book if you choose to.
This recipe will form the structure for the majority of recipes throughout this cookbook. Additionally, it will provide a code base that can be used and tested in this chapter's recipes, sparing you the task of recreating your own code base throughout these initial configuration steps. The intention is for you, as a reader, to run recipes with minimal configuration and a limited set of libraries. The justification behind this simplicity is to maintain accessibility to each recipe independently. After completing this recipe, you will have a clear idea of the basic setup of an AngularJS application and can build on this foundation as the recipes advance.
Nothing specific is required for this recipe except your usual text editor and browser. Alternatively, you can use an online editor such as http://jsfiddle.net or http://plnkr.co.
You should first create a new directory to store the application files named
basic_example
.Following this, create a new JavaScript file named
cookbook.js
and within this file, create an application module namedcookbook
:angular.module('cookbook', [])
Next, add the controller's constructor function to the module using the
.controller()
method. Assign a value to theemcee
property on thescope
instance:.controller('MainCtrl', ['$scope', function($scope) { $scope.emcee = 'Kool G Rap'; }])
You now need to create an
index.html
file and add script references to both theangular.js
source code (via their content delivery network) and thecookbook.js
files either between the<head>
tags or just before the closing<body>
tag:<script type="text/javascript" src="http://code.angularjs.org/1.2.28/angular.min.js"></script> <script type="text/javascript" src="cookbook.js"></script>
Following this, bootstrap the application on a document level naming the module
cookbook
:<html ng-app="cookbook">
Declare a controller named
MainCtrl
on an HTMLdiv
tag and using AngularJS's binding syntax, declare theemcee
expression as follows:<div ng-controller="MainCtrl"> <span>Favourite member of the Juice Crew: {{emcee}}</span> </div>
This will be part of the HTML code, which you can see in its entirety, as follows:
<!DOCTYPE html> <html ng-app="cookbook"> <head> <script type="text/javascript" src="http://code.angularjs.org/1.2.28/angular.min.js"> </script> <script type="text/javascript" src="cookbook.js"></script> </head> <body> <div ng-controller="MainCtrl"> <span>Favourite member of the Juice Crew: {{emcee}}</span> </div> </body> </html>
By this point, you may have created your application. You can see this by opening index.html
in a browser. Also, Kool G Rap

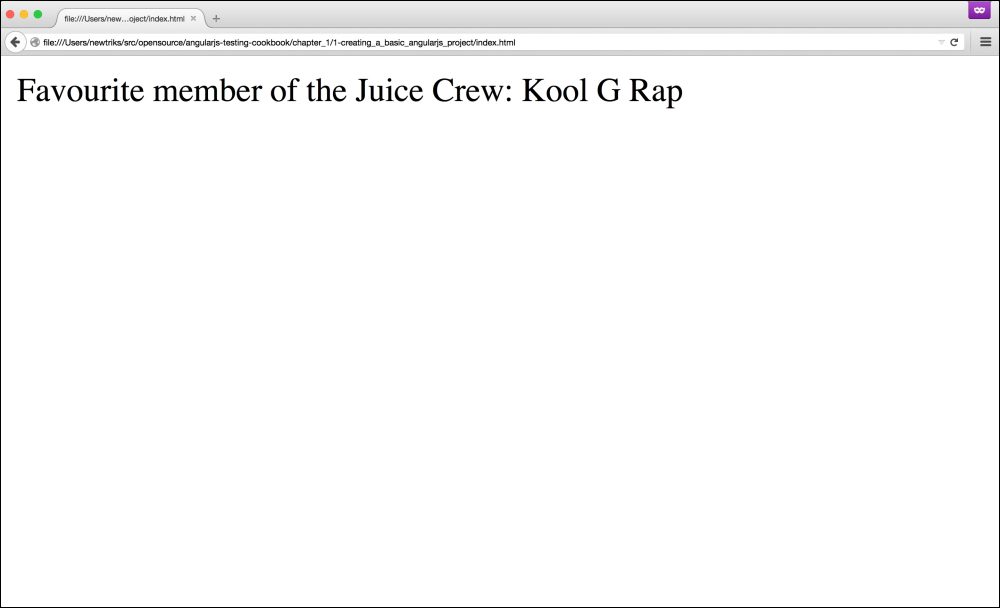

will be displayed as you can see in the following screenshot:

The preceding process demonstrates the basic steps to configure a simple AngularJS application and should be familiar to you. The view component is automatically synchronized with the model data using AngularJS data binding. AngularJS takes data binding one step further by offering two-way data binding, resulting in changes to the model propagated to the view and vice versa.
For more information, specific to data binding, please consult the official documentation at http://docs.angularjs.org/guide/databinding.
The AngularJS website offers a step-by-step tutorial available at https://docs.angularjs.org/tutorial that offers a quick overview to getting started.
This book is focused on testing AngularJS with the behavior-driven development framework Jasmine. Jasmine is currently the framework used for testing the AngularJS code base. With the increased popularity of test runners and generators, the core basics of using Jasmine without these additional tools is sometimes overlooked. In this recipe, you will learn how to set up a basic specification, load an AngularJS module, instantiate a controller, and finally, run a spec testing a value on scope
. The series of steps within this recipe are the basis for all your AngularJS tests using Jasmine. The general structure is as follows:
Injecting dependencies
Defining a context
Writing specs
To solidify your base of comprehension regarding Jasmine, I recommend that you read through the documentation at http://jasmine.github.io/2.0/introduction.html. Within this recipe and throughout the rest of this book, we will follow the same directory structure as the AngularJS team (https://github.com/angular/angular.js/tree/v1.2.28). Their approach places application code within a directory named src
and test-related code in a directory named test
. You may have your own preferences on naming conventions and directory structure, and can choose to adopt those as you feel comfortable within the recipes throughout this book.
In this recipe, we will build upon the basic project created in this chapter's first recipe. To get ready, perform the following steps to install Jasmine and prepare your project for testing:
First, create a new directory called
src
in your project directory.Next, move the
cookbook.js
file we wrote earlier in this chapter to thesrc
directory.Ensure that you have downloaded and unzipped the Jasmine framework by visiting https://github.com/pivotal/jasmine/blob/master/dist/jasmine-standalone-2.0.0.zip?raw=true in your browser.
Finally, copy the unzipped
jasmine-2.0.0
directory to a folder namedlib
within your project directory.
First, copy the
SpecRunner.html
file from thejasmine-2.x.x
directory to a new directory namedtest
in the project root folder.Next, update the
SpecRunner.html
file with the correct paths to the Jasmine files:<link rel="stylesheet" type="text/css" href="../lib/jasmine-2.0.0/jasmine.css"> <script type="text/javascript" src="../lib/jasmine-2.0.0/jasmine.js"></script> <script type="text/javascript" src="../lib/jasmine-2.0.0/jasmine-html.js"></script> <script type="text/javascript" src="../lib/jasmine-2.0.0/boot.js"></script>
Now, update the
SpecRunner.html
file to include AngularJS and AngularJS mock libraries. Order is important here, themocks.js
library must be below the AngularJS script include:<script type="text/javascript" src="http://code.angularjs.org/1.2.28/angular.js"></script> <script type="text/javascript" src="http://code.angularjs.org/1.2.28/angular-mocks.js"></script>
Edit the
SpecRunner.html
file replacing the source file paths with our maincookbook.js
file path:<script type="text/javascript" src="../src/cookbook.js"></script>
Next, create a new file named
cookbookSpec.js
within the test directory and add adescribe
block with abeforeEach()
function that loads our module:describe('MainCtrl', function () { beforeEach(module('cookbook')); });
Still within the describe block, create a basic test that injects the
$controller
service and$rootscope
. We can then create a new$scope
object and instantiate a new instance of our controller providing the$scope
object:it('should assign the correct rapper to scope', inject(function ($controller, $rootScope) { var $scope = $rootScope.$new(); $controller('MainCtrl', { $scope: $scope }); }));
Create an expectation asserting that the value on scope is as expected:
expect($scope.emcee).toEqual('Kool G Rap');
Update
SpecRunner.html
to includecookbookSpec.js
:<script type="text/javascript" src="cookbookSpec.js"></script>
Finally, open
SpecRunner.html

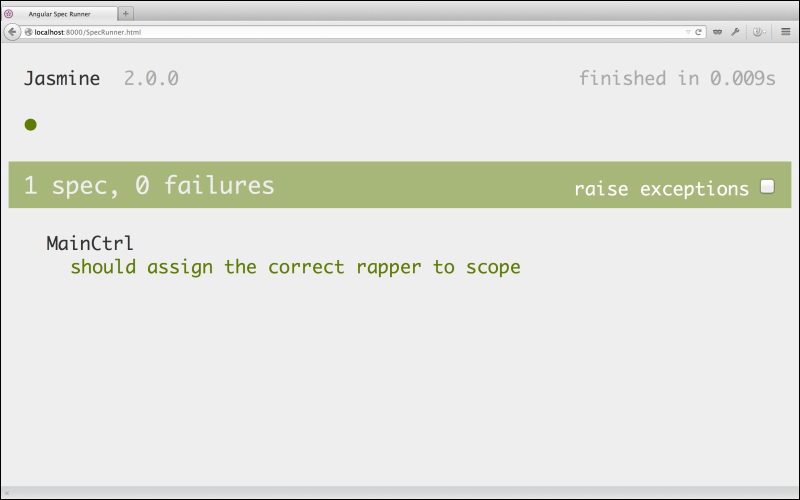

in a browser and you should see your first test passing:

In step 1, we use the SpecRunner.html
file that Jasmine provides as a basis to build on for our test. Once we move the file into our directory structure, we need to ensure that all the paths correlate to the Jasmine files correctly; this we do in step 2.
The idea behind unit testing is to test the functionality of a piece of code in isolation. The AngularJS team helps to ease this process by offering replicas of objects called mocks that make unit testing easier by decoupling the components. The angular-mocks.js
file loads the ngMock
module (https://docs.angularjs.org/api/ngMock) so we can inject and mock AngularJS services. In step 3, we ensure that the AngularJS library is loaded in addition to the angular-mocks.js
file.
Note
The angular-mocks.js
library depends on AngularJS and therefore must be loaded after the angular.js
file.
In step 4, we ensure that our main cookbook.js
application code is loaded and ready to test. Then, in step 5, we define a context based on our MainCtrl
controller and a beforeEach()
function. The beforeEach()
function is passed a string alias cookbook
as an argument to the mock module function that configures information ready for the Angular injector.
In step 6, we define our test starting with the it()
function that requires a string detailing our test intention, plus a second argument that makes use of the mock module's inject
function. The mock inject function basically creates an injectable wrapper around this second argument creating a new instance of $injector
for each test. The $injector
instance is used to resolve all references for this recipe; this includes the $controller service
function, which instantiates controllers and $rootScope
. We use the injected $rootScope
service to create a new child scope using the $new()
method (https://docs.angularjs.org/api/ng/type/$rootScope.Scope#$new). This new child scope object is then passed to our newly instantiated controller that's constructed using the $controller
service. Please refer to the introduction part of Chapter 2, Getting Started with Testing and AngularJS for further explanation about the Jasmine API.
Our expectation in step 7 is that when our MainCtrl
controller is created, the scope's emcee
property is expected to match the value of Kool G Rap
(https://github.com/pivotal/jasmine/wiki/Matchers). This is asserted in step 7 by comparing the $scope.emcee
property to Kool G Rap
.
For a more in-depth overview of each of the steps involved in writing a test, including expectations and matchers, please read Chapter 2, Getting Started with Testing and AngularJS.
An alternative approach to injecting the controller
reference within the spec would be to move this logic and assign it to a variable reference outside of the spec. We can do this in another beforeEach()
function with the refactored code looking like this:
describe('MainCtrl', function () { var mainCtrl, $scope; beforeEach(module('cookbook')); beforeEach(inject(function ($controller, $rootScope) { $scope = $rootScope.$new(); $controller('MainCtrl', { $scope: $scope }); })); it('should assign the correct rapper to scope', function () { expect($scope.emcee).toEqual('Kool G Rap'); }); });
The Creating a basic AngularJS application recipe
Chapter 2, Getting Started with Testing and AngularJS
During the first half of 2014, there was an abundance of renewed debate regarding Test Driven Development (TDD) taking place on the Web. David Heinemeier Hansson (creator of Ruby on Rails) challenged the fundamentals behind TDD and suggested placing more emphasis on system/browser tests. There are many arguments, for and against, as you can imagine, but what we are interested in is how we can implement the type of testing being advocated in an AngularJS application.
Luckily, to test application logic with browser tests (as opposed to the more granular unit tests), the AngularJS team developed a solution named Protractor (https://github.com/angular/protractor). This is a Node.js (http://nodejs.org/) program to run end-to-end tests against an actual browser using WebDriver (which you can access at https://code.google.com/p/selenium/wiki/GettingStarted). Webdriver is used to control browsers and simulate user actions. Protractor is quite an active project and therefore subject to change; this recipe is based on the current version at the time of writing this, which is 0.23.1. This recipe will focus on installing and configuring Protractor and Webdriver.
You will need to have Node.js (http://nodejs.org/) installed on your machine. For the purpose of this recipe, we use the Chrome browser that you can download at http://www.google.co.uk/chrome/. Alternative browsers can be configured and I recommend that you read the Protractor browser setup guide at https://github.com/angular/protractor/blob/master/docs/browser-setup.md.
You will first need to install Protractor using the
npm install -g protractor
command.You will then need to install the necessary WebDrivers using the
webdriver-manager update
command.Following this, start the Selenium server using the
webdriver-manager start
command.Protractor will then accept a configuration file. Create a new file named
protractor.conf.js
with the following content:exports.config = { seleniumAddress: 'http://localhost:4444/wd/hub', jasmineNodeOpts: { showColors: true, // use colors in the command line report defaultTimeoutInterval: 30000 } };
Protractor can start an instance of the Selenium standalone server if you provide the path to the Selenium server standalone JAR as follows. This will slow down the overall time it takes to run your tests due to Protractor having to start the server as opposed to an instance already running:
seleniumServerJar: './node_modules/protractor/selenium/selenium-server-standalone-2.41.0.jar'
In the Installing Protractor recipe in this chapter, you learned how to configure Protractor and WebDriver. This recipe will introduce you to running a basic end-to-end test with Protractor. You will learn how to add test files to the Protractor configuration, add a basic end-to-end test, find DOM elements based on AngularJS attributes, and simulate user interaction. The latter has the potential to save a considerable amount of time testing your application and allows you to test expected user interaction. This sort of testing can prove indispensable and Protractor provides a simplified API to simulate user actions, as you will see within this recipe. Please refer to https://github.com/angular/protractor/blob/master/docs/api.md for a comprehensive list and explanation of the API methods available to you using Protractor.
Protractor will connect to a browser to run its tests. Preferably, we would want to run our application against an HTTP server and the quickest way to do this is using Python's (Version 2.4 or greater) SimpleHTTPServer by visiting https://docs.python.org/2/library/simplehttpserver.html.
First, create a new directory and add a new file named
index.html
with the following content:<!DOCTYPE html> <html ng-app="cookbook"> <head> <script src="https://code.angularjs.org/1.2.16/angular.js"></script> <script src="cookbook.js"></script> </head> <body> <div ng-controller="MainCtrl"> Favourite member of the Juice Crew: <input type="text" ng-model="emcee"><br> Emcee: <span ng-bind="emcee"></span> </div> </body> </html>
You then need to copy the
cookbook.js
file from the Creating a basic AngularJS application project recipe into the directory.Following this, add a new file named
protractor.conf.js
with the following content:exports.config = { seleniumAddress: 'http://localhost:4444/wd/hub', specs: ['cookbookSpec.js'], jasmineNodeOpts: { showColors: true, defaultTimeoutInterval: 30000 } };
You should then create a new file named
cookbookSpec.js
with the following content:describe('favourite rapper', function () { it('should bind to input', function () { browser.get(''); var emceeInput = element(by.model('emcee')); var emceeOutput = element(by.binding('emcee')); expect(emceeOutput.getText()).toBe('Kool G Rap'); emceeInput.clear(); emceeInput.sendKeys('Aesop Rock'); expect(emceeOutput.getText()).toBe('Aesop Rock'); }); });
Tip
Downloading the example code
You can download the example code files for all Packt books you have purchased from your account at http://www.packtpub.com. If you purchased this book elsewhere, you can visit http://www.packtpub.com/support and register to have the files e-mailed directly to you.
Now, start the local HTTP server by running the
python -m SimpleHTTPServer
command (this command serves HTTP service on IP address0.0.0.0
using port8000
by default; you need to usepython -m http.server
if you are a windows user.) and the Selenium server with thewebdriver-manager start
command.Once the server has started, in the command-line console of your choice, run the
protractor protractor.conf.js

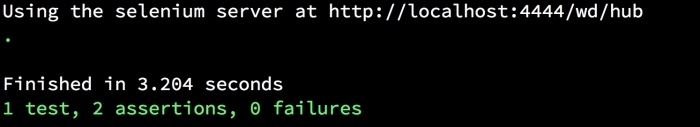

command. As a result, you should see the following output:

In step 1, we create an HTML file, which is a basic AngularJS binding example. Step 3 shows the addition of a specs option that expects an array of relative filenames or a glob pattern. Step 4 executes the following sequence of events:
The
should bind to input
spec begins using the Protractor global browser variable that is a wrapper around a WebDriver instance. Theget()
function expects a URL or path to a running web page for the AngularJS application. The web page can be run over a local web server, which we start in step 5.Search for elements on the page using the
element()
method and its additional AngularJS-specific strategies, for example binding names (ng-bind
or{{}}
) and elements by input usingng-model
. The element method does not return a DOM element, but an ElementFinder. Calls to element can be chained to find child elements within a parent.Define an assertion based on the input field value. The initial value will be the default value assigned to the
$scope.emcee
property in the controller.Clear the input field value using the
clear()
method on the ElementFinder.Populate the input field using the
sendKeys()
method on the ElementFinder.Reassert, based on the updated input field, that the output binding has worked as expected.
The final steps run the local HTTP server and the Protractor tests displaying the results.
A baseUrl
option is available within the Protractor configuration, for example baseUrl
(http://0.0.0.0:8000
). This enables the use of relative paths using the get ()
method that's available on Protractor's browser function, for example browser.get();
. Please read the Protractor API documentation for more information on available functions (http://angular.github.io/protractor/#/api?view=Protractor).
There are some additional Chrome-specific options that can prove quite useful within your development toolkit. These can be added using a chromeOptions
object; using this object will display the frame rate within your browser. Monitoring frame rate for consistency and a value between 30 to 60 frames per second (fps) can ensure that your application doesn't appear jerky and animations are smoothly run, for example:
capabilities: { 'browserName': 'chrome', 'chromeOptions': { 'args': ['show-fps-counter=true'] } }
To target multiple spec files within your Protractor configuration, you can use a regular expression as opposed to an array of file names:
specs: ['test/*_spec.js']
This recipe will introduce you to the Karma test runner, which you can get at http://karma-runner.github.io/, for test-driven development and continuous integration. You will run through the basic process to install Karma version, which at time of writing this is 0.12.16.
Karma is another fantastic tool from the AngularJS team allowing you to execute JavaScript code in browsers. Earlier in this chapter, (in the Running a simple test using Protractor recipe in this chapter), you learned about Protractor, a tool for integration testing; what Karma offers is configuration for unit testing. It facilitates testing against multiple browsers, whether locally or on a continuous integration server. It can also be configured to run unit tests when application code changes via a watch feature. There are many plugins available to extend Karma and in this recipe we will use two of them. Firstly, we will use Jasmine throughout the cookbook so we will need the plugin from https://github.com/karma-runner/karma-jasmine. Secondly, we will run the tests in the Chrome browser using https://github.com/karma-runner/karma-chrome-launcher. Once you have completed this recipe, you'll have Karma installed with the Chrome and Jasmine plugins and ready to run some tests.
All you need is Node.js (http://nodejs.org/; ideally version 0.10.* or above) installed on your machine.
First, install Karma and the required plugins using the following command:
npm install karma karma-jasmine karma-chrome-launcher --save-dev
Install the karma-cli to use Karma in your command line:
npm install -g karma-cli.
Next, we use an option that some Node.js libraries provide to run initialization steps, which is typically called
init
. It guides us through the steps required to configure Karma on our command line:karma init
Now, at the prompt for testing framework, press Enter to accept the default option of jasmine.
Next, at the prompt to use Require.js, press Enter to accept the default option of no.
When you are prompted to automatically capture any browsers, press Enter twice to accept the default option of Chrome.
Next, at the prompt to define source file location, press Enter to accept the default option of an empty string.
At the prompt to define file patterns to exclude, press Enter to accept the default option of an empty string.
Finally, you will be prompted for Karma to watch for file changes so press Enter to accept the default option of yes.
The following screenshot shows you the steps discussed earlier:

If you prefer not to install karma-cli globally, allowing for different versions and different projects, you can remove the âg syntax. This will install the package to a node_modules
folder within the root directory of the project:
npm install karma-cli
You can then run the commands from node_modules
, as shown here:
./node_modules/.bin/karma init
To save time and effort when manually running your tests, you can use a test runner. The recipe, Installing Karma, gets you ready to run tests with Karma. This recipe will introduce you to automatically run a Jasmine test with Karma (which you can visit at http://karma-runner.github.io/). You will learn how to set up a basic configuration file and automatically run your tests with Karma.
You can either implement this as an initial step to an existing project, or build upon the basic project created in the first recipe. You can do this as follows:
Karma will need access to the
angular.js
andangular-mocks.js
files, which can be downloaded from https://code.angularjs.org/1.2.28/. Ensure these are included in alib/angular
folder in your project root directory.Copy the
cookbook.js
file from the recipe Creating a basic AngularJS application, into thesrc
directory.Finally, copy the
cookbookSpec.js
file from the Running a simple test using Jasmine recipe in this chapter, into a test directory.
Firstly, you need to create a Karma configuration file named karma.conf.js
with the following code:
module.exports = function(config) { config.set({ frameworks: ['jasmine'], files: [ "lib/angular/angular.js", "lib/angular/angular-mocks.js", "src/cookbook.js", "test/cookbookSpec.js" ], autoWatch: true, browsers: ['Chrome'] }); };
Once this has been created, you can run the following command:
karma start
As a result of this, you should see that Karma launches the Chrome browser and produces the following in the console window:

Karma requires a configuration file for it to run our AngularJS application tests. Let's step through the configuration options:
frameworks
: Framework adaptors that must be installed via thekarma init
process or manually, for examplenpm install karma-jasmine --save-dev
.files
: These are the file patterns specifying applications and test files.autoWatch
: This option watches for changes to applications/test files and re-run tests.browsers
: These are the launchers that must be installed via the karmainit
process or manually, for examplenpm install karma-chrome-launcher --save-dev
.
The angular.js
file is a dependency for angular-mocks.js
, therefore angular.js
must be declared before angular-mocks.js
.
For a more comprehensive list of configuration options, please refer to Karma's configuration file documents at http://karma-runner.github.io/0.12/config/configuration-file.html.
Use a glob pattern for files, as opposed to declaring each file explicitly, by inserting the following code:
files: [ "lib/angular/angular.js", "lib/angular/angular-mocks.js", "src/**/*.js", "test/**/*.js" ]
This recipe will introduce you to the Testem test runner (https://github.com/airportyh/testem) for test-driven-development and continuous integration. Testem is an alternative to Karma and although similar, it is favoured by some developers in the community including the Lineman (https://github.com/linemanjs/lineman) team. Karma and Testem have similar feature sets but Karma is developed with regular updates by the AngularJS team. As with Karma, Testem is framework-agnostic and configurable to run tests within a multitude of browsers, whether locally or on a Continuous Integration server. This recipe is based on the current version; at time of writing this it is 0.6.15 and will guide you on installing Testem.
You will need to have Node.js (http://nodejs.org/, version 0.10.* or greater) installed on your machine.
To save time and effort manually running your tests, you can use a test runner. In the Installing Testem recipe you learned how to install and configure the runner. This recipe will introduce you to automatically running a Jasmine test with Testem within the Chrome browser. You will learn how to set up a basic configuration file and automatically run your tests.
To begin using Testem in this recipe you can either perform the following steps within an existing AngularJS project or build upon the basic project created in the first recipe:
Firstly, the
angular.js
andangular-mocks.js
files need to be included. They can be downloaded from https://code.angularjs.org/1.2.28/. Ensure these are included in alib/angular
folder in your project root folder.Copy the
cookbook.js
file from the Creating a basic AngularJS application recipe in this chapter, into thesrc
directory.Finally, copy the
cookbookSpec.js
file, from the Running a simple test using Jasmine recipe, into thetest
directory.
To start with, create a Testem configuration file named testem.json
with the following JSON:
{ "framework": "jasmine", "src_files": [ "lib/angular/angular.js", "lib/angular/angular-mocks.js", "src/cookbook.js", "test/cookbookSpec.js" ], "launch_in_dev" : ["Chrome"] }

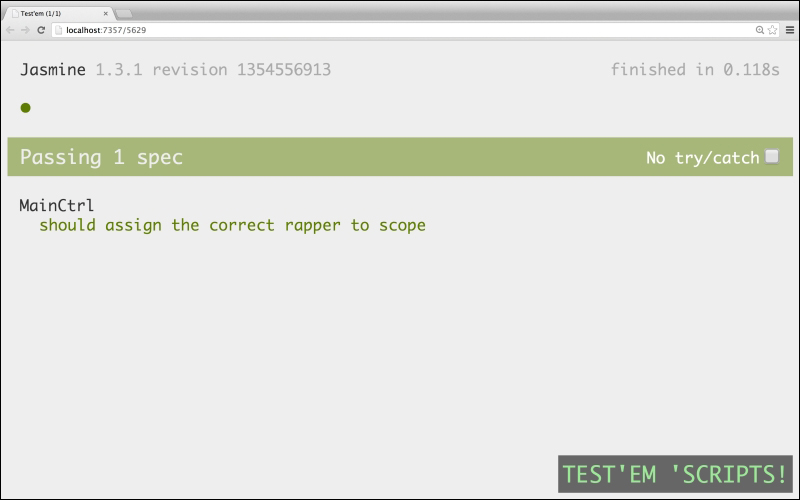

Next, you need to run the testem
command. As a result, you'll see that Testem launches the Chrome browser and our single test passing as shown in the following screenshot.

A Testem configuration file allows finer control over what is included by the test runner. Let's step through the configuration options:
The angular.js
file is a dependency for angular-mocks.js
, therefore angular.js
must be declared before angular-mocks.js
. Testem will automatically detect our files and changes made to the application or tests and rerun the tests.
For a more comprehensive list of configuration options, please refer to Testem's configuration file documents by visiting https://github.com/airportyh/testem/blob/master/docs/config_file.md.
Use a glob pattern for files, as opposed to declaring each file explicitly, by inserting this:
"src_files": [ "lib/angular/angular.js", "lib/angular/angular-mocks.js", "src/**/*.js", "test/**/*.js" ]
The amount of tasks within an AngularJS-based project can rapidly increase, such as running an HTTP server, unit test runner, end-to-end test runner, or automating testing. These repetitive tasks can be automated using task runners such as Grunt (which you can download at http://gruntjs.com/), and Gulp (which can be downloaded at http://gulpjs.com/).
Grunt has been at the forefront of task runners for quite some time now; the community is vast with a great selection of available plugins. Grunt advises a global installation of its Command Line Interface (CLI) to access the grunt command anywhere on your system. Project and task configuration is contained within a Gruntfile, including the loading of plugins to extend the range of tasks available. A great starting point is on the Grunt website itself at http://gruntjs.com/getting-started. Armed with this basic knowledge, this recipe will focus on how to set up and configure Grunt to run the following tasks:
HTTP web server
Karma test runner
WebDriver
Protractor
You can either perform the following steps within an existing AngularJS project, or build upon the basic project created in the first recipe:
Firstly, the
angular.js
andangular-mocks.js
files need to be included. They can be downloaded from https://code.angularjs.org/1.2.28/. Ensure these are included in alib/angular
folder in your project root folder.Next, you then need to copy the
cookbook.js
file from the Creating a basic AngularJS application recipe into thesrc
directory.Next, copy the
cookbookSpec.js
file from the Running a simple test using Jasmine recipe into thetest/unit
directory.Next, copy the
cookbookSpec.js
file from the Running a simple test using Protractor recipe into thetest/e2e
directory.Finally, you need to ensure that you have installed Protractor globally, that is using the
-g
lag (please refer to the Installing Protractor recipe in this chapter to see how to do this). Also ensure that the Selenium standalone server has been downloaded and installed.
Once Protractor and the Selenium server have both been installed, you are now ready to begin.
First, let's install the Grunt CLI globally using this command:
npm install -g grunt-cli
Next, run the following command to interactively create a
package.json
file and either add your specific configuration or accept the defaults when prompted:npm init
Following this, install the rest of the dependencies required for this recipe locally:
npm install grunt grunt-contrib-connect grunt-karma grunt-protractor-runner grunt-protractor-webdriver karma karma-chrome-launcher karma-jasmine load-grunt-tasks 0.4.0âsave-dev
Now, install the WebDrivers using Protractor by running this command:
/node_modules/protractor/bin/webdriver-manager update
A Karma configuration file named
karma.conf.js
can then be created with the following code:module.exports = function(config) { config.set({ frameworks: ['jasmine'], files: [ "lib/angular/angular.js", "lib/angular/angular-mocks.js", "src/cookbook.js", "test/unit/cookbookSpec.js" ], autoWatch: true, browsers: ['Chrome'] }); };
You should then create a Protractor configuration file named
protractor.conf.js
, which contains the following code:exports.config = { seleniumAddress: 'http://localhost:4444/wd/hub', jasmineNodeOpts: { showColors: true, defaultTimeoutInterval: 30000 } };
Next, another file named
Gruntfile.js
needs to be created, which will be in the root of the project directory with the following code:module.exports = function (grunt) { require('load-grunt-tasks')(grunt); grunt.initConfig({ connect: { server: { options: { port: 8000, base: 'src' } } }, karma: { unit: { configFile: 'karma.conf.js' } }, protractor: { e2e: { options: { args: { specs: ['test/e2e/cookbookSpec.js'] }, configFile: 'protractor.conf.js', keepAlive: true } } }, protractor_webdriver: { start: { options: { path: './node_modules/protractor/bin/', command: 'webdriver-manager start', }, } } }); grunt.registerTask('test', [ 'karma:unit' ]); grunt.registerTask('e2e', [ 'connect:server', 'protractor_webdriver:start', 'protractor:e2e' ]); }
Finally, you can run the unit tests of Karma using
grunt test
. You can then run the end-to-end tests of Protractor usinggrunt e2e
.
Step 1 simply runs the global installation for grunt-cli
(which you can download at https://github.com/gruntjs/grunt-cli). This enables us to access the Grunt command anywhere on our system. Step 2 and step 3 install all of the dependencies required to successfully run all the Grunt tasks.
After this, step 4 and step 5 show how to set up the configuration files for both Karma and Protractor defining our unit and end-to-end specs.
Tip
Using the grunt-karma
command, you can eliminate the need for a karma.conf
configuration file and define the configuration in the Gruntfile instead. Visit https://github.com/karma-runner/grunt-karma#heres-an-example-that-puts-the-config-in-the-gruntfile to discover more.
In step 6, we see the Gruntfile.js
file where we define all the necessary tasks to automate the unit and end-to-end tests. Both work by:
Unit tests: Running the unit tests with Karma is relatively straightforward and simply requires the
grunt-karma
plugin (https://github.com/karma-runner/grunt-karma). We then add akarma
target and provide theconfigFile
created in step 4. Finally, we register a task with Grunt namedtest
, which callskarma:unit
and runs the unit tests.Tip
The
grunt-karma
module supports configuring options for multiple targets, for example dev (development) and continuous (Continuous Integration). To use the continuous integration mode, use thesingleRun
option. In development, we can use theautoWatch
option.For Continuous Integration option, use the following code:
{ singleRun: true, browsers: ['PhantomJS'] },
For Development option, use the following code:
{ autoWatch: true }
End-to-end tests: Running the end-to-end tests with Protractor is slightly more complex due to the additional requirement of running HTTP and Selenium servers. We can run Protractor using the
grunt-protractor-runner
plugin (https://github.com/teerapap/grunt-protractor-runner) and adding aprotractor
target. Within theprotractor
target, we create ane2e
target and a single option configuration file pointing to ourprotractor.conf.js
file that we created in step 5. Thegrunt-protractor-webdriver
plugin (which you can download at https://github.com/seckardt/grunt-protractor-webdriver) enables us to start the WebDriver that we define as a sole command in theprotractor_webdriver e2e
target. To start a local HTTP server, we use thegrunt-contrib-connect
plugin (https://github.com/gruntjs/grunt-contrib-connect) with three options, mainly port, hostname, and the base path, which is thesrc
directory containing our AngularJS application. Finally, we register a task with Grunt namede2e
that connects to our web server, starts the Selenium standalone server, and runs Protractor, phew!
Finally, to run all of these tasks, we call either the test
or e2e
task.
The Automating test runners using Gulp recipe
Brunch (http://brunch.io/)
An additional task runner you can use, other than Grunt, is Gulp (you can download it at http://gulpjs.com/). Gulp is a stream-based build system with a simple yet powerful API focusing on code over configuration. Gulp builds use the Node.js streams that do not need to write temporary files or folders to disk, which results in faster builds. I advise you to read this excellent article on streams at https://github.com/substack/stream-handbook. The Gulp API is small and extremely simple:
gulp.src(globs[, options])
: This returns a readable streamgulp.dest(path)
: This can receive an input stream and output to a destination, for example, writing filesgulp.task(name[, deps], fn)
: This defines tasks using orchestrator (https://github.com/orchestrator/orchestrator)gulp.watch(glob [, opts], tasks)
orgulp.watch(glob [, opts, cb])
: This enables watching for file changes and then running a task or tasks when changes are detected
Please visit https://github.com/gulpjs/gulp/blob/master/docs/API.md for an explanation of the API.
Gulp has its own configuration file called a Gulpfile, focused on code over configuration. It offers a coherent read with a clear visualization of flow. Gulp discourages the use of writing plugins for tasks that don't require a dedicated plugin focusing on providing streams and basic tasks. This recipe will focus on how to set up and configure Gulp to run the following tasks:
HTTP web server
Karma test runner
WebDriver
Protractor
You can either implement this as an initial step to an existing project or build upon the basic project created in the first recipe. If integrating into an existing project, ensure that you have specified the correct source and test files with their corresponding paths. Once configured, Gulp will run your tests as expected. If using the cookbook example project, then follow these steps:
Firstly,
angular.js
andangular-mocks.js
files need to be included. They can be downloaded from https://code.angularjs.org/1.2.28/. Ensure these are included in alib/angular
folder in your project root folder.You then need to copy the
cookbook.js
file created in the Creating a basic AngularJS application recipe into thesrc
directory.Finally, copy the
cookbookSpec.js
file from the Running a simple test using Jasmine recipe in this chapter into atest/unit
directory.To prepare yourself completely for this recipe, you can then copy the
cookbookSpec.js
file from the Running a simple test using Protractor recipe into atest/e2e
directory.
First, let's install Gulp and Protractor globally using this command:
npm install -g gulp protractor
Next, run the following command to interactively create a
package.json
file and either add your specific configuration or accept the defaults when prompted:npm init
Following this, install the rest of the dependencies required for this recipe locally:
npm install connect gulp-load-plugins gulp-protractor karma karma-chrome-launcher karma-jasmine -âsave-dev
You then need to create a Karma configuration file named
karma.conf.js
with the following code:module.exports = function () { return { frameworks: ['jasmine'], files: [ "lib/angular/angular.js", "lib/angular/angular-mocks.js", "src/cookbook.js", "test/unit/cookbookSpec.js" ], autoWatch: true, browsers: ['Chrome'] }; };
Create a Protractor configuration file named
protractor.conf.js
with the following code:exports.config = { seleniumServerJar: './node_modules/protractor/selenium/selenium-server-standalone-2.41.0.jar', specs: ['test/e2e/cookbookSpec.js'], jasmineNodeOpts: { showColors: true, defaultTimeoutInterval: 30000 } };
Following this, create a file named
gulpfile.js
in the root of the project directory with the following code:var gulp = require('gulp'); var $ = require('gulp-load-plugins')(); gulp.task('webdriver_update', $.protractor.webdriver_update); gulp.task('connect', function () { var connect = require('connect'); var app = connect() .use(connect.static('src')); $.server = require('http').createServer(app) .listen(8000); }); gulp.task('test', function (done) { var karma = require('karma').server; var karmaConf = require('./karma.conf.js')(); karma.start(karmaConf, done); }); gulp.task('e2e', ['connect', 'webdriver_update'], function (done) { gulp.src(['test/e2e/cookbookSpec.js']) .pipe($.protractor.protractor({ configFile: './protractor.conf.js', })) .on('end', function () { $.server.close(); done(); }); });
Finally, you can start the testing! You can run unit tests with Karma using
gulp test
and run the end-to-end tests with Protractor usinggulp e2e
.
Step 1 and step 2 install all the dependencies required to successfully run all of the Gulp tasks. Step 3 and step 4 show how we can set up the configuration files for both Karma and Protractor defining our unit and end-to-end specifications.
Step 5 has the gulpfile.js
file where we define all the necessary tasks to automate the unit and end-to-end tests:
Unit tests: As opposed to the approach taken in the Automating test runners using Grunt recipe, a dedicated plugin to run Karma is not really necessary. We simply call the
start()
function, providing theconfigFile
created in step 4 as the first argument, and the Gulp callback to cleanly exit the task as necessary. Finally, we register a task with Gulp namedtest
that calls the Karma test runner to the unit tests.End-to-end tests: End-to-end tests need to run Protractor but also have the additional tasks of running HTTP and Selenium servers. We can run Protractor using the
gulp-protractor
plugin (https://github.com/mllrsohn/gulp-protractor). The connect task sets up a static HTTP server on port 8000 using the files within thesrc
directory. Also, thewebdriver_update
task uses thewebdriver-manager
script included with Protractor to ensure that necessary drivers are installed; if not, then they will automatically get installed. This is a slight overhead each time thee2e
task is run. However, it can easily be removed and you can call the gulp task independently if required. Within the actuale2e
task, we pass the path to the test files to gulp'ssrc
function. We can then stream the file structure to the gulp-protractorprotractor()
function, including theprotractor.conf.js
file created in step 5 as an additional option. Listening for the end event, a handler will close the static HTTP server and then ensure the gulp callback is called to complete the set of events.
Finally, to run these tasks, we call either the test
task or the e2e
target.
The Automating test runners using Grunt recipe
An exceptional resource for learning about streams is the Streams Handbook (which you can access at https://github.com/substack/stream-handbook)
