1. Unreal Engine Introduction

Overview

This chapter will be an introduction to the Unreal Engine editor. You will get to know about the editor's interface; how to add, remove, and manipulate objects in a level; how to use Unreal Engine's Blueprint visual scripting language; and how to use materials in combination with meshes.

By the end of this chapter, you will be able to navigate the Unreal Engine editor, create your own Actors, manipulate them inside the level, and create materials.



Introduction

Welcome to Game Development Projects with Unreal Engine. If this is the first time you're using Unreal Engine 4 (UE4), this book will support you in getting started with one of the most in-demand game engines on the market. You will discover how to build up your game development skills and how to express yourself through the creation of your own video games. If you've already tried using UE4, this book will help you further develop your knowledge and skills, so you can build games more easily and effectively.

A game engine is a software application that allows you to produce video games from the ground up. Their feature sets vary significantly but usually allow you to import multimedia files, such as 3D models, images, audio, and video, and manipulate those files through the use of programming, where you can use programming languages such as C++, Python, and Lua, among others.

Unreal Engine 4 uses two main programming languages, C++ and Blueprint, the latter being a visual scripting language that allows you to do most of what C++ also allows. Although we will be teaching a bit of Blueprint in this book, we will be focusing mostly on C++, and hence expect you to have a basic understanding of the language, including topics such as Variables, Functions, Classes, Inheritance, and Polymorphism. We will remind you about these topics throughout the book where appropriate.

Examples of popular video games made with Unreal Engine 4 include Fortnite, Final Fantasy VII Remake, Borderlands 3, Star Wars: Jedi Fallen Order, Gears 5, and Sea of Thieves, among many others. All of these have a very high level of visual fidelity, are well-known, and have or had millions of players.

At the following link, you'll be able to see some of the great games made with Unreal Engine 4: https://www.youtube.com/watch?v=lrPc2L0rfN4. This showcase will show you the variety of games that Unreal Engine 4 allows you to make, both in visual and gameplay style.

If you'd like to one day make games such as the ones shown in the video, or contribute to them in any way, you've taken the first step in that direction.

We'll now begin with this first step, where we will start learning about the Unreal Engine editor. We will learn about its interface, how to manipulate objects inside a level, how to create our own objects, how to use the Blueprint scripting language, and what the main game events do, as well as how to create materials for meshes.

Let's start this chapter by learning how to create a new Unreal Engine 4 project in this first exercise.

Note

Before you continue this chapter, make sure you have installed all the necessary software mentioned in the Preface.

Exercise 1.01: Creating an Unreal Engine 4 Project

In this first exercise, we will learn how to create a new Unreal Engine 4 project. UE4 has predefined project templates which allow you to implement a basic setup for your project. We'll be using the Third Person template project in this exercise.

The following steps will help you complete this exercise:

  1. After installing Unreal Engine version 4.24, launch the editor by clicking the Launch button of the version icon.
  2. After you've done so, you'll be greeted with the engine's projects window, which will show you the existing projects that you can open and work on and also give you the option to create a new project. Because we have no projects yet, the Recent Projects section will be empty. To create a new project, you'll first have to choose Project Category, which in our case will be Games.
  3. After you've selected that option, click the Next button. After that, you'll see the project templates window. This window will show all the available project templates in the Unreal Engine. When creating a new project, instead of having that project start off empty, you have the option to add some assets and code out of the box, which you can then modify to your liking. There are several project templates available for different types of games, but we'll want to go with the Third Person project template in this case.
  4. Select that template and click the Next button, which should take you to the Project Settings window.

    In this window, you'll be able to choose a few options related to your project:

    • Blueprint or C++: Choose whether you want to be able to add C++ classes. The default option may be Blueprint, but in our case, we'll want to select the C++ option.
    • Quality: Choose whether you want your project to have high-quality graphics or high performance. You can set this option to Maximum Quality.
    • Raytracing: Choose whether you want Raytracing enabled or disabled. Raytracing is a novel graphics rendering technique which allows you to render objects by simulating the path of light (using light rays) over a digital environment. Although this technique is rather costly in terms of performance, it also provides much more realistic graphics, especially when it comes to lighting. You can set it to disabled.
    • Target Platforms: Choose the main platforms you'll want this project to run on. Set this option to Desktop/Console.
    • Starter Content: Choose whether you want this project to come with an additional set of basic assets. Set this option to With Starter Content.
    • Location and Name: At the bottom of the window, you'll be able to choose the location where your project will be stored on your computer and its name.
  5. After you've made sure that all the options are set to their intended values, click the Create Project button. This will cause your project to be created according to the parameters you set and may take a few minutes until it's ready.

Let's now start learning about Unreal Engine 4 by performing the steps in the next section, where we'll learn some of the basics of using the editor.



Getting to Know Unreal

You will now be introduced to the Unreal Engine editor, which is a fundamental topic to get familiar with Unreal Engine 4.

When your project has finished generating, you should see the Unreal Engine editor open automatically. This screen is likely the one that you will see the most when working with Unreal Engine, so it is important that you get accustomed to it.

Let's break down what we see in the editor window:

Figure 1.1: The Unreal Engine editor divided in its six main windows

Figure 1.1: The Unreal Engine editor divided in its six main windows

  1. Content Browser: The window that occupies the majority of the bottom of the screen is the Content Browser. This window will let you browse and manipulate all the files and assets located inside your project's folder. As was mentioned at the start of the chapter, Unreal Engine will allow you to import several types of multimedia files, and Content Browser is the window that will allow you to browse and edit them in their respective sub-editors. Whenever you create an Unreal Engine project, it will always generate a Content folder. This folder will be the root directory of the Content Browser, meaning you can only browse files inside that folder. You can see the directory you're currently browsing inside Content Browser by looking at the top of it, which, in our case, is Content -> ThirdPersonCPP.

    If you click the icon to the left of the Filters button, at the very left of Content Browser, you will be able to see the directory hierarchy of the Content folder. This directory view allows you to select, expand, and collapse individual directories in the Content folder of your project:

    Figure 1.2: Content Browser's directory view

    Figure 1.2: Content Browser's directory view

  2. Viewport: At the very center of the screen, you'll be able to see the Viewport window. This will show you the content of the current level and will allow you to navigate through your level as well as adding, moving, removing, and editing objects inside it. It also contains several different parameters regarding visual filters, object filters (which objects you can see), and the lighting in your level.
  3. World Outliner: At the top-right corner of the screen, you'll see World Outliner. This will allow you to quickly list and manipulate the objects that are at your level. Viewport and World Outliner work hand in hand in allowing you to manage your level, where the former will show you what it looks like and the latter will help you manage and organize it. Similar to Content Browser, World Outliner allows you to organize the objects in your level in directories, with the difference being that Content Browser shows the assets in your project and World Outliner shows you the objects in your level.
  4. The Details panel and World Settings: At the far right of the screen, below World Outliner, you'll be able to see two windows – the Details panel and the World Settings window. The Details window allows you to edit the properties of an object that you selected in your level. As there are no objects selected in the screenshot, it is empty. However, if you select any object in your level by left-clicking on it, its properties should appear in this window, as shown in the following screenshot:
    Figure 1.3: The Details tab

    Figure 1.3: The Details tab

    The World Settings window allows you to set the overall settings of your level, instead of those of individual objects. Here, you'll be able to change things such as the Kill Z (the height at which you want your objects to be destroyed) and the desired lighting settings, among others:

    Figure 1.4: The World Settings window

    Figure 1.4: The World Settings window

  5. Toolbar: At the top of the screen you'll see the editor Toolbar, where you'll be able to save your current level, access the project and editor settings, and play your level, among other things.

    Note

    We will only be using some of the buttons from these toolbars, namely, the Save Current, Settings, Blueprints, Build, and Play buttons.

  6. Modes: At the very left of the screen, you'll see the Modes window. It will allow you to drag objects to your levels, such as cubes and spheres, light sources, and other types of objects designed for a wide variety of purposes.

Now that we have learned about the main windows of the Unreal Engine editor, let's take a look at how to manage those windows.



Editor Windows

As we've seen, the Unreal Engine editor is comprised of many windows, all of which are resizable, movable, and have a corresponding tab on top of them. You can click and hold a window's tab and drag it in order to move it somewhere else. You can hide tab labels by right-clicking them and selecting the Hide option:

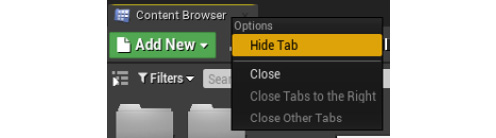

Figure 1.5: How to hide a tab

Figure 1.5: How to hide a tab

If the tab labels have been hidden, you can get them to reappear by clicking the yellow triangle at the top-left corner of that window, as shown in the following figure:

Figure 1.6: The yellow triangle that allows you to show a window's tab

Figure 1.6: The yellow triangle that allows you to show a window's tab

Keep in mind that you can browse and open all the windows available in the editor, including the ones that were just mentioned, by clicking the Window button in the top-left corner of the editor.

Another very important thing you should know is how to play your level from inside the editor (also known as PIE). At the right edge of the editor Toolbar, you'll see the Play button. If you click it, you'll start playing the currently open level inside the editor.

Once you hit Play, you'll be able to control the player character in the level by using the W, A, S, and D keys to move the player character, the spacebar to jump, and move the Mouse to rotate the camera:

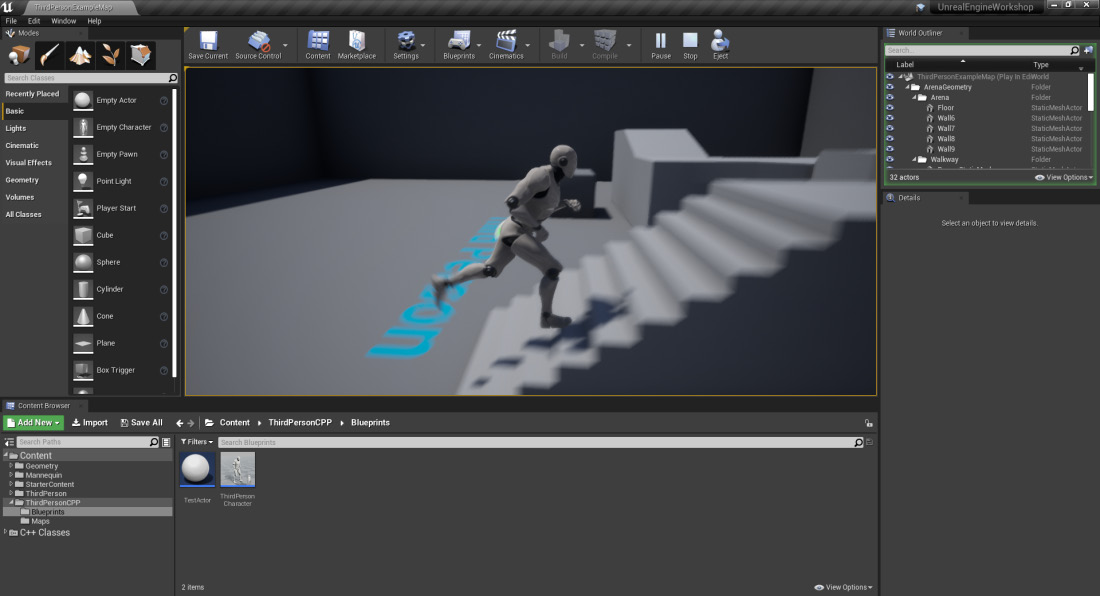

Figure 1.7: The level being played inside the editor

Figure 1.7: The level being played inside the editor

You can then press the Esc key (Escape) in order to stop playing the level.

Now that we've gotten accustomed to some of the editor's windows, let's take a deeper look at the Viewport window.



Viewport Navigation

We mentioned in the previous section that the Viewport window will allow you to visualize your level, as well as manipulating the objects inside it. Because this is a very important window for you to use and has a lot of functionality, we're going to learn more about it in this section.

Before we start learning about the Viewport window, let's quickly get to know about Levels. In UE4, levels represent a collection of objects, as well as their locations and properties. The Viewport window will always show you the contents of the currently selected level, which in this case was already made and was generated alongside the Third Person template project. In this level, you'll be able to see four wall objects, one ground object, a set of stairs, and some other elevated objects, as well as the player character represented by the UE4 mannequin. You can create multiple levels and switch between them by opening them from Content Browser.

In order to manipulate and navigate through the currently selected level, you'll have to use the Viewport window. If you press and hold the left mouse button inside the window, you'll be able to rotate the camera horizontally by moving the mouse left and right, and move the camera forward and backward by moving the mouse forward and backward. You can achieve similar results by holding the right mouse button, except the camera will rotate vertically when moving the mouse forward and backward, which allows you to rotate the camera both horizontally and vertically.

Additionally, you can also move around the level by clicking and holding the Viewport window with the right mouse button (the left mouse button works too, but using it for movement is not as useful due to there not being as much freedom when rotating the camera) and using the W and S keys to move forward and backward, the A and D keys to move sideways, and the E and Q keys to move up and down.

If you look at the top-right corner of the Viewport window, you will see a small camera icon with a number next to it, which will allow you to change the speed at which the camera moves in the Viewport window.

Another thing you can do in the Viewport window is to change its visualization settings. You can change the type of visualization in the Viewport window by clicking the button that currently says Lit, which will show you all the options available for different lighting and other types of visualization filters.

If you click the Perspective button, you'll have the option to switch between seeing your level from a perspective view, as well as from an orthographic view, the latter of which may help you build your levels faster.

Let's now move on to the topic of manipulating objects, also known as Actors, in your level.



Manipulating Actors

In Unreal Engine, all the objects that can be placed in a level are referred to as Actors. In a movie, an actor would be a human playing a character, but in UE4, every single object you see in your level, including walls, floors, weapons, and characters, is an Actor.

Every Actor must have what's called a Transform property, which is a collection of three things:

  • Location: A Vector property signifying the position of that Actor in the level in the X, Y, and Z axis. A vector is simply a tuple with three floating point numbers, one for the location of the point in each axis.
  • Rotation: A Rotator property signifying the rotation of that Actor along the X, Y, and Z axis. A rotator is also a tuple with three floating point numbers, one for the angle of rotation in each axis.
  • Scale: A Vector property signifying the scale (meaning size) of that Actor in the level in the X, Y, and Z axis. This is also a collection of three floating point numbers, one for the scale value in each axis.

Actors can be moved, rotated, and scaled in a level, which will modify their Transform property accordingly. In order to do this, select any object in your level by left-clicking on it. You should see the Move tool appear:

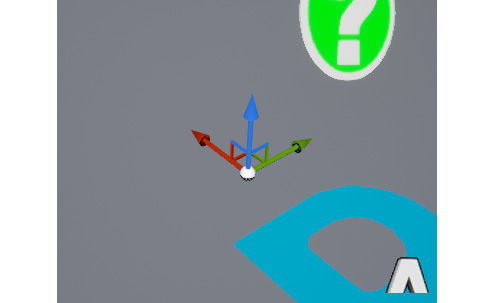

Figure 1.8: The Move tool, which allows you to move an Actor in the level

Figure 1.8: The Move tool, which allows you to move an Actor in the level

The Move tool is a three-axis gizmo that allows you to move an object in any of the axes simultaneously. The red arrow of the Move tool (pointing to the left in the preceding image) represents the X axis, the green arrow (pointing to the right in the preceding image) represents the Y axis, and the blue arrow (pointing up in the preceding image) represents the Z axis. If you click and hold either of these arrows and then drag them around the level, you will move your Actor along that axis in the level. If you click the handles that connect two arrows together, you will move the Actor along both those axes simultaneously, and if you click the white sphere at the intersection of all the arrows, you will move the Actor freely along all three axes:

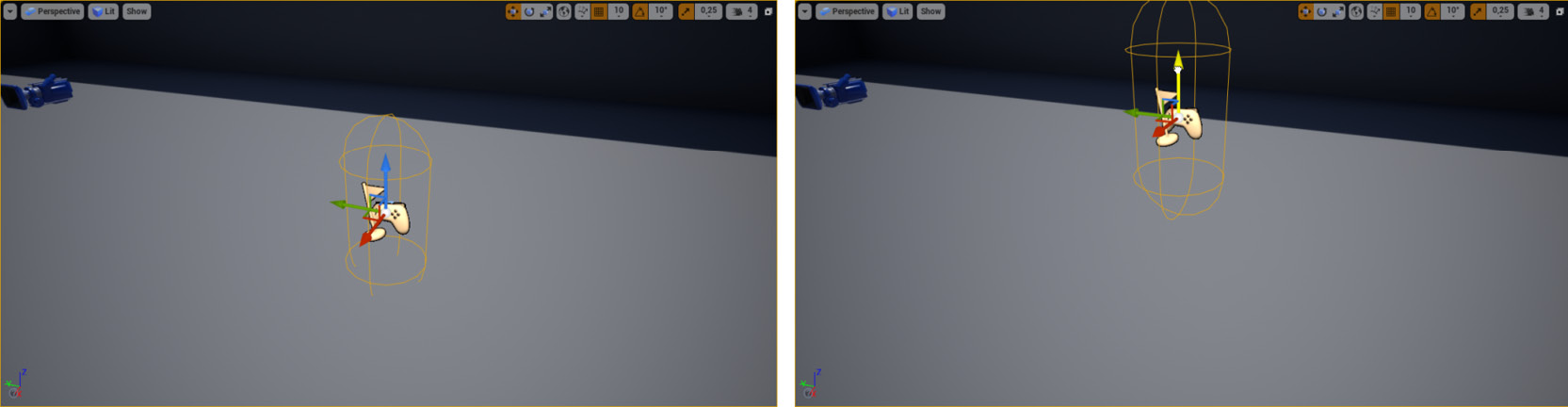

Figure 1.9: An actor being moved on the Z axis using the Move tool

Figure 1.9: An actor being moved on the Z axis using the Move tool

The Move tool will allow you to move an Actor around the level, but if you want to rotate or scale an Actor, you'll need to use the Rotate and Scale tools, respectively. You can switch between the Move, Rotate, and Scale tools by pressing the W, E, and R keys, respectively. Press E in order to switch to the Rotate tool:

Figure 1.10: The Rotate tool, which allows you to rotate an Actor

Figure 1.10: The Rotate tool, which allows you to rotate an Actor

The Rotate tool will, as expected, allow you to rotate an Actor in your level. You can click and hold any of the arcs in order to rotate the Actor around its associated axis. The red arc (upper left in the previous image) will rotate the Actor around the X axis, the green arc (upper right in the previous image) will rotate the Actor around the Y axis, and the blue arc (lower center in the previous image) will rotate the Actor around the Z axis:

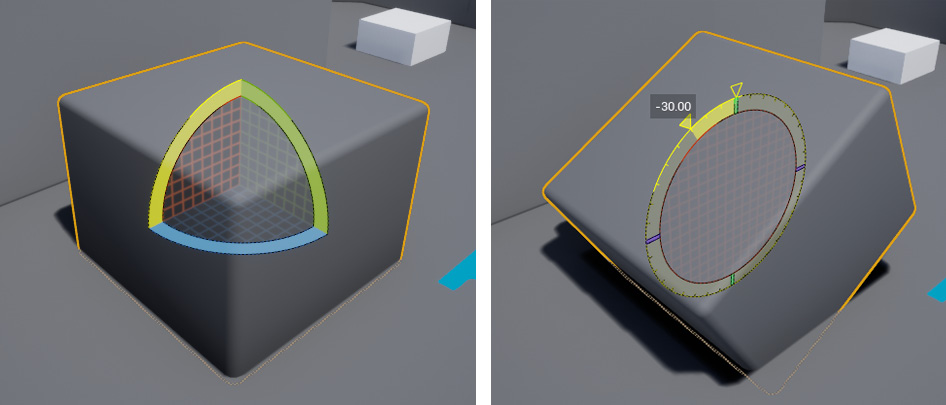

Figure 1.11: A cube before and after being rotated 30 degrees around the X axis

Figure 1.11: A cube before and after being rotated 30 degrees around the X axis

Keep in mind that an object's rotation around the X axis is usually designated as Roll, its rotation around the Y axis is usually designated as Pitch, and its rotation around the Z axis is usually designated as Yaw.

Lastly, we have the Scale tool. Press R in order to switch to it:

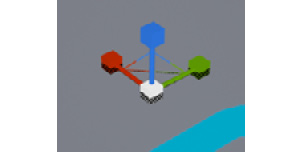

Figure 1.12: The Scale tool

Figure 1.12: The Scale tool

The Scale tool will allow you to increase and decrease the scale (size) of an Actor in the X, Y, and Z axes, where the red handle (left in the previous image) will scale the Actor on the X axis, the green handle (right in the previous image) will scale the Actor on the Y axis, and the blue handle (upper in the previous image) will scale the Actor on the Z axis:

Figure 1.13: A character Actor before and after being scaled on all three axes

Figure 1.13: A character Actor before and after being scaled on all three axes

You can also toggle between the Move, Rotate, and Scale tools by clicking the following icons at the top of the Viewport window:

Figure 1.14: The Move, Rotate, and Scale tool icons

Figure 1.14: The Move, Rotate, and Scale tool icons

Additionally, you can change the increments with which you move, rotate, and scale your objects through the grid snapping options to the right of the Move, Rotate, and Scale tool icons. By pressing the buttons currently in orange, you'll be able to disable snapping altogether, and by pressing the buttons showing the current snapping increments, you'll be able to change those increments:

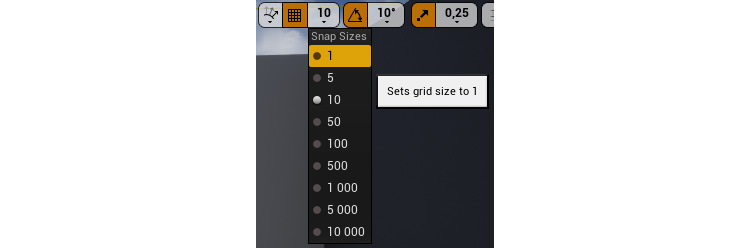

Figure 1.15: The grid snapping icons for moving, rotating, and scaling

Figure 1.15: The grid snapping icons for moving, rotating, and scaling

Now that you know how to manipulate Actors already present in your level, let's learn how to add and remove Actors to and from our level in the next exercise.

Exercise 1.02: Adding and Removing Actors

In this exercise, we will be adding and removing Actors from our level.

When it comes to adding Actors to your level, there are two main ways in which you can do so: by dragging assets from Content Browser, or by dragging the default assets from the Modes window's Place Mode.

The following steps will help you complete this exercise:

  1. If you go to the ThirdPersonCPP -> Blueprints directory inside Content Browser, you will see the ThirdPersonCharacter Actor. If you drag that asset to your level using the left mouse button, you will be able to add an instance of that Actor to it, and it will be placed wherever you let go of the left mouse button:
    Figure 1.16: Dragging an instance of the ThirdPersonCharacter Actor to our level

    Figure 1.16: Dragging an instance of the ThirdPersonCharacter Actor to our level

  2. You can similarly drag an Actor from the Modes window to your level as well:
    Figure 1.17: Dragging a Cylinder Actor to our level

    Figure 1.17: Dragging a Cylinder Actor to our level

  3. In order to delete an Actor, you can simply select the Actor and press the Delete key. You can also right-click on an Actor to take a look at the many other options available to you regarding that Actor.

    Note

    Although we won't be covering this topic in this book, one of the ways in which developers can populate their levels with simple boxes and geometry, for prototyping purposes, is BSP Brushes. These can be quickly molded into your desired shape as you build your levels. To find more information on BSP Brushes, go to this page: https://docs.unrealengine.com/en-US/Engine/Actors/Brushes.

And with this, we conclude this exercise and have learned how to add and remove Actors to and from our level.

Now that we know how to navigate the Viewport window, let's learn about Blueprint Actors.



Blueprint Actors

In UE4, the word Blueprint can be used to refer to two different things: UE4's visual scripting language or a specific type of asset, also referred to as a Blueprint class or Blueprint asset.

As we've mentioned before, an Actor is an object that can be placed in a level. This object can either be an instance of a C++ class or an instance of a Blueprint class, both of which must inherit from the Actor class (either directly or indirectly). So, what is the difference between a C++ class and a Blueprint class, you may ask? There are a few:

  • If you add programming logic to your C++ class, you'll have access to more advanced engine functionality than you would if you were to create a Blueprint class.
  • In a Blueprint class, you can easily view and edit visual components of that class, such as a 3D mesh or a Trigger Box Collision, as well as modifying properties defined in the C++ class that is exposed to the editor, which makes managing those properties much easier.
  • In a Blueprint class, you can easily reference other assets in your project, whereas in C++, you can also do so but less simply and less flexibly.
  • Programming logic that runs on Blueprint visual scripting is slower in terms of performance than that of a C++ class.
  • It's simple to have more than one person work on a C++ class simultaneously without conflicts in a source version platform, whereas with a Blueprint class, which is interpreted as a binary file instead of a text file, this will cause conflicts in your source version platform if two different people edit the same Blueprint class.

    Note

    In case you don't know what a source version platform is, this is how several developers can work on the same project and have it updated with the work done by other developers. In these platforms, different people can usually edit the same file simultaneously, as long as they edit different parts of that file, and still receive updates that other programmers did without them affecting your work on that same file. One of the most popular source version platforms is GitHub.

Keep in mind that Blueprint classes can inherit either from a C++ class or from another Blueprint class.

Lastly, before we move on to creating our first Blueprint Class, another important thing you should know is that you can write programming logic in a C++ class and then create a Blueprint class that inherits from that class, but can also access its properties and methods if you specify that in the C++ class. You can have a Blueprint class edit properties defined in the C++ class as well as calling and overriding functions, using the Blueprint scripting language. We will be doing some of these things in this book.

Now that you know a bit more about Blueprint classes, let's create our own in this next exercise.

Exercise 1.03: Creating Blueprint Actors

In this short exercise, we will learn how to create a new Blueprint Actor.

The following steps will help you complete this exercise:

  1. Go to the ThirdPersonCPP -> Blueprints directory inside Content Browser and right-click inside it. The following window should pop up:
    Figure 1.18: The options window that appears when you right-click inside content browser

    Figure 1.18: The options window that appears when you right-click inside content browser

    This options menu contains the types of assets that you can create in UE4 (Blueprints are simply a type of asset, along with other types of assets, such as Level, Material, and Sound).

  2. Click the Blueprint Class icon to create a new Blueprint class. When you do, you will be given the option to choose the C++ or Blueprint class that you want to inherit from:
    Figure 1.19: The Pick Parent Class window that pops up when you
create a new Blueprint class

    Figure 1.19: The Pick Parent Class window that pops up when you create a new Blueprint class

  3. Select the first class from this window, the Actor class. After this, you will automatically select the text of the new Blueprint class to easily name it what you want. Name this Blueprint class TestActor and press the Enter key to accept this name.

After following these steps, you will have created your Blueprint class and so have completed this exercise. After you've created this asset, double-click on it with the left mouse button to open the Blueprint editor.



The Blueprint Editor

The Blueprint editor is a sub-editor within the Unreal Engine editor specifically for Blueprint classes. Here, you'll be able to edit the properties and logic for your Blueprint classes, or those of their parent class, as well as their visual appearance.

When you open an Actor Blueprint class, you should see the Blueprint editor. This is the window that will allow you to edit your Blueprint classes in UE4. Let's learn about the windows that you're currently seeing:

Figure 1.20: The Blueprint editor window is broken down into five parts

Figure 1.20: The Blueprint editor window is broken down into five parts

  1. Viewport: Front and center in the editor you have the Viewport window. This window, similar to the Level Viewport window that we already learned about, will allow you to visualize your Actor and edit its components. Every actor can have several Actor Components, some of which have a visual representation, such as Mesh Components and Collision Components. We'll be talking about Actor Components in more depth in later chapters.

    Technically, this center window contains three tabs, only one of which is the Viewport window, but we'll be talking about the other important tab, the Event Graph after we tackle this editor's interface. The third tab is the Construction Script window, which we will not be covering in this book.

  2. Components: At the top left of the editor, you have the Components window. As mentioned in the previous description, Actors can have several Actor Components, and this window is the one that will allow you to add and remove those Actor Components in your Blueprint class, as well as to access Actor Components defined in the C++ classes it inherits from.
  3. My Blueprint: At the bottom left of the editor, you have the My Blueprint window. This will allow you to browse, add, and remove variables and functions defined in both this Blueprint class and the C++ class it inherits from. Keep in mind that Blueprints have a special kind of function, called an event, which is used to represent an event that happened in the game. You should see three of them in this window: BeginPlay, ActorBeginOverlap, and Tick. We'll be talking about these in a few paragraphs.
  4. Details: At the right of the editor, you have the Details window. Similar to the editor's Details window, this window will show you the properties of the currently selected Actor Component, function, variable, event, or any other individual element of this Blueprint class. If you currently have no elements selected, this window will be empty.
  5. Toolbar: At the top center of the editor you have the Toolbar window. This window will allow you to compile the code you wrote in this Blueprint class, save it, locate it in Content Browser, and access this class's settings, among other things.

You can see the parent class of a Blueprint class by looking at the top-right corner of the Blueprint editor. If you click the name of the parent class, you'll be taken to either the corresponding Blueprint class, through the Unreal Engine editor, or the C++ class, through Visual Studio.

Additionally, you can change a Blueprint class's parent class by clicking on the File tab at the top left of the Blueprint editor and selecting the Reparent Blueprint option, which will allow you to specify the new parent class of this Blueprint class.

Now that we've learned about the basics of the Blueprint editor, let's take a look at its Event Graph.



Event Graph

The Event Graph window is where you'll be writing all of your Blueprint visual scripting code, creating your variables and functions, and accessing other variables and functions declared in this class's parent class.

If you select the Event Graph tab, which you should be able to see to the right of the Viewport tab, you will be shown the Event Graph window instead of the Viewport window. On clicking the Event Graph tab, you will have the following window:

Figure 1.21: The Event Graph window, showing three disabled events

Figure 1.21: The Event Graph window, showing three disabled events

You can navigate the Event Graph by holding the right mouse button and dragging inside the graph, you can zoom in and out by scrolling the mouse wheel, and you can select nodes from the graph by either clicking with the left mouse button or by pressing and holding to select an area of nodes.

You can also right-click inside the Event Graph window to access the Blueprint's Actions menu, which allows you to access the actions you can do in the Event Graph, including getting and setting variables, calling functions or events, and many others.

The way scripting works in Blueprint is by connecting nodes using pins. There are several types of nodes, such as variables, functions, and events. You can connect these nodes through pins, of which there are two types:

  1. Execution pins: These will dictate the order in which the nodes will be executed. If you want node 1 to be executed and then node 2 to be executed, you link the output execution pin of node 1 to the input execution pin of node 2, as shown in the following screenshot:
    Figure 1.22: The output execution pin of the Event OnReset node being connected
to the input execution pin of the setter node for MyVar

    Figure 1.22: The output execution pin of the Event OnReset node being connected to the input execution pin of the setter node for MyVar

  2. Variable pins: These work as parameters (also known as input pins), at the left of the node, and return values (also known as output pins), at the right side of the node, representing a value of a certain type (integer, float, Boolean, and others):
    Figure 1.23: The Get Scalar Parameter Value function call node, which has two input variable pins and one output variable pin

Figure 1.23: The Get Scalar Parameter Value function call node, which has two input variable pins and one output variable pin

Let's understand this better through the next exercise.

Exercise 1.04: Creating Blueprint Variables

In this exercise, we will see how to create Blueprint variables by creating a new variable of the Boolean type.

In Blueprint, variables work similarly to the ones you would use in C++. You can create them, get their value, and set them.

The following steps will help you complete this exercise:

  1. To create a new Blueprint variable, head to the My Blueprint window and click the + Variable button:
    Figure 1.24: The + Variable button being highlighted in the My Blueprint window, which allows you to create a new Blueprint variable

    Figure 1.24: The + Variable button being highlighted in the My Blueprint window, which allows you to create a new Blueprint variable

  2. After that, you'll automatically be allowed to name your new variable. Name this new variable MyVar:
    Figure 1.25: Naming the new variable MyVar

    Figure 1.25: Naming the new variable MyVar

  3. Compile your Blueprint by clicking the Compile button on the left side of the Toolbar window. If you now take a look at the Details window, you should see the following:
    Figure 1.26: The MyVar variable settings in the Details window

    Figure 1.26: The MyVar variable settings in the Details window

  4. Here, you'll be able to edit all the settings related to this variable, the most important ones being Variable Name, Variable Type, and its Default Value at the end of the settings. Boolean variables can have their value changed by clicking the gray box to their right:
    Figure 1.27: The variable types available from the Variable Type drop-down menu

    Figure 1.27: The variable types available from the Variable Type drop-down menu

  5. You can also drag a getter or setter for a variable inside the My Blueprint tab into the Event Graph window:
    Figure 1.28: Dragging the MyVar into the Event Graph window and choosing
whether to add a getter or setter

    Figure 1.28: Dragging the MyVar into the Event Graph window and choosing whether to add a getter or setter

    Getters are nodes that contain the current value of a variable while setters are nodes that allow you to change the value of a variable.

  6. To allow a variable to be editable in each of the instances of this Blueprint class, you can click the eye icon to the right of that variable inside the My Blueprint window:
    Figure 1.29: Clicking the eye icon to expose a variable and allow it to be instance-editable

    Figure 1.29: Clicking the eye icon to expose a variable and allow it to be instance-editable

  7. You can then drag an instance of this class to your level, select that instance, and see the option to change that variable's value in the Details window of the editor:
    Figure 1.30: The exposed MyVar variable that can be edited through the
Details panel of that object

Figure 1.30: The exposed MyVar variable that can be edited through the Details panel of that object

And with that, we conclude this exercise and now know how to create our own Blueprint variables. Let's now take a look at how to create Blueprint Functions in the next exercise.

Exercise 1.05: Creating Blueprint Functions

In this exercise, we will create our first Blueprint Function. In Blueprint, functions and events are relatively similar, the only difference being that an event will only have an output pin, usually because it gets called from outside of the Blueprint class:

Figure 1.31: An event (left), a pure function call that doesn't need execution pins (middle), and a normal function call (right)

Figure 1.31: An event (left), a pure function call that doesn't need execution pins (middle), and a normal function call (right)

The following steps will help you complete this exercise:

  1. Click the + Function button inside the My Blueprint window:
    Figure 1.32: The + Function button being hovered over, which will create a new function

    Figure 1.32: The + Function button being hovered over, which will create a new function

  2. Name the new function MyFunc.
  3. Compile your Blueprint by clicking the Compile button in the Toolbar window:
    Figure 1.33: The Compile button

    Figure 1.33: The Compile button

  4. If you now take a look at the Details window, you should see the following:
    Figure 1.34: The Details panel after selecting the MyFunc function and adding
an input and output pin

    Figure 1.34: The Details panel after selecting the MyFunc function and adding an input and output pin

    Here, you'll be able to edit all the settings related to this function, the most important ones being Inputs and Outputs at the end of the settings. These will allow you to specify the variables that this function must receive and will return.

    Lastly, you can edit what this function does by clicking it from the My Blueprint window. This will open a new tab in the center window that will allow you to specify what this function will do. In this case, this function will simply return false every time it is called:

    Figure 1.35: The contents of the MyFunc function, receiving a Boolean parameter,
and returning a Boolean type

    Figure 1.35: The contents of the MyFunc function, receiving a Boolean parameter, and returning a Boolean type

  5. To save the modifications we made to this Blueprint class, click the Save button next to the Compile button on the toolbar. Alternatively, you can have it so that the Blueprint automatically saves every time you compile it successfully by selecting that option.

After following these steps, you now know how to create your own Blueprint Functions. Let's now take a look at a Blueprint node we'll be making use of later in this chapter.



The Float Multiplication Node

Blueprint contains many more nodes that are not related to variables or functions. One such example is arithmetic nodes (that is adding, subtracting, multiplying, and so on.). If you search for float * float on the Blueprint Actions menu, you'll find the Float Multiplication node:

Figure 1.36: The Float Multiplication node

Figure 1.36: The Float Multiplication node

This node allows you to input two or more float parameters (you can add more by clicking the + icon to the right of the Add pin text) and output the result of the multiplication of all of them. We will be using this node later, in this chapter's activity.



BeginPlay and Tick

Let's now take a look at two of the most important events in UE4: BeginPlay and Tick.

As mentioned previously, events will usually be called from outside the Blueprint class. In the case of the BeginPlay event, this event gets called either when an instance of this Blueprint class is placed in the level and the level starts being played, or when an instance of this Blueprint class is spawned dynamically while the game is being played. You can think of the BeginPlay event as the first event that will be called on an instance of this Blueprint, which you can use for initialization.

The other important event to know about in UE4 is the Tick event. As you may know, games run at a certain frame rate, the most frequent being either 30 FPS (frames per second) or 60 FPS: this means that the game will render an updated image of the game 30 or 60 times every second. The Tick event will get called every time the game does this, which means that if the game is running at 30 FPS, the Tick event will get called 30 times every second.

Go to your Blueprint class's Event Graph window and delete the three grayed-out events by selecting all of them and clicking the Delete key, which should cause the Event Graph window to become empty. After that, right-click inside the Event Graph window, type in BeginPlay, and select the Event BeginPlay node by either clicking the Enter key or by clicking on that option in the Blueprint Actions menu. This should cause that event to be added to the Event Graph window:

Figure 1.37: The BeginPlay event being added to the Event Graph window through the Blueprint Actions menu

Figure 1.37: The BeginPlay event being added to the Event Graph window through the Blueprint Actions menu

Right-click inside the Event Graph window, type in Tick, and select the Event Tick node. This should cause that event to be added to the Event Graph window:

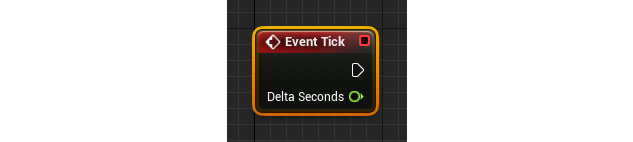

Figure 1.38: The Tick event

Figure 1.38: The Tick event

Unlike the BeginPlay event, the Tick event will be called with a parameter, DeltaTime. This parameter is a float that indicates the amount of time that passed since the last frame was rendered. If your game is running at 30 FPS, this means that the interval between each of the frames being rendered (the delta time) is going to be, on average, 1/30 seconds, which is around 0.033 seconds (33.33 milliseconds). If frame 1 is rendered and then frame 2 is rendered 0.2 seconds after that, then frame 2's delta time will be 0.2 seconds. If frame 3 gets rendered 0.1 seconds after frame 2, frame 3's delta time will be 0.1 seconds, and so forth.

But why is the DeltaTime parameter so important? Let's take a look at the following scenario: you have a Blueprint class that increases its position on the Z axis by 1 unit every time a frame is rendered using the Tick event. However, you are faced with a problem: there's the possibility that players will run your game at different frame rates, such as 30 FPS and 60 FPS. The player who's running the game at 60 FPS will cause the Tick event to be called twice as much as the player who's running the game at 30 FPS, and the Blueprint class will end up moving twice as fast because of that. This is where the delta time comes into play: because the game that's running at 60 FPS will have the Tick event called with a lower delta time value (the interval between the frames being rendered is much smaller), you can use that value to change the position on the Z axis. Although the Tick event is being called twice as much on the game running at 60 FPS, its delta time is half the value, so it all balances out. This will cause two players playing the game with different frame rates to have the same result.

Note

If you want a Blueprint that is using the delta time to move, you can make it move faster or slower by multiplying the delta time by the number of units you want it to move per second (for example, if you want a Blueprint to move 3 units per second on the Z axis, you can tell it to move 3 * DeltaTime units every frame).

Let's now try another exercise, which will consist of working with Blueprint nodes and pins.

Exercise 1.06: Offsetting the TestActor Class on the Z Axis

In this exercise, you'll be using the BeginPlay event to offset (move) the TestActor on the Z axis when the game starts being played.

The following steps will help you complete this exercise:

  1. Open the TestActor Blueprint class.
  2. Using the Blueprint Actions menu, add the Event BeginPlay node to the graph, if it's not already there.
  3. Add the AddActorWorldOffset function and connect the BeginPlay event's output execution pin to this function's input execution pin. This function is responsible for moving an Actor in the intended axes (X, Y, and Z) and it receives the following parameters:
    • Target: The Actor that this function should be called on, which will be the Actor calling this function. The default behavior is to call this function on the Actor calling this function, which is exactly what we want and is shown using the self property.
    • DeltaLocation: The amount that we want to offset this Actor by in each of the three axes: X, Y, and Z.
    • We won't be getting into the other two parameters, Sweep and Teleport, so you can leave them as is. They are both Boolean types and should be left as false:
      Figure 1.39: The BeginPlay event calling the AddActorWorldOffset function

Figure 1.39: The BeginPlay event calling the AddActorWorldOffset function

  1. Split the Delta Location input pin, which will cause this Vector property to be split into three float properties. You can do this to any variable type that is comprised of one or more subtypes (you wouldn't be able to do this to the float type because it's not comprised of any variable subtypes) by right-clicking on them and selecting Split Struct Pin:
    Figure 1.40: The Delta Location parameter being split from a vector into three floats

    Figure 1.40: The Delta Location parameter being split from a vector into three floats

  2. Set the Z property of Delta Location to 100 units by clicking with the left mouse button, typing that number, and then pressing the Enter key. This will cause our TestActor to move up on the Z axis by 100 units when the game starts.
  3. Add a cube shape to your TestActor, using the Components window, so that we can see our Actor. You can do this by clicking the + Add Component button, typing Cube, and then selecting the first option under the Basic Shapes section:
    Figure 1.41: Adding a cube shape

    Figure 1.41: Adding a cube shape

  4. Compile and save your Blueprint class by clicking the Compile button.
  5. Go back to the level's Viewport window and place an instance of your TestActor Blueprint class inside the level, if you haven't done so already:
    Figure 1.42: Adding an instance of TestActor to the level

    Figure 1.42: Adding an instance of TestActor to the level

  6. When you play the level, you should notice that the TestActor we added to the level is in a more elevated position:
    Figure 1.43: The TestActor increasing its position on the Z axis when the game starts

    Figure 1.43: The TestActor increasing its position on the Z axis when the game starts

  7. After making these modifications, save the changes made to our level by either pressing Ctrl + S or by clicking the Save Current button on the editor Toolbar.

In this exercise, you've learned how to create your first Actor Blueprint class with your own Blueprint scripting logic.

Note

Both the TestActor blueprint asset and the Map asset with the final result of this exercise can be found here: https://packt.live/3lfYOa9.

Now that we've done this, let's learn a bit more about the ThirdPersonCharacter Blueprint class.



ThirdPersonCharacter Blueprint Class

Let's take a look at the ThirdPersonCharacter Blueprint class, which is the Blueprint representing the character that the player controls, and take a look at the Actor Components that it contains.

Go to the ThirdPersonCPP -> Blueprints directory inside Content Browser and open the ThirdPersonCharacter asset:

Figure 1.44: The ThirdPersonCharacter Blueprint class

Figure 1.44: The ThirdPersonCharacter Blueprint class

In a previous section, where we introduced the Components window inside the Blueprint editor, we mentioned Actor Components.

Actor Components are entities that must live inside an Actor and allow you to spread the logic of your Actor into several different Actor Components. In this Blueprint, we can see that there are four visually represented Actor Components:

  • A Skeletal Mesh Component, which shows the UE4 mannequin
  • A Camera Component, which shows where the player will be able to see the game from
  • An Arrow Component, which allows us to see where the character is facing (this is mainly used for development purposes, not while the game is being played)
  • A Capsule Component, which specifies the collision range of this character

If you look at the Components window, you'll see a few more Actor Components than the ones we see in the Viewport window. This is because some Actor Components don't have a visual representation and are purely made up of C++ or Blueprint code. We'll be going into more depth on Actor Components in the next chapter and Chapter 9, Audio-Visual Elements.

If you take a look at this Blueprint class's Event Graph window, you'll see that it's essentially empty, like the one we saw with our TestActor Blueprint class, despite it having a bit of logic associated with it. That is because that logic is defined in the C++ class and not in this Blueprint class. We'll be taking a look at how to do this in the next chapter.

In order to explain this Blueprint class's Skeletal Mesh Component, we should first talk about meshes and materials.



Meshes and Materials

For a computer to visually represent a 3D object, it needs two things: a 3D mesh and a material.

Meshes

3D meshes allow you to specify the size and shape of an object, like this mesh representing a monkey's head:

Figure 1.45: A 3D mesh of a monkey's head

Figure 1.45: A 3D mesh of a monkey's head

Meshes are comprised of several vertices, edges, and faces. Vertices are simply a 3D coordinate with an X, Y, and Z position; an edge is a connection (that is, a line) between two vertices; and a face is a connection of three or more edges. You can see in the previous figure the individual vertices, edges, and faces of the mesh, where each face is colored between white and black, depending on how much light is reflecting off the face. Nowadays, video games can render meshes with thousands of vertices in such a way that you can't tell the individual vertices apart because there are so many of them so close together.

Materials

Materials, on the other hand, allow you to specify how a mesh is going to be represented. They allow you to specify a mesh's color, draw a texture on its surface, or even manipulate its individual vertices.

Creating meshes is something that, as of the time of writing this book, is not properly supported inside UE4 and should be done in another piece of software, such as Blender or Autodesk Maya, so we won't be going into this in great detail here. We will, however, learn how to create materials for existing meshes.

In UE4, you can add meshes through Mesh Components, which inherit from the Actor Component class. There are several types of Mesh Components, but the two most important ones are Static Mesh Components, for meshes that don't have animations (for example, cubes, static level geometry), and Skeletal Mesh Components, for meshes that have animations (for example, character meshes that play movement animations). As we saw earlier, the ThirdPersonCharacter Blueprint class contains a Skeletal Mesh Component because it's used to represent a character mesh that plays movement animations. In the next chapter, we'll be learning how to import assets such as meshes into our UE4 project.

Let's now take a look at materials in UE4 in the next exercise.



Manipulating Materials in UE4

In this section, we'll be taking a look at how materials work in UE4.

Go back to your Level Viewport window and select this Cube object:

Figure 1.46: The Cube object, next to the text saying Third Person on the floor

Figure 1.46: The Cube object, next to the text saying Third Person on the floor

Take a look at the Details window, where you'll be able to see both the mesh and material associated with this object's Static Mesh component:

Figure 1.47: The Static Mesh and Materials (Element 0) properties of the Cube
object's Static Mesh component

Figure 1.47: The Static Mesh and Materials (Element 0) properties of the Cube object's Static Mesh component

Note

Keep in mind that meshes can have more than one material, but must have at least one.

Click the looking glass icon next to the Material property to be taken to that material's location in Content Browser. This icon works with any reference to any asset inside the editor, so you can do the same thing with the asset referenced as the cube object's Static Mesh:

Figure 1.48: The looking glass icon (left), which takes you to that
asset's location in Content Browser (right)

Figure 1.48: The looking glass icon (left), which takes you to that asset's location in Content Browser (right)

Double-click that asset with the left mouse button to open that asset in the Material editor. Let's break down the windows present in Material editor:

Figure 1.49: The Material editor window broken down into five parts

Figure 1.49: The Material editor window broken down into five parts

  1. Graph: Front and center in the editor, you have the Graph window. Similar to the Blueprint editor's Event Graph window, the Material editor's graph is also node-based, where you'll also find nodes connected by pins, although here you won't find execution pins, only input and output pins.
  2. Palette: At the right edge of the screen, you'll see the Palette window, where you'll be able to search all the nodes that you can add to the Graph window. You can also do this the same way as in the Blueprint editor's Event Graph window by right-clicking inside the Graph window and typing the node you wish to add.
  3. Viewport: At the top-left corner of the screen, you'll see the Viewport window. Here, you'll be able to preview the result of your material and how it will appear on some basic shapes such as spheres, cubes, and planes.
  4. Details: At the bottom-left corner of the screen, you'll see the Details window where, similar to the Blueprint editor, you'll be able to see the details of either this Material asset or those of the currently selected node in the Graph window.
  5. Toolbar: At the top edge of the screen, you'll see the Toolbar window, where you'll be able to apply and save the changes made to your material, as well as to perform several actions related to the Graph window.

In every single Material editor inside UE4, you'll find a node with the name of that Material asset, where you'll be able to specify several parameters related to it by plugging that node's pins to other nodes.

In this case, you can see that there's a node called 0.7 being plugged into the Roughness pin. This node is a Constant node, which allows you to specify a number associated with it – in this case, 0.7. You can create constant nodes of a single number, a 2 vector (for example, (1, 0.5)), a 3 vector (for example, (1, 0.5, 4)), and a 4 vector (for example, (1,0.5, 4, 0)). To create these nodes, you can press the Graph window with the left mouse button while holding the 1, 2, 3, or 4 number keys, respectively.

Materials have several input parameters, so let's go through some of the most important ones:

  • BaseColor: This parameter is simply the color of the material. Generally, constants or texture samples are used to connect to this pin, to either have an object be a certain color or to map to a certain texture.
  • Metallic: This parameter will dictate how much your object will look like a metal surface. You can do this by connecting a constant single number node that ranges from 0 (not metallic) to 1 (very metallic).
  • Specular: This parameter will dictate how much your object will reflect light. You can do this by connecting a constant single number node that ranges from 0 (doesn't reflect any light) to 1 (reflects all the light). If your object is already very metallic, you will see little to no difference.
  • Roughness: This parameter will dictate how much the light that your object reflects will be scattered (the more the light scatters, the less clear this object will reflect what's around it). You can do this by connecting a constant single number node that ranges from 0 (the object essentially becomes a mirror) to 1 (the reflection on this object is blurry and unclear).

    Note

    To learn more about material inputs like the ones above, go to https://docs.unrealengine.com/en-US/Engine/Rendering/Materials/MaterialInputs.

UE4 also allows you to import images (.jpeg, .png) as Texture assets, which can then be referenced in a material using Texture Sample nodes:

Figure 1.50: The Texture Sample node, which allows you to specify a texture and use
it or its individual color channels as pins

Figure 1.50: The Texture Sample node, which allows you to specify a texture and use it or its individual color channels as pins

Note

We will be taking a look at how to import files into UE4 in the next chapter.

In order to create a new Material asset, you can do so by right-clicking on the directory inside Content Browser where you want to create the new asset, which will allow you to choose which asset to create, and then select Material.

Now you know how to create and manipulate materials in UE4.

Let's now jump into this chapter's activity, which will be the first activity of this book.

Activity 1.01: Propelling TestActor on the Z Axis Indefinitely

In this activity, you will use the Tick event of TestActor to move it on the Z axis indefinitely, instead of doing this only once when the game starts.

The following steps will help you complete this activity:

  1. Open the TestActor Blueprint class.
  2. Add the Event Tick node to the Blueprint's Event Graph window.
  3. Add the AddActorWorldOffset function, split its DeltaLocation pin, and connect the Tick event's output execution pin to this function's input execution pin, similar to what we did in Exercise 1.01, Creating an Unreal Engine 4 Project.
  4. Add a Float Multiplication node to Event Graph window.
  5. Connect the Tick event's Delta Seconds output pin to the first input pin of the Float Multiplication node.
  6. Create a new variable of the float type, call it VerticalSpeed, and set its default value to 25.
  7. Add a getter to the VerticalSpeed variable to the Event Graph window and connect its pin to the second input pin of the Float Multiplication node. After that, connect the Float Multiplication node's output pin to the Delta Location Z pin of the AddActorWorldOffset function.
  8. Delete the BeginPlay event and the AddActorWorldOffset function connected to it, both of which we created in Exercise 1.01, Creating an Unreal Engine 4 Project.
  9. Play the level and notice our TestActor rising from the ground and up into the air over time:
    Figure 1.51: The TestActor propelling itself vertically

Figure 1.51: The TestActor propelling itself vertically

And with those steps completed, we conclude this activity – the first of many in this book. We've now consolidated adding and removing nodes to and from the Blueprint editor's Event Graph window, as well as using the Tick event and its DeltaSeconds property to create game logic that maintains consistency across different frame rates.

Note

The solution to this activity can be found at: https://packt.live/338jEBx.

The TestActor blueprint asset can be found here: https://packt.live/2U8pAVZ.



Summary

By completing this chapter, you have taken the first step in your game development journey by learning about Unreal Engine 4. You now know how to navigate the Unreal Engine editor, manipulate the Actors inside a level, create your own Actors, use the Blueprint scripting language, and how 3D objects are represented in Unreal Engine 4.

Hopefully, you realize that there's a whole world of possibilities ahead of you and that the sky is the limit in terms of the things you can create using this game development tool.

In the next chapter, you will recreate the project template that was automatically generated in this chapter from scratch. You will learn how to create your own C++ classes and then create Blueprint classes that can manipulate properties declared in their parent class and how to import character meshes and animations into Unreal Engine 4, as well as becoming familiar with other animation-related assets such as Animation Blueprints.

About the Authors

  • Hammad Fozi

    Hammad Fozi has been passionately involved with technology since he was 12 years of age. He has received several awards in ICT and Thinking Skills during his studies. In 2016, Hammad interned at Vanilla Arcade and developed a product known as "Camera from the Past" which is displayed publicly at the National History Museum in Lahore and is a source of great fun for the visitors and tourists. Having graduated as a Computer Scientist in 2018, he quickly consolidated his name as an Unreal Engine developer. Currently, Hammad is an Unreal enthusiast, co-managing the Unreal Developer Community of Pakistan. He works as a lead Unreal developer for Terra Virtua and is the sole developer behind their explosively popular Fan Cave product, showcasing amazing digital merch from some of the biggest names in the entertainment industry such as Legendary Entertainment and Paramount Pictures.

    Browse publications by this author
  • Gonçalo Marques

    Gonçalo Marques has been an active gamer since the age of 6. He worked as a freelancer for a Portuguese startup, Sensei Tech, where he developed an internal system using UE4 to produce datasets that assist with machine learning. He has since participated in several projects as a freelancer. Gonçalo also released a free and open-source plugin called UI Navigation, which has garnered an extremely positive reception with over 50K downloads. It is still receiving frequent updates and fixes. Currently, he is working at ZPX, a game studio in Lisbon that frequently collaborates with Funcom and has contributed to games, such as Conan Exiles, Mutant Year Zero, and Moons of Madness. Gonçalo has helped in the development of Moons of Madness and is currently working on a new Funcom game in the Dune universe.

    Browse publications by this author
  • David Pereira

    David Pereira started his game development journey in 1998, where he learned to use Clickteam's The Games Factory to make his own small games. He graduated with a bachelor's degree in computer science from FCT-UNL, where he learned how to program in C++ with OpenGL and DirectX, which allowed him to create more complex games. After working in IT consulting for a few years, he joined Miniclip Portugal where he worked on popular mobile games like 8 Ball Pool, Gravity Guy 1 and 2, Extreme Skater, iStunt2, and Hambo. Today, he's working on his own game, a soon to be announced First-Person Action RPG.

    Browse publications by this author
  • Devin Sherry

    Devin Sherry is a technical designer at the game studio called People Can Fly and works on their newest IP that is built with Unreal Engine 4. Devin studied game development and game design at the University of Advancing Technology, where he obtained a bachelor's degree in game design in 2012. He contributed as a level designer/scripter on a student project made in Unreal Engine 3/UDK called The Afflicted, which was showcased at GDC Play during the Game Developers Conference in 2013. During his time tenure there, he worked in Unreal Engine 4 as a general Blueprint scripter, prototyped game mechanics, and created UI elements in UMG. He also managed C++ programmers, delegated bugs, and led team meetings.

    Browse publications by this author

Latest Reviews

(2 reviews total)
Very Fast and Convenient!
It's something I'm very interested in.

Recommended For You

Game Development Projects with Unreal Engine
Unlock this book and the full library for FREE
Start free trial
