Natural language processing (NLP) is the field of understanding human language using computers. It involves the analysis and of large volumes of natural language data using computers to glean meaning and value for consumption in real-world applications. While NLP has been around since the 1950s, there has been tremendous growth in practical applications in the area, due to recent advances in machine learning (ML) and deep learning. The majority of this book will focus on various real-world applications of NLP, such as text classification, and sub-tasks of NLP, such as Named Entity Recognition (NER), with a particular emphasis on deep learning approaches. In this chapter, we will first introduce the basic concepts and terms in NLP. Following this, we will discuss some of the currently used applications that leverage NLP.
The following are some of the important terminologies and concepts in NLP mostly related to the language data. Getting familiar with these terms and concepts will help the reader in getting up to speed in understanding the contents in later chapters of the book:
- Text corpus or corpora
- Phrases and words
We will explain these in the following sections.
The language data that all NLP tasks depend upon is called the text corpus or simply corpus. A corpus is a large set of text data that can be in one of the languages like English, French, and so on. The corpus can consist of a single document or a bunch of documents. The source of the text corpus can be social network sites like Twitter, blog sites, open discussion forums like Stack Overflow, books, and several others. In some of the tasks like machine translation, we would require a multilingual corpus. For example we might need both the English and French translations of the same document content for developing a machine translation model. For speech tasks, we would also need human voice recordings and the corresponding transcribed corpus.
In most of the later chapters, we will be using text corpus and speech recordings available from the internet or open source data repositories. For many of the NLP task, the corpus is split into chunks for further analysis. These chunks could be at the paragraph, sentence, or word level. We will touch upon these in the following sections.
A paragraph is the largest unit of text handled by an NLP task. Paragraph level boundaries by itself may not be much use unless broken down into sentences. Though sometimes the paragraph may be considered as context boundaries. Tokenizers that can split a document into paragraphs are available in some of the Python libraries. We will look at such tokenizers in later chapters.
Sentences are the next level of lexical unit of language data. A sentence encapsulates a complete meaning or thought and context. It is usually extracted from a paragraph based on boundaries determined by punctuations like period. The sentence may also convey opinion or sentiment expressed in it. In general, sentences consists of parts of speech (POS) entities like nouns, verbs, adjectives, and so on. There are tokenizers available to split paragraphs to sentences based on punctuations.
Phrases are a group of consecutive words within a sentence that can convey a specific meaning. For example, in the sentence Tomorrow is going to be a rainy day the part going to be a rainy day expresses a specific thought. Some of the NLP tasks extract key phrases from sentences for search and retrieval applications. The next smallest unit of text is the word. The common tokenizers split sentences into text based on punctuations like spaces and comma. One of the problems with NLP is ambiguity in the meaning of same words used in different context. We will later see how this is handled well when we discuss word embeddings.
A sequence of characters or words forms an N-gram. For example, character unigram consists of a single character, a bigram consists of a sequence of two characters and so on. Similarly word N-grams consists of a sequence of n words. In NLP, N-grams are used as features for tasks like text classification.
Bag-of-words in contrast to N-grams does not consider word order or sequence. It captures the word occurrence frequencies in the text corpus. Bag-of-words is also used as features in tasks like sentiment analysis and topic identification.
In the following sections, we will look at an overview of the following applications of NLP:
- Analyzing sentiment
- Recognizing named entities
- Linking entities
- Translating text
- Natural language interfaces
- Semantic Role Labeling
- Relation extraction
- SQL query generation, or semantic parsing
- Machine Comprehension
- Textual entailment
- Coreference resolution
- Question answering and chatbots
- Converting text to voice
- Converting voice to text
- Speaker identification
- Spoken dialog systems
- Other applications
In this section, we will provide an overview of the major applications of NLP. While the topics listed here are not quite exhaustive, they will give the reader a sense of the wide range of applications where NLP is used.
The sentiment in a sentence or text reflects the overall positive, negative, or neutral opinion or thought of the person who produces or consumes it. It indicates whether a person is happy, unhappy, or neutral about the subject or context that describes the text. It can be quantified as a discrete value, such as 1 for happy, -1 for unhappy, and 0 for neutral, or it can be quantified on a continuous scale of values, from 0-1. Sentiment analysis, therefore, is the process of deriving this value from a piece of text that can be obtained from different data sources, such as social networks, product reviews, news articles, and so on. One real-world application of sentiment analysis is in social network data to derive actionable insights, such as customer satisfaction, product or brand popularity, fashion trends, and so on. The screenshot that follows shows one of the applications of sentiment analysis, in capturing the overall opinion of a particular news article about Google. The reader may refer to the application, or API, from Google Cloud at https://cloud.google.com/natural-language/:
The preceding screenshot indicates that sentiment data is captured for the whole document, as well as at the individual sentence level.
NER is a type of text annotation task. In NER, words or tokens in a piece of text are labeled or annotated into categories, such as organizations, locations, people, and so on. In effect, NER converts unstructured text data into structured data that can later be used for further analysis. The following screenshot is a visualization from the Google Cloud API. The reader can try out the API with the link provided in the preceding subsection:
The output result in the preceding screenshot shows how the different entities, such as ORGANISATION (Google), PERSON (Sundar Pitchai), EVENT (CONSUMER ELECTRONICS SHOW), and so on, are automatically extracted from the unstructured raw text by NER. The output also gives the sentiment for each label or category, based on sentiment analysis. The reader can experiment with different text using the link provided earlier. When we click on the

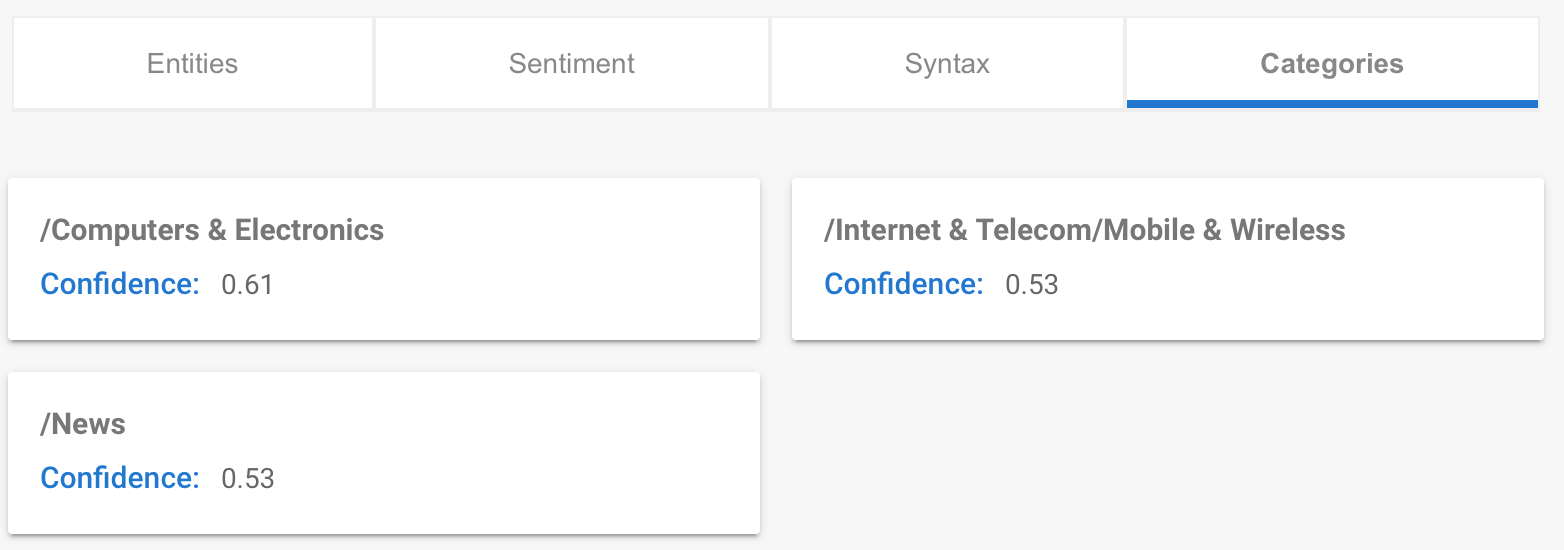

Categories tab, we can see the following:
The preceding screenshot shows how the system also classifies a particular piece of text into
Computer & Electronics,
News, and so on, using the recognized named entities in the text. Such a categorization, called topic modeling, is another important NLP task, used to identify the main theme or topic of a sentence or document.

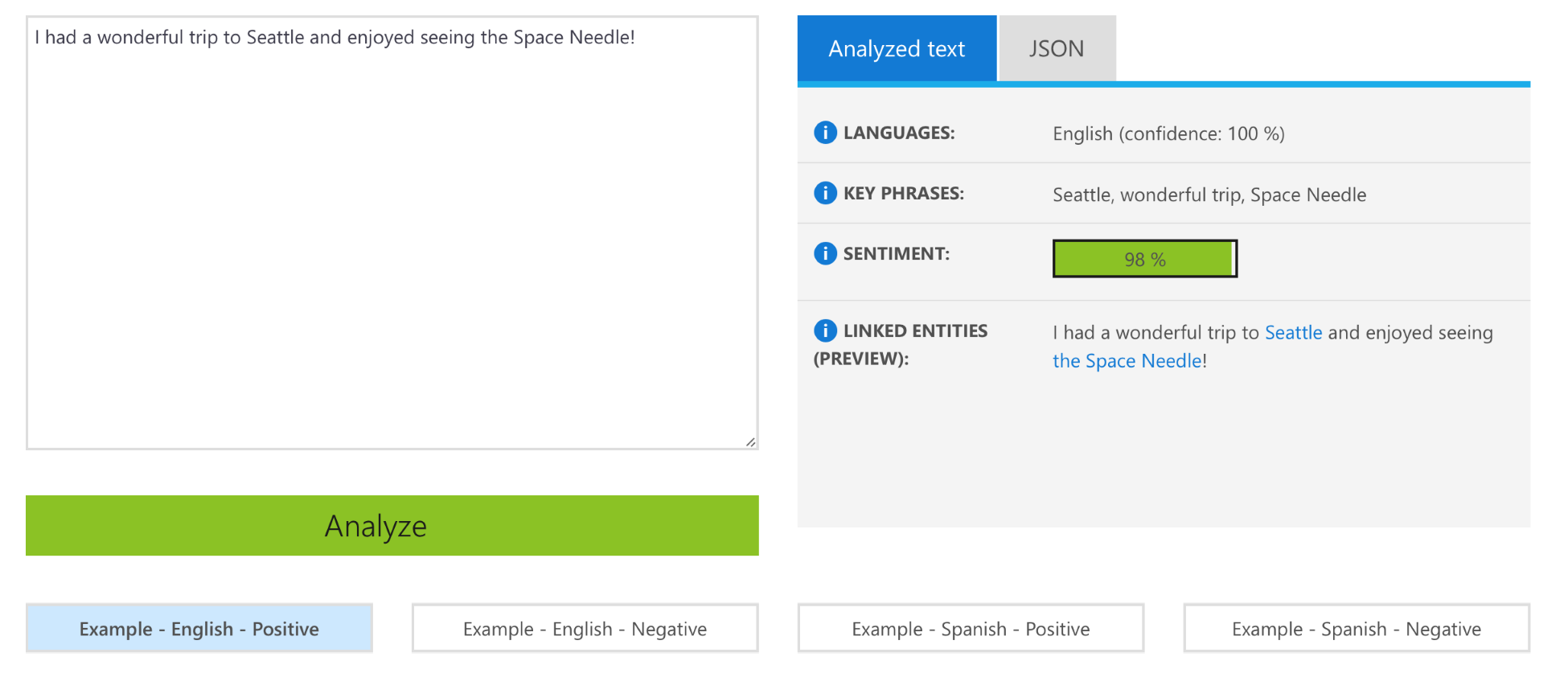

Another practical application is entity linking. One good example of it can be found in the Microsoft Azure Text Analytics API, at https://azure.microsoft.com/is-is/services/cognitive-services/text-analytics/. The following screenshot shows output from a sample text:
The preceding screenshot shows how the system has automatically extracted the entity Seattle as a place. Interestingly, it has also correctly extracted the Space Needle as a landmark place, by linking it with Seattle. This shows how powerful named entity linking can be when extracting useful relationships between entities.
Machine translation is the task of translating a given piece of text from one language to another target language. The language of the task is first identified, and then translated into the target language. The translation app from Google has proven very useful for traveling and has taken down language barriers. The latest techniques have improved the translation accuracy by a large margin.
Following is an example of translation from
English, using Google Translate at https://cloud.google.com/translate/:
The preceding screenshot also shows the JSON response of the translated text, when we use the Translation API service from Google (https://cdn-images-1.medium.com/max/1600/1*3f4l4lrLFFhgvVsvjhNzAQ.jpeg).
Natural Language Inference (NLI) tasks classify the relationship between a premise and hypothesis. During inference, a premise and hypothesis are given as input to output whether a hypothesis is true based on a given premise.
Semantic Role Labeling (SRL) determines the relationship between a given sentence and a predicate, such as a verb. Sometimes, the inference is provided as a question. An example of a role might be: where or when did something happen? The following is a visualization from http://demo.allennlp.org/semantic-role-labeling:
The preceding visualization shows semantic labeling, which created semantic associations between the different pieces of text, such as
needed for the purpose
he building. The reader may experiment with different examples using the URL link provided earlier.

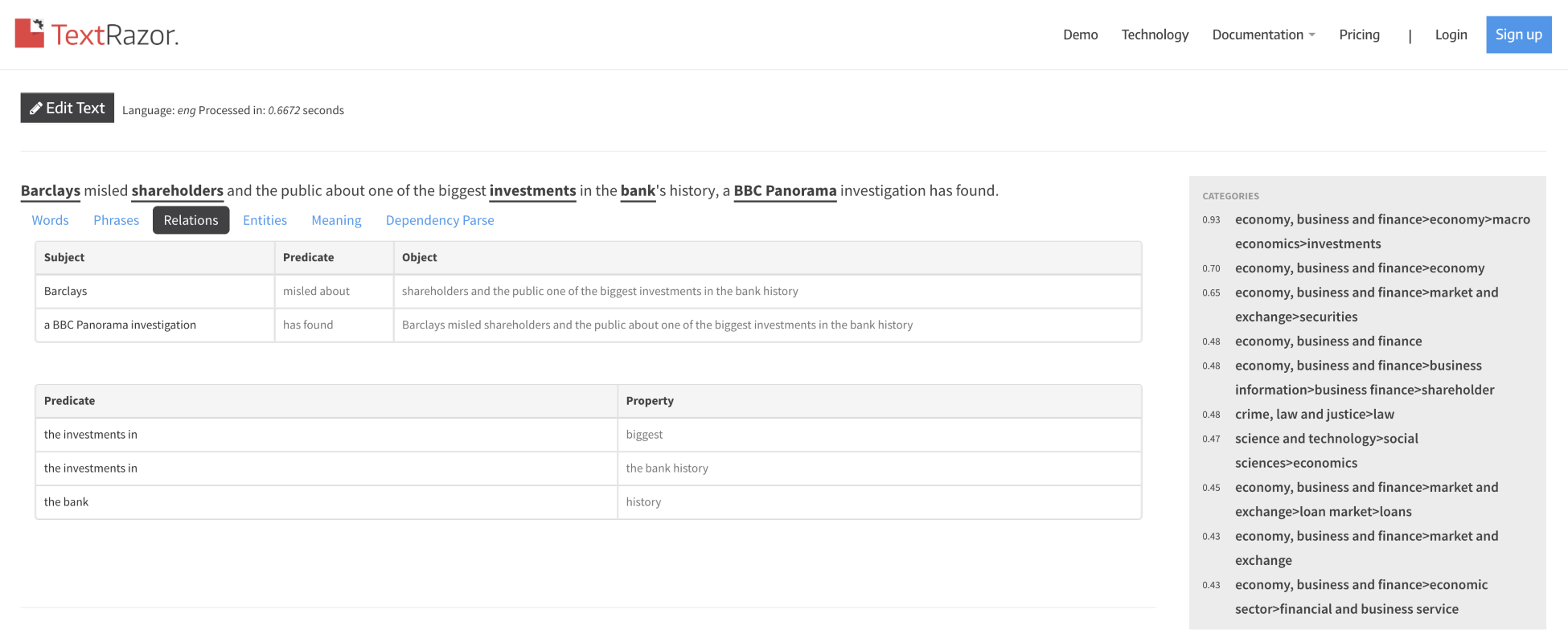

Relation extraction predicts a relationship when a text and type of relation are provided. There may be cases where the relationships can't be extracted. The following screenshot shows an example of relation extraction, based on predicates and objects:
Example of relation extraction
The preceding example shows relationship extraction from the sample text to a subject, a predicate, and objects.
Semantic parsing helps to convert a natural language into SQL queries in order to query a database. The following screenshot shows an example of converting a free text query to a DBpedia database SPARQL query, which is quite similar to SQL:
The preceding visualization shows the query
Who is Tom Cruise, converted into a SPARQL query at the bottom. You can experiment with other queries at http://quepy.machinalis.com/.
Machine Comprehension (MC) answers questions from a paragraph. It is akin to school children doing comprehension tests. The following screenshot is a visualization from http://demo.allennlp.org/machine-comprehension, for the question
Who stars in The Matrix? The answer is shown in the screenshot, along with the paragraph:
We can also see a visualization of how the model works, by highlighting certain words:
Textual Entailment (TE) predicts whether the facts in different texts are the same. The following is a visualization from http://demo.allennlp.org/textual-entailment:
The premise is:
If you help the needy, God will reward you. The hypothesis is:
Giving money to the poor has good consequences. The probabilities of Entailment, Contradiction, and Neutral are presented.
Pronoun resolution resolves the pronouns in a text when there are several people interacting. The following is a visualization from http://demo.allennlp.org/coreference-resolution:
Searching websites for information is an integral part of accessing the internet, and is an application of NLP. The search services are provided by Bing API, from https://azure.microsoft.com/en-us/services/cognitive-services/bing-web-search-api/:
Search results displaying Yosemite National Park
Search APIs can be integrated with applications for a better user experience.
For question answering systems, a context is supplied with a question in order to generate an answer. The schema of a chatbot is shown in the following screenshot from https://aws.amazon.com/lex/details/:
Chatbots are application-specific, as integration varies among applications.
Let's look at how to use the AWS API for text-to-speech Amazon Polly. With the API, you can pass the text and convert it to speech. The audio file can be either streamed or downloaded.
The voice should be natural sounding, to connect with the user. Google can provide this in 30 different voices, in 12 different languages. The speed and pitch can be adjusted. Go to https://cloud.google.com/text-to-speech/ and try out a demo. The following screenshot shows an example; all of the parameters can be tuned:
Tuning of parameters
Sometimes, a voice has to be converted to text. This is a speech recognition problem. The Google speech recognition system works in 120 languages. The audio can be streamed, or a prerecorded video can be sent. Formatting can be done for different categories, such as proper nouns and punctuation. The following example is from https://cloud.google.com/speech-to-text/:
There are different models provided, for videos, phone calls, and search-based audio. This works even when there is background noise, and the system can filter inappropriate content.

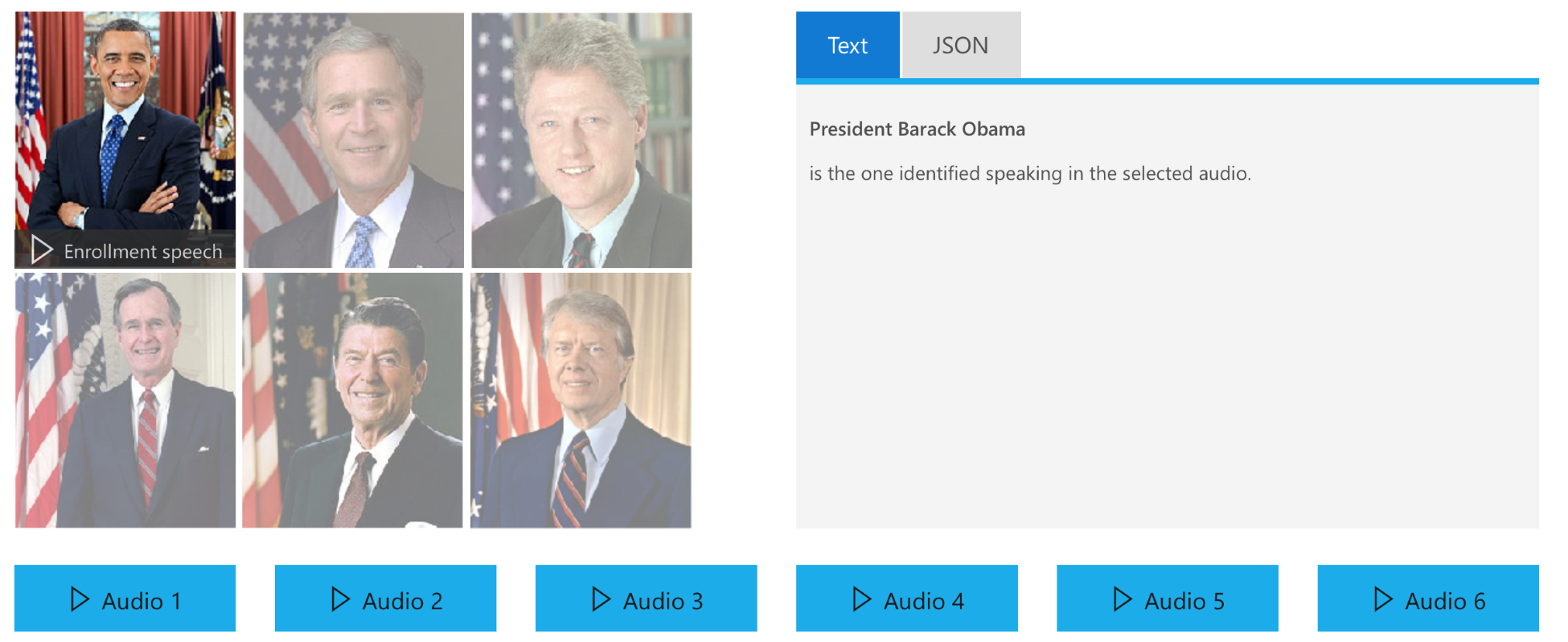

Speaker identification is the task of finding the name of the person that is speaking. Check out a demo at https://azure.microsoft.com/en-us/services/cognitive-services/speaker-recognition/#identification:
The voices of several people can be identified with audio clips.
Home assistants, such as Google Voice, Apple's Siri, and Amazon's Alexa, are examples of spoken dialog systems. All of the applications, such as chatbots, voice-to-text, text-to-voice, speaker identification, and searching, can be combined to form the experience of spoken dialog systems.
- Detecting spam: The emails that we receive can be classified as spam or not spam.
- News classification: It can be useful to classify a news item based on several categories.
- Identifying the speakers, gender, or age: From a piece of text, the writer's gender and age can be detected. Similar attributes can be marked with voice data.
- Discovering topics: The topics of an article can be identified.
- Generating text: Text generated by machines has a lot of interesting applications.
- Finding duplicates: Skype has launched a live translation feature that involves speech to text, machine translation, and text-to-speech.
- Summarizing text: The summarization task takes a text as input and outputs a summary of that text. The summary is usually much shorter than the original text. For example, after a meeting, the transcript text can be summarized and sent to everyone.
- Comprehending paragraphs: Paragraph comprehension is the high school task of answering questions, with respect to a given piece of prose.
- Constituency parsing: Constituency parsing predicts a tree composition of a sentence into its constituents http://demo.allennlp.org/constituency-parsing.
In this chapter, you learned the basics of NLP and saw several applications where it can be useful. You saw some APIs provided by cloud providers that are used to access NLP applications. Having seen the cloud products, you will learn the science behind the applications in future chapters.
In the next chapter, we will look at the basics of the NLTK library. We will cover basic feature engineering and will program a simple task for text classification.
