I like to say that Azure is simple… until you go multi-region. The transition from a well-designed single-region architecture to a truly resilient multi-region setup is where simplicity gives way to nuance. Concepts that seemed abstract (high availability versus disaster recovery, failover semantics, DNS behavior, data replication guarantees) suddenly become very real, very concrete, and sometimes painfully operational.

This article is written for architects and senior platform engineers, who already understand the fundamentals but are required to build solutions that must remain available despite regional outages, service failures, or infrastructure-level incidents. The scope is intentionally narrowed to Recovery Time Objective (RTO). Data corruption, ransomware, and backup-based recovery are explicitly out of scope. Instead, the focus is on how applications and data services behave during live failover scenarios, and how architectural decisions, sometimes subtle ones, can make the difference between a seamless transition and a prolonged outage.

Through concrete examples using Azure SQL, Cosmos DB, and Azure Storage, this article explores how replication models, DNS design, private endpoints, and SDK behavior interact at runtime, and what architects must do to ensure their applications remain functional when regions fail.

Rather than focusing on theoretical patterns, the goal here is pragmatic—minimizing downtime and operational friction when things do go wrong. You’ll see diagrams, Terraform and deployment scripts, plus .NET code samples you can adapt for your own DR tests and game days.

Before getting into the details, let’s briefly revisit the difference between high availability (HA) and disaster recovery (DR).

HA and DR exist on a spectrum, with increasing levels of resilience depending on the type of failure you want to withstand:

Application-level failures: In some cases, you may simply want to tolerate application bugs—for example, a memory leak introduced by developers. Running multiple instances of the application on separate virtual machines, even on the same physical host, can already prevent a full outage when one instance exhausts its allocated memory. That is for instance, what you would get if you spin up 2 instances of an Azure App Service within the same zone (no zone redundancy).

Hardware failures: To handle hardware failures, workloads should be distributed across multiple racks. That is what you would get if you’d host virtual machines on availability sets.

Data centre–level outages: To withstand more severe incidents, workloads should be spread across multiple data centers, such as by deploying them across multiple availability zones. You can achieve this by turning on zone-redundancy on Azure App Service or use zone-redundant node pools in AKS. With such a setup, you should survive a local disaster such as fire, flooding, etc.

Regional outages: Finally, to survive major outages, such as a major earthquake, a country-level power supply issue, etc., workloads must be deployed across geographically distant data centers. You can achieve this by deploying workloads across multiple Azure regions in active/active or active/passive mode.

Looking at Azure SQL

Let’s first analyse the different data replication possibilities with Azure SQL. Table 1 summarizes the different capabilities.

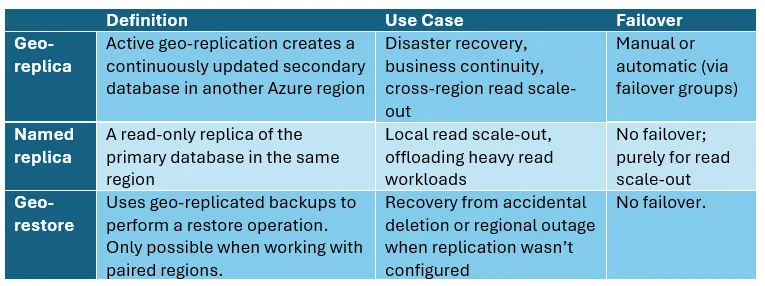

Table 1 – Replication capabilities

We’ll set aside named replicas and geo-restore, as the former does not contribute to disaster recovery and the latter is likely to introduce significant downtime and potential data loss. This leaves geo-replication as the remaining option. As you might have understood by now, using Azure SQL’s built-in capabilities, you cannot achieve a full ACTIVE/ACTIVE setup since it doesn’t support multi-region writes. This means that you can only have one read-write region and the secondary region(s) are read only.

Table 2 outlines the two available geo-replication techniques.

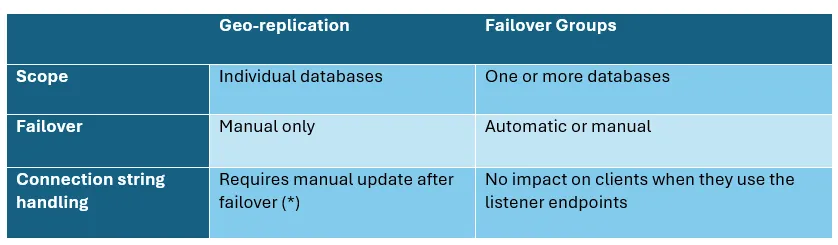

Table 2 – Geo replication options

Active geo-replication may require updates to connection strings or DNS records to point to the new primary after a failover. That said, the actual impact depends on where (*) the client application is located as well as how you deploy to both regions. Let’s look at this in more detail. Figure 1 illustrates an active geo-replication setup between Belgium Central and France Central.

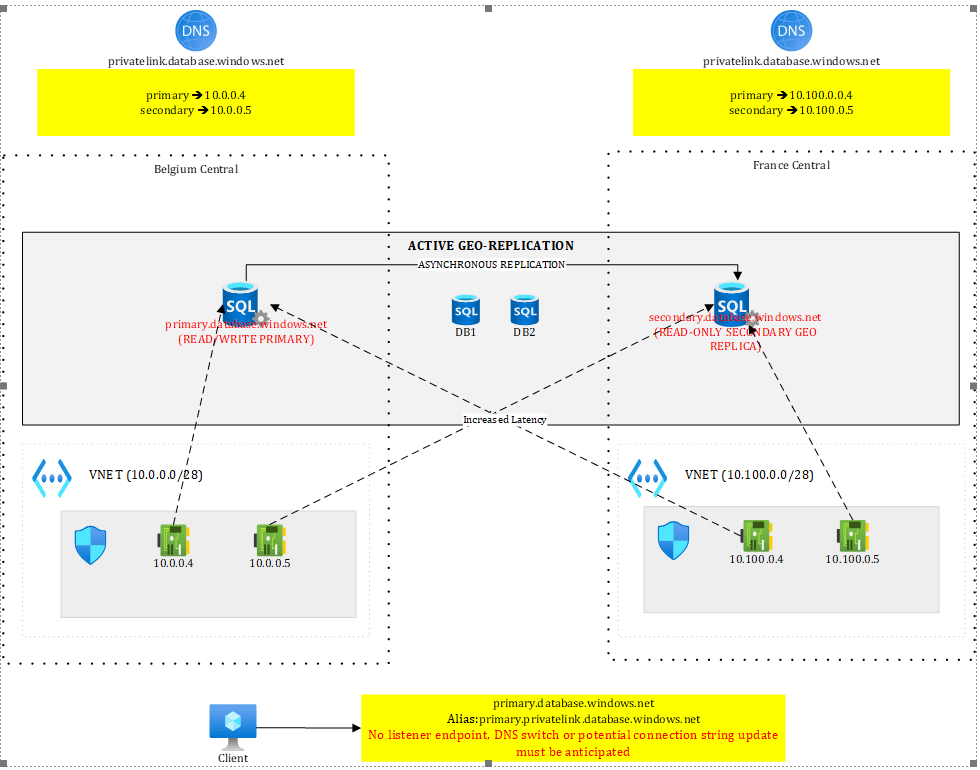

Figure 1 – SQL geo replication with active geo replication

In such a setup, under normal circumstances:

The configuration shown in Figure 1 supports a database-only failover. Both regions expose private endpoints to both SQL servers and rely on region-scoped DNS zones.

Although Private DNS zones are global by design, keeping them regional allows each region to resolve both the primary and secondary servers. This requires four DNS records in total—primary and secondary endpoints registered in each regional zone.

With a single shared DNS zone, this would not be possible: while all four private endpoints could be deployed, only two DNS records would be registered, since the endpoints map to just two FQDNs (primary and secondary). While this approach works, it keeps the regions siloed and prevents any cross-region traffic. From a resilience standpoint, it is preferable to provide as many fallback paths as possible.

Moreover, as we will see later, with other resources such as Storage Accounts, a single DNS zone would force us to update the DNS records upon failover, causing a minimal downtime. Bottom line: using multiple DNS zones prevents issues during failover.

Back to active geo replication! In case of failover, SQL servers switch roles: the primary becomes secondary and vice versa. This concretely means that the connection string primary.database.windows.net targets the read/write region in a normal situation but a read-only or unavailable one after failover. Workloads using this connection string would either stop working (if the regional outage persist), either talk to a read-only database instead of a read-write one, once the failover completed. Similarly, the connection string secondary.database.windows.net usually targeting the read-only region under normal circumstances now targets the read-write one after failover.

Knowing this, a few options exist:

You can’t simply update DNS, meaning making secondary target primary and vice versa, because the FQDN (primary-or-secondary.database.windows.net) is validated by the target server, and the names must match—so redirecting it to a different server would simply fail.

In conclusion, when using active geo-replication as the replication technique, you should make your applications failover-aware (**) and pre-provision both connection strings and implement the failover/retry logic in the application code itself. You may wrap your Entity Framework context into a factory to abstract away the retry logic. Given we typically use a scoped lifetime, you may expect some HTTP requests to fail (in case of an API) but new instances targeting the right server would ultimately succeed without having to restart the application. You may as well use a geo-redundant Azure App Configuration and failover it along SQL, then switch the primary server connection string after failover. The SDK allows you to monitor a sentinel key and to reload the configuration without having to restart the application:
